840-3000Nm,Pneumatic Torque Wrench,AAW30A-1-Axion

840-3000Nm,Pneumatic Torque Wrench,AAW30A-2-Axion

840-3000Nm,Pneumatic Torque Wrench,AAW30A

5out of5 based on6 reviews | Write a review

No-Load Speed: 7Rpm
Customized support: OEM, ODM, OBM
Minimum Torque: 840Nm
Maximum Torque: 3000Nm
Accuracy: ±5%
Square Drive Size: 1”
Weight:7 kg
Manufacturer:Axion
Country of Origin:China
Minimum Order:1Piece
80-300Nm,Pneumatic Torque Wrench,AAW3A 150-500Nm,Pneumatic Torque Wrench,AAW5A 1350-4000Nm,Pneumatic Torque Wrench,AAW40A Decoding the Secrets of Your Hydraulic Hose: A Guide to Laylines 3600-12000Nm,Pneumatic Torque Wrench,AAW120A 3000-10000Nm,Pneumatic Torque Wrench,AAW100A 2400-8000Nm,Pneumatic Torque Wrench,AAW80A 1800-6000Nm,Pneumatic Torque Wrench,AAW60A 600-2000Nm,Pneumatic Torque Wrench,AAW20A 405-1350 Nm,Pneumatic Torque Wrench,AAW14A 240-800Nm,Pneumatic Torque Wrench,AAW8A Pneumatic Torque Wrench AAW Series

PDF DOWNLOAD

Description

Product Line: Industrial Tools

Customizable with special requirement

1. Extremely excellent power to weight ratio Wider torque range, suitable for multiple stations.

2. The use of multi pole gearbox has no competitive reliability Constant speed and stable output.

3. Gun design, in line with human mechanics, more portable.

4. Torque output in forward and reverse directions.

5. Low noise, non impact output torque.

6. Accuracy ± 5% (correct air supply pressure and volume are required).

Here are ten scenarios where Pneumatic Torque Wrenches are commonly used:

Automotive manufacturing and repair

Aerospace maintenance and assembly

Heavy equipment and machinery maintenance

Wind turbine assembly and repair

Railway maintenance and repair

Construction and structural assembly

Oil and gas pipeline maintenance

Mining equipment maintenance and repair

Material handling equipment maintenance and repair

Bridge and infrastructure construction

Pneumatic Torque Wrenches are commonly used in various industries where high torque output is required. They use compressed air to provide power and can deliver high torque output with great precision. They are widely used in heavy-duty applications and offer exceptional Performance and reliability.

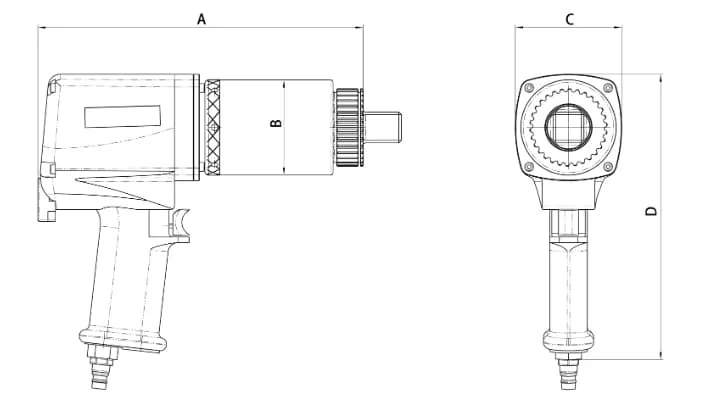

Dimensions

AAW-A Pneumatic Torque Wrench.jpg

Model	Drive square (inch)	Torque (Nm)	Wspeed (Rpm)	Weight (Kg)	Dimensions A (mm)	Dimensions B (mm)	Dimensions C (mm)	Dimensions D (mm)	Noise (db)
AAW30A	1"	840-3000	7	7	270	78	85	223	80

Series Comparison

Model	Drive Square	Torque	Speed	Weight	Dimensions				Noise
Model	Drive Square	(Nm)	(Rpm)	(Kg)	A	B	C	D	(db)
AAW3A	0.75”	80-300	52	3	183	62	72	218	80
AAW5A	0.75”	150-500	30	3	183	62	72	218	80
AAW8A	0.75”	240-800	18	4.7	265	69	69	223	80
AAW14A	0.75”(1”)	405-1350	12	4.7	265	69	69	223	80
AAW20A	1”	600-2000	10	6.6	273	76	85	223	80
AAW30A	1”	840-3000	7	7	270	78	85	223	80
AAW40A	1”(1.5”)	1350-4000	4	10.2	270	88	102	223	85
AAW60A	1.5”	1800-6000	2.5	11.7	289	93	102	265	85
AAW80A	1.5”	2400-8000	2.2	13.2	300	102	102	265	85
AAW100A	1.5”(2”)	3000-10000	1.8	19.6	386	114	114	268	85
AAW120A	1.5”(2”)	3600-12000	1.5	21	389	118	118	272	85

FAQs

What are the advantages of using a pneumatic torque wrench?

Answer: Pneumatic torque wrenches offer several advantages, including high torque output, speed, accuracy, repeatability, and durability. They are also easy to maintain and can be used in harsh environments.

How do you choose the right pneumatic torque wrench for your application?

Answer: To choose the right pneumatic torque wrench, consider factors such as torque range, drive size, length, weight, accuracy, and the specific application requirements. It is important to select a tool that can deliver the required torque with accuracy and consistency.
