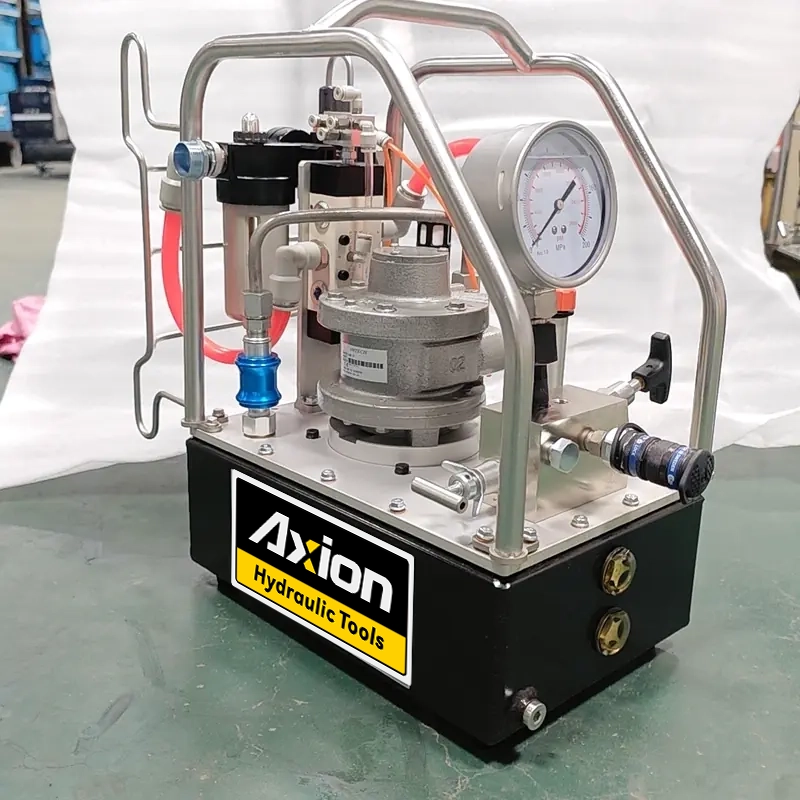

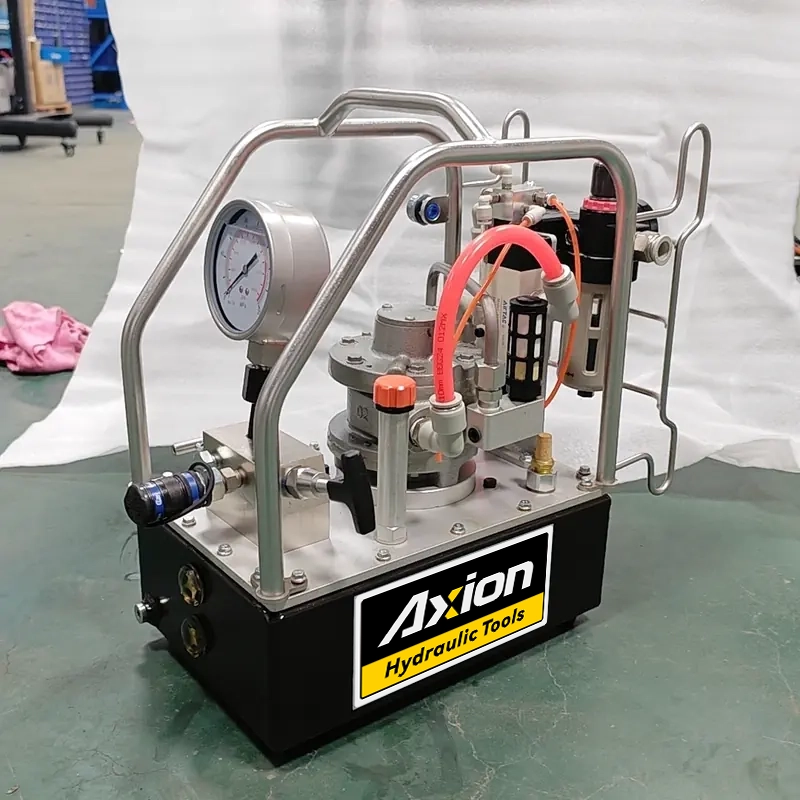

APA Series, Pneumation Pump Station for Bolt Tensioner
-
Usable Oil Capacity: 5 L
Oil Flow (L/min) High Pressure:0.37
Low Pressure:1.4
Pressure (bar):High Pressure:1500
Low Pressure:100
Weight: 23 KG
Dimensions:L x W x H(mm) 490*310*500
Manufacturer:Axion
Country of Origin:China
Minimum Order:1Piece
Description
Product Line: Industrial Tools
Customizable with special requirement
Input air pressure range 4-8 bar.
Super lightweight (23kg), easy to move around.
Output pressure range within 40-1500 bar.
Reliable cooling system assure the pump adaptable in extreme environment.
Durable aluminum oil tank with excllent heat dissipation, rustproof, easy handling.
No electric control system for explosion-proof.
Image Gallery

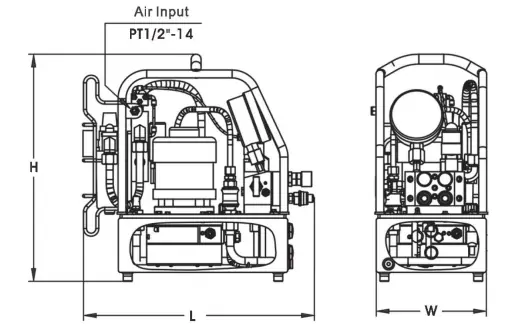

Dimensions
| Model No. | APA150 | |
| Oil Flow (L/min) | High Pressure | 0.37 |
| Low Pressure | 1.4 | |
| Pressure (bar) | High Pressure | 1500 |
| Low Pressure | 100 | |
| Usable Oil Capacity | L | 5 |
| Weight | Kg | 23 |
| Dimensions | L x W x H(mm) | 490*310*500 |
