P80 Two Speed,Single-acting Hydraulic Steel Hand Pump

5out of5 based on15 reviews | Write a review

Model:P80

Pump Type:Double Speed
Used with Cylinder:Single-Acting
Usable Oil Capacity: 2200cm³
Max.Operating Pressure: 700 bar
Pressure Rating 1st Stage: 25bar/348.1 psi
Pressure Rating 2nd Stage:700bar/10000 psi
Oil Displacement Per Stroke 1st Stage (cm³)16.22
Oil Displacement Per Stroke 2nd Stage (cm³)2.46
Weight:10.9 kg
Minimum Order:1Piece
Manufacturer:Axion
Country of Origin:China

Brand Name:Replacement Enerpac's P80
AHP Two Speed,Single-acting Hydraulic Steel Hand Pump P84 Two Speed, Hydraulic Steel Hand Pump,Double-Acting Cylinders P464 Two Speed,Steel Hydraulic Hand Pump, Double-Acting Cylinders P462 Two Speed, Steel Hydraulic Hand Pump Single Speed,10000 PSI,Steel Hydraulic Hand Pump Two Speed,10000 PSI,Steel Hydraulic Hand Pump AHP series hydraulic steel hand pumps

PDF DOWNLOAD

Description

Model:P80

Product Line: Industrial Tools

Customizable with special requirement

Axion offers high-pressure, two-speed manual hydraulic Hand Pumps in a robust,

lightweight steel design. Ideal for portability and demanding environments,

the pumps provide efficient operation with high flow for filling and high pressure for power.

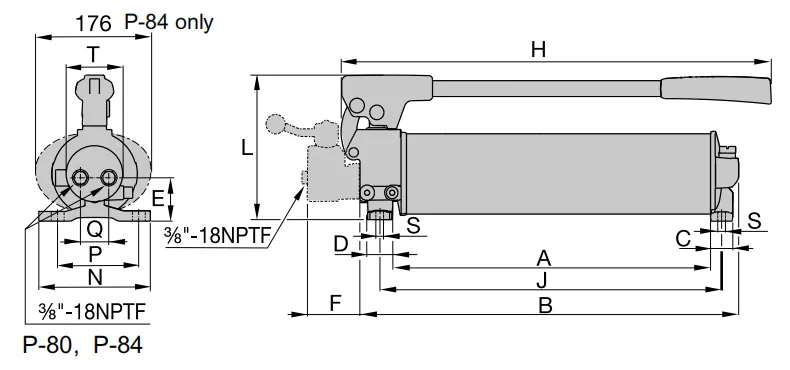

Dimensions

P80 Two Speed,Single-acting Hydraulic Steel Hand Pump

Model Number	A	B	C	D	E	F	H	J	L	M	N	P	Q	R	S	T
P80	425	539	25	44	54	-	527	29	174	19	146	121	-	21	8	67

Model Number	Pump Type	Usable Oil Capacity (cm³)	Pressure Rating (bar)	Oil Displacement per Stroke (cm³)	Max. Handle Effort (kg)	Piston Stroke (mm)	Weight (kg)
P80	Two Speed	2200	1^st stage: 25 2^nd stage: 700	1^st stage: 16.22 2^nd stage: 2.46	47	25.4	10.9

Model Number	Pump Type	Usable Oil Capacity (cm³)	Pressure Rating (bar)	Oil Displacement per Stroke (cm³)	Max. Handle Effort (kg)	Piston Stroke (mm)	Weight (kg)
P392	Double speed	655	1^st stage: 25 2^nd stage: 700	1^st stage: 15 2^nd stage: 2.62	50	20.6	5.9
P80		2200	1^st stage: 25 2^nd stage: 700	1^st stage: 16.22 2^nd stage: 2.46	47	25.4	10.9
P84		2200	1^st stage: 25 2^nd stage: 700	1^st stage: 16.22 2^nd stage: 2.46	49	25.4	13.2
P462		7423	1^st stage: 14 2^nd stage: 700	1^st stage: 26.20 2^nd stage: 4.75	49	38.1	27
P464		7423	1^st stage: 14 2^nd stage: 700	1^st stage: 26.20 2^nd stage: 4.75	49	38.1	27.7
