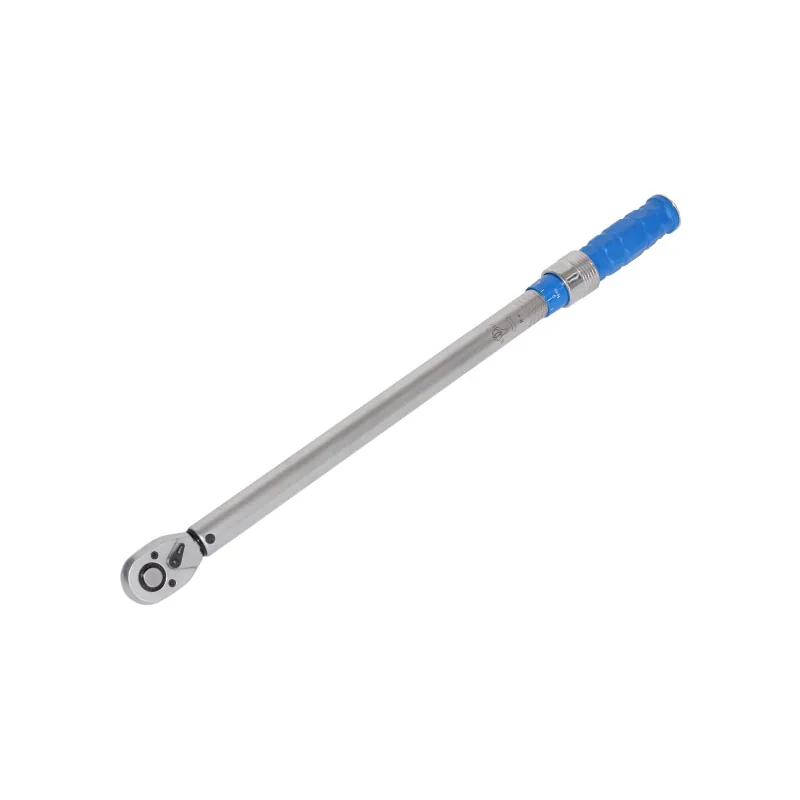

1/2,3/4 Inch Preset Torque Wrench,DP Series
-
Brand：Axion
Accuracy：±4%
Model Number：DP
Torque range(Nm)：1-500Nm
Driver(inch)：3/8，1/2，3/4 ,1/4
L/W/H(mm)：230-675/28-45/28-38
Weight(kg)：0.38-2.01
Place of Origin: China
Customized: OEM,ODM
Minimum Order: 1Piece
SKU:AXT-116-00444
- 3/4,3/8 Inch Preset Torque Wrench,TGK Series 3/4,1/2 Inch Preset Torque Wrench,TG Series 1/2,3/4 Inch Preset Torque Wrench,DA Series 4-10000 Nm Preset Torque Wrench,AC Series
Description
Product Line: Industrial Tools
Customizable with special requirement
The torque wrench body is made of metal structure, sturdy and durable, with a long service life.
Accuracy: The torque error value is ± 4%.
The ratchet head material is made of chrome vanadium alloy steel, which is sturdy and durable.
It can be easily reversed through reversing paddles
and is equipped with a quick release button, making single hand operation convenient and efficient.
The plastic handle of the wrench is made of imported materials,
which has the characteristics of oil resistance, anti slip, anti drop, and durability.
The permanent torque scale on the alloy steel pipe
is easy for users to read and can be compared in metric and English systems.
Each torque wrench has a unique product identification code.
Dimensions
| DP type preset torque wrench | |||||||||
| Model Number | Torque range | Driver/inch | Fine Scale/N.m | Length/mm | Width/mm | Height/mm | Weight/Kg | ||
| N.m | Lbf.ft | N.m | Lbf.ft | ||||||
| DP19601 | 1-5 | 2-9 | 1/4" | 0.05 | 0.067 | 230 | 28 | 28 | 0.38 |
| DP19602 | 2-12 | 2-9 | 1/4"、 3/8" | 0.1 | 0.074 | 230 | 34 | 30 | 0.5 |
| DP19603 | 4-20 | 3-15 | 1/4"、 3/8" | 0.2 | 0.147 | 230 | 34 | 30 | 0.55 |
| DP19604 | 5-25 | 4-19 | 1/4"、 3/8" | 0.2 | 0.147 | 230 | 34 | 30 | 0.55 |
| DP19605 | 6-30 | 5-23 | 3/8" | 0.2 | 0.147 | 290 | 34 | 30 | 0.58 |
| DP19606 | 10-60 | 9-46 | 3/8"、 1/2" | 0.5 | 0.369 | 290 | 41 | 34 | 0.98 |
| DP19607 | 10-100 | 7-75 | 1/2" | 0.5 | 0.369 | 410 | 41 | 34 | 1 |
| DP19608 | 20-100 | 15-75 | 1/2" | 0.5 | 0.369 | 410 | 41 | 34 | 1 |
| DP19609 | 25-125 | 20-94 | 1/2" | 0.5 | 0.369 | 410 | 41 | 34 | 1 |
| DP19610 | 40-200 | 30-150 | 1/2" | 1.0 | 0.738 | 470 | 41 | 34 | 1.06 |
| DP19611 | 20-210 | 15-155 | 1/2" | 1.0 | 0.738 | 470 | 41 | 34 | 1.06 |
| DP19612 | 60-300 | 45-226 | 3/4" | 1.0 | 0.738 | 625 | 45 | 38 | 1.99 |
| DP19613 | 65-335 | 50-250 | 3/4" | 1.0 | 0.738 | 625 | 45 | 38 | 1.99 |
| DP19614 | 65-350 | 50-260 | 3/4" | 1.0 | 0.738 | 625 | 45 | 38 | 1.99 |
| DP19615 | 80-400 | 60-300 | 3/4" | 2.0 | 1.475 | 675 | 45 | 38 | 2.01 |
| DP19616 | 100-500 | 80-376 | 3/4" | 2.0 | 1.475 | 675 | 45 | 38 | 2.01 |
FAQs
How do you use a preset torque wrench?
To use a preset torque wrench, first determine the correct torque value and adjust
the wrench to the desired value by turning the handle or knob until the scale aligns
with the required torque setting. Then, attach the appropriate socket or bit to the
wrench and tighten the fastener until you hear or feel a click, indicating that the
pre-set torque has been reached. If multiple fasteners need to be tightened to the
same torque value, ensure that the wrench is reset to the appropriate setting before each use.
What is a preset type torque wrench?
A preset type torque wrench is a specialized tool designed to apply a specific amount of torque to a fastener.
Unlike adjustable torque wrenches that allow users to set different torque values, a preset torque
wrench comes with a fixed torque setting determined by the manufacturer. These wrenches are commonly
used in assembly lines or situations where consistent and precise torque application is required.
