600-2000Nm,Pneumatic Torque Wrench,AAW20A
-
No-Load Speed: 10Rpm
Customized support: OEM, ODM, OBM
Minimum Torque: 600Nm
Maximum Torque: 2000Nm
Accuracy: ±5%
Square Drive Size: 1”
Weight:6.6 kg
Manufacturer:Axion
Country of Origin:China
Minimum Order:1Piece
SKU:AXT-112-00407
- 80-300Nm,Pneumatic Torque Wrench,AAW3A 150-500Nm,Pneumatic Torque Wrench,AAW5A 1350-4000Nm,Pneumatic Torque Wrench,AAW40A Decoding the Secrets of Your Hydraulic Hose: A Guide to Laylines 3600-12000Nm,Pneumatic Torque Wrench,AAW120A 3000-10000Nm,Pneumatic Torque Wrench,AAW100A 2400-8000Nm,Pneumatic Torque Wrench,AAW80A 1800-6000Nm,Pneumatic Torque Wrench,AAW60A 600-2000Nm,Pneumatic Torque Wrench,AAW20A 405-1350 Nm,Pneumatic Torque Wrench,AAW14A 240-800Nm,Pneumatic Torque Wrench,AAW8A Pneumatic Torque Wrench AAW Series
Description
Product Line: Industrial Tools
Customizable with special requirement
1. Extremely excellent power to weight ratio Wider torque range, suitable for multiple stations.
2. The use of multi pole gearbox has no competitive reliability Constant speed and stable output.
3. Gun design, in line with human mechanics, more portable.
4. Torque output in forward and reverse directions.
5. Low noise, non impact output torque.
6. Accuracy ± 5% (correct air supply pressure and volume are required).
Here are ten scenarios where Pneumatic Torque Wrenches are commonly used:
Automotive manufacturing and repair
Aerospace maintenance and assembly
Heavy equipment and machinery maintenance
Wind turbine assembly and repair
Railway maintenance and repair
Construction and structural assembly
Oil and gas pipeline maintenance
Mining equipment maintenance and repair
Material handling equipment maintenance and repair
Bridge and infrastructure construction
Pneumatic torque wrenches are commonly used in various industries where high torque output is required. They use compressed air to provide power and can deliver high torque output with great precision. They are widely used in heavy-duty applications and offer exceptional performance and reliability.

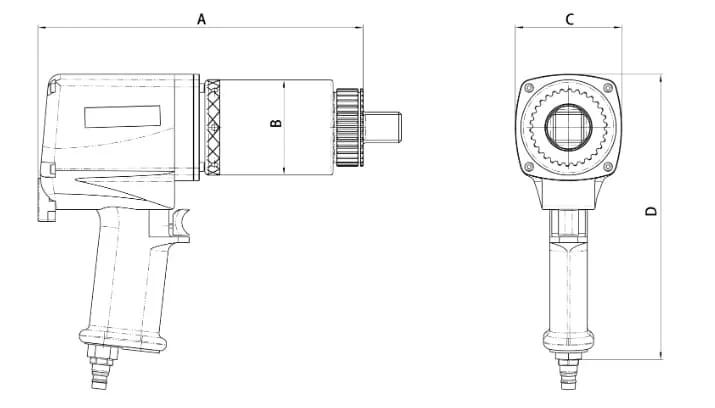

Dimensions
| Model | Drive square (inch) | Torque (Nm) | Wspeed (Rpm) | Weight (Kg) | Dimensions A (mm) | Dimensions B (mm) | Dimensions C (mm) | Dimensions D (mm) | Noise (db) |
|---|---|---|---|---|---|---|---|---|---|
| AAW20A | 1" | 600-2000 | 10 | 6.6 | 273 | 76 | 85 | 223 | 80 |
Series Comparison
| Model | Drive Square | Torque | Speed | Weight | Dimensions | Noise | |||
| (Nm) | (Rpm) | (Kg) | A | B | C | D | (db) | ||
| AAW3A | 0.75” | 80-300 | 52 | 3 | 183 | 62 | 72 | 218 | 80 |
| AAW5A | 0.75” | 150-500 | 30 | 3 | 183 | 62 | 72 | 218 | 80 |
| AAW8A | 0.75” | 240-800 | 18 | 4.7 | 265 | 69 | 69 | 223 | 80 |
| AAW14A | 0.75”(1”) | 405-1350 | 12 | 4.7 | 265 | 69 | 69 | 223 | 80 |
| AAW20A | 1” | 600-2000 | 10 | 6.6 | 273 | 76 | 85 | 223 | 80 |
| AAW30A | 1” | 840-3000 | 7 | 7 | 270 | 78 | 85 | 223 | 80 |
| AAW40A | 1”(1.5”) | 1350-4000 | 4 | 10.2 | 270 | 88 | 102 | 223 | 85 |
| AAW60A | 1.5” | 1800-6000 | 2.5 | 11.7 | 289 | 93 | 102 | 265 | 85 |
| AAW80A | 1.5” | 2400-8000 | 2.2 | 13.2 | 300 | 102 | 102 | 265 | 85 |
| AAW100A | 1.5”(2”) | 3000-10000 | 1.8 | 19.6 | 386 | 114 | 114 | 268 | 85 |
| AAW120A | 1.5”(2”) | 3600-12000 | 1.5 | 21 | 389 | 118 | 118 | 272 | 85 |
FAQs
How does a pneumatic torque wrench work?
Answer: A pneumatic torque wrench operates by using compressed air to drive a piston that rotates an output shaft. The output shaft is attached to a socket that fits onto the bolt or nut being tightened. As the air pressure increases, the output shaft turns with greater force to apply the required torque.
How accurate is a pneumatic torque wrench?
Answer:On average, a pneumatic torque wrench provides an accuracy of +/- 5%.
