3000-10000Nm,Pneumatic Torque Wrench,AAW100A
-
No-Load Speed:1.4Rpm
Customized support: OEM, ODM, OBM
Minimum Torque: 3000Nm
Maximum Torque: 10000Nm
Accuracy: ±5%
Square Drive Size: 1.5”/2”
Weight:19.4 kg
Manufacturer:Axion
Country of Origin:China
Minimum Order:1Piece
SKU:AXT-112-00415
- 80-300Nm,Pneumatic Torque Wrench,AAW3A 150-500Nm,Pneumatic Torque Wrench,AAW5A 1350-4000Nm,Pneumatic Torque Wrench,AAW40A Decoding the Secrets of Your Hydraulic Hose: A Guide to Laylines 3600-12000Nm,Pneumatic Torque Wrench,AAW120A 3000-10000Nm,Pneumatic Torque Wrench,AAW100A 2400-8000Nm,Pneumatic Torque Wrench,AAW80A 1800-6000Nm,Pneumatic Torque Wrench,AAW60A 600-2000Nm,Pneumatic Torque Wrench,AAW20A 405-1350 Nm,Pneumatic Torque Wrench,AAW14A 240-800Nm,Pneumatic Torque Wrench,AAW8A Pneumatic Torque Wrench AAW Series
Description
Product Line: Industrial Tools
Customizable with special requirement
1. Extremely excellent power to weight ratio Wider torque range, suitable for multiple stations.
2. The use of multi pole gearbox has no competitive reliability Constant speed and stable output.
3. Gun design, in line with human mechanics, more portable.
4. Torque output in forward and reverse directions.
5. Low noise, non impact output torque.
6. Accuracy ± 5% (correct air supply pressure and volume are required).
Here are ten scenarios where Pneumatic Torque Wrenches are commonly used:
Automotive manufacturing and repair
Aerospace maintenance and assembly
Heavy equipment and machinery maintenance
Wind turbine assembly and repair
Railway maintenance and repair
Construction and structural assembly
Oil and gas pipeline maintenance
Mining equipment maintenance and repair
Material handling equipment maintenance and repair
Bridge and infrastructure construction
Pneumatic torque wrenches are commonly used in various industries where high torque output is required. They use compressed air to provide power and can deliver high torque output with great precision. They are widely used in heavy-duty applications and offer exceptional performance and reliability.

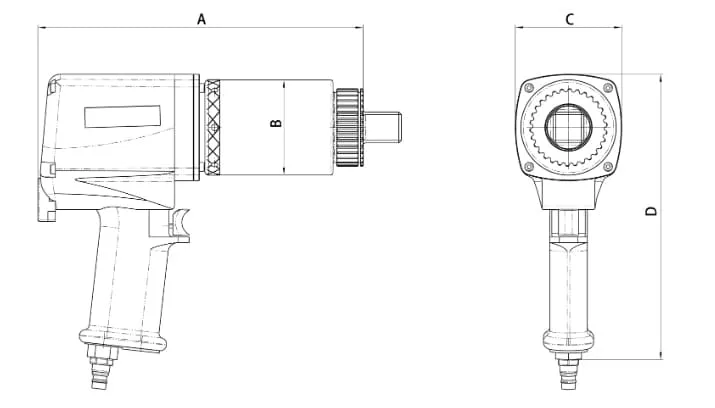

Dimensions
| Model | Drive square (inch) | Torque (Nm) | Wspeed (Rpm) | Weight (Kg) | Dimensions A (mm) | Dimensions B (mm) | Dimensions C (mm) | Dimensions D (mm) | Noise (db) |
|---|---|---|---|---|---|---|---|---|---|
| AAW100A | 1.5"/2" | 3000-10000 | 1.4 | 19.4 | 390 | 114 | 114 | 271 | 85 |
Image Gallery
Series Comparison
| Model | Drive Square | Torque | Speed | Weight | Dimensions | Noise | |||
| (Nm) | (Rpm) | (Kg) | A | B | C | D | (db) | ||
| AAW3A | 0.75” | 80-300 | 52 | 3 | 183 | 62 | 72 | 218 | 80 |
| AAW5A | 0.75” | 150-500 | 30 | 3 | 183 | 62 | 72 | 218 | 80 |
| AAW8A | 0.75” | 240-800 | 18 | 4.7 | 265 | 69 | 69 | 223 | 80 |
| AAW14A | 0.75”(1”) | 405-1350 | 12 | 4.7 | 265 | 69 | 69 | 223 | 80 |
| AAW20A | 1” | 600-2000 | 10 | 6.6 | 273 | 76 | 85 | 223 | 80 |
| AAW30A | 1” | 840-3000 | 7 | 7 | 270 | 78 | 85 | 223 | 80 |
| AAW40A | 1”(1.5”) | 1350-4000 | 4 | 10.2 | 270 | 88 | 102 | 223 | 85 |
| AAW60A | 1.5” | 1800-6000 | 2.5 | 11.7 | 289 | 93 | 102 | 265 | 85 |
| AAW80A | 1.5” | 2400-8000 | 2.2 | 13.2 | 300 | 102 | 102 | 265 | 85 |
| AAW100A | 1.5”(2”) | 3000-10000 | 1.8 | 19.6 | 386 | 114 | 114 | 268 | 85 |
| AAW120A | 1.5”(2”) | 3600-12000 | 1.5 | 21 | 389 | 118 | 118 | 272 | 85 |
FAQs
What is a pneumatic torque wrench?
Answer: A pneumatic torque wrench is a type of torque wrench that uses compressed air to generate torque. It is widely used in various industries for applications that require high torque output.
What are the common applications of pneumatic torque wrenches?
Answer: Pneumatic torque wrenches are commonly used in automotive manufacturing and repair, aerospace maintenance and assembly, heavy equipment and machinery maintenance, wind turbine assembly and repair, railway maintenance and repair, and many other industries where high torque output is required.
