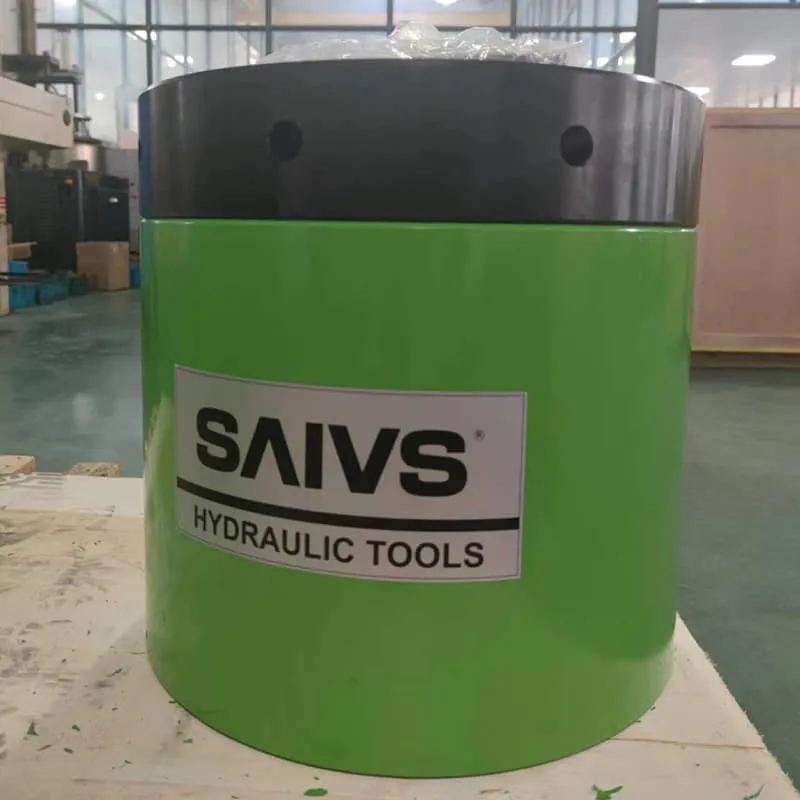

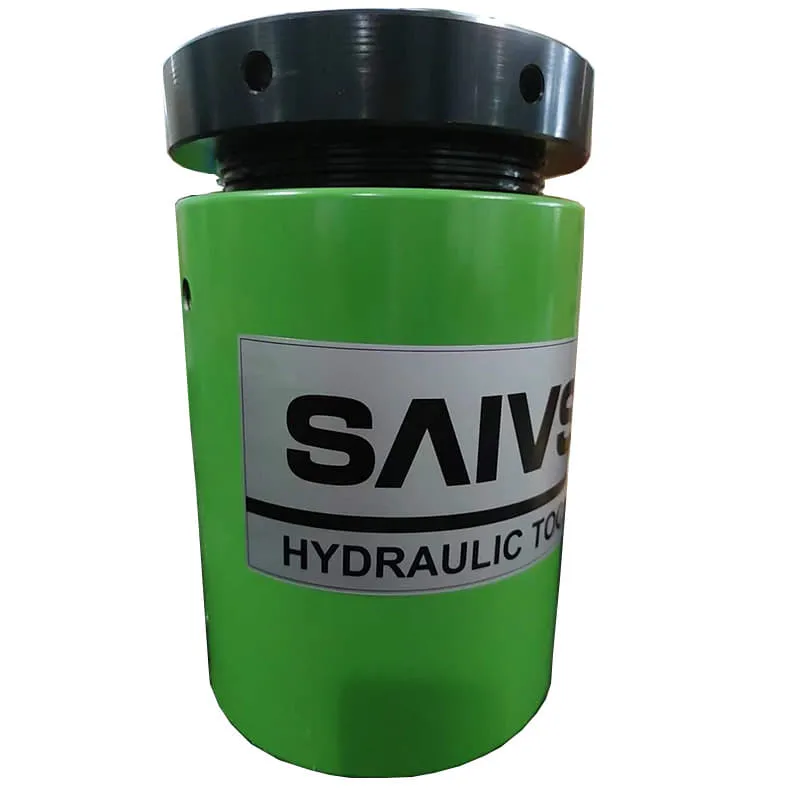

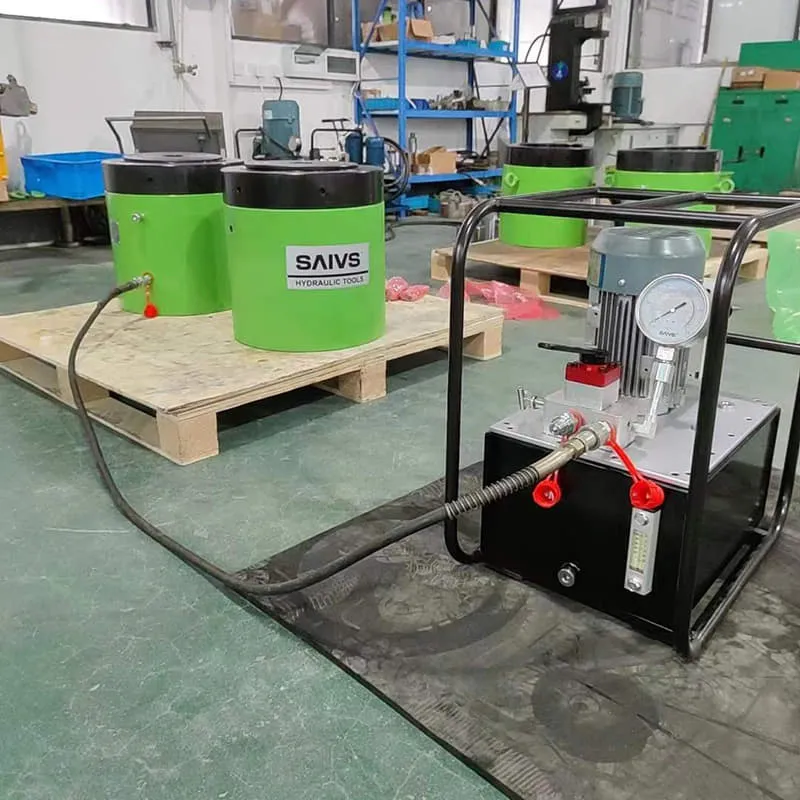

CLL Series Single-Acting High Tonnage Lock-Nut Hydraulic Cylinders
-
Model:CLL Series
Capacity: 50-800ton
Stroke: 50-300mm
weight:18-1306kg
Oil Capacity:392-37698(cm3)
Minimum Order:1Piece
Manufacturer:Axion
Country of Origin:China
Return Type:Single-Acting Spring Return
Plunger Type:Solid
Brand Name:Replacement Enerpac's CLL Series
- CLL80012 , 800 ton 8790 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut CylindersCLL8006 , 800 ton 8790 KN , 150 mm 5.91 in Stroke, Single Acting Lock Nut CylindersCLL8002 , 800 ton 8790 KN , 50 mm 1.97 in Stroke, Single Acting Lock Nut CylindersCLL60012 , 600 ton 6300 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut CylindersCLL6006 , 600 ton 6300 KN , 150 mm 5.91 in Stroke, Single Acting Lock Nut CylindersCLL6002 , 600 ton 6300 KN , 50 mm 1.97 in Stroke, Single Acting Lock Nut CylindersCLL50012 , 500 ton 5114 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut CylindersCLL5006 , 500 ton 5114 KN , 150 mm 5.91 in Stroke, Single Acting Lock Nut CylindersCLL5002 , 500 ton 5114 KN , 50 mm 1.97 in Stroke, Single Acting Lock Nut CylindersCLL40012 , 400 ton 4308 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut CylindersCLL4006 , 400 ton 4308 KN , 150 mm 5.91 in Stroke, Single Acting Lock Nut CylindersCLL4002 , 400 ton 4308 KN , 50 mm 1.97 in Stroke, Single Acting Lock Nut CylindersCLL30012 , 300 ton 3434 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut CylindersCLL3006 , 300 ton 3434 KN , 150 mm 5.91 in Stroke, Single Acting Lock Nut CylindersCLL3002 , 300 ton 3434 KN , 50 mm 1.97 in Stroke, Single Acting Lock Nut CylindersCLL20012 , 200 ton 2198 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut CylindersCLL2006 , 200 ton 2198 KN , 150 mm 5.91 in Stroke, Single Acting Lock Nut CylindersCLL2002 , 200 ton 2198 KN , 50 mm 1.97 in Stroke, Single Acting Lock Nut CylindersCLL15012 , 150 ton 1588 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut CylindersCLL1508 , 150 ton 1588 KN , 200 mm 7.87 in Stroke, Single Acting Lock Nut CylindersCLL1506 , 150 ton 1588 KN , 150 mm 5.91 in Stroke, Single Acting Lock Nut CylindersCLL1504 , 150 ton 1588 KN , 100 mm 3.94 in Stroke, Single Acting Lock Nut CylindersCLL1502 , 150 ton 1588 KN , 50 mm 1.97 in Stroke, Single Acting Lock Nut CylindersCLL10012 , 100 ton 1077 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut CylindersCLL1008 , 100 ton 1077 KN , 200 mm 7.87 in Stroke, Single Acting Lock Nut CylindersCLL1006 , 100 ton 1077 KN , 150 mm 5.91 in Stroke, Single Acting Lock Nut CylindersCLL1004 , 100 ton 1077 KN , 100 mm 3.94 in Stroke, Single Acting Lock Nut CylindersCLL1002 , 100 ton 1077 KN , 50 mm 1.97 in Stroke, Single Acting Lock Nut CylindersCLL5012 , 50 ton 550 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut CylindersCLL508 , 50 ton 550 KN , 200 mm 7.87 in Stroke, Single Acting Lock Nut CylindersCLL506 , 50 ton 550 KN , 150 mm 5.91 in Stroke, Single Acting Lock Nut CylindersCLL504 , 50 ton 550 KN , 100 mm 3.94 in Stroke, Single Acting Lock Nut CylindersCLL502 , 50 ton 550 KN , 50 mm 1.97 in Stroke, Single Acting Lock Nut CylindersCLL Series Single-Acting High Tonnage Lock-Nut Hydraulic Cylinders
Description
Model:CLL Series
Product Line: Industrial Tools
Type: Hydraulic Cylinder Ram, Hydraulic Jacks
Customizable with special requirement
Single Acting, loads return.
Special painted surface to increase corrosion resistance.
Lock nut ensure the safety of long time load holding.
All model include quick couplings (NPT3/8"-18) and dust-proof cap.
Overflow port function could limit the stroke.
The exclusive guide Ring is designed absorbs eccentric loading without galling cylinder parts,reduces wear and extending life.
Removable hardened saddles protect plunger during lifting and pressing.
Double-Acting mechanical lock nut cylinder could be Customized.
Lock nut ensure the safety of long time load holding.
Top and side mounted lifting eyes.
Overflow port function could limit the stroke.
SMA-NPT3/8 coupler and dustcap.When low height with high force is required, SSL Series hydraulic pancake cylinders with lock nut offer the solution to lift the fiest few centimetres. ALL CLLSeries cylinders include integral tilt saddles with maximum tilt angles up to 5°.
Select appropriate pumps for offer optimum combination.Select Axion high quality high pressure hoses.

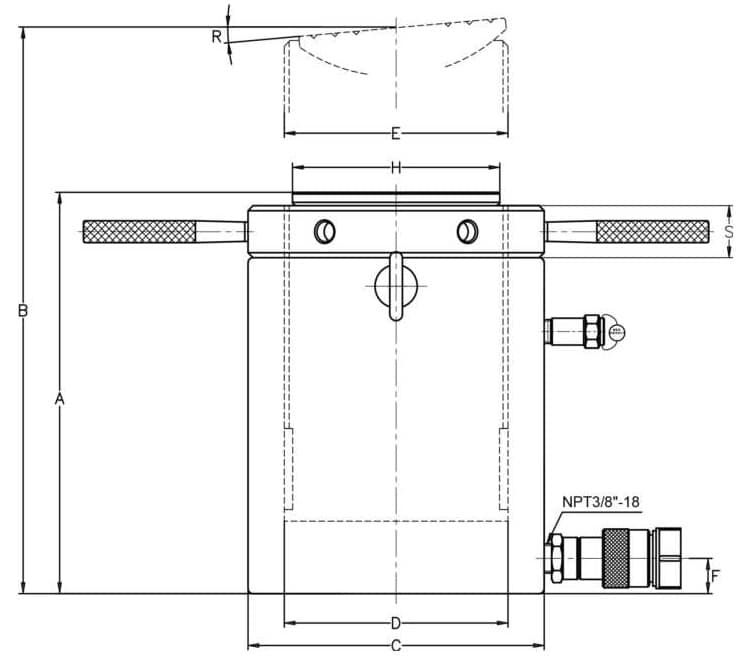

Dimensions
| Cylinder Capacity | Stroke | Model Number | Cylinder Effective Area | Oil Capacity | Collapsed Height | Extended Height | Outside Dia. | Cylinder Bore Dia | Plunger Dia.(Thread) | Base to Advance Port | Saddle Dia. | Saddle Max.Tilt Angle | Lock nut Height | Weight |
| A | B | C | D | E | F | H | R | S | ||||||
| ton(KN) | (mm) | (cm2) | (cm3) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | ||
| 50 (550) | 50 | CLL-502 | 78.5 | 392 | 192 | 242 | 140 | 100 | Tr99x4 | 24 | 90 | 5° | 30 | 18 |
| 100 | CLL-504 | 78.5 | 784 | 242 | 342 | 140 | 100 | Tr99x4 | 24 | 90 | 5° | 30 | 25 | |
| 150 | CLL-506 | 78.5 | 1176 | 292 | 442 | 140 | 100 | Tr99x4 | 24 | 90 | 5° | 30 | 33 | |
| 200 | CLL-508 | 78.5 | 1568 | 342 | 542 | 140 | 100 | Tr99x4 | 24 | 90 | 5° | 30 | 41 | |
| 300 | CLL-5012 | 78.5 | 2352 | 442 | 742 | 140 | 100 | Tr99x4 | 24 | 90 | 5° | 30 | 53 | |
| 100 (1077) | 50 | CLL-1002 | 153.9 | 770 | 213 | 263 | 188 | 140 | Tr139x6 | 26 | 130 | 5° | 40 | 46 |
| 100 | CLL-1004 | 153.9 | 1540 | 263 | 363 | 188 | 140 | Tr139x6 | 26 | 130 | 5° | 40 | 57 | |
| 150 | CLL-1006 | 153.9 | 2310 | 313 | 463 | 188 | 140 | Tr139x6 | 26 | 130 | 5° | 40 | 68 | |
| 200 | CLL-1008 | 153.9 | 3080 | 363 | 563 | 188 | 140 | Tr139x6 | 26 | 130 | 5° | 40 | 79 | |
| 300 | CLL-10012 | 153.9 | 4620 | 463 | 763 | 188 | 140 | Tr139x6 | 26 | 130 | 5° | 40 | 101 | |
| 150 (1588) | 50 | CLL-1502 | 226.9 | 1134 | 209 | 259 | 228 | 170 | Tr159x6 | 49 | 160 | 5° | 38 | 56 |
| 100 | CLL-1504 | 226.9 | 2269 | 259 | 359 | 228 | 170 | Tr159x6 | 49 | 160 | 5° | 38 | 70 | |
| 150 | CLL-1506 | 226.9 | 3403 | 309 | 459 | 228 | 170 | Tr159x6 | 49 | 160 | 5° | 38 | 83 | |
| 200 | CLL-1508 | 226.9 | 4538 | 359 | 559 | 228 | 170 | Tr159x6 | 49 | 160 | 5° | 38 | 97 | |
| 300 | CLL-15012 | 226.9 | 6806 | 459 | 759 | 228 | 170 | Tr159x6 | 49 | 160 | 5° | 38 | 124 | |
| 200 (2198) | 50 | CLL-2002 | 314 | 1570 | 243 | 293 | 268 | 200 | Tr199x6 | 51 | 186 | 5° | 52 | 93 |
| 150 | CLL-2006 | 314 | 4712 | 343 | 493 | 268 | 200 | Tr199x6 | 51 | 186 | 5° | 52 | 131 | |
| 300 | CLL-20012 | 314 | 9423 | 493 | 793 | 268 | 200 | Tr199x6 | 51 | 186 | 5° | 52 | 189 | |
| 300 (3434) | 50 | CLL-3002 | 490.6 | 2453 | 295 | 345 | 320 | 250 | Tr249x6 | 59 | 236 | 5° | 60 | 179 |
| 150 | CLL-3006 | 490.6 | 7359 | 395 | 545 | 320 | 250 | Tr249x6 | 59 | 236 | 5° | 60 | 240 | |
| 300 | CLL-30012 | 490.6 | 14718 | 545 | 845 | 320 | 250 | Tr249x6 | 59 | 236 | 5° | 60 | 331 | |
| 400 (4308) | 50 | CLL-4002 | 615.4 | 3077 | 335 | 385 | 370 | 280 | Tr279x6 | 70 | 256 | 5° | 70 | 266 |
| 150 | CLL-4006 | 615.4 | 9231 | 435 | 585 | 370 | 280 | Tr279x6 | 70 | 256 | 5° | 70 | 345 | |
| 300 | CLL-40012 | 615.4 | 18462 | 585 | 885 | 370 | 280 | Tr279x6 | 70 | 256 | 5° | 70 | 464 | |
| 500 (5114) | 50 | CLL-5002 | 803.8 | 4019 | 375 | 425 | 420 | 320 | Tr319x6 | 80 | 306 | 5° | 80 | 358 |
| 150 | CLL-5006 | 803.8 | 12057 | 475 | 625 | 420 | 320 | Tr319x6 | 80 | 306 | 5° | 80 | 454 | |
| 300 | CLL-50012 | 803.8 | 24114 | 625 | 925 | 420 | 320 | Tr319x6 | 80 | 306 | 5° | 80 | 597 | |
| 600 (6300) | 50 | CLL-6002 | 1017.4 | 5087 | 395 | 445 | 500 | 360 | Tr359x6 | 85 | 346 | 5° | 85 | 490 |
| 150 | CLL-6006 | 1017.4 | 15261 | 495 | 645 | 500 | 360 | Tr359x6 | 85 | 346 | 5° | 85 | 614 | |
| 300 | CLL-60012 | 1017.4 | 30522 | 645 | 945 | 500 | 360 | Tr359x6 | 85 | 346 | 5° | 85 | 800 | |
| 800 (8790) | 50 | CLL-8002 | 1256 | 6280 | 455 | 505 | 550 | 400 | Tr399x6 | 100 | 386 | 5° | 100 | 843 |
| 150 | CLL-8006 | 1256 | 18840 | 555 | 705 | 550 | 400 | Tr399x6 | 100 | 386 | 5° | 100 | 1028 | |
| 300 | CLL-80012 | 1256 | 37698 | 705 | 1005 | 550 | 400 | Tr399x6 | 100 | 386 | 5° | 100 | 1306 |
FAQs
what is a single-acting high tonnage lock-nut hydraulic cylinder?
answer: a single-acting high tonnage lock-nut hydraulic cylinder is a type of hydraulic cylinder that uses high-pressure fluid to generate force in one direction and has a lock-nut feature to hold the piston in place when not in use.
what is the maximum tonnage capacity for these cylinders?
answer: the maximum tonnage capacity for single-acting high tonnage lock-nut hydraulic cylinders varies depending on the model and manufacturer, but they can range from 50 tons to over 1,000 tons.
how do i choose the right size cylinder for my application?
answer: to choose the right size cylinder for your application, you need to consider factors such as the weight or force of the load, the distance the cylinder needs to travel, and the speed at which it needs to move. you should consult with a hydraulic systems expert or the manufacturer for guidance.
what kind of hydraulic fluid should i use with these cylinders?
answer: the type of hydraulic fluid you should use with single-acting high tonnage lock-nut hydraulic cylinders depends on the manufacturer's specifications, but most commonly used fluids include mineral oil-based hydraulic oil, water glycol, and synthetic hydraulic fluids.
how do i maintain and service these cylinders?
answer: regular maintenance and service are essential to keep single-acting high tonnage lock-nut hydraulic cylinders in good working condition. this includes checking for leaks, ensuring proper alignment and connection, replacing worn-out seals and hydraulic fluid, lubricating moving parts, and inspecting for signs of wear and tear. you should follow the manufacturer's recommendations for maintenance intervals and procedures.
Application
Construction equipment often requires precise positioning for maintenance and repair tasks, and hydraulic cylinder jacks provide the necessary lifting capability.
These jacks help support and position critical structural elements during construction, ensuring proper alignment and safety.
Hydraulic cylinder jacks are used to position bridge sections and beams during construction, allowing for accurate alignment and secure installation.
Hydraulic cylinder jacksaid in lifting and positioning heavy materials and equipment within manufacturing facilities.
Event organizers use hydraulic cylinder jacks to adjust the height of stages and platforms for performances and presentations.
Overhead cranes require precise positioning during installation, which hydraulic cylinder jacksfacilitate.
In the renewable energy sector, hydraulic cylinder jacks are used to position and adjust solar panel arrays for optimal sun exposure and energy generation.
