CLL504 , 50 ton 550 KN , 100 mm 3.94 in Stroke, Single Acting Lock Nut Cylinders
-
Model:CLL504
Capacity:50 ton | 550 KN
Stroke:100 mm | 3.94 inches
Weight:25 kg | 55.1 lbs
Cylinder Effective Area:78.5 m²
Oil Capacity:784 cm³
Return Type:Single-Acting Load Return
Plunger Type:Solid
Brand Name:Replacement Enerpac's CLL504
- CLL80012 , 800 ton 8790 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut CylindersCLL8006 , 800 ton 8790 KN , 150 mm 5.91 in Stroke, Single Acting Lock Nut CylindersCLL8002 , 800 ton 8790 KN , 50 mm 1.97 in Stroke, Single Acting Lock Nut CylindersCLL60012 , 600 ton 6300 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut CylindersCLL6006 , 600 ton 6300 KN , 150 mm 5.91 in Stroke, Single Acting Lock Nut CylindersCLL6002 , 600 ton 6300 KN , 50 mm 1.97 in Stroke, Single Acting Lock Nut CylindersCLL50012 , 500 ton 5114 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut CylindersCLL5006 , 500 ton 5114 KN , 150 mm 5.91 in Stroke, Single Acting Lock Nut CylindersCLL5002 , 500 ton 5114 KN , 50 mm 1.97 in Stroke, Single Acting Lock Nut CylindersCLL40012 , 400 ton 4308 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut CylindersCLL4006 , 400 ton 4308 KN , 150 mm 5.91 in Stroke, Single Acting Lock Nut CylindersCLL4002 , 400 ton 4308 KN , 50 mm 1.97 in Stroke, Single Acting Lock Nut CylindersCLL30012 , 300 ton 3434 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut CylindersCLL3006 , 300 ton 3434 KN , 150 mm 5.91 in Stroke, Single Acting Lock Nut CylindersCLL3002 , 300 ton 3434 KN , 50 mm 1.97 in Stroke, Single Acting Lock Nut CylindersCLL20012 , 200 ton 2198 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut CylindersCLL2006 , 200 ton 2198 KN , 150 mm 5.91 in Stroke, Single Acting Lock Nut CylindersCLL2002 , 200 ton 2198 KN , 50 mm 1.97 in Stroke, Single Acting Lock Nut CylindersCLL15012 , 150 ton 1588 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut CylindersCLL1508 , 150 ton 1588 KN , 200 mm 7.87 in Stroke, Single Acting Lock Nut CylindersCLL1506 , 150 ton 1588 KN , 150 mm 5.91 in Stroke, Single Acting Lock Nut CylindersCLL1504 , 150 ton 1588 KN , 100 mm 3.94 in Stroke, Single Acting Lock Nut CylindersCLL1502 , 150 ton 1588 KN , 50 mm 1.97 in Stroke, Single Acting Lock Nut CylindersCLL10012 , 100 ton 1077 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut CylindersCLL1008 , 100 ton 1077 KN , 200 mm 7.87 in Stroke, Single Acting Lock Nut CylindersCLL1006 , 100 ton 1077 KN , 150 mm 5.91 in Stroke, Single Acting Lock Nut CylindersCLL1004 , 100 ton 1077 KN , 100 mm 3.94 in Stroke, Single Acting Lock Nut CylindersCLL1002 , 100 ton 1077 KN , 50 mm 1.97 in Stroke, Single Acting Lock Nut CylindersCLL5012 , 50 ton 550 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut CylindersCLL508 , 50 ton 550 KN , 200 mm 7.87 in Stroke, Single Acting Lock Nut CylindersCLL506 , 50 ton 550 KN , 150 mm 5.91 in Stroke, Single Acting Lock Nut CylindersCLL504 , 50 ton 550 KN , 100 mm 3.94 in Stroke, Single Acting Lock Nut CylindersCLL502 , 50 ton 550 KN , 50 mm 1.97 in Stroke, Single Acting Lock Nut CylindersCLL Series Single-Acting High Tonnage Lock-Nut Hydraulic Cylinders
Description
Model:CLL504
Product Line: Industrial Tools
Type: Hydraulic Cylinder Ram, Hydraulic Jacks
Customizable with special requirement
- Single Acting, loads return.
- Special painted surface to increase corrosion resistance.
- Lock nut ensures the safety of long-time load holding.
- All models include quick couplings (NPT3/8"-18) and dust-proof caps.
- Overflow port function could limit the stroke.
- The exclusive guide Ring is designed to absorb eccentric loading without galling cylinder parts, reducing wear and extending life.
- Removable hardened saddles protect the plunger during lifting and pressing.
- Top and side mounted lifting eyes.
- SMA-NPT3/8 coupler and dust cap. SSL Series hydraulic pancake cylinders with lock nuts can lift the first few centimeters when low height with high force is required. ALL CLLSeries cylinders include integral tilt saddles with maximum tilt angles up to 5°.
- Select appropriate pumps to offer optimum combination. Select Axion high-quality high-pressure hoses.

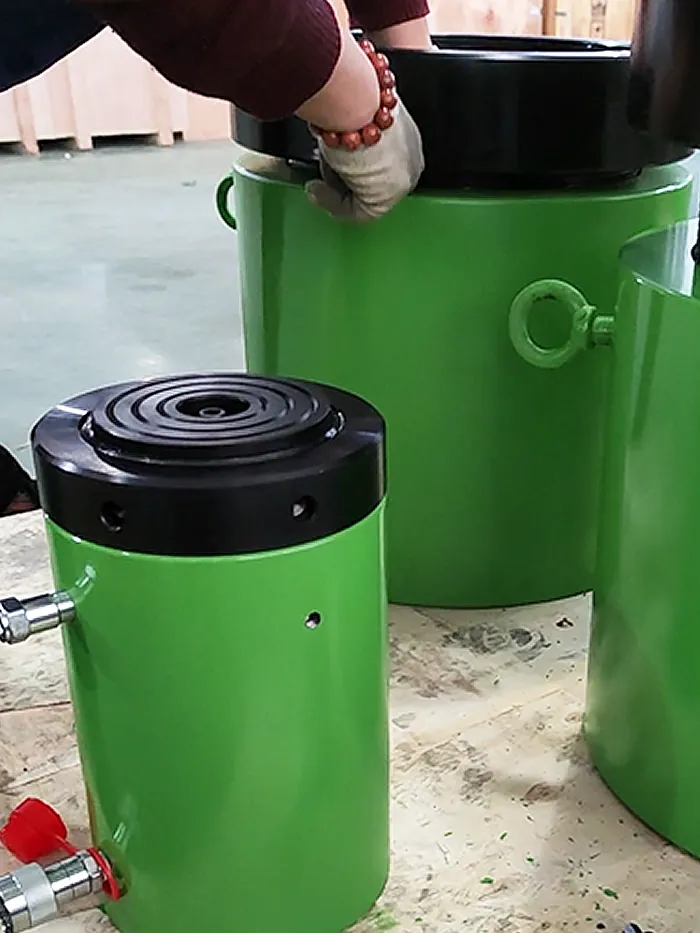

Image Gallery
Dimensions
| Collapsed Height | A | (mm) | 242 | |
| Extended Height | B | (mm) | 342 | |
| Outside Dia. | C | (mm) | 140 | |
| Cylinder Bore Dia | D | (mm) | 100 | |
| Plunger Dia.(Thread) | E | (mm) | Tr99x4 | |
| Base to Advance Port | F | (mm) | 24 | |
| Saddle Dia. | H | (mm) | 90 | |
| Saddle Max.Tilt Angle | R | 5° | ||
| Lock nut Height | S | (mm) | 30 | |
Series Comparison
| Cylinder Capacity | Stroke | Model Number | Cylinder Effective Area | Oil Capacity | Collapsed Height | Extended Height | Outside Dia. | Cylinder Bore Dia | Plunger Dia.(Thread) | Base to Advance Port | Saddle Dia. | Saddle Max.Tilt Angle | Lock nut Height | Weight |
| A | B | C | D | E | F | H | R | S | ||||||
| ton(KN) | (mm) | (cm2) | (cm3) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | ||
| 50 (550) | 50 | CLL-502 | 78.5 | 392 | 192 | 242 | 140 | 100 | Tr99x4 | 24 | 90 | 5° | 30 | 18 |
| 100 | CLL-504 | 78.5 | 784 | 242 | 342 | 140 | 100 | Tr99x4 | 24 | 90 | 5° | 30 | 25 | |
| 150 | CLL-506 | 78.5 | 1176 | 292 | 442 | 140 | 100 | Tr99x4 | 24 | 90 | 5° | 30 | 33 | |
| 200 | CLL-508 | 78.5 | 1568 | 342 | 542 | 140 | 100 | Tr99x4 | 24 | 90 | 5° | 30 | 41 | |
| 300 | CLL-5012 | 78.5 | 2352 | 442 | 742 | 140 | 100 | Tr99x4 | 24 | 90 | 5° | 30 | 53 | |
| 100 (1077) | 50 | CLL-1002 | 153.9 | 770 | 213 | 263 | 188 | 140 | Tr139x6 | 26 | 130 | 5° | 40 | 46 |
| 100 | CLL-1004 | 153.9 | 1540 | 263 | 363 | 188 | 140 | Tr139x6 | 26 | 130 | 5° | 40 | 57 | |
| 150 | CLL-1006 | 153.9 | 2310 | 313 | 463 | 188 | 140 | Tr139x6 | 26 | 130 | 5° | 40 | 68 | |
| 200 | CLL-1008 | 153.9 | 3080 | 363 | 563 | 188 | 140 | Tr139x6 | 26 | 130 | 5° | 40 | 79 | |
| 300 | CLL-10012 | 153.9 | 4620 | 463 | 763 | 188 | 140 | Tr139x6 | 26 | 130 | 5° | 40 | 101 | |
| 150 (1588) | 50 | CLL-1502 | 226.9 | 1134 | 209 | 259 | 228 | 170 | Tr159x6 | 49 | 160 | 5° | 38 | 56 |
| 100 | CLL-1504 | 226.9 | 2269 | 259 | 359 | 228 | 170 | Tr159x6 | 49 | 160 | 5° | 38 | 70 | |
| 150 | CLL-1506 | 226.9 | 3403 | 309 | 459 | 228 | 170 | Tr159x6 | 49 | 160 | 5° | 38 | 83 | |
| 200 | CLL-1508 | 226.9 | 4538 | 359 | 559 | 228 | 170 | Tr159x6 | 49 | 160 | 5° | 38 | 97 | |
| 300 | CLL-15012 | 226.9 | 6806 | 459 | 759 | 228 | 170 | Tr159x6 | 49 | 160 | 5° | 38 | 124 | |
| 200 (2198) | 50 | CLL-2002 | 314 | 1570 | 243 | 293 | 268 | 200 | Tr199x6 | 51 | 186 | 5° | 52 | 93 |
| 150 | CLL-2006 | 314 | 4712 | 343 | 493 | 268 | 200 | Tr199x6 | 51 | 186 | 5° | 52 | 131 | |
| 300 | CLL-20012 | 314 | 9423 | 493 | 793 | 268 | 200 | Tr199x6 | 51 | 186 | 5° | 52 | 189 | |
| 300 (3434) | 50 | CLL-3002 | 490.6 | 2453 | 295 | 345 | 320 | 250 | Tr249x6 | 59 | 236 | 5° | 60 | 179 |
| 150 | CLL-3006 | 490.6 | 7359 | 395 | 545 | 320 | 250 | Tr249x6 | 59 | 236 | 5° | 60 | 240 | |
| 300 | CLL-30012 | 490.6 | 14718 | 545 | 845 | 320 | 250 | Tr249x6 | 59 | 236 | 5° | 60 | 331 | |
| 400 (4308) | 50 | CLL-4002 | 615.4 | 3077 | 335 | 385 | 370 | 280 | Tr279x6 | 70 | 256 | 5° | 70 | 266 |
| 150 | CLL-4006 | 615.4 | 9231 | 435 | 585 | 370 | 280 | Tr279x6 | 70 | 256 | 5° | 70 | 345 | |
| 300 | CLL-40012 | 615.4 | 18462 | 585 | 885 | 370 | 280 | Tr279x6 | 70 | 256 | 5° | 70 | 464 | |
| 500 (5114) | 50 | CLL-5002 | 803.8 | 4019 | 375 | 425 | 420 | 320 | Tr319x6 | 80 | 306 | 5° | 80 | 358 |
| 150 | CLL-5006 | 803.8 | 12057 | 475 | 625 | 420 | 320 | Tr319x6 | 80 | 306 | 5° | 80 | 454 | |
| 300 | CLL-50012 | 803.8 | 24114 | 625 | 925 | 420 | 320 | Tr319x6 | 80 | 306 | 5° | 80 | 597 | |
| 600 (6300) | 50 | CLL-6002 | 1017.4 | 5087 | 395 | 445 | 500 | 360 | Tr359x6 | 85 | 346 | 5° | 85 | 490 |
| 150 | CLL-6006 | 1017.4 | 15261 | 495 | 645 | 500 | 360 | Tr359x6 | 85 | 346 | 5° | 85 | 614 | |
| 300 | CLL-60012 | 1017.4 | 30522 | 645 | 945 | 500 | 360 | Tr359x6 | 85 | 346 | 5° | 85 | 800 | |
| 800 (8790) | 50 | CLL-8002 | 1256 | 6280 | 455 | 505 | 550 | 400 | Tr399x6 | 100 | 386 | 5° | 100 | 843 |
| 150 | CLL-8006 | 1256 | 18840 | 555 | 705 | 550 | 400 | Tr399x6 | 100 | 386 | 5° | 100 | 1028 | |
| 300 | CLL-80012 | 1256 | 37698 | 705 | 1005 | 550 | 400 | Tr399x6 | 100 | 386 | 5° | 100 | 1306 |
Application
Hydraulic cylinder jacks are ideal for safely lifting and holding heavy industrial machinery while maintenance or repairs are conducted.
These jacks help support and position critical structural elements during construction, ensuring proper alignment and safety.
Event organizers use hydraulic cylinder jacks to adjust the height of stages and platforms for performances and presentations.
Wind turbines require periodic maintenance, and hydraulic cylinder jacksenable technicians to reach and service these towering structures.
Hydraulic cylinder jacksassist in positioning and erecting communication towers for telecommunications infrastructure.
Agricultural equipment can be adjusted to the correct height for various farming tasks using hydraulic cylinder jacks.
Overhead cranes require precise positioning during installation, which hydraulic cylinder jacksfacilitate.
