RRH10010, 100 ton 947 KN, 257 mm 10.12 in Stroke, Double Acting Hollow Cylinders
-
Model:RRH10010
Capacity:100 ton | 981 KN
Stroke:257 mm | 10.12 inches
Weight:106 kg | 233.7 lbs
Cylinder Effective Area(Advance/Retract):135.3 m²/91.1 m²
Oil Capacity(Advance/Retract):3477 cm³/2341 cm³
Return Type:Double-Acting Hydraulic Return
Plunger Type:Hollow
Brand Name:Replacement Enerpac's RRH10010
- RRH1508, 150 ton 1445 KN, 203 mm 7.99 in Stroke, Double Acting Hollow CylindersRRH10010, 100 ton 947 KN, 257 mm 10.12 in Stroke, Double Acting Hollow CylindersRRH1006, 100 ton 947 KN, 153 mm 6.02 in Stroke, Double Acting Hollow CylindersRRH1003, 100 ton 947 KN, 76 mm 2.99 in Stroke, Double Acting Hollow CylindersRRH1001, 100 ton 947 KN, 38 mm 1.50 in Stroke, Double Acting Hollow CylindersRRH6010, 60 ton 589 KN, 257 mm 10.12 in Stroke, Double Acting Hollow CylindersRRH606, 60 ton 589 KN, 166 mm 6.54 in Stroke, Double Acting Hollow CylindersRRH603, 60 ton 589 KN, 89 mm 3.50 in Stroke, Double Acting Hollow CylindersRRH3010, 30 ton 336 KN, 258 mm 10.16 in Stroke, Double Acting Hollow CylindersRRH307, 30 ton 336 KN, 178 mm 7.01 in Stroke, Double Acting Hollow CylindersRRH Series Double-Acting Hollow Cylinders Jack
Description
Model:RRH10010
Product Line: Industrial Tools
Type: Hydraulic Cylinder Ram, Hydraulic Jacks
Customizable with special requirement
- Double-Acting cylinder version for fast retraction.
- Hollow Plunger design allows for both, pull and push forces.
- Dual dust-proof ring structure remains cylinder internal cleaning.
- The exclusive guide ring is designed to absorb eccentric loading without galling cylinder parts, reduce wear, and extend life.
- Built-in safety valve prevents accidental over-pressurization.
- Special painted surface to increase corrosion resistance.
- Easy fixturing with collar threads, plunger threads, and base mounting holes.
- All models include quick couplings (NPT3/8"-18) and dust-proof caps.
- Floating center tube is designed to increase product life.

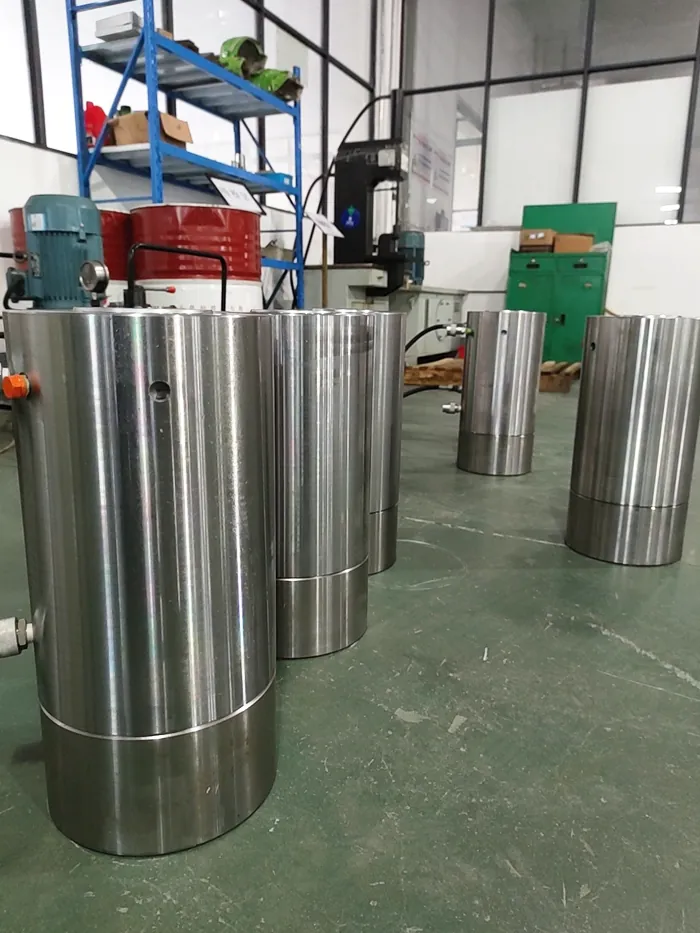

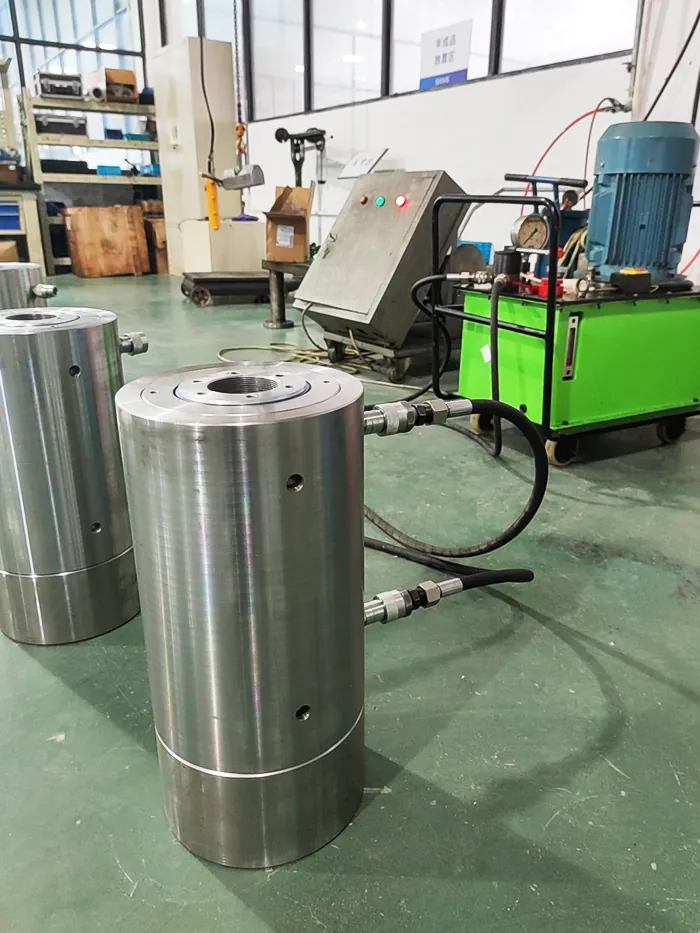

Image Gallery
Dimensions
| Collapsed Height | A | (mm) | 460 | |
| Extended Height | B | (mm) | 717 | |
| Outside Dia. | C | (mm) | 212 | |
| Cylinder Bore Dia | D | (mm) | 165 | |
| Plunger Dia. | E | (mm) | 125 | |
| Base to Advance Port | F | (mm) | 34 | |
| Top to Return Port | G | (mm) | 85 | |
| Saddle Dia. | H | (mm) | 125 | |
| Saddle Internal Thread | I | 21/2"-8 | ||
| Saddle Protrusion from Plgr. | J | (mm) | 12 | |
| Plunger Internal Thread | K | 4"-16UN | ||
| Plunger Thread Length | L | (mm) | 25 | |
| Collar Thread | X | 83/8"-12 | ||
| Collar Thread Length | Y | (mm) | 60 | |
| Center Hole Dia | Z | (mm) | 79 | |
Series Comparison
| Cylinder Capacity | Stroke | Model Number | Max.Cylinder Capacity | Cylinder Effective Area | Oil Capacity | Collapsed Height | Extended Height | Outside Dia. | Cylinder Bore Dia | Plunger Dia. | Base to Advance Port | Top to Return Port | Saddle Dia. | Saddle Internal Thread | Saddle Protrusion from Plgr. | Plunger Internal Thread | Plunger Thread Length | Collar Thread | Collar Thread Length | Center Hole Dia | Weight | Mounting Hole Dimensions | ||||||
| Model Number | Bolt Circle | Thread | Thread Depth | |||||||||||||||||||||||||
| Advance | Retract | Advance | Retract | Advance | Retract | A | B | C | D | E | F | G | H | I | J | K | L | X | Y | Z | O | P | W | |||||
| ton | (mm) | (KN) | (cm2) | (cm3) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | (mm) | (mm) | |||||||||
| 30 | 178 | RRH-307 | 336 | 216 | 48 | 30.9 | 855 | 550 | 330 | 508 | 115 | 90 | 64.5 | 25 | 60 | 64 | 11/4"-7 | 9 | 113/16"-16UN | 22 | 41/2"-12 | 42 | 33.3 | 21 | RRH300-178 | 92.2 | 3/8"-16UNC | 15.7 |
| 258 | RRH-3010 | 336 | 216 | 48 | 30.9 | 1240 | 798 | 431 | 689 | 115 | 90 | 64.5 | 25 | 60 | 64 | 11/4"-7 | 9 | 113/16"-16UN | 22 | 41/2"-12 | 42 | 33.3 | 27 | RRH300-258 | 92.2 | 3/8"-16UNC | 15.7 | |
| 60 | 89 | RRH-603 | 589 | 368 | 84.2 | 52.6 | 749 | 468 | 247 | 336 | 159 | 125 | 94.5 | 31 | 66 | 94 | 15/8"-51/2 | 12 | 23/4"-16UN | 19 | 61/4"-12 | 48 | 53.8 | 28 | RRH600-89 | 130.3 | 1/2"-13UNC | 14 |
| 166 | RRH-606 | 589 | 368 | 84.2 | 52.6 | 1398 | 873 | 323 | 489 | 159 | 125 | 94.5 | 31 | 66 | 94 | 15/8"-51/2 | 12 | 23/4"-16UN | 19 | 61/4"-12 | 48 | 53.8 | 35 | RRH600-166 | 130.3 | 1/2"-13UNC | 14 | |
| 257 | RRH-6010 | 589 | 368 | 84.2 | 52.6 | 2164 | 1352 | 438 | 695 | 159 | 125 | 94.5 | 31 | 66 | 94 | 15/8"-51/2 | 12 | 23/4"-16UN | 19 | 61/4"-12 | 48 | 53.8 | 45 | RRH600-257 | 130.3 | 1/2"-13UNC | 14 | |
| 100 | 38 | RRH-1001 | 947 | 637 | 135.3 | 91.1 | 514 | 346 | 165 | 203 | 212 | 165 | 125 | 34 | 45 | 125 | 21/2"-8 | 12 | 4"-16UN | 25 | \ | \ | 79 | 33 | RRH1000-38 | 177.8 | 5/8"-11UNC | 19 |
| 76 | RRH-1003 | 947 | 637 | 135.3 | 91.1 | 1028 | 692 | 254 | 330 | 212 | 165 | 125 | 34 | 85 | 125 | 21/2"-8 | 12 | 4"-16UN | 25 | 83/8"-12 | 60 | 79 | 61 | RRH1000-76 | 177.8 | 5/8"-11UNC | 19 | |
| 153 | RRH-1006 | 947 | 637 | 135.3 | 91.1 | 2070 | 1394 | 342 | 495 | 212 | 165 | 125 | 34 | 85 | 125 | 21/2"-8 | 12 | 4"-16UN | 25 | 83/8"-12 | 60 | 79 | 79 | RRH1000-153 | 177.8 | 5/8"-11UNC | 19 | |
| 257 | RRH-10010 | 947 | 637 | 135.3 | 91.1 | 3477 | 2341 | 460 | 717 | 212 | 165 | 125 | 34 | 85 | 125 | 21/2"-8 | 12 | 4"-16UN | 25 | 83/8"-12 | 60 | 79 | 106 | RRH1000-257 | 177.8 | 5/8"-11UNC | 19 | |
| 150 | 203 | RRH-1508 | 1445 | 758 | 206.5 | 108.3 | 4191 | 2198 | 359 | 562 | 247 | 190 | 150 | 38 | 60 | 127 | \ | 13 | 41/4"-12UN | 25 | \ | \ | 79 | 111 | RRH1500-203 | \ | \ | \ |
Application
Hydraulic cylinder jacks are ideal for safely lifting and holding heavy industrial machinery while maintenance or repairs are conducted.
Construction equipment often requires precise positioning for maintenance and repair tasks, and hydraulic cylinder jacks provide the necessary lifting capability.
Mobile homes and trailers can be leveled and raised for foundation repairs or relocation using Hydraulic cylinder jacks.
Welders use hydraulic cylinder jacksto accurately position heavy workpieces for welding tasks, ensuring precision and safety.
Hydraulic cylinder jacks provide the lifting power needed to assemble large structures such as steel frameworks and industrial buildings.
Hydraulic cylinder jacksassist in lifting heavy materials to build retaining walls, ensuring proper alignment and stability.
Hydraulic cylinder jacksare used to support and level drilling rigs during setup and maintenance in the oil and gas industry.
