RAR10010,100 Ton,250 mm,Double Acting Aluminum Hydraulic Cylinders
-
Model:RAR10010
Capacity:100 ton
Stroke:250 mm
Maximum Operating Pressure:700 Bar/10000 Psi
Weight:28 kg
Push Oil Capacity:3578 cm³
Warranty:12 months
Minimum Order:1 Pieces
Manufacturer:Axion
Country of Origin:China
Return Type:Single-Acting Spring Return
Plunger Type:Solid
Brand Name:Replacement Enerpac's RAR10010
- RAR15010,150 Ton,250 mm,Double Acting Aluminum Hydraulic CylindersRAR1508,150 Ton,200 mm,Double Acting Aluminum Hydraulic CylindersRAR1506,150 Ton,150 mm,Double Acting Aluminum Hydraulic CylindersRAR1504,150 Ton,100 mm,Double Acting Aluminum Hydraulic CylindersRAR1502,150 Ton,50 mm,Double Acting Aluminum Hydraulic CylindersRAR10010,100 Ton,250 mm,Double Acting Aluminum Hydraulic CylindersRAR1008,100 Ton,200 mm,Double Acting Aluminum Hydraulic CylindersRAR1006,100 Ton,150 mm,Double Acting Aluminum Hydraulic CylindersRAR1004,100 Ton,100 mm,Double Acting Aluminum Hydraulic CylindersRAR1002,100 Ton,50 mm,Double Acting Aluminum Hydraulic CylindersRAR5010,50 Ton,250 mm,Double Acting Aluminum Hydraulic CylindersRAR508,50 Ton,200 mm,Double Acting Aluminum Hydraulic CylindersRAR506,50 Ton,150 mm,Double Acting Aluminum Hydraulic CylindersRAR504,50 Ton,100 mm,Double Acting Aluminum Hydraulic CylindersRAR502,50 Ton,50 mm,Double Acting Aluminum Hydraulic CylindersRAR3010,30 Ton,250 mm,Double Acting Aluminum Hydraulic CylindersRAR308,30 Ton,200 mm,Double Acting Aluminum Hydraulic CylindersRAR306,30 Ton,150 mm,Double Acting Aluminum Hydraulic CylindersRAR304,30 Ton,100 mm,Double Acting Aluminum Hydraulic CylindersRAR302,30 Ton,50 mm,Double Acting Aluminum Hydraulic CylindersRAR2010,20 Ton,250 mm,Double Acting Aluminum Hydraulic CylindersRAR208,20 Ton,200 mm,Double Acting Aluminum Hydraulic CylindersRAR206,20 Ton,150 mm, Double Acting Aluminum Hydraulic CylindersRAR204,20 Ton,100 mm,Double Acting Aluminum Hydraulic CylindersRAR202,20 Ton,50 mm,Double Acting Aluminum Hydraulic CylindersRAR Series Double-Acting,Aluminum Hydraulic Cylinders
Description
Model:RAR10010
Product Line: Industrial Tools
Type: Hydraulic Cylinder Ram, Hydraulic Jacks
Customizable with special requirement
Our cylinders are designed with a focus on efficiency, durability, and safety. Each component is carefully crafted to ensure optimal Performance, making them ideal for a variety of applications.
- Double-Acting for rapid retraction, regardless of hose lengths and system losses
- Composite bearings increase cylinder life and sideload resistance
- Hard-coat finish resists damage, extending the cylinder's lifespan in demanding environments
- Handles included for ease of handling and maneuverability, enhancing user convenience and safety
- Steel base plate and saddle provide robust protection against load-induced damage
- Integral stop ring prevents plunger over-travel and withstands the full cylinder capacity
- Built-in safety valve prevents over-pressurization, prioritizing user safety and protecting the cylinder

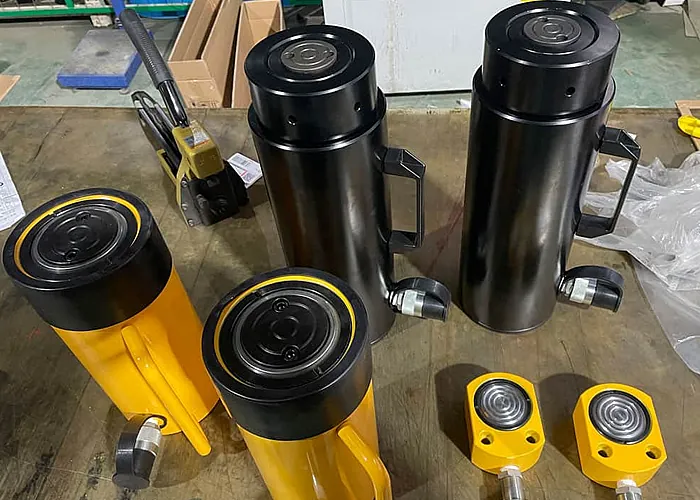

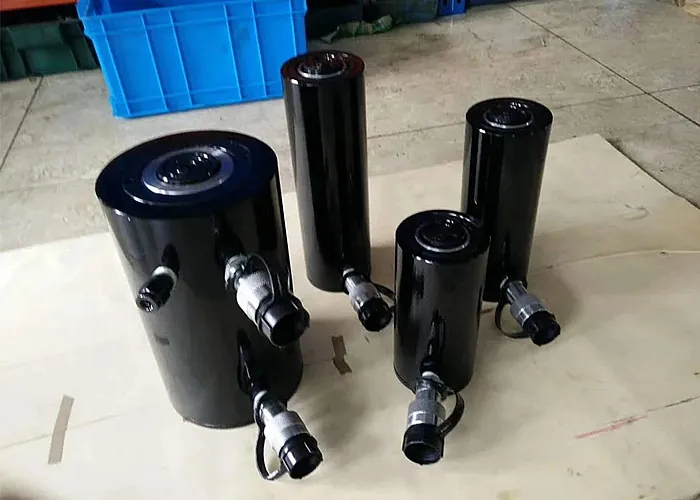

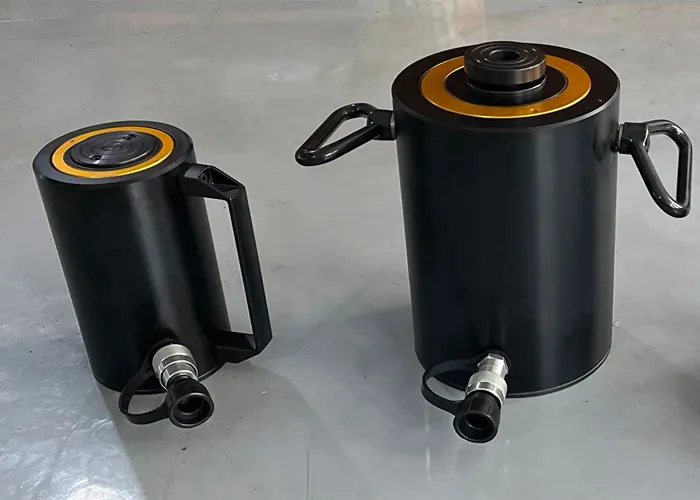

Image Gallery
Dimensions
| Collapsed Height/mm(A) | 451 |
| Extended Height/mm(B) | 701 |
| Outside Dia/mm(D) | 185 |
| Cylinder Bore Dia/mm(E) | 135 |
| Plunger Dia/mm(F) | 90 |
| Base To Advance Port/mm(H) | 43 |
| Saddle Dia/mm(I) | 80 |
| Saddle Protri. From Plgr./mm(J) | 75 |
| Dimension K | 3 |
| Base Mounting Holes Bolt Circle/mm(U) | 165 |
| Base Mounting Holes Thread(V) | M6 |
| Base Mounting Holes Thread Depth/mm(Z) | 12 |
Series Comparison
| Model Number | Capacity/Ton | Stroke/mm | Advance Cylinder Effective Area/cm2 | Retract Cylinder Effective Area/cm2 | Push Oil Capacity/cm3 | Pull Oil Capacity/cm3 | Collapsed Height/mm(A) | Extended Height/mm(B) | Outside Dia/mm(D) | Cylinder Bore Dia/mm(E) | Plunger Dia/mm(F) | Base To Advance Port/mm(H) | Saddle Dia/mm(I) | Saddle Protri. From Plgr./mm(J) | Dimension K | Base Mounting Holes Bolt Circle/mm(U) | Base Mounting Holes Thread(V) | Base Mounting Holes Thread Depth/mm(Z) | Weight/Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RAR-202 | 20 | 50 | 31.2 | 18.6 | 156 | 93 | 189 | 239 | 113 | 63 | 40 | 30 | 50 | 30 | 3 | 93 | M6 | 12 | 7.4 |
| RAR-204 | 20 | 100 | 31.2 | 18.6 | 312 | 186 | 239 | 339 | 113 | 63 | 40 | 30 | 50 | 30 | 3 | 93 | M6 | 12 | 8 |
| RAR-206 | 20 | 150 | 31.2 | 18.6 | 468 | 279 | 289 | 439 | 113 | 63 | 40 | 30 | 50 | 30 | 3 | 93 | M6 | 12 | 8.6 |
| RAR-208 | 20 | 200 | 31.2 | 18.6 | 624 | 372 | 339 | 539 | 113 | 63 | 40 | 30 | 50 | 30 | 3 | 93 | M6 | 12 | 9.2 |
| RAR-2010 | 20 | 250 | 31.2 | 18.6 | 780 | 465 | 389 | 639 | 113 | 63 | 40 | 30 | 50 | 30 | 3 | 93 | M6 | 12 | 9.8 |
| RAR-302 | 30 | 50 | 44.2 | 24.5 | 221 | 123 | 201 | 251 | 125 | 75 | 50 | 30 | 55 | 40 | 3 | 105 | M6 | 12 | 8.6 |
| RAR-304 | 30 | 100 | 44.2 | 24.5 | 442 | 245 | 251 | 351 | 125 | 75 | 50 | 30 | 55 | 40 | 3 | 105 | M6 | 12 | 9.5 |
| RAR-306 | 30 | 150 | 44.2 | 24.5 | 663 | 368 | 301 | 451 | 125 | 75 | 50 | 30 | 55 | 40 | 3 | 105 | M6 | 12 | 10.4 |
| RAR-308 | 30 | 200 | 44.2 | 24.5 | 884 | 490 | 351 | 551 | 125 | 75 | 50 | 30 | 55 | 40 | 3 | 105 | M6 | 12 | 11.3 |
| RAR-3010 | 30 | 250 | 44.2 | 24.5 | 1105 | 613 | 401 | 651 | 125 | 75 | 50 | 30 | 55 | 40 | 3 | 105 | M6 | 12 | 12.2 |
| RAR-502 | 50 | 50 | 70.9 | 26.7 | 354 | 134 | 201 | 251 | 145 | 95 | 75 | 30 | 56 | 50 | 3 | 110 | M6 | 12 | 11.1 |
| RAR-504 | 50 | 100 | 70.9 | 26.7 | 709 | 267 | 251 | 351 | 145 | 95 | 75 | 30 | 56 | 50 | 3 | 110 | M6 | 12 | 12.7 |
| RAR-506 | 50 | 150 | 70.9 | 26.7 | 1063 | 401 | 301 | 451 | 145 | 95 | 75 | 30 | 56 | 50 | 3 | 110 | M6 | 12 | 14.3 |
| RAR-508 | 50 | 200 | 70.9 | 26.7 | 1417 | 534 | 351 | 551 | 145 | 95 | 75 | 30 | 56 | 50 | 3 | 110 | M6 | 12 | 15.9 |
| RAR-5010 | 50 | 250 | 70.9 | 26.7 | 1771 | 668 | 401 | 651 | 145 | 95 | 75 | 30 | 56 | 50 | 3 | 110 | M6 | 12 | 17.5 |
| RAR-1002 | 100 | 50 | 143.1 | 79.5 | 715 | 398 | 251 | 301 | 185 | 135 | 90 | 43 | 80 | 75 | 3 | 165 | M6 | 12 | 16.4 |
| RAR-1004 | 100 | 100 | 143.1 | 79.5 | 1431 | 795 | 301 | 401 | 185 | 135 | 90 | 43 | 80 | 75 | 3 | 165 | M6 | 12 | 19.3 |
| RAR-1006 | 100 | 150 | 143.1 | 79.5 | 2147 | 1193 | 351 | 501 | 185 | 135 | 90 | 43 | 80 | 75 | 3 | 165 | M6 | 12 | 22.2 |
| RAR-1008 | 100 | 200 | 143.1 | 79.5 | 2863 | 1590 | 401 | 601 | 185 | 135 | 90 | 43 | 80 | 75 | 3 | 165 | M6 | 12 | 25.1 |
| RAR-10010 | 100 | 250 | 143.1 | 79.5 | 3578 | 1988 | 451 | 701 | 185 | 135 | 90 | 43 | 80 | 75 | 3 | 165 | M6 | 12 | 28 |
| RAR-1502 | 150 | 50 | 227 | 132 | 1135 | 660 | 248 | 298 | 230 | 170 | 110 | 38 | 75 | 113 | 3 | 200 | M6 | 12 | 24.2 |
| RAR-1504 | 150 | 100 | 227 | 132 | 2270 | 1320 | 298 | 398 | 230 | 170 | 110 | 38 | 75 | 113 | 3 | 200 | M6 | 12 | 28.9 |
| RAR-1506 | 150 | 150 | 227 | 132 | 3405 | 1980 | 348 | 498 | 230 | 170 | 110 | 38 | 75 | 113 | 3 | 200 | M6 | 12 | 33.2 |
| RAR-1508 | 150 | 200 | 227 | 132 | 4540 | 2640 | 398 | 598 | 230 | 170 | 110 | 38 | 75 | 113 | 3 | 200 | M6 | 12 | 37.9 |
| RAR-15010 | 150 | 250 | 227 | 132 | 5675 | 3300 | 448 | 698 | 230 | 170 | 110 | 38 | 75 | 113 | 3 | 200 | M6 | 12 | 42.6 |
Application
Hydraulic cylinder jacks assist in the installation and maintenance of pipelines by providing the necessary lifting force for components.
Wind turbines require periodic maintenance, and hydraulic cylinder jacksenable technicians to reach and service these towering structures.
Shipping yards use hydraulic cylinder jacksto load and unload heavy shipping containers from trucks and ships.
Hydraulic cylinder jacksaid in positioning molds and dies in manufacturing processes, ensuring accurate product production.
Hydraulic cylinder jacks are employed to lift and level portable structures like cabins and modular buildings.
Hydraulic cylinder jacks are essential in maintaining the balance of heavy machinery, ensuring stable and efficient operations.
When installing large industrial equipment, hydraulic cylinder jacksare used to safely and precisely position components for assembly.
PROVIDING EXCELLENT SOLUTIONS BY Axion™
You're fortunate to have found a manufacturer, supplier, and factory in China, Ningbo Axion Machinery Co., Ltd.,
that offers a diverse selection, reasonable price,fast delivery, and products of comparable quality and performance to Enerpac's RAR10010,100 Ton,250 mm,Double Acting Aluminum Hydraulic Cylinders.
Please send an email immediately with information regarding the "RAR10010,100 Ton,250 mm,Double Acting Aluminum Hydraulic Cylinders" You will receive our response within 24 hours.
