RAR Series Double-Acting,Aluminum Hydraulic Cylinders
-
Model:RAR
RAR Series Double-Acting,Aluminum Hydraulic Cylinders
Capacity:20/30/50/100/150 ton
Stroke:50/100/150/200/250 mm
Maximum Operating Pressure:700 Bar/10000 Psi/70 Mpa
Weight:7.4-42.6 kg/16.31-93.93 lbs
Model Number:RAR202-RAR15010
Push Oil Capacity:156-5675 cm³
Manufacturer:Axion
Country of Origin:China
Return Type:Single-Acting Spring Return
Plunger Type:Solid
Brand Name:Replacement Enerpac's RAR
- RCH Series Single-Acting Hollow Cylinders50 Ton Hydraulic Cylinder & JackSCL,5-100 TON,Hydraulic Cylinder Hand Pump,System Components Toolbox SetSCR,10-150 TON,Hydraulic Cylinder,Lightweight Hydraulic Hand Pump SetMRH120, 8.1 mm 0.32 in Stroke, Hollow Plunger Hydraulic CylinderMRH20, 8.4 mm 0.33 in Stroke, Hollow Plunger Hydraulic CylinderHCRL30012, 300 Ton, 300 mm 11.81 in Stroke, Double Acting Lock Nut CylindersHCRL30010, 300 Ton, 250 mm 9.84 in Stroke, Double Acting Lock Nut CylindersHCRL3008, 300 Ton, 200 mm 7.87 in Stroke, Double Acting Lock Nut CylindersHCRL3006, 300 Ton, 150 mm 5.91 in Stroke, Double Acting Lock Nut CylindersHCRL25012, 250 Ton, 300 mm 11.81 in Stroke, Double Acting Lock Nut CylindersHCRL25010, 250 Ton, 250 mm 9.84 in Stroke, Double Acting Lock Nut CylindersHCRL2508, 250 Ton, 200 mm 7.87 in Stroke, Double Acting Lock Nut CylindersHCRL2506, 250 Ton, 150 mm 5.91 in Stroke, Double Acting Lock Nut CylindersHCRL20012, 200 Ton, 300 mm 11.81 in Stroke, Double Acting Lock Nut CylindersHCRL20010, 200 Ton, 250 mm 9.84 in Stroke, Double Acting Lock Nut CylindersHCRL2008, 200 Ton, 200 mm 7.87 in Stroke, Double Acting Lock Nut CylindersHCRL2006, 200 Ton, 150 mm 5.91 in Stroke, Double Acting Lock Nut CylindersHCRL15012, 150 Ton, 300 mm 11.81 in Stroke, Double Acting Lock Nut CylindersHCRL15010, 150 Ton, 250 mm 9.84 in Stroke, Double Acting Lock Nut CylindersHCRL1508, 150 Ton, 200 mm 7.87 in Stroke, Double Acting Lock Nut CylindersHCRL1506, 150 Ton, 150 mm 5.91 in Stroke, Double Acting Lock Nut CylindersHCRL10012, 100 Ton, 300 mm 11.81 in Stroke, Double Acting Lock Nut CylindersHCRL10010, 100 Ton, 250 mm 9.84 in Stroke, Double Acting Lock Nut CylindersHCRL1008, 100 Ton, 200 mm 7.87 in Stroke, Double Acting Lock Nut CylindersHCRL1006, 100 Ton, 150 mm 5.91 in Stroke, Double Acting Lock Nut CylindersHCRL5012, 50 Ton, 300 mm 11.81 in Stroke, Double Acting Lock Nut CylindersHCRL5010, 50 Ton, 250 mm 9.84 in Stroke, Double Acting Lock Nut CylindersHCRL508, 50 Ton, 200 mm 7.87 in Stroke, Double Acting Lock Nut CylindersHCRL506, 50 Ton , 150 mm 5.91 in Stroke, Double Acting Lock Nut CylindersRR50048, 520 Ton , 1219 mm 47.99 in Stroke, Double Acting, General Purpose Hydraulic CylinderRR50036, 520 Ton , 915 mm 36 in Stroke, Double Acting, General Purpose Hydraulic CylinderRR50024, 520 Ton , 609 mm 23.98 in Stroke, Double Acting, General Purpose Hydraulic CylinderRR50018, 520 Ton , 457 mm 17.99 in Stroke, Double Acting, General Purpose Hydraulic CylinderRR50012, 520 Ton , 305 mm 12 in Stroke, Double Acting, General Purpose Hydraulic CylinderRR5006, 520 Ton , 153 mm 6 in Stroke, Double Acting, General Purpose Hydraulic CylinderRR40048, 440 Ton , 1219 mm 47.99 in Stroke, Double Acting, General Purpose Hydraulic CylinderRR40036, 440 Ton , 914 mm 24 in Stroke, Double Acting, General Purpose Hydraulic CylinderRR40024, 440 Ton , 610 mm 24 in Stroke, Double Acting, General Purpose Hydraulic CylinderRR40018, 440 Ton , 457 mm 17.99 in Stroke, Double Acting, General Purpose Hydraulic Cylinder
Description
Model:RAR
Product Line: Industrial Tools
Type: Hydraulic Cylinder Ram, Hydraulic Jacks
Customizable with special requirement
Our cylinders are designed with a focus on efficiency, durability, and safety. Each component is carefully crafted to ensure optimal Performance, making them ideal for a variety of applications.
Key Features
Double-Acting Mechanism: Enables rapid retraction regardless of hose lengths or system losses, ensuring swift and efficient operation.
Composite Bearings: Enhance cylinder life and sideload resistance, providing smooth and reliable performance over time.
Hard-Coat Finish: Applied to all surfaces, this finish resists damage, extending the lifespan of the cylinder even in demanding environments.
Handles Included: All models come with handles for ease of handling and maneuverability, enhancing user convenience and safety.
Steel Base Plate and Saddle: Provides robust protection against load-induced damage, ensuring the structural integrity of the cylinder under heavy loads.
Integral Stop Ring: Prevents plunger over-travel, enhancing operational safety, and is capable of withstanding the full cylinder capacity for added security.
Built-In Safety Valve: Prevents accidental over-pressurization, prioritizing user safety and protecting the cylinder from potential damage.
Dimensions
| Steel Base Plate Mounting Holes | |||
| Cylinder Model/Capacity ton | Bolt Circle U (mm) | Thread V (mm) | Thread Depth Z (mm) |
| RAR-20 | 93 | M6 | 12 |
| RAR-30 | 105 | M6 | 12 |
| RAR-50 | 110 | M6 | 12 |
| RAR-100 | 165 | M6 | 12 |
| RAR-150 | 200 | M6 | 12 |
*Including Base Plate Height of 6 mm
*All RAR-cylinders are equipped with bolt-on removable hardened steel saddles.
| Optional Bolt-on Tilt Saddle Dimensions(mm) | |||
| For Cylinder Model/Capacity ton | Tilt Saddle Model Number | TiltSaddle Diameter J1 | Saddle Protrusion from Plunger K1 |
| RAR-50 | CATG-50 | 50 | 24 |
| RAR-100 | CATG-150 | 73 | 29 |
| RAR-150 | CATG-200 | 91 | 31 |
| Model Number | Capacity/Ton | Stroke/mm | Advance Cylinder Effective Area/cm2 | Retract Cylinder Effective Area/cm2 | Push Oil Capacity/cm3 | Pull Oil Capacity/cm3 | Collapsed Height/mm(A) | Extended Height/mm(B) | Outside Dia/mm(D) | Cylinder Bore Dia/mm(E) | Plunger Dia/mm(F) | Base To Advance Port/mm(H) | Saddle Dia/mm(I) | Saddle Protri. From Plgr./mm(J) | Dimension K | Base Mounting Holes Bolt Circle/mm(U) | Base Mounting Holes Thread(V) | Base Mounting Holes Thread Depth/mm(Z) | Weight/Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RAR-202 | 20 | 50 | 31.2 | 18.6 | 156 | 93 | 189 | 239 | 113 | 63 | 40 | 30 | 50 | 30 | 3 | 93 | M6 | 12 | 7.4 |
| RAR-204 | 20 | 100 | 31.2 | 18.6 | 312 | 186 | 239 | 339 | 113 | 63 | 40 | 30 | 50 | 30 | 3 | 93 | M6 | 12 | 8 |
| RAR-206 | 20 | 150 | 31.2 | 18.6 | 468 | 279 | 289 | 439 | 113 | 63 | 40 | 30 | 50 | 30 | 3 | 93 | M6 | 12 | 8.6 |
| RAR-208 | 20 | 200 | 31.2 | 18.6 | 624 | 372 | 339 | 539 | 113 | 63 | 40 | 30 | 50 | 30 | 3 | 93 | M6 | 12 | 9.2 |
| RAR-2010 | 20 | 250 | 31.2 | 18.6 | 780 | 465 | 389 | 639 | 113 | 63 | 40 | 30 | 50 | 30 | 3 | 93 | M6 | 12 | 9.8 |
| RAR-302 | 30 | 50 | 44.2 | 24.5 | 221 | 123 | 201 | 251 | 125 | 75 | 50 | 30 | 55 | 40 | 3 | 105 | M6 | 12 | 8.6 |
| RAR-304 | 30 | 100 | 44.2 | 24.5 | 442 | 245 | 251 | 351 | 125 | 75 | 50 | 30 | 55 | 40 | 3 | 105 | M6 | 12 | 9.5 |
| RAR-306 | 30 | 150 | 44.2 | 24.5 | 663 | 368 | 301 | 451 | 125 | 75 | 50 | 30 | 55 | 40 | 3 | 105 | M6 | 12 | 10.4 |
| RAR-308 | 30 | 200 | 44.2 | 24.5 | 884 | 490 | 351 | 551 | 125 | 75 | 50 | 30 | 55 | 40 | 3 | 105 | M6 | 12 | 11.3 |
| RAR-3010 | 30 | 250 | 44.2 | 24.5 | 1105 | 613 | 401 | 651 | 125 | 75 | 50 | 30 | 55 | 40 | 3 | 105 | M6 | 12 | 12.2 |
| RAR-502 | 50 | 50 | 70.9 | 26.7 | 354 | 134 | 201 | 251 | 145 | 95 | 75 | 30 | 56 | 50 | 3 | 110 | M6 | 12 | 11.1 |
| RAR-504 | 50 | 100 | 70.9 | 26.7 | 709 | 267 | 251 | 351 | 145 | 95 | 75 | 30 | 56 | 50 | 3 | 110 | M6 | 12 | 12.7 |
| RAR-506 | 50 | 150 | 70.9 | 26.7 | 1063 | 401 | 301 | 451 | 145 | 95 | 75 | 30 | 56 | 50 | 3 | 110 | M6 | 12 | 14.3 |
| RAR-508 | 50 | 200 | 70.9 | 26.7 | 1417 | 534 | 351 | 551 | 145 | 95 | 75 | 30 | 56 | 50 | 3 | 110 | M6 | 12 | 15.9 |
| RAR-5010 | 50 | 250 | 70.9 | 26.7 | 1771 | 668 | 401 | 651 | 145 | 95 | 75 | 30 | 56 | 50 | 3 | 110 | M6 | 12 | 17.5 |
| RAR-1002 | 100 | 50 | 143.1 | 79.5 | 715 | 398 | 251 | 301 | 185 | 135 | 90 | 43 | 80 | 75 | 3 | 165 | M6 | 12 | 16.4 |
| RAR-1004 | 100 | 100 | 143.1 | 79.5 | 1431 | 795 | 301 | 401 | 185 | 135 | 90 | 43 | 80 | 75 | 3 | 165 | M6 | 12 | 19.3 |
| RAR-1006 | 100 | 150 | 143.1 | 79.5 | 2147 | 1193 | 351 | 501 | 185 | 135 | 90 | 43 | 80 | 75 | 3 | 165 | M6 | 12 | 22.2 |
| RAR-1008 | 100 | 200 | 143.1 | 79.5 | 2863 | 1590 | 401 | 601 | 185 | 135 | 90 | 43 | 80 | 75 | 3 | 165 | M6 | 12 | 25.1 |
| RAR-10010 | 100 | 250 | 143.1 | 79.5 | 3578 | 1988 | 451 | 701 | 185 | 135 | 90 | 43 | 80 | 75 | 3 | 165 | M6 | 12 | 28 |
| RAR-1502 | 150 | 50 | 227 | 132 | 1135 | 660 | 248 | 298 | 230 | 170 | 110 | 38 | 75 | 113 | 3 | 200 | M6 | 12 | 24.2 |
| RAR-1504 | 150 | 100 | 227 | 132 | 2270 | 1320 | 298 | 398 | 230 | 170 | 110 | 38 | 75 | 113 | 3 | 200 | M6 | 12 | 28.9 |
| RAR-1506 | 150 | 150 | 227 | 132 | 3405 | 1980 | 348 | 498 | 230 | 170 | 110 | 38 | 75 | 113 | 3 | 200 | M6 | 12 | 33.2 |
| RAR-1508 | 150 | 200 | 227 | 132 | 4540 | 2640 | 398 | 598 | 230 | 170 | 110 | 38 | 75 | 113 | 3 | 200 | M6 | 12 | 37.9 |
| RAR-15010 | 150 | 250 | 227 | 132 | 5675 | 3300 | 448 | 698 | 230 | 170 | 110 | 38 | 75 | 113 | 3 | 200 | M6 | 12 | 42.6 |
FAQs
Are there any safety features incorporated into the RAR Series Cylinders?
Yes, the RAR Series Cylinders are equipped with several safety features, including:
Integrated stop ring to prevent plunger over-travel and ensure safe operation.
High-strength composite bearings to enhance stability and resist side-loads.
Hard-coat finish on all surfaces to protect against damage and extend cylinder life.
What maintenance is required for the RAR Series Double-Acting Hydraulic Cylinders?
Maintenance for the RAR Series Cylinders includes regular inspection for signs of wear or damage, ensuring proper hydraulic fluid levels, checking the integrity of the stop ring, and lubricating moving parts as needed. Storing the cylinders in a clean, dry environment can also help extend their lifespan.
Application

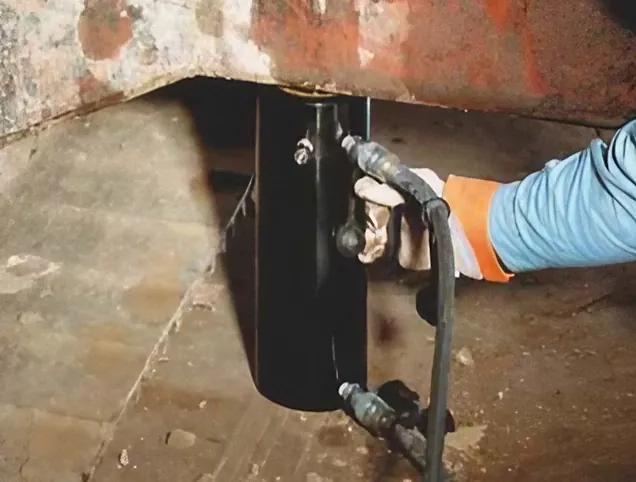

Construction equipment often requires precise positioning for maintenance and repair tasks, and hydraulic cylinder jacks provide the necessary lifting capability.
Hydraulic cylinder jacks assist in the installation and maintenance of pipelines by providing the necessary lifting force for components.
Aircraft maintenance crews rely on hydraulic cylinder jacksto raise aircraft for inspection and repairs.
Shipping yards use hydraulic cylinder jacksto load and unload heavy shipping containers from trucks and ships.
Hydraulic cylinder jacksassist in lifting heavy materials to build retaining walls, ensuring proper alignment and stability.
Hydraulic cylinder jacks are employed to lift and level portable structures like cabins and modular buildings.
Elevator systems require periodic maintenance, and hydraulic cylinder jacks are employed to lift and secure elevator cars for inspection and service.
