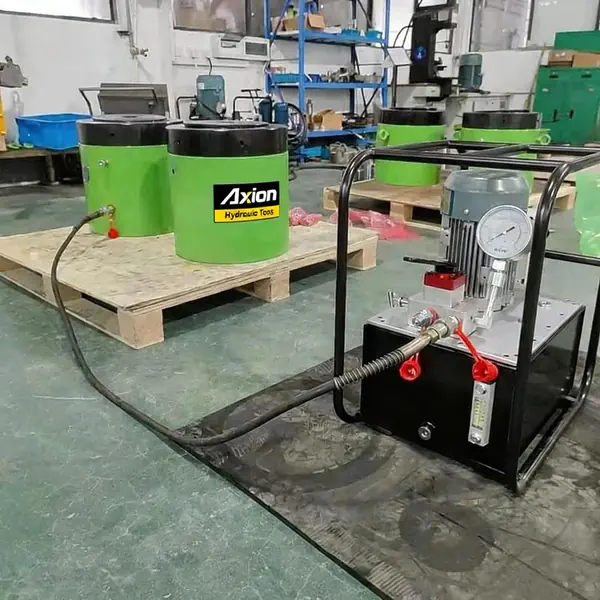

50 Ton Hydraulic Cylinder & Jack
-
Capacity: 50ton
Stroke: 16-337mm
Max.pressure: 700bar /10000psi
Weight: 7.4-37KG
Oil capacity:125 - 2388(cm3)
Minimum Order:1Piece
Manufacturer:Axion
Country of Origin:China
- RCH Series Single-Acting Hollow Cylinders50 Ton Hydraulic Cylinder & JackSCL,5-100 TON,Hydraulic Cylinder Hand Pump,System Components Toolbox SetSCR,10-150 TON,Hydraulic Cylinder,Lightweight Hydraulic Hand Pump SetMRH120, 8.1 mm 0.32 in Stroke, Hollow Plunger Hydraulic CylinderMRH20, 8.4 mm 0.33 in Stroke, Hollow Plunger Hydraulic CylinderHCRL30012, 300 Ton, 300 mm 11.81 in Stroke, Double Acting Lock Nut CylindersHCRL30010, 300 Ton, 250 mm 9.84 in Stroke, Double Acting Lock Nut CylindersHCRL3008, 300 Ton, 200 mm 7.87 in Stroke, Double Acting Lock Nut CylindersHCRL3006, 300 Ton, 150 mm 5.91 in Stroke, Double Acting Lock Nut CylindersHCRL25012, 250 Ton, 300 mm 11.81 in Stroke, Double Acting Lock Nut CylindersHCRL25010, 250 Ton, 250 mm 9.84 in Stroke, Double Acting Lock Nut CylindersHCRL2508, 250 Ton, 200 mm 7.87 in Stroke, Double Acting Lock Nut CylindersHCRL2506, 250 Ton, 150 mm 5.91 in Stroke, Double Acting Lock Nut CylindersHCRL20012, 200 Ton, 300 mm 11.81 in Stroke, Double Acting Lock Nut CylindersHCRL20010, 200 Ton, 250 mm 9.84 in Stroke, Double Acting Lock Nut CylindersHCRL2008, 200 Ton, 200 mm 7.87 in Stroke, Double Acting Lock Nut CylindersHCRL2006, 200 Ton, 150 mm 5.91 in Stroke, Double Acting Lock Nut CylindersHCRL15012, 150 Ton, 300 mm 11.81 in Stroke, Double Acting Lock Nut CylindersHCRL15010, 150 Ton, 250 mm 9.84 in Stroke, Double Acting Lock Nut CylindersHCRL1508, 150 Ton, 200 mm 7.87 in Stroke, Double Acting Lock Nut CylindersHCRL1506, 150 Ton, 150 mm 5.91 in Stroke, Double Acting Lock Nut CylindersHCRL10012, 100 Ton, 300 mm 11.81 in Stroke, Double Acting Lock Nut CylindersHCRL10010, 100 Ton, 250 mm 9.84 in Stroke, Double Acting Lock Nut CylindersHCRL1008, 100 Ton, 200 mm 7.87 in Stroke, Double Acting Lock Nut CylindersHCRL1006, 100 Ton, 150 mm 5.91 in Stroke, Double Acting Lock Nut CylindersHCRL5012, 50 Ton, 300 mm 11.81 in Stroke, Double Acting Lock Nut CylindersHCRL5010, 50 Ton, 250 mm 9.84 in Stroke, Double Acting Lock Nut CylindersHCRL508, 50 Ton, 200 mm 7.87 in Stroke, Double Acting Lock Nut CylindersHCRL506, 50 Ton , 150 mm 5.91 in Stroke, Double Acting Lock Nut CylindersRR50048, 520 Ton , 1219 mm 47.99 in Stroke, Double Acting, General Purpose Hydraulic CylinderRR50036, 520 Ton , 915 mm 36 in Stroke, Double Acting, General Purpose Hydraulic CylinderRR50024, 520 Ton , 609 mm 23.98 in Stroke, Double Acting, General Purpose Hydraulic CylinderRR50018, 520 Ton , 457 mm 17.99 in Stroke, Double Acting, General Purpose Hydraulic CylinderRR50012, 520 Ton , 305 mm 12 in Stroke, Double Acting, General Purpose Hydraulic CylinderRR5006, 520 Ton , 153 mm 6 in Stroke, Double Acting, General Purpose Hydraulic CylinderRR40048, 440 Ton , 1219 mm 47.99 in Stroke, Double Acting, General Purpose Hydraulic CylinderRR40036, 440 Ton , 914 mm 24 in Stroke, Double Acting, General Purpose Hydraulic CylinderRR40024, 440 Ton , 610 mm 24 in Stroke, Double Acting, General Purpose Hydraulic CylinderRR40018, 440 Ton , 457 mm 17.99 in Stroke, Double Acting, General Purpose Hydraulic Cylinder
Description
Product Line: Industrial Tools
Type: Hydraulic Cylinder Ram, Hydraulic Jacks
Customizable with special requirement
50 Ton CLSG Series Single-Acting High Tonnage hydraulic cylinders
- Single Acting, loads return.
- Chrome plated steel plungers.
- Plunger wiper reduces contamination.
- Exclusive guide Ring absorbs eccentric loading.
- Special painted surface for corrosion resistance.
- Easy fixturing with base mounting holes.
- Quick couplings and dust-proof cap included.
- Removable hardened saddles protect plunger.

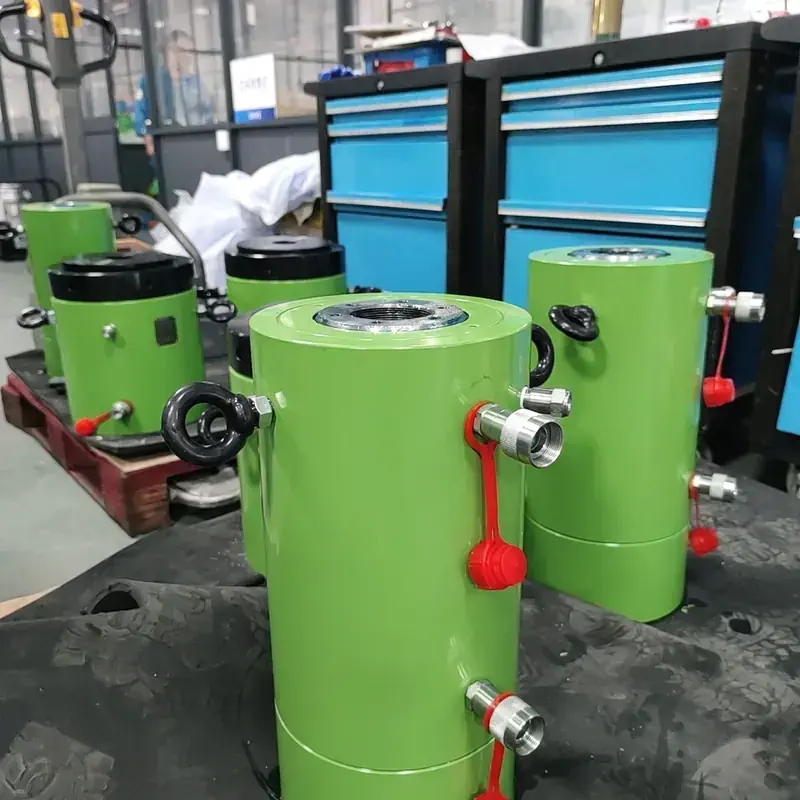

50 Ton CLRG Series Double-Acting High Tonnage Cylinders Lift Jack
- Double Acting, positive retraction.
- Chrome plated steel plungers.
- Plunger wiper reduces contamination.
- Exclusive guide Ring absorbs eccentric loading.
- Built-in safety valve prevents over-pressurization.
- Special painted surface for corrosion resistance.
- Easy fixturing with base mounting holes.
- Quick couplings and dust-proof cap included.
- Removable hardened saddles protect plunger.

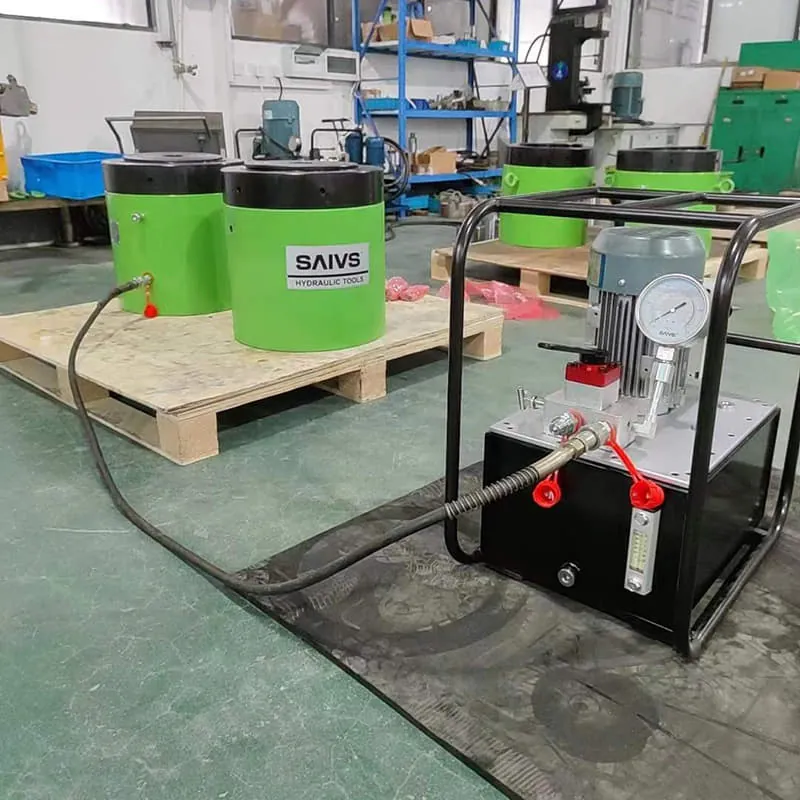

CLL Series Single-Acting High Tonnage Lock-Nut Hydraulic Cylinders
- Single acting, loads return.
- Special painted surface for corrosion resistance.
- Lock nut ensures load holding safety.
- Quick couplings and dust-proof cap included.
- Overflow port limits stroke.
- Exclusive guide Ring absorbs eccentric loading.
- Removable hardened saddles protect plunger.
- Mechanical lock nut cylinder can be customized.
- Top and side mounted lifting eyes.

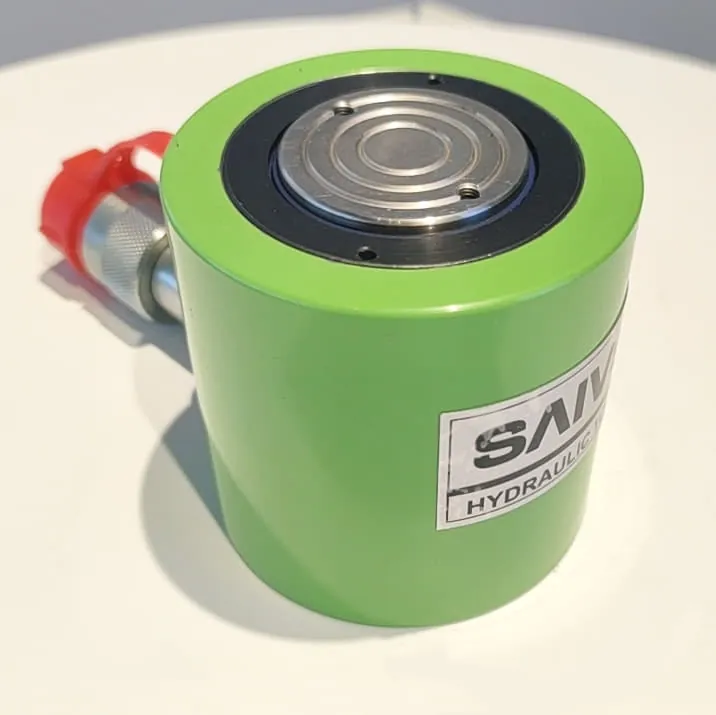

50 Ton RCS Series Single-acting Low Height Hydraulic Cylinders Jack
- Single-acting, spring return.
- Low profile design for narrow applications.
- Special painted surface for corrosion resistance.
- Two plunger threads on grooved end.
- Quick couplings and dust-proof cap included.
- Handles on some models for easy carrying.
- No saddle required with grooved end.
- Customizable with special requirements.

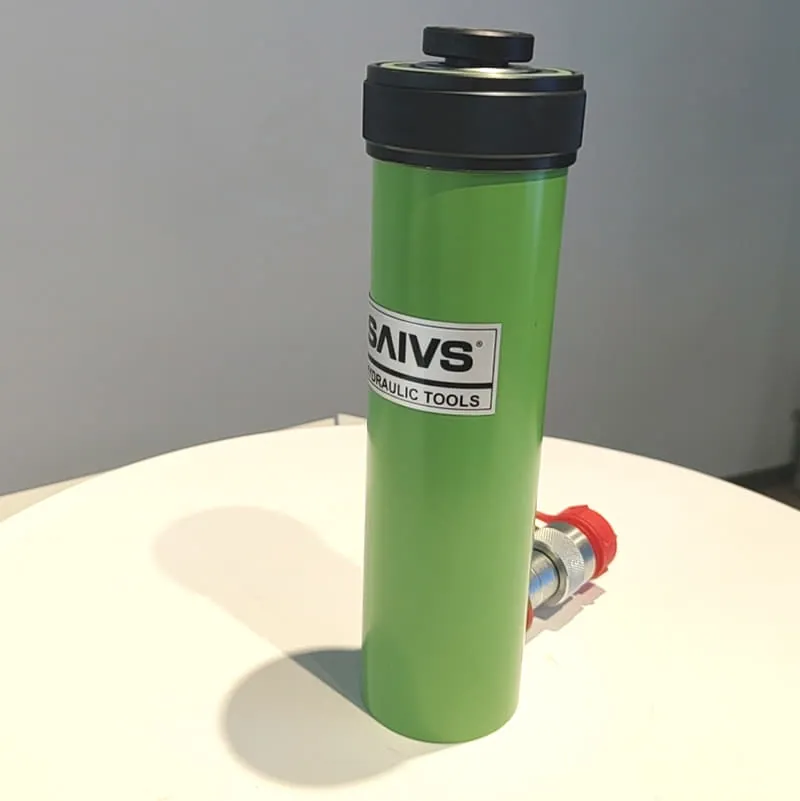

50 Ton RC Seires Single-Acting Hydraulic Cylinders
- Single-acting, high strength spring return.
- Exclusive guide Ring absorbs eccentric loading.
- Special painted surface for corrosion resistance.
- Easy fixturing with collar threads and base mounting holes.
- Quick coupling and dust cap included.
- Removable hardened grooved saddles.
- Customizable with special requirements.
50 Ton RSM Series Single-Acting Low Flat Hydraulic Ram
- Single-acting, spring return.
- Flat design for confined spaces.
- No saddle required with grooved end.
- Two plunger threads on grooved end.
- Special painted surface for corrosion resistance.
- Handles on some models for easy carrying.
- Quick coupling and dust cap included.
- Customizable with special requirements.
Dimensions
| Model Number | Cylinder Capacity ton(KN) | Stroke(mm) | Oil Capacity(cm³) | Weight(kg) |
| CLSG | 50(550) | 50/100/150/200/300 | 392/784/1176/1568/2352 | 13 |
| CLRG | 50 | 50/100/150/200/300 | 392-2352 / 200-1200 | 24 |
| CLL | 50(549) | 16 | 125 | 7.4 |
| RCS | 50(549) | 60 | 471 | 13.3 |
| RC | 50(498) | 51/101/159/337 | 361/716/1126/2388 | 15/19/23/37 |
| RSM | 50(549) | 16 | 125 | 7.4 |
FAQs
1. What is the difference between a hydraulic jack and a hydraulic cylinder?
A hydraulic jack is a device used for lifting heavy loads using hydraulic pressure. It typically consists of a pump,
cylinders, and an actuating mechanism. On the other hand, a hydraulic cylinder is a component within a hydraulic
system that converts fluid power into linear mechanical force.
2. What does a cylinder do in a hydraulic jack?
The cylinder in a hydraulic jack is responsible for generating the lifting force. When hydraulic fluid is pumped into the cylinder,
it pushes against a piston, creating pressure that lifts the load. The size and design of the cylinder
determine the lifting capacity and stroke length of the hydraulic jack.
3. What is a hydraulic jack?
A hydraulic jack is a mechanical device used to lift heavy objects or apply great force using hydraulic power.
It uses the principle of Pascal's law, where a small force applied to a small area can generate a much larger
force over a larger area. Hydraulic jacks are commonly used in automotive, industrial, and construction applications.
4. What is a jack cylinder?
A jack cylinder refers to the hydraulic cylinder component found in hydraulic jack systems.
It is a cylindrical chamber that houses a piston and hydraulic fluid. When pressure is applied to the fluid,
it creates a pushing or pulling force that is used to lift or move heavy objects. The jack cylinder plays a vital role
in converting hydraulic pressure into mechanical force for lifting and supporting loads.
Application
Mobile homes and trailers can be leveled and raised for foundation repairs or relocation using Hydraulic cylinder jacks.
Industries often rely on Hydraulic cylinder jacksto align and adjust heavy machinery, ensuring precision and efficiency.
Event organizers use hydraulic cylinder jacks to adjust the height of stages and platforms for performances and presentations.
Overhead cranes require precise positioning during installation, which hydraulic cylinder jacksfacilitate.
Hydraulic cylinder jacksaid in positioning molds and dies in manufacturing processes, ensuring accurate product production.
Hydraulic cylinder jacks are employed to lift and level portable structures like cabins and modular buildings.
In the renewable energy sector, hydraulic cylinder jacks are used to position and adjust solar panel arrays for optimal sun exposure and energy generation.
