RCH Series Single-Acting Hollow Cylinders
-
Model:RCH Series
Capacity: 13-100ton
Stroke: 42-155mm
Weight: 3.4-63.5 KG
Oil capacity: 76-1028 Cm3
Manufacturer:Axion
Country of Origin:China
Return Type:Single-Acting Spring Return
Plunger Type:Solid
Brand Name:Replacement Enerpac's RCH Series
- RCH Series Single-Acting Hollow CylindersMRH120, 8.1 mm 0.32 in Stroke, Hollow Plunger Hydraulic CylinderMRH20, 8.4 mm 0.33 in Stroke, Hollow Plunger Hydraulic CylinderRCH1003,100 ton 947 KN,76 mm 2.99 in Stroke, Single Acting Hollow PLunger Hydraulic CylinderRCH606,60 ton 589 KN,153 mm 6.02 in Stroke, Single Acting Hollow PLunger Hydraulic CylinderRCH603,60 ton 589 KN,76 mm 2.99 in Stroke, Single Acting Hollow PLunger Hydraulic CylinderRCH306,30 ton 336 KN,155 mm 6.10 in Stroke, Single Acting Hollow PLunger Hydraulic CylinderRCH302, 30 ton 336 KN,64 mm 2.52 in Stroke, Single Acting Hollow PLunger Hydraulic CylinderRCH206, 20 ton 236 KN,155 mm 6.10 in Stroke, Single Acting Hollow PLunger Hydraulic CylinderRCH202, 20 ton 236 KN,49 mm 1.93 in Stroke, Single Acting Hollow PLunger Hydraulic CylinderRCH123, 13 ton 127 KN,76 mm 2.99 in Stroke, Single Acting Hollow PLunger Hydraulic CylinderRCH121, 13 ton 127 KN,42 mm 1.65 in Stroke, Single Acting Hollow PLunger Hydraulic Cylinder
Description
Model:RCH Series
Product Line: Industrial Tools
Type: Hydraulic Cylinder Ram, Hydraulic Jacks
Customizable with special requirement
Single-Acting, high strength spring return, easy to use.
Hollow Plunger design allows for both,pull and push forces.
Dual dust-proof ring structure remains cylinder internal cleaning.
The exclusive guide Ring is designed absorbs eccentric loading without galling cylinder parts,reduces wear and extending life.
Special painted surface to increase corrosion resistance.
Easy fixturing with collar threads,plunger threads and base mounting holes.
All model include quick couplings (NPT3/8"-18) and dust-proof cap.
Floating center tube is designed to increase product life.
Customizable with special requirement.
Selection appropriate pumps for offer optimum combination
Select AXION high quality high pressure hoses.
Pressure Display Unit ( Optional ) on pressure gauges.
Hollow Plunger Hydraulic Cylinder Ram is used for lifting. It has large output force, light weight, can be used in any space, and can be used at any distance. With the super high pressure oil pump of our company, it can realize many kinds of operations, such as topping, pulling, pressing, squeezing, pushing and so on. It is widely used in foundation detection, transportation, railways, bridges, subway, construction, factories,mines and other industries.
Customizable to meet the needs of different customers.
Looking for perfect replacements and alternatives to all Enerpac product series? Look no further! We offer a wide range of hydraulic tools that can perfectly replace and correspond with all Enerpac products.
Our hydraulic tools including hydraulic cylinders, pumps, jacks, Torque Wrenches, and other hydraulic equipment boast unparalleled performance, reliability, and durability. They are designed to meet and exceed Enerpac's quality and safety standards.
With our products, you will find the same quality and performance as Enerpac's products but at a more affordable price. So why pay more when you can have the same quality and performance at a lower cost?
We take pride in providing high-quality hydraulic solutions that fit your needs and budget. Contact us today and get started with our hydraulic products and services that will take your operation to the next level!

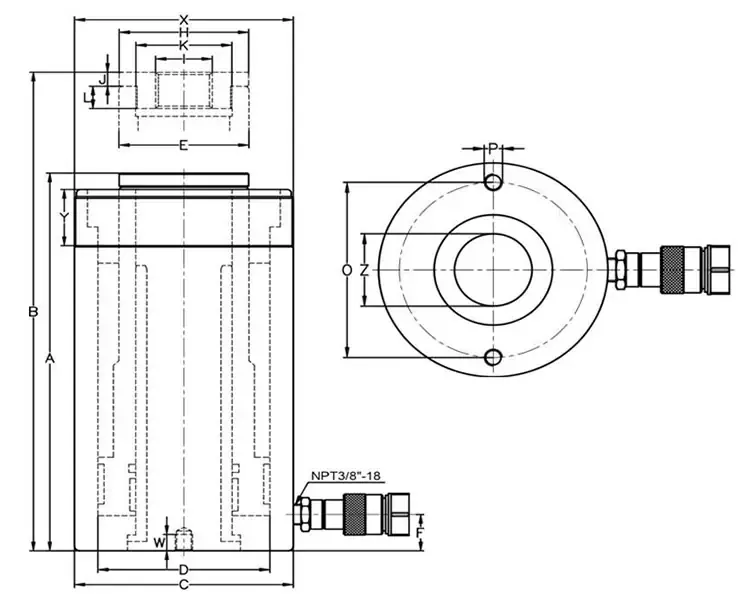

Dimensions
| Cylinder Capacity | Stroke | Model Number | Cylinder Effective Area | Oil Capacity | Collapsed Height | Extended Height | Outside Dia. | Cylinder Bore Dia | Plunger Dia. | Base to Advance Port | Saddle Dia. | Saddle Internal Thread | Saddle Protrusion from Plgr. | Plunger Internal Thread | Plunger Thread Length | Collar Thread | Collar Thread Length | Center Hole Dia | Weight | Mounting Hole Dimensions | |||
| Model Number | Bolt Circle | Thread | Thread Depth | ||||||||||||||||||||
| A | B | C | D | E | F | H | I | J | K | L | X | Y | Z | O | P | W | |||||||
| ton(KN) | (mm) | (cm2) | (cm3) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | (mm) | (mm) | ||||||
| 13(127) | 42 | RCH-121 | 18.2 | 76 | 130 | 172 | 76 | 55 | 35.5 | 20 | \ | \ | \ | 3/4"-16UN | 16 | 23/4"-16 | 30 | 19.5 | 3.4 | RCH130-42 | 50.8 | 5/16"-18UNC | 9 |
| 76 | RCH-123 | 18.2 | 138 | 184 | 260 | 76 | 55 | 35.5 | 20 | \ | \ | \ | \ | \ | 23/4"-16 | 30 | 19.5 | 5.2 | RCH130-76 | 50.8 | 5/16"-18UNC | 12.7 | |
| 20(236) | 49 | RCH-202 | 33.7 | 174 | 162 | 211 | 100 | 76 | 54.5 | 23 | 54 | 1"-8 | 9 | 19/16"-16UN | 19 | 37/8"-12 | 38 | 26.9 | 8.2 | RCH200-49 | 82.6 | 3/8"-16UNC | 9.4 |
| 155 | RCH-206 | 33.7 | 550 | 306 | 461 | 100 | 76 | 54.5 | 23 | 54 | 1"-8 | 9 | 19/16"-16UN | 19 | 37/8"-12 | 38 | 26.9 | 15 | RCH200-155 | 82.6 | 3/8"-16UNC | 9.4 | |
| 30(336) | 64 | RCH-302 | 48 | 307 | 180 | 244 | 115 | 90 | 64.5 | 25 | 64 | 11/4"-7 | 9 | 113/16"-16UN | 22 | 41/2"-12 | 42 | 33.3 | 11.5 | RCH300-64 | 92.2 | 3/8"-16UNC | 14 |
| 155 | RCH-306 | 48 | 744 | 330 | 485 | 115 | 90 | 64.5 | 25 | 64 | 11/4"-7 | 9 | 113/16"-16UN | 22 | 41/2"-12 | 42 | 33.3 | 21.5 | RCH300-155 | 92.2 | 3/8"-16UNC | 14 | |
| 60(589) | 76 | RCH-603 | 84.2 | 640 | 247 | 323 | 159 | 125 | 94.5 | 31 | 94 | 15/8"-51/2 | 12 | 23/4"-16UN | 19 | 61/4"-12 | 48 | 53.8 | 28.2 | RCH600-76 | 130.3 | 1/2"-13UNC | 14 |
| 153 | RCH-606 | 84.2 | 1288 | 323 | 476 | 159 | 125 | 94.5 | 31 | 94 | 15/8"-51/2 | 12 | 23/4"-16UN | 19 | 61/4"-12 | 48 | 53.8 | 35.5 | RCH600-153 | 130.3 | 1/2"-13UNC | 14 | |
| 100(947) | 76 | RCH-1003 | 135.3 | 1028 | 254 | 330 | 212 | 165 | 125 | 34 | 125 | 21/2"-8 | 12 | 4"-16UN | 25 | 83/8"-12 | 60 | 79 | 63.5 | RCH1000-76 | 177.8 | 5/8"-11UNC | 19 |
Application
Hydraulic cylinder jackshelp lift vessels out of the water or provide support for hull maintenance and repairs.
Event organizers use hydraulic cylinder jacks to adjust the height of stages and platforms for performances and presentations.
Hydraulic cylinder jacksassist in positioning and erecting communication towers for telecommunications infrastructure.
Hydraulic cylinder jacks provide the lifting power needed to assemble large structures such as steel frameworks and industrial buildings.
Aircraft maintenance crews rely on hydraulic cylinder jacksto raise aircraft for inspection and repairs.
Overhead cranes require precise positioning during installation, which hydraulic cylinder jacksfacilitate.
When installing large industrial equipment, hydraulic cylinder jacksare used to safely and precisely position components for assembly.
