RCH606,60 ton 589 KN,153 mm 6.02 in Stroke, Single Acting Hollow PLunger Hydraulic Cylinder
-
Model:RCH606
Capacity:60 ton | 589 KN
Stroke:153 mm | 6.02 inches
Weight:35.5 kg | 78.3 lbs
Cylinder Effective Area:84.2 m²
Oil Capacity:1288 cm³
Return Type:Single-Acting Spring Return
Plunger Type:Hollow
Brand Name:Replacement Enerpac's RCH606
- RCH Series Single-Acting Hollow CylindersMRH120, 8.1 mm 0.32 in Stroke, Hollow Plunger Hydraulic CylinderMRH20, 8.4 mm 0.33 in Stroke, Hollow Plunger Hydraulic CylinderRCH1003,100 ton 947 KN,76 mm 2.99 in Stroke, Single Acting Hollow PLunger Hydraulic CylinderRCH606,60 ton 589 KN,153 mm 6.02 in Stroke, Single Acting Hollow PLunger Hydraulic CylinderRCH603,60 ton 589 KN,76 mm 2.99 in Stroke, Single Acting Hollow PLunger Hydraulic CylinderRCH306,30 ton 336 KN,155 mm 6.10 in Stroke, Single Acting Hollow PLunger Hydraulic CylinderRCH302, 30 ton 336 KN,64 mm 2.52 in Stroke, Single Acting Hollow PLunger Hydraulic CylinderRCH206, 20 ton 236 KN,155 mm 6.10 in Stroke, Single Acting Hollow PLunger Hydraulic CylinderRCH202, 20 ton 236 KN,49 mm 1.93 in Stroke, Single Acting Hollow PLunger Hydraulic CylinderRCH123, 13 ton 127 KN,76 mm 2.99 in Stroke, Single Acting Hollow PLunger Hydraulic CylinderRCH121, 13 ton 127 KN,42 mm 1.65 in Stroke, Single Acting Hollow PLunger Hydraulic Cylinder
Description
Model:RCH606
Product Line: Industrial Tools
Type: Hydraulic Cylinder Ram, Hydraulic Jacks
Customizable with special requirement
- Single-Acting, high-str Spring Return, easy to use.
- Hollow Plunger design allows for both, pull and push forces.
- Dual dust-proof ring structure remains cylinder internal cleaning.
- The exclusive guide Ring is designed to absorb eccentric loading without galling cylinder parts, reduce wear, and extend life.
- Special painted surface to increase corrosion resistance.
- Easy fixturing with collar threads, plunger threads, and base mounting holes.
- All models include quick couplings (NPT3/8"-18) and dust-proof caps.
- The floating center tube is designed to increase product life.
- Selection of appropriate pumps to offer the optimum combination
- Select Axion high-quality high-pressure hoses.
- Pressure Display Unit ( Optional ) on pressure gauges.
- Hollow Plunger Hydraulic Cylinder Ram is used for lifting. It has a large output force, lightweight, can be used in any space, and can be used at any distance.

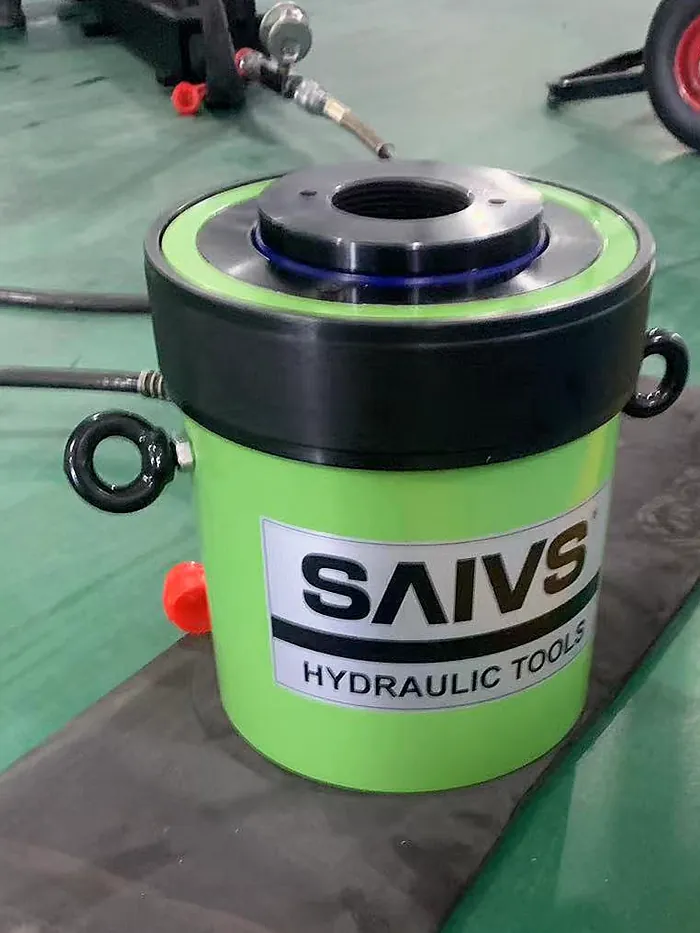

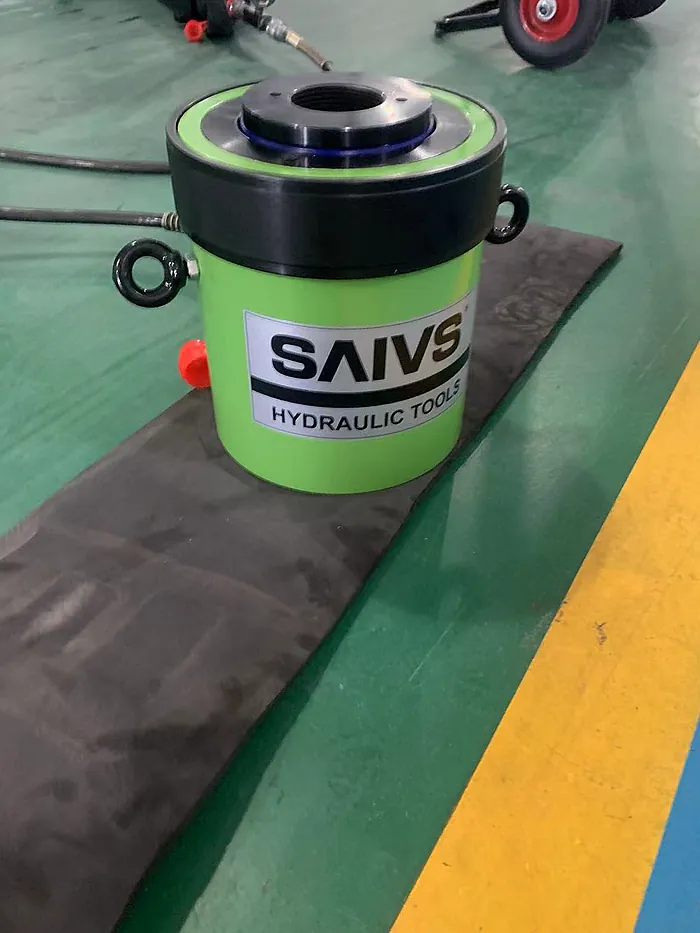

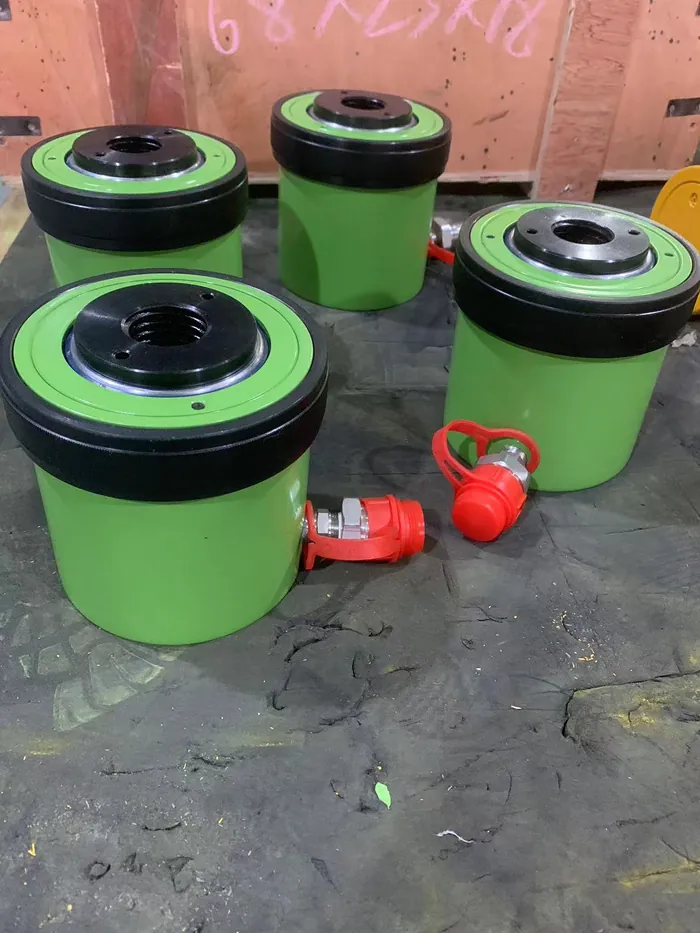

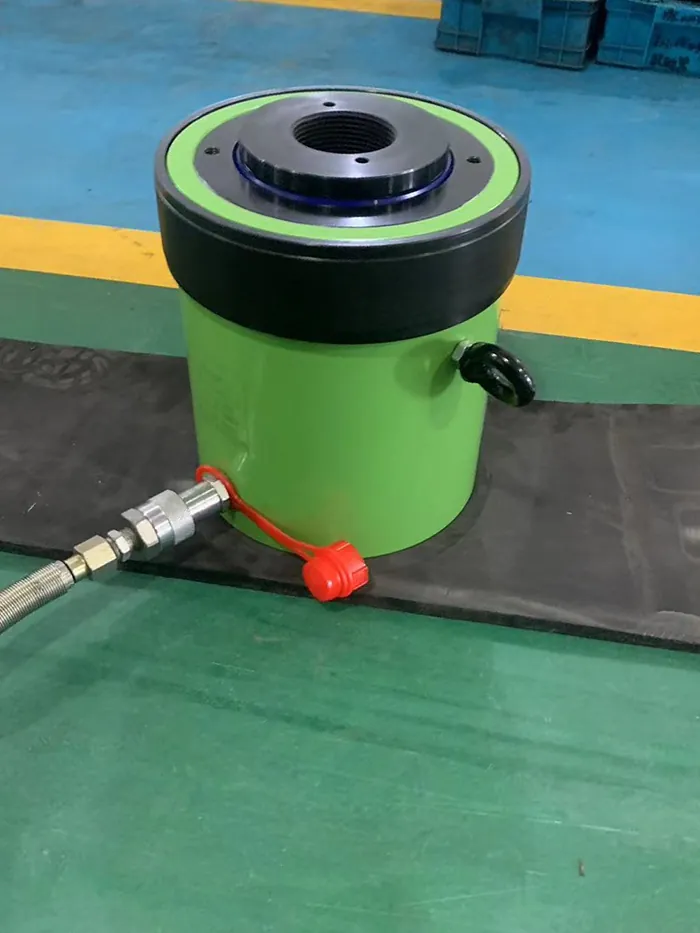

Image Gallery

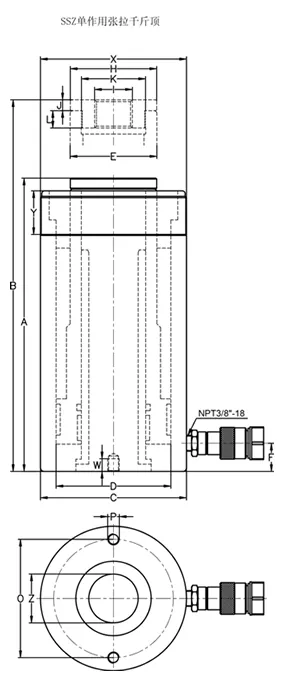

Dimensions
| Collapsed Height | A | (mm) | 323 | |
| Extended Height | B | (mm) | 476 | |
| Outside Dia. | C | (mm) | 159 | |
| Cylinder Bore Dia | D | (mm) | 125 | |
| Plunger Dia. | E | (mm) | 94.5 | |
| Base to Advance Port | F | (mm) | 31 | |
| Saddle Dia. | H | (mm) | 94 | |
| Saddle Internal Thread | I | 15/8"-51/2 | ||
| Saddle Protrusion from Plgr. | J | (mm) | 12 | |
| Plunger Internal Thread | K | 23/4"-16UN | ||
| Plunger Thread Length | L | (mm) | 19 | |
| Collar Thread | X | 61/4"-12 | ||
| Collar Thread Length | Y | (mm) | 48 | |
| Center Hole Dia | Z | (mm) | 53.8 | |
Series Comparison
| Cylinder Capacity | Stroke | Model Number | Cylinder Effective Area | Oil Capacity | Collapsed Height | Extended Height | Outside Dia. | Cylinder Bore Dia | Plunger Dia. | Base to Advance Port | Saddle Dia. | Saddle Internal Thread | Saddle Protrusion from Plgr. | Plunger Internal Thread | Plunger Thread Length | Collar Thread | Collar Thread Length | Center Hole Dia | Weight | Mounting Hole Dimensions | |||
| Model Number | Bolt Circle | Thread | Thread Depth | ||||||||||||||||||||
| A | B | C | D | E | F | H | I | J | K | L | X | Y | Z | O | P | W | |||||||
| ton(KN) | (mm) | (cm2) | (cm3) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | (mm) | (mm) | ||||||
| 13(127) | 42 | RCH-121 | 18.2 | 76 | 130 | 172 | 76 | 55 | 35.5 | 20 | \ | \ | \ | 3/4"-16UN | 16 | 23/4"-16 | 30 | 19.5 | 3.4 | RCH130-42 | 50.8 | 5/16"-18UNC | 9 |
| 76 | RCH-123 | 18.2 | 138 | 184 | 260 | 76 | 55 | 35.5 | 20 | \ | \ | \ | \ | \ | 23/4"-16 | 30 | 19.5 | 5.2 | RCH130-76 | 50.8 | 5/16"-18UNC | 12.7 | |
| 20(236) | 49 | RCH-202 | 33.7 | 174 | 162 | 211 | 100 | 76 | 54.5 | 23 | 54 | 1"-8 | 9 | 19/16"-16UN | 19 | 37/8"-12 | 38 | 26.9 | 8.2 | RCH200-49 | 82.6 | 3/8"-16UNC | 9.4 |
| 155 | RCH-206 | 33.7 | 550 | 306 | 461 | 100 | 76 | 54.5 | 23 | 54 | 1"-8 | 9 | 19/16"-16UN | 19 | 37/8"-12 | 38 | 26.9 | 15 | RCH200-155 | 82.6 | 3/8"-16UNC | 9.4 | |
| 30(336) | 64 | RCH-302 | 48 | 307 | 180 | 244 | 115 | 90 | 64.5 | 25 | 64 | 11/4"-7 | 9 | 113/16"-16UN | 22 | 41/2"-12 | 42 | 33.3 | 11.5 | RCH300-64 | 92.2 | 3/8"-16UNC | 14 |
| 155 | RCH-306 | 48 | 744 | 330 | 485 | 115 | 90 | 64.5 | 25 | 64 | 11/4"-7 | 9 | 113/16"-16UN | 22 | 41/2"-12 | 42 | 33.3 | 21.5 | RCH300-155 | 92.2 | 3/8"-16UNC | 14 | |
| 60(589) | 76 | RCH-603 | 84.2 | 640 | 247 | 323 | 159 | 125 | 94.5 | 31 | 94 | 15/8"-51/2 | 12 | 23/4"-16UN | 19 | 61/4"-12 | 48 | 53.8 | 28.2 | RCH600-76 | 130.3 | 1/2"-13UNC | 14 |
| 153 | RCH-606 | 84.2 | 1288 | 323 | 476 | 159 | 125 | 94.5 | 31 | 94 | 15/8"-51/2 | 12 | 23/4"-16UN | 19 | 61/4"-12 | 48 | 53.8 | 35.5 | RCH600-153 | 130.3 | 1/2"-13UNC | 14 | |
| 100(947) | 76 | RCH-1003 | 135.3 | 1028 | 254 | 330 | 212 | 165 | 125 | 34 | 125 | 21/2"-8 | 12 | 4"-16UN | 25 | 83/8"-12 | 60 | 79 | 63.5 | RCH1000-76 | 177.8 | 5/8"-11UNC | 19 |
Application
Mobile homes and trailers can be leveled and raised for foundation repairs or relocation using Hydraulic cylinder jacks.
Hydraulic cylinder jackshelp lift vessels out of the water or provide support for hull maintenance and repairs.
Event organizers use hydraulic cylinder jacks to adjust the height of stages and platforms for performances and presentations.
Hydraulic cylinder jacksassist in positioning and erecting communication towers for telecommunications infrastructure.
Hydraulic cylinder jacksassist in lifting heavy materials to build retaining walls, ensuring proper alignment and stability.
Hydraulic cylinder jacksare used to support and level drilling rigs during setup and maintenance in the oil and gas industry.
Hydraulic cylinder jacks are essential in maintaining the balance of heavy machinery, ensuring stable and efficient operations.
