RRH1001, 100 ton 947 KN, 38 mm 1.50 in Stroke, Double Acting Hollow Cylinders
-
Model:RRH1001
Capacity:100 ton | 981 KN
Stroke:38 mm | 1.50 inches
Weight:33 kg | 72.8 lbs
Cylinder Effective Area(Advance/Retract):135.3 m²/91.1 m²
Oil Capacity(Advance/Retract):514 cm³/346 cm³
Return Type:Double-Acting Hydraulic Return
Plunger Type:Hollow
Brand Name:Replacement Enerpac's RRH1001
- RRH1508, 150 ton 1445 KN, 203 mm 7.99 in Stroke, Double Acting Hollow CylindersRRH10010, 100 ton 947 KN, 257 mm 10.12 in Stroke, Double Acting Hollow CylindersRRH1006, 100 ton 947 KN, 153 mm 6.02 in Stroke, Double Acting Hollow CylindersRRH1003, 100 ton 947 KN, 76 mm 2.99 in Stroke, Double Acting Hollow CylindersRRH1001, 100 ton 947 KN, 38 mm 1.50 in Stroke, Double Acting Hollow CylindersRRH6010, 60 ton 589 KN, 257 mm 10.12 in Stroke, Double Acting Hollow CylindersRRH606, 60 ton 589 KN, 166 mm 6.54 in Stroke, Double Acting Hollow CylindersRRH603, 60 ton 589 KN, 89 mm 3.50 in Stroke, Double Acting Hollow CylindersRRH3010, 30 ton 336 KN, 258 mm 10.16 in Stroke, Double Acting Hollow CylindersRRH307, 30 ton 336 KN, 178 mm 7.01 in Stroke, Double Acting Hollow CylindersRRH Series Double-Acting Hollow Cylinders Jack
Description
Model:RRH1001
Product Line: Industrial Tools
Type: Hydraulic Cylinder Ram, Hydraulic Jacks
Customizable with special requirement
- Double-Acting cylinder version for fast retraction.
- Hollow Plunger design allows for both, pull and push forces.
- Dual dust-proof ring structure remains cylinder internal cleaning.
- The exclusive guide ring is designed to absorb eccentric loading without galling cylinder parts, reduce wear, and extend life.
- Built-in safety valve prevents accidental over-pressurization.
- Special painted surface to increase corrosion resistance.
- Easy fixturing with collar threads, plunger threads, and base mounting holes.
- All models include quick couplings (NPT3/8"-18) and dust-proof caps.
- Floating center tube is designed to increase product life.

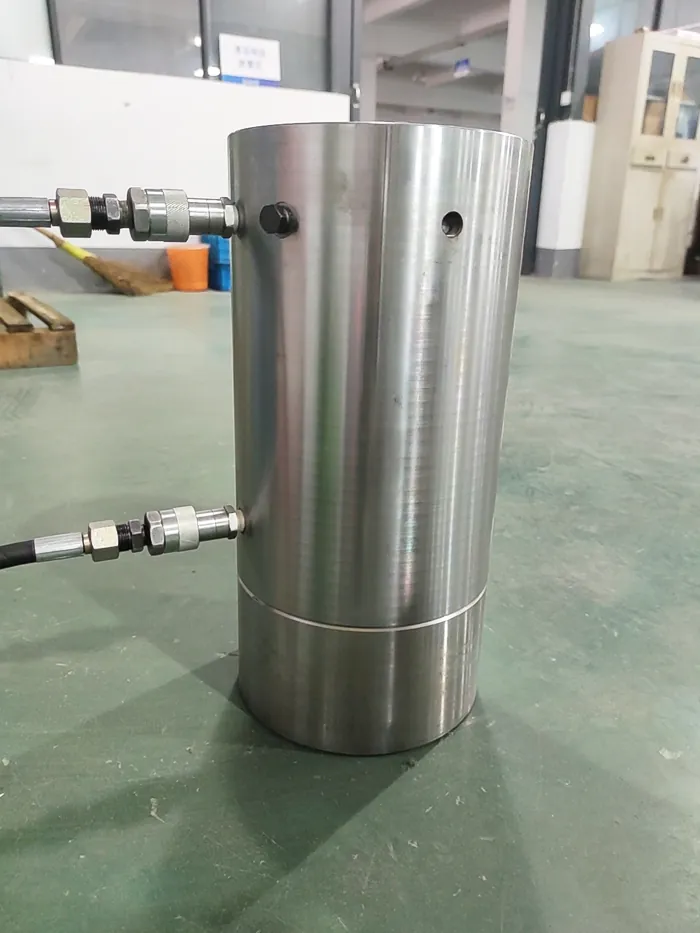

Image Gallery
Dimensions
| Collapsed Height | A | (mm) | 165 |
| Extended Height | B | (mm) | 203 |
| Outside Dia. | C | (mm) | 212 |
| Cylinder Bore Dia | D | (mm) | 165 |
| Plunger Dia. | E | (mm) | 125 |
| Base to Advance Port | F | (mm) | 34 |
| Top to Return Port | G | (mm) | 45 |
| Saddle Dia. | H | (mm) | 125 |
| Saddle Internal Thread | I | 21/2"-8 | |
| Saddle Protrusion from Plgr. | J | (mm) | 12 |
| Plunger Internal Thread | K | 4"-16UN | |
| Plunger Thread Length | L | (mm) | 25 |
| Center Hole Dia | Z | (mm) | 79 |
Series Comparison
| Cylinder Capacity | Stroke | Model Number | Max.Cylinder Capacity | Cylinder Effective Area | Oil Capacity | Collapsed Height | Extended Height | Outside Dia. | Cylinder Bore Dia | Plunger Dia. | Base to Advance Port | Top to Return Port | Saddle Dia. | Saddle Internal Thread | Saddle Protrusion from Plgr. | Plunger Internal Thread | Plunger Thread Length | Collar Thread | Collar Thread Length | Center Hole Dia | Weight | Mounting Hole Dimensions | ||||||
| Model Number | Bolt Circle | Thread | Thread Depth | |||||||||||||||||||||||||
| Advance | Retract | Advance | Retract | Advance | Retract | A | B | C | D | E | F | G | H | I | J | K | L | X | Y | Z | O | P | W | |||||
| ton | (mm) | (KN) | (cm2) | (cm3) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | (mm) | (mm) | |||||||||
| 30 | 178 | RRH-307 | 336 | 216 | 48 | 30.9 | 855 | 550 | 330 | 508 | 115 | 90 | 64.5 | 25 | 60 | 64 | 11/4"-7 | 9 | 113/16"-16UN | 22 | 41/2"-12 | 42 | 33.3 | 21 | RRH300-178 | 92.2 | 3/8"-16UNC | 15.7 |
| 258 | RRH-3010 | 336 | 216 | 48 | 30.9 | 1240 | 798 | 431 | 689 | 115 | 90 | 64.5 | 25 | 60 | 64 | 11/4"-7 | 9 | 113/16"-16UN | 22 | 41/2"-12 | 42 | 33.3 | 27 | RRH300-258 | 92.2 | 3/8"-16UNC | 15.7 | |
| 60 | 89 | RRH-603 | 589 | 368 | 84.2 | 52.6 | 749 | 468 | 247 | 336 | 159 | 125 | 94.5 | 31 | 66 | 94 | 15/8"-51/2 | 12 | 23/4"-16UN | 19 | 61/4"-12 | 48 | 53.8 | 28 | RRH600-89 | 130.3 | 1/2"-13UNC | 14 |
| 166 | RRH-606 | 589 | 368 | 84.2 | 52.6 | 1398 | 873 | 323 | 489 | 159 | 125 | 94.5 | 31 | 66 | 94 | 15/8"-51/2 | 12 | 23/4"-16UN | 19 | 61/4"-12 | 48 | 53.8 | 35 | RRH600-166 | 130.3 | 1/2"-13UNC | 14 | |
| 257 | RRH-6010 | 589 | 368 | 84.2 | 52.6 | 2164 | 1352 | 438 | 695 | 159 | 125 | 94.5 | 31 | 66 | 94 | 15/8"-51/2 | 12 | 23/4"-16UN | 19 | 61/4"-12 | 48 | 53.8 | 45 | RRH600-257 | 130.3 | 1/2"-13UNC | 14 | |
| 100 | 38 | RRH-1001 | 947 | 637 | 135.3 | 91.1 | 514 | 346 | 165 | 203 | 212 | 165 | 125 | 34 | 45 | 125 | 21/2"-8 | 12 | 4"-16UN | 25 | \ | \ | 79 | 33 | RRH1000-38 | 177.8 | 5/8"-11UNC | 19 |
| 76 | RRH-1003 | 947 | 637 | 135.3 | 91.1 | 1028 | 692 | 254 | 330 | 212 | 165 | 125 | 34 | 85 | 125 | 21/2"-8 | 12 | 4"-16UN | 25 | 83/8"-12 | 60 | 79 | 61 | RRH1000-76 | 177.8 | 5/8"-11UNC | 19 | |
| 153 | RRH-1006 | 947 | 637 | 135.3 | 91.1 | 2070 | 1394 | 342 | 495 | 212 | 165 | 125 | 34 | 85 | 125 | 21/2"-8 | 12 | 4"-16UN | 25 | 83/8"-12 | 60 | 79 | 79 | RRH1000-153 | 177.8 | 5/8"-11UNC | 19 | |
| 257 | RRH-10010 | 947 | 637 | 135.3 | 91.1 | 3477 | 2341 | 460 | 717 | 212 | 165 | 125 | 34 | 85 | 125 | 21/2"-8 | 12 | 4"-16UN | 25 | 83/8"-12 | 60 | 79 | 106 | RRH1000-257 | 177.8 | 5/8"-11UNC | 19 | |
| 150 | 203 | RRH-1508 | 1445 | 758 | 206.5 | 108.3 | 4191 | 2198 | 359 | 562 | 247 | 190 | 150 | 38 | 60 | 127 | \ | 13 | 41/4"-12UN | 25 | \ | \ | 79 | 111 | RRH1500-203 | \ | \ | \ |
Application
Mobile homes and trailers can be leveled and raised for foundation repairs or relocation using Hydraulic cylinder jacks.
Automotive mechanics use hydraulic cylinder jacks to raise cars and trucks for various repair and maintenance tasks.
Hydraulic cylinder jacksassist in positioning and erecting communication towers for telecommunications infrastructure.
Hydraulic cylinder jacks help position utility poles securely during installation, ensuring the stability of power and communication lines.
Overhead cranes require precise positioning during installation, which hydraulic cylinder jacksfacilitate.
Hydraulic cylinder jacks are employed to lift and level portable structures like cabins and modular buildings.
In the renewable energy sector, hydraulic cylinder jacks are used to position and adjust solar panel arrays for optimal sun exposure and energy generation.
