RCS502, 50 ton 549 KN, 60mm 2.4 in Stroke, Single Acting Low Height Hydraulic Cylinders
-
Model:RCS502
Capacity:50 ton | 549 KN
Stroke:60 mm | 2.4 inches
Weight:13.3 kg | 29.3 lbs
Cylinder Effective Area:78.5 m²
Oil Capacity:471 cm³
Return Type:Single-Acting Spring Return
Plunger Type:Solid
Brand Name:Replacement Enerpac's RCS502
- RCS1503, 150 ton 1386 KN, 80mm 3.1 in Stroke, Single Acting Low Height Hydraulic CylindersRCS1502, 150 ton 1386 KN, 51mm 2.0 in Stroke, Single Acting Low Height Hydraulic CylindersRCS1002, 100 ton 887 KN, 57mm 2.2 in Stroke, Single Acting Low Height Hydraulic CylindersRCS751, 75 ton 718 KN, 50mm 2.0 in Stroke, Single Acting Low Height Hydraulic CylindersRCS502, 50 ton 549 KN, 60mm 2.4 in Stroke, Single Acting Low Height Hydraulic CylindersRCS302, 30 ton 295 KN, 64mm 2.5 in Stroke, Single Acting Low Height Hydraulic CylindersRCS201, 20 ton 201 KN, 45mm 1.8 in Stroke, Single Acting Low Height Hydraulic CylindersRCS101, 10 ton 101 KN, 38mm 1.5 in Stroke, Single Acting Low Height Hydraulic CylindersRCS Series Single-acting Low Height Hydraulic Cylinders Jack
Description
Model:RCS502
Product Line: Industrial Tools
Type: Hydraulic Cylinder Ram, Hydraulic Jacks
Customizable with special requirement
- Single-Acting, Spring Return.
- Low profile design, fit in narrow application area.
- Special painted surface to increase corrosion resistance.
- Two plunger threads on grooved plunder end for particular needs.
- All model include quick couplings (NPT3/8"-18) and dust-proof cap.
- Easy carrying with handles on some models (Capacity over 50tons).
- No saddle required with grooved plunder end.

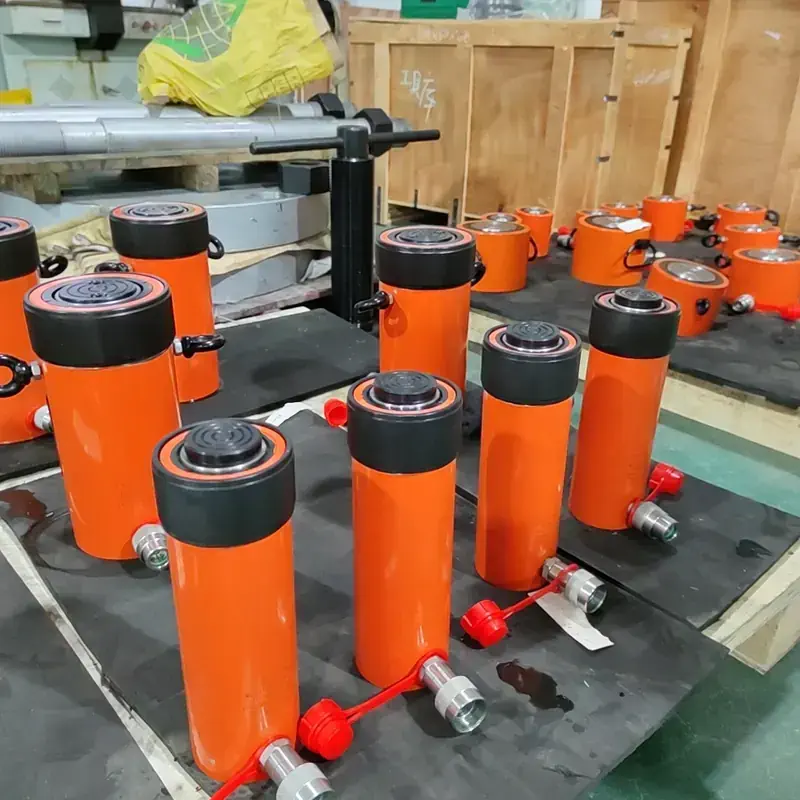

Image Gallery
Dimensions
| Collapsed Height | A | (mm) | 120 | |
| Extended Height | B | (mm) | 180 | |
| Outside Dia. | C | (mm) | 133 | |
| Cylinder Bore Dia. | D | (mm) | 100 | |
| Plunger Dia. | E | (mm) | 80 | |
| Base to Advance Port | F | (mm) | 21 | |
| Saddle Protrusion from Plgr. | J | (mm) | 2 | |
Series Comparison
| Cylinder Capacity | Stroke | Model Number | Cylinder Effective Area | Oil Capacity | Collapsed Height | Extended Height | Outside Dia. | Cylinder Bore Dia. | Plunger Dia. | Base to Advance Port | Saddle Protrusion from Plgr. | Weight | Mounting Hole Dimensions | ||||||
| Model Number | Bolt Circle | Thread | Thread Depth | ||||||||||||||||
| A | B | C | D | E | F | J | O | P | W | ||||||||||
| ton(KN) | (mm) | (cm2) | (cm3) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | (mm) | (mm) | ||||||
| 10(101) | 38 | RCS-101 | 15.9 | 60 | 88 | 126 | 78 | 45 | 35 | 19 | 2 | 4 | RCS-101 | 26 | M4 | 8 | |||
| 20(201) | 45 | RCS-201 | 31.1 | 140 | 97 | 142 | 96 | 63 | 50 | 19 | 2 | 6.9 | RCS-201 | 39 | M5 | 8 | |||
| 30(295) | 64 | RCS-302 | 45.3 | 290 | 117 | 181 | 109 | 76 | 60 | 19 | 2 | 9.8 | RCS-302 | 39 | M5 | 8 | |||
| 50(549) | 60 | RCS-502 | 78.5 | 471 | 120 | 180 | 133 | 100 | 80 | 21 | 2 | 13.3 | RCS-502 | 39 | M5 | 8 | |||
| 75(718) | 50 | RCS-751 | 116.8 | 584 | 116 | 166 | 157 | 122 | 100 | 21 | 2 | 19 | RCS-751 | 55 | M8 | 10 | |||
| 100(887) | 57 | RCS-1002 | 153.9 | 877 | 141 | 198 | 178 | 140 | 112 | 31 | 2 | 24.5 | RCS-1002 | 55 | M8 | 10 | |||
| 150(1386) | 51 | RCS-1502 | 232.2 | 1184 | 141 | 192 | 215 | 170 | 145 | 28 | 2 | 42 | RCS-1502 | 55 | M8 | 10 | |||
| 150(1386) | 80 | RCS-1503 | 232.2 | 1860 | 170 | 250 | 215 | 170 | 145 | 28 | 2 | 50 | RCS-1503 | 55 | M8 | 10 | |||
Application
Construction equipment often requires precise positioning for maintenance and repair tasks, and hydraulic cylinder jacks provide the necessary lifting capability.
Automotive mechanics use hydraulic cylinder jacks to raise cars and trucks for various repair and maintenance tasks.
Hydraulic cylinder jackshelp lift vessels out of the water or provide support for hull maintenance and repairs.
Event organizers use hydraulic cylinder jacks to adjust the height of stages and platforms for performances and presentations.
Wind turbines require periodic maintenance, and hydraulic cylinder jacksenable technicians to reach and service these towering structures.
Agricultural equipment can be adjusted to the correct height for various farming tasks using hydraulic cylinder jacks.
Overhead cranes require precise positioning during installation, which hydraulic cylinder jacksfacilitate.
