RCS Series Single-acting Low Height Hydraulic Cylinders Jack
-
Model:RCS Series
Capacity: 10-150ton
Stroke: 38-80mm
weight:4-50kg
Oil Capacity:60-1860(cm3)
Minimum Order:1Piece
Manufacturer:Axion
Country of Origin:China
Return Type:Single-Acting Spring Return
Plunger Type:Solid
Brand Name:Replacement Enerpac's RCS Series
- RCS1503, 150 ton 1386 KN, 80mm 3.1 in Stroke, Single Acting Low Height Hydraulic CylindersRCS1502, 150 ton 1386 KN, 51mm 2.0 in Stroke, Single Acting Low Height Hydraulic CylindersRCS1002, 100 ton 887 KN, 57mm 2.2 in Stroke, Single Acting Low Height Hydraulic CylindersRCS751, 75 ton 718 KN, 50mm 2.0 in Stroke, Single Acting Low Height Hydraulic CylindersRCS502, 50 ton 549 KN, 60mm 2.4 in Stroke, Single Acting Low Height Hydraulic CylindersRCS302, 30 ton 295 KN, 64mm 2.5 in Stroke, Single Acting Low Height Hydraulic CylindersRCS201, 20 ton 201 KN, 45mm 1.8 in Stroke, Single Acting Low Height Hydraulic CylindersRCS101, 10 ton 101 KN, 38mm 1.5 in Stroke, Single Acting Low Height Hydraulic CylindersRCS Series Single-acting Low Height Hydraulic Cylinders Jack
Description
Model:RCS Series
Product Line: Industrial Tools
Type: Hydraulic Cylinder Ram, Hydraulic Jacks
Customizable with special requirement
Low profile design, fit in narrow application area.
Special painted surface to increase corrosion resistance.
Two plunger threads on grooved plunder end for particular needs.
All model include quick couplings (NPT3/8"-18) and dust-proof cap.
Easy carrying with handles on some models (Capacity over 50tons).
No saddle required with grooved plunder end.
Customizable with special requirement.
Axion is a professional manufacturer in hydraulic tools and products, we have been in the industry for more than 15 years. We successfully transformed from OEM manufacturer to create our own brand Axion, and our factory has been approved by CE, ISO9001:2008 consecutively. Our products have been widely used in petrochemical, Building, shipbuilding, steel plant and heavy constructions areas etc.

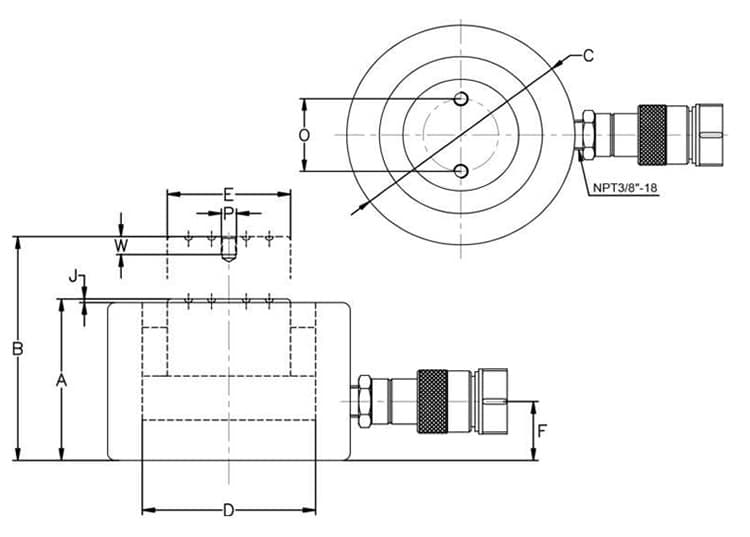

Dimensions
| Cylinder Capacity | Stroke | Model Number | Cylinder Effective Area | Oil Capacity | Collapsed Height | Extended Height | Outside Dia. | Cylinder Bore Dia. | Plunger Dia. | Base to Advance Port | Saddle Protrusion from Plgr. | Weight | Mounting Hole Dimensions | ||||||
| Model Number | Bolt Circle | Thread | Thread Depth | ||||||||||||||||
| A | B | C | D | E | F | J | O | P | W | ||||||||||
| ton(KN) | (mm) | (cm2) | (cm3) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | (mm) | (mm) | ||||||
| 10(101) | 38 | RCS-101 | 15.9 | 60 | 88 | 126 | 78 | 45 | 35 | 19 | 2 | 4 | RCS-101 | 26 | M4 | 8 | |||
| 20(201) | 45 | RCS-201 | 31.1 | 140 | 97 | 142 | 96 | 63 | 50 | 19 | 2 | 6.9 | RCS-201 | 39 | M5 | 8 | |||
| 30(295) | 64 | RCS-302 | 45.3 | 290 | 117 | 181 | 109 | 76 | 60 | 19 | 2 | 9.8 | RCS-302 | 39 | M5 | 8 | |||
| 50(549) | 60 | RCS-502 | 78.5 | 471 | 120 | 180 | 133 | 100 | 80 | 21 | 2 | 13.3 | RCS-502 | 39 | M5 | 8 | |||
| 75(718) | 50 | RCS-751 | 116.8 | 584 | 116 | 166 | 157 | 122 | 100 | 21 | 2 | 19 | RCS-751 | 55 | M8 | 10 | |||
| 100(887) | 57 | RCS-1002 | 153.9 | 877 | 141 | 198 | 178 | 140 | 112 | 31 | 2 | 24.5 | RCS-1002 | 55 | M8 | 10 | |||
| 150(1386) | 51 | RCS-1502 | 232.2 | 1184 | 141 | 192 | 215 | 170 | 145 | 28 | 2 | 42 | RCS-1502 | 55 | M8 | 10 | |||
| 150(1386) | 80 | RCS-1503 | 232.2 | 1860 | 170 | 250 | 215 | 170 | 145 | 28 | 2 | 50 | RCS-1503 | 55 | M8 | 10 | |||
FAQs
What are the benefits of using single-acting low height hydraulic cylinder jacks in my industry?
Single-acting low height hydraulic cylinder jacks offer several benefits, including the ability to lift and position heavy loads with ease, a compact design for use in tight spaces, and the reliability and safety provided by hydraulic power. They can be used in a variety of industries, such as construction, manufacturing, and transportation, to boost efficiency and productivity.
How can I find a reliable factory to purchase single-acting low height hydraulic cylinder jacks from?
When looking for a reliable factory to purchase single-acting low height hydraulic cylinder jacks from, it's important to consider factors such as the company's reputation, experience in the industry, and the quality of their products. It can be helpful to read reviews and compare prices from multiple suppliers to ensure you are getting the best value for your investment.
What are some key features to look for in a high-quality hydraulic cylinder jack supplier?
A high-quality hydraulic cylinder jack supplier should prioritize quality control, using only the best materials and adhering to rigorous testing standards to ensure the safety and reliability of their products. They should also provide excellent customer service, be able to offer customization options to meet specific needs, and have a strong track record of success in the industry.
Application
Automotive mechanics use hydraulic cylinder jacks to raise cars and trucks for various repair and maintenance tasks.
Hydraulic cylinder jacksaid in lifting and positioning heavy materials and equipment within manufacturing facilities.
Hydraulic cylinder jacks help position utility poles securely during installation, ensuring the stability of power and communication lines.
Hydraulic cylinder jacksare used to support and level drilling rigs during setup and maintenance in the oil and gas industry.
Hydraulic cylinder jacksaid in positioning molds and dies in manufacturing processes, ensuring accurate product production.
Hydraulic cylinder jacks are employed to lift and level portable structures like cabins and modular buildings.
Hydraulic cylinder jacks are essential in maintaining the balance of heavy machinery, ensuring stable and efficient operations.
