RCS751, 75 ton 718 KN, 50mm 2.0 in Stroke, Single Acting Low Height Hydraulic Cylinders
-
Model:RCS751
Capacity:75 ton | 718 KN
Stroke:50 mm | 2.0 inches
Weight:19 kg | 41.9 lbs
Cylinder Effective Area:116.8 m²
Oil Capacity:584 cm³
Return Type:Single-Acting Spring Return
Plunger Type:Solid
Brand Name:Replacement Enerpac's RCS751
- RCS1503, 150 ton 1386 KN, 80mm 3.1 in Stroke, Single Acting Low Height Hydraulic CylindersRCS1502, 150 ton 1386 KN, 51mm 2.0 in Stroke, Single Acting Low Height Hydraulic CylindersRCS1002, 100 ton 887 KN, 57mm 2.2 in Stroke, Single Acting Low Height Hydraulic CylindersRCS751, 75 ton 718 KN, 50mm 2.0 in Stroke, Single Acting Low Height Hydraulic CylindersRCS502, 50 ton 549 KN, 60mm 2.4 in Stroke, Single Acting Low Height Hydraulic CylindersRCS302, 30 ton 295 KN, 64mm 2.5 in Stroke, Single Acting Low Height Hydraulic CylindersRCS201, 20 ton 201 KN, 45mm 1.8 in Stroke, Single Acting Low Height Hydraulic CylindersRCS101, 10 ton 101 KN, 38mm 1.5 in Stroke, Single Acting Low Height Hydraulic CylindersRCS Series Single-acting Low Height Hydraulic Cylinders Jack
Description
Model:RCS751
Product Line: Industrial Tools
Type: Hydraulic Cylinder Ram, Hydraulic Jacks
Customizable with special requirement
- Single-Acting, Spring Return.
- Low profile design, fit in narrow application area.
- Special painted surface to increase corrosion resistance.
- Two plunger threads on grooved plunder end for particular needs.
- All model include quick couplings (NPT3/8"-18) and dust-proof cap.
- Easy carrying with handles on some models (Capacity over 50tons).
- No saddle required with grooved plunder end.

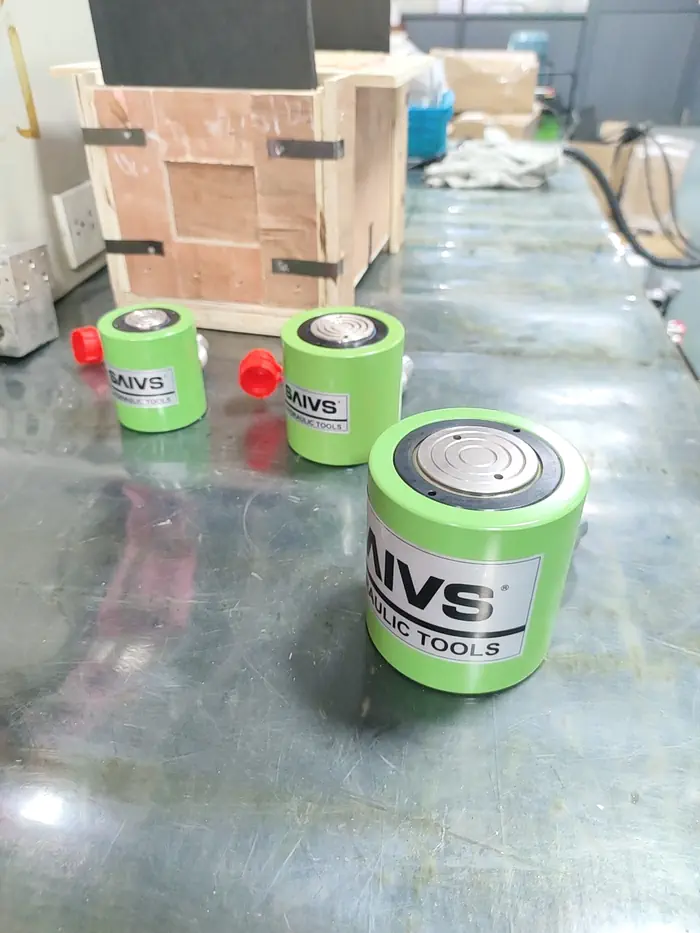

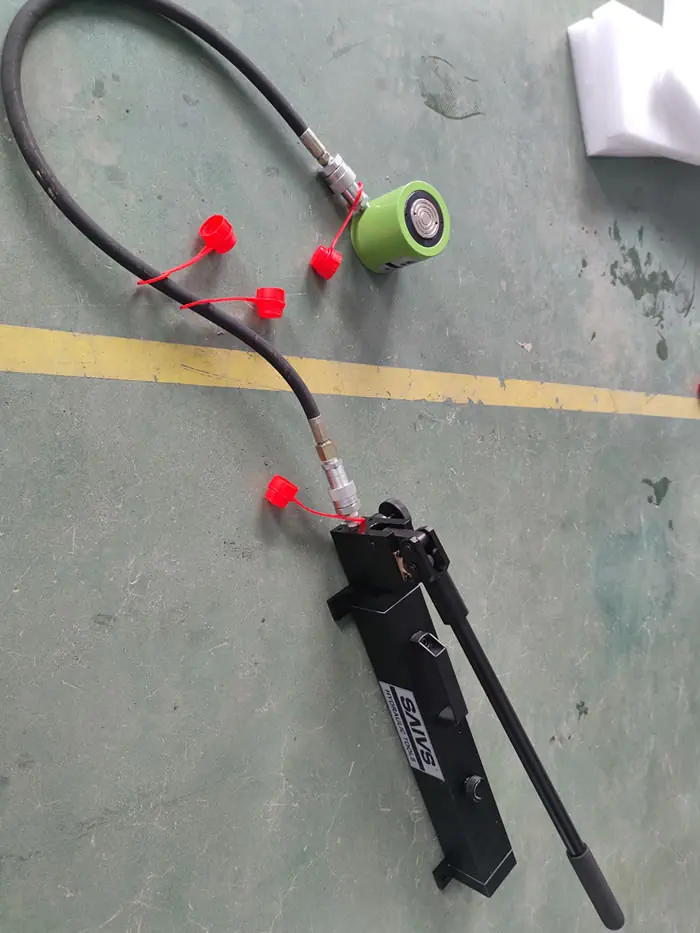

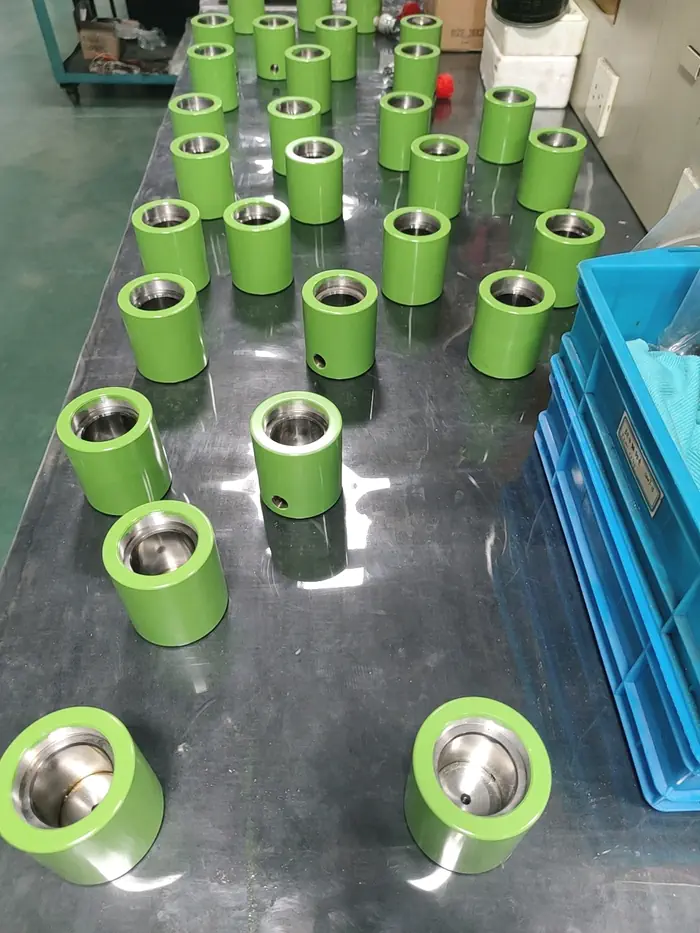

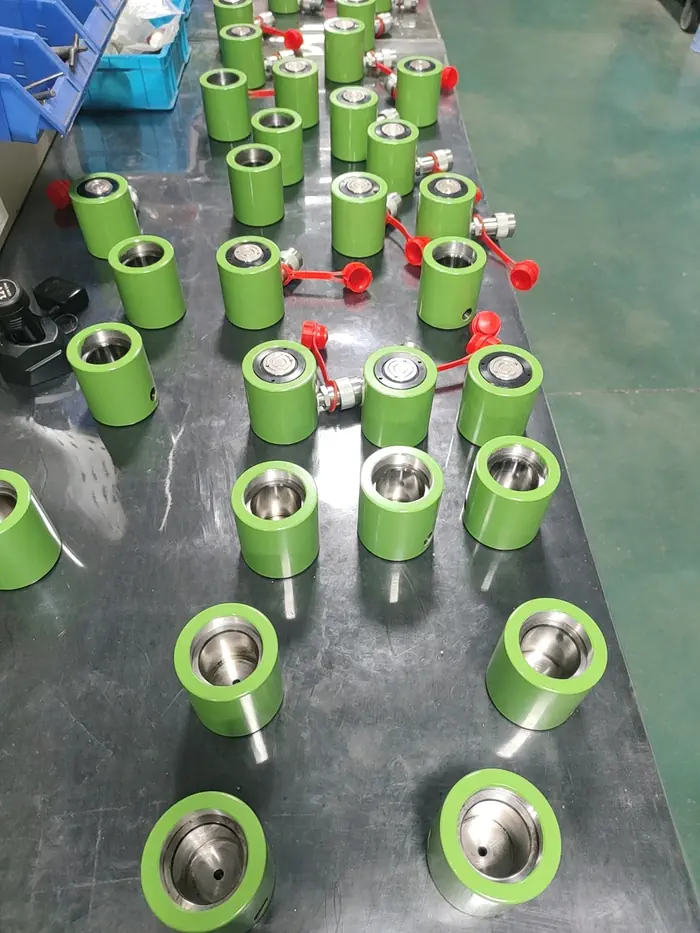

Image Gallery

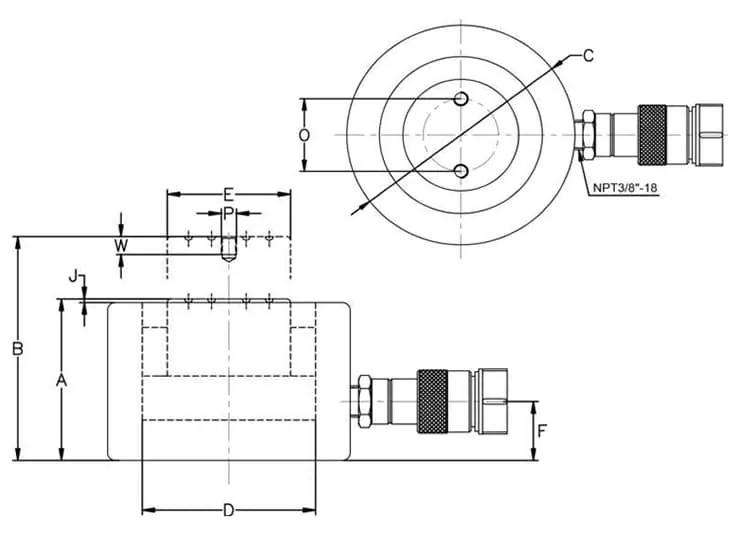

Dimensions
| Collapsed Height | A | (mm) | 116 | |
| Extended Height | B | (mm) | 166 | |
| Outside Dia. | C | (mm) | 157 | |
| Cylinder Bore Dia. | D | (mm) | 122 | |
| Plunger Dia. | E | (mm) | 100 | |
| Base to Advance Port | F | (mm) | 21 | |
| Saddle Protrusion from Plgr. | J | (mm) | 2 | |
Series Comparison
| Cylinder Capacity | Stroke | Model Number | Cylinder Effective Area | Oil Capacity | Collapsed Height | Extended Height | Outside Dia. | Cylinder Bore Dia. | Plunger Dia. | Base to Advance Port | Saddle Protrusion from Plgr. | Weight | Mounting Hole Dimensions | ||||||
| Model Number | Bolt Circle | Thread | Thread Depth | ||||||||||||||||
| A | B | C | D | E | F | J | O | P | W | ||||||||||
| ton(KN) | (mm) | (cm2) | (cm3) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | (mm) | (mm) | ||||||
| 10(101) | 38 | RCS-101 | 15.9 | 60 | 88 | 126 | 78 | 45 | 35 | 19 | 2 | 4 | RCS-101 | 26 | M4 | 8 | |||
| 20(201) | 45 | RCS-201 | 31.1 | 140 | 97 | 142 | 96 | 63 | 50 | 19 | 2 | 6.9 | RCS-201 | 39 | M5 | 8 | |||
| 30(295) | 64 | RCS-302 | 45.3 | 290 | 117 | 181 | 109 | 76 | 60 | 19 | 2 | 9.8 | RCS-302 | 39 | M5 | 8 | |||
| 50(549) | 60 | RCS-502 | 78.5 | 471 | 120 | 180 | 133 | 100 | 80 | 21 | 2 | 13.3 | RCS-502 | 39 | M5 | 8 | |||
| 75(718) | 50 | RCS-751 | 116.8 | 584 | 116 | 166 | 157 | 122 | 100 | 21 | 2 | 19 | RCS-751 | 55 | M8 | 10 | |||
| 100(887) | 57 | RCS-1002 | 153.9 | 877 | 141 | 198 | 178 | 140 | 112 | 31 | 2 | 24.5 | RCS-1002 | 55 | M8 | 10 | |||
| 150(1386) | 51 | RCS-1502 | 232.2 | 1184 | 141 | 192 | 215 | 170 | 145 | 28 | 2 | 42 | RCS-1502 | 55 | M8 | 10 | |||
| 150(1386) | 80 | RCS-1503 | 232.2 | 1860 | 170 | 250 | 215 | 170 | 145 | 28 | 2 | 50 | RCS-1503 | 55 | M8 | 10 | |||
Application
Railways use hydraulic cylinder jacks to lift locomotives, allowing access for inspections and maintenance.
Hydraulic cylinder jacks provide the lifting power needed to assemble large structures such as steel frameworks and industrial buildings.
Aircraft maintenance crews rely on hydraulic cylinder jacksto raise aircraft for inspection and repairs.
Overhead cranes require precise positioning during installation, which hydraulic cylinder jacksfacilitate.
Hydraulic press beds can be adjusted using hydraulic cylinder jacksto accommodate various workpiece sizes and shapes.
Hydraulic cylinder jacks are employed to lift and level portable structures like cabins and modular buildings.
Elevator systems require periodic maintenance, and hydraulic cylinder jacks are employed to lift and secure elevator cars for inspection and service.
