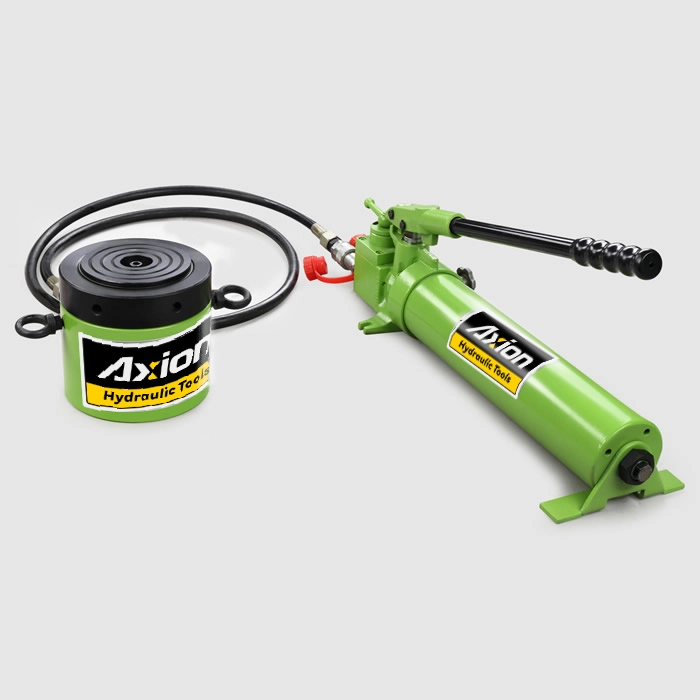

CLP Series Single-Acting Low Profile Lock-Nut Hydraulic Cylinder
-
Model:CLP Series
Capacity: 60-520ton
Stroke: 45-50mm
Collapsed Height: 125-192 mm
Extended Height: 175-237
mmOutside Dia.: 140-400 mm
Lock-nut Height: 28-62 mm
Weight:15-188 kg
Oil Capacity: 432-3287
Minimum Order:1Piece
Return Type:Single-Acting Spring Return
Plunger Type:Solid
Brand Name:Replacement Enerpac's CLP Series
- CLP5002, 520 ton 5114 KN, 45mm 1.77 in Stroke, Single Acting Lock Nut Pancake Hydraulic CylindersCLP4002, 400 ton 3916 KN, 45mm 1.77 in Stroke, Single Acting Lock Nut Pancake Hydraulic CylindersCLP2502, 260 ton 2567 KN, 45mm 1.77 in Stroke, Single Acting Lock Nut Pancake Hydraulic CylindersCLP2002, 200 ton 1999 KN, 45mm 1.77 in Stroke, Single Acting Lock Nut Pancake Hydraulic CylindersCLP1602, 160 ton 1619 KN, 45mm 1.77 in Stroke, Single Acting Lock Nut Pancake Hydraulic CylindersCLP1002, 100 ton 1027 KN, 50mm 1.97 in Stroke, Single Acting Lock Nut Pancake Hydraulic CylindersCLP602, 60 ton 606 KN, 50mm 1.97 in Stroke, Single Acting Lock Nut Pancake Hydraulic CylindersCLP Series Single-Acting Low Profile Lock-Nut Hydraulic Cylinder
Description
Model:CLP Series
Product Line: Industrial Tools
Type: Hydraulic Cylinder Ram, Hydraulic Jacks
Customizable with special requirement
Single-Acting,load return.
Low profile design,fit in narrow application area.
Special painted surface to increase corrosion resistance.
Lock nut ensure the safety of long time load holding.
All model include quick couplings (NPT3/8"-18) and dust-proof cap.
Overflow port function could limit the stroke.
Removable hardened grooved saddles.
Customizable with special requirement.
ALL CLP-Series cylinders include integral tilt saddles with maximum tilt angles up to 4°.
Select Axion high quality high pressure hoses.
For longer stroke applications CLL-Series Lock-Nut Cylinders are the perfect choice.
How to choice the hydraulic cylinder and attachment?
Step 1: Choice the hydraulic syliner suitable for the working situation;
Step 2: Choice the hydraulic pump suitable for the cylinder and the working situation;
Step 3: Choice the hydraulic attachment;
How to choice the hydraulic cylinder's condition ?
Double-Acting series cylinders with hydraulic check valve.
Whether need working at narrow space,
Make sure the fuel capacity of hydraulic cylinder,
Whether need several cylinders are used together,
Whether need hydraulic cylinder with partial load work,
Whether need several hydraulic cylinders are working together,
Whether need keep the loading with long time,
Fuel capacity (cm)=The active area of cylinder X the stroke of cylinder (cm).
Whether need the steel stick or cable through off the hydraulic cylinder,
Choice the Hollow hydraulic cylinder ( RCH, RRH seris ).
The stress of cylinder(the rated pressure of cylinder is 20% more than actual loading capacity.
Whether need control with jack up and pull back,
Choice Tiltable saddle.
Choice the low flat hydraulic cylinder ( RCS, RSM, CLP Series ).
Choice lock-nut hydraulic cylinder （CLP, CLL Series）
Choice Synchronous lifting system ( SPHF, SPHP series ).
Make sure the point quantity of jack up.
Height and stroke of cylinder requirement,
Which way of the cylinder use for,
Choice the correct height and stroke of cylinder according to the working situation.
Single-action only use for jack up, double-action can use for jack up and pull back.
Cylinder force ( kg )=Active area of cylinder ( cm ) X hydraulic pump Pressure ( bat )

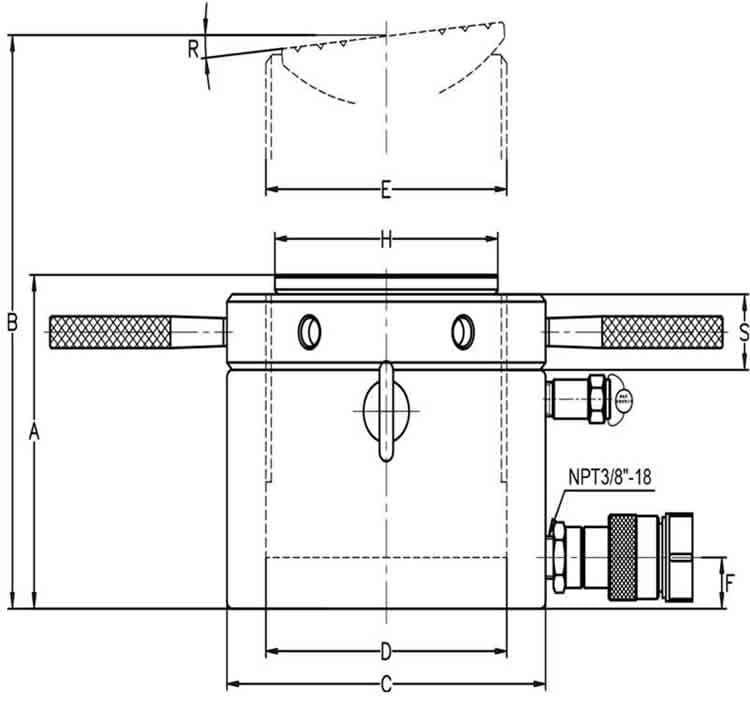

Dimensions
| Cylinder Capacity | Stroke | Model Number | Cylinder Effective Area | Oil Capacity | Collapsed Height | Extended Height | Outside Dia. | Cylinder Bore Dia | Plunger Dia. | Base to Advance Port | Saddle Dia. | Saddle Protr. from Plgr. | Lock-nut Height | Weight |
| A | B | C | D | E | F | H | R | S | ||||||
| ton(KN) | (mm) | (cm2) | (cm3) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | ||
| 60(606) | 50 | CLP-602 | 88.2 | 432 | 125 | 175 | 140 | 106 | Tr104x4 | 19 | 96 | 4° | 28 | 15 |
| 100(1027) | 50 | CLP-1002 | 147.3 | 734 | 140 | 187 | 180 | 137 | Tr136x6 | 21 | 126 | 4° | 31 | 27 |
| 160(1619) | 45 | CLP-1602 | 232.2 | 1040 | 148 | 193 | 224 | 172 | Tr171x6 | 27 | 160 | 4° | 40 | 45.5 |
| 200(1999) | 45 | CLP-2002 | 285.6 | 1285 | 155 | 200 | 245 | 190.7 | Tr190x6 | 30 | 180 | 4° | 43 | 57 |
| 260(2567) | 45 | CLP-2502 | 366.2 | 1650 | 159 | 204 | 275 | 216 | Tr215x6 | 32 | 200 | 4° | 44 | 74 |
| 400(3916) | 45 | CLP-4002 | 572.3 | 2517 | 178 | 223 | 350 | 270 | Tr266x6 | 41 | 251 | 4° | 55 | 134 |
| 520(5114) | 45 | CLP-5002 | 730.2 | 3287 | 192 | 237 | 400 | 305 | Tr304x6 | 48 | 289 | 3° | 62 | 188 |
