CLP5002, 520 ton 5114 KN, 45mm 1.77 in Stroke, Single Acting Lock Nut Pancake Hydraulic Cylinders
-
Model:CLP5002
Capacity:520 ton | 5114 KN
Stroke:45 mm | 1.77 inches
Weight:188 kg | 414.5 lbs
Cylinder Effective Area:730.2 m²
Oil Capacity:3287 cm³
Return Type:Single-Acting Load Return
Plunger Type:Solid
Brand Name:Replacement Enerpac's CLP5002
- CLP5002, 520 ton 5114 KN, 45mm 1.77 in Stroke, Single Acting Lock Nut Pancake Hydraulic CylindersCLP4002, 400 ton 3916 KN, 45mm 1.77 in Stroke, Single Acting Lock Nut Pancake Hydraulic CylindersCLP2502, 260 ton 2567 KN, 45mm 1.77 in Stroke, Single Acting Lock Nut Pancake Hydraulic CylindersCLP2002, 200 ton 1999 KN, 45mm 1.77 in Stroke, Single Acting Lock Nut Pancake Hydraulic CylindersCLP1602, 160 ton 1619 KN, 45mm 1.77 in Stroke, Single Acting Lock Nut Pancake Hydraulic CylindersCLP1002, 100 ton 1027 KN, 50mm 1.97 in Stroke, Single Acting Lock Nut Pancake Hydraulic CylindersCLP602, 60 ton 606 KN, 50mm 1.97 in Stroke, Single Acting Lock Nut Pancake Hydraulic CylindersCLP Series Single-Acting Low Profile Lock-Nut Hydraulic Cylinder
Description
Model:CLP5002
Product Line: Industrial Tools
Type: Hydraulic Cylinder Ram, Hydraulic Jacks
Customizable with special requirement
- Single-Acting, load return.
- Low profile design, fit in the narrow application area.
- Special painted surface to increase corrosion resistance.
- Lock nut ensures the safety of long-time load holding.
- All models include quick couplings (NPT3/8"-18) and dust-proof caps.
- Overflow port function could limit the stroke.
- Removable hardened grooved saddles.
- ALL CLP-Series cylinders include integral tilt saddles with maximum tilt angles up to 4°.
- Select Axion high-quality high-pressure hoses.
- For longer stroke applications CLL-Series Lock-Nut Cylinders are the perfect choice.
- Fuel Capacity: Ensure the hydraulic cylinder's fuel capacity meets your requirements. Calculate fuel capacity using the formula: Fuel capacity (cm³) = Active area of the cylinder (cm²) × Stroke of the cylinder (cm).
- Jacking Points: Ensure the number of jacking points matches the lifting requirements.
- Height and Stroke: Determine the height and stroke of the cylinder based on the working situation. Choose the correct height and stroke accordingly.
- Cylinder Force: Calculate the required cylinder force using the formula: Cylinder force (kg) = Active area of the cylinder (cm²) × hydraulic pump pressure (bar).
Image Gallery

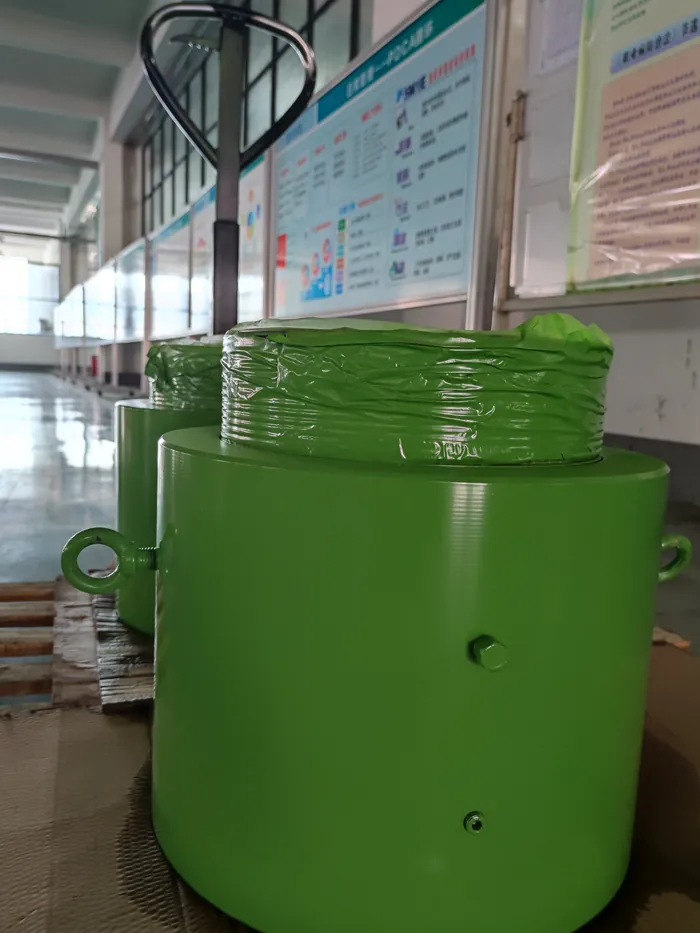

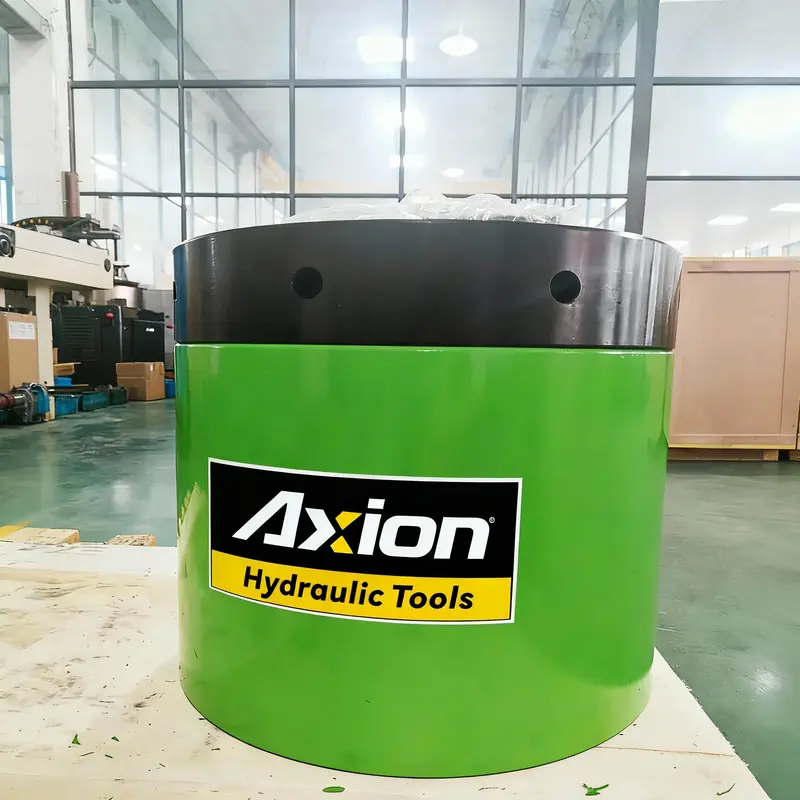

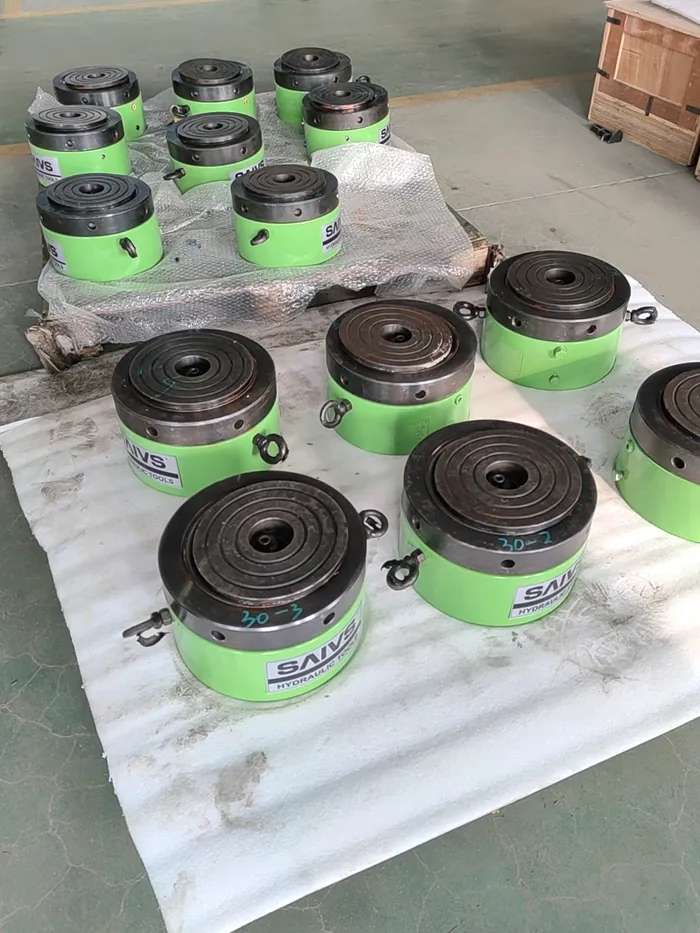

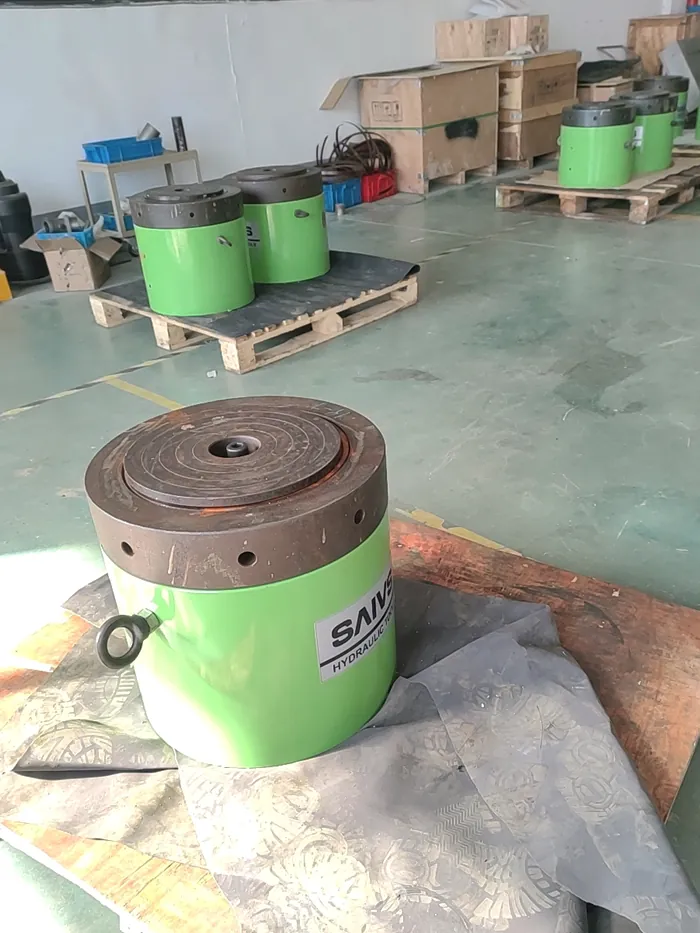

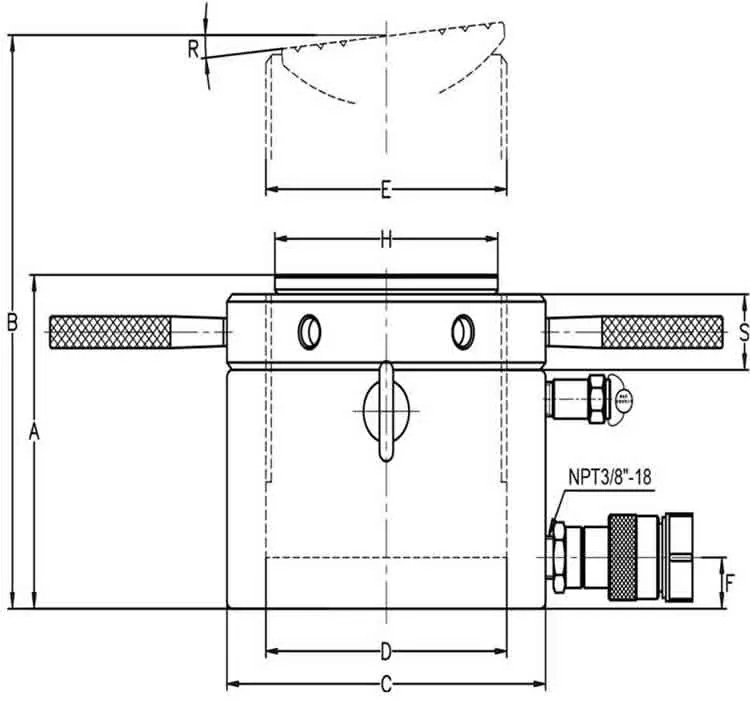

Dimensions
| Collapsed Height | A | (mm) | 192 | |
| Extended Height | B | (mm) | 237 | |
| Outside Dia. | C | (mm) | 400 | |
| Cylinder Bore Dia | D | (mm) | 305 | |
| Plunger Dia. | E | (mm) | Tr304x6 | |
| Base to Advance Port | F | (mm) | 48 | |
| Saddle Dia. | H | (mm) | 289 | |
| Saddle Protr. from Plgr. | R | 3° | ||
| Lock-nut Height | S | (mm) | 62 | |
Series Comparison
| Cylinder Capacity | Stroke | Model Number | Cylinder Effective Area | Oil Capacity | Collapsed Height | Extended Height | Outside Dia. | Cylinder Bore Dia | Plunger Dia. | Base to Advance Port | Saddle Dia. | Saddle Protr. from Plgr. | Lock-nut Height | Weight |
| A | B | C | D | E | F | H | R | S | ||||||
| ton(KN) | (mm) | (cm2) | (cm3) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | ||
| 60(606) | 50 | CLP-602 | 88.2 | 432 | 125 | 175 | 140 | 106 | Tr104x4 | 19 | 96 | 4° | 28 | 15 |
| 100(1027) | 50 | CLP-1002 | 147.3 | 734 | 140 | 187 | 180 | 137 | Tr136x6 | 21 | 126 | 4° | 31 | 27 |
| 160(1619) | 45 | CLP-1602 | 232.2 | 1040 | 148 | 193 | 224 | 172 | Tr171x6 | 27 | 160 | 4° | 40 | 45.5 |
| 200(1999) | 45 | CLP-2002 | 285.6 | 1285 | 155 | 200 | 245 | 190.7 | Tr190x6 | 30 | 180 | 4° | 43 | 57 |
| 260(2567) | 45 | CLP-2502 | 366.2 | 1650 | 159 | 204 | 275 | 216 | Tr215x6 | 32 | 200 | 4° | 44 | 74 |
| 400(3916) | 45 | CLP-4002 | 572.3 | 2517 | 178 | 223 | 350 | 270 | Tr266x6 | 41 | 251 | 4° | 55 | 134 |
| 520(5114) | 45 | CLP-5002 | 730.2 | 3287 | 192 | 237 | 400 | 305 | Tr304x6 | 48 | 289 | 3° | 62 | 188 |
Application
Hydraulic cylinder jacks are used to position bridge sections and beams during construction, allowing for accurate alignment and secure installation.
Mobile homes and trailers can be leveled and raised for foundation repairs or relocation using Hydraulic cylinder jacks.
Welders use hydraulic cylinder jacksto accurately position heavy workpieces for welding tasks, ensuring precision and safety.
Hydraulic cylinder jacksassist in lifting heavy materials to build retaining walls, ensuring proper alignment and stability.
Agricultural equipment can be adjusted to the correct height for various farming tasks using hydraulic cylinder jacks.
Overhead cranes require precise positioning during installation, which hydraulic cylinder jacksfacilitate.
In the renewable energy sector, hydraulic cylinder jacks are used to position and adjust solar panel arrays for optimal sun exposure and energy generation.
