RC156, 15 ton 142 KN, 152 mm 5.98 in Stroke, General Purpose Hydraulic Cylinder

5out of5 based on20 reviews | Write a review

Model:RC156

Capacity:15 ton | 142 KN
Stroke:152 mm | 5.98 inches
Weight:7 kg | 15.4 lbs
Cylinder Effective Area:21.2 m²
Oil Capacity:323 cm³

Return Type:Single-Acting Spring Return

Plunger Type:Solid

Brand Name:Replacement Enerpac's RC156
RC10010, 100 ton 933 KN, 260 mm 10.24 in Stroke, General Purpose Hydraulic Cylinder RC1006, 100 ton 933 KN, 168 mm 6.61 in Stroke, General Purpose Hydraulic Cylinder RC7513, 75 ton 718 KN, 333 mm 13.11 in Stroke, General Purpose Hydraulic Cylinder RC756, 75 ton 718 KN, 156 mm 6.14 in Stroke, General Purpose Hydraulic Cylinder RC5013, 50 ton 498 KN, 337 mm 13.27 in Stroke, General Purpose Hydraulic Cylinder RC506, 50 ton 498 KN, 159 mm 6.26 in Stroke, General Purpose Hydraulic Cylinder RC504, 50 ton 498 KN, 101 mm 3.98 in Stroke, General Purpose Hydraulic Cylinder RC502, 50 ton 498 KN, 51 mm 2.01 in Stroke, General Purpose Hydraulic Cylinder RC3012, 30 ton 295 KN, 300 mm 11.81 in Stroke, General Purpose Hydraulic Cylinder RC308, 30 ton 295 KN, 209 mm 8.23 in Stroke, General Purpose Hydraulic Cylinder RC304, 30 ton 295 KN, 100 mm 3.94 in Stroke, General Purpose Hydraulic Cylinder RC302, 30 ton 295 KN, 50 mm 1.97 in Stroke, General Purpose Hydraulic Cylinder RC2514, 25 ton 232 KN, 362 mm 14.25 in Stroke, General Purpose Hydraulic Cylinder RC2512, 25 ton 232 KN, 311 mm 12.24 in Stroke, General Purpose Hydraulic Cylinder RC2510, 25 ton 232 KN, 261 mm 10.28 in Stroke, General Purpose Hydraulic Cylinder RC258, 25 ton 232 KN, 210 mm 8.27 in Stroke, General Purpose Hydraulic Cylinder RC256, 25 ton 232 KN, 158 mm 6.22 in Stroke, General Purpose Hydraulic Cylinder RC254, 25 ton 232 KN, 102 mm 4.02 in Stroke, General Purpose Hydraulic Cylinder RC252, 25 ton 232 KN, 50 mm 1.97 in Stroke, General Purpose Hydraulic Cylinder RC251, 25 ton 232 KN, 26 mm 1.02 in Stroke, General Purpose Hydraulic Cylinder RC1514, 15 ton 142 KN, 356 mm 14.02 in Stroke, General Purpose Hydraulic Cylinder RC1512, 15 ton 142 KN, 305 mm 12.01 in Stroke, General Purpose Hydraulic Cylinder RC1510, 15 ton 142 KN, 254 mm 10.00 in Stroke, General Purpose Hydraulic Cylinder RC158, 15 ton 142 KN, 203 mm 7.99 in Stroke, General Purpose Hydraulic Cylinder RC156, 15 ton 142 KN, 152 mm 5.98 in Stroke, General Purpose Hydraulic Cylinder RC154, 15 ton 142 KN, 101 mm 3.98 in Stroke, General Purpose Hydraulic Cylinder RC152, 15 ton 142 KN, 51 mm 2.01 in Stroke, General Purpose Hydraulic Cylinder RC151, 15 ton 142 KN, 25 mm 0.98 in Stroke, General Purpose Hydraulic Cylinder RC1014, 10 ton 101 KN, 356 mm 14.02 in Stroke, General Purpose Hydraulic Cylinder RC1012, 10 ton 101 KN, 304 mm 11.97 in Stroke, General Purpose Hydraulic Cylinder RC1010, 10 ton 101 KN, 257 mm 10.12 in Stroke, General Purpose Hydraulic Cylinder RC108, 10 ton 101 KN, 203 mm 7.99 in Stroke, General Purpose Hydraulic Cylinder RC106, 10 ton 101 KN, 156 mm 6.14 in Stroke, General Purpose Hydraulic Cylinder RC104, 10 ton 101 KN, 105 mm 4.13 in Stroke, General Purpose Hydraulic Cylinder RC102, 10 ton 101 KN, 54 mm 2.13 in Stroke, General Purpose Hydraulic Cylinder RC Seires Single-Acting Hydraulic Cylinders

PDF DOWNLOAD

Description

Model:RC156

Product Line: Industrial Tools

Type: Hydraulic Cylinder Ram, Hydraulic Jacks

Customizable with special requirement

- Single-Acting, high-strength Spring Return for easy use

- Exclusive guide ring absorbs eccentric loading without galling cylinder parts, reducing wear and extending life

- Special painted surface increases corrosion resistance

- Easy fixturing with collar threads, plunger threads, and base mounting holes

- All models include NPT3/8"-18 quick coupling and dust cap

- Removable hardened grooved saddles

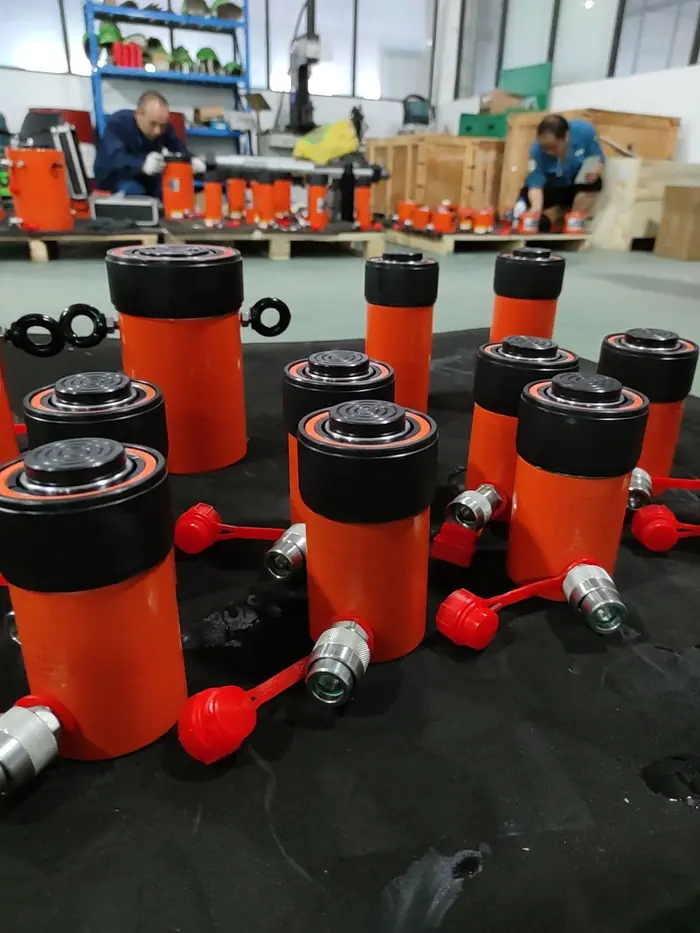

Image Gallery

RC156, 15 ton 142 KN, 152 mm 5.98 in Stroke, General Purpose Hydraulic Cylinder 1 Image-Axion

RC156, 15 ton 142 KN, 152 mm 5.98 in Stroke, General Purpose Hydraulic Cylinder 2 Image-Axion

RC156, 15 ton 142 KN, 152 mm 5.98 in Stroke, General Purpose Hydraulic Cylinder 3 Image-Axion

RC156, 15 ton 142 KN, 152 mm 5.98 in Stroke, General Purpose Hydraulic Cylinder 4 Image-Axion

Dimensions

Collapsed height	A	(mm)	271
Extended Height	B	(mm)	423
Outside Dia.	C	(mm)	70
Cylinder Bore Dia.	D	(mm)	52
Plunger Dia.	E	(mm)	42
Base to Advance Port	F	(mm)	25
Saddle Dia.	H	(mm)	38
Saddle Protr. from Plgr.	J	(mm)	9
Plunger Internal Thread	K		1"-8UN
Plunger Thread Length	L	(mm)	25
Collar Thread	X		23/4"-16
Collar Thread Length	Y	(mm)	30

Series Comparison

Cylinder Capacity	Stroke	Model Number	Cylinder Effective Area	Oil Capacity	Collapsed height	Extended Height	Outside Dia.	Cylinder Bore Dia.	Plunger Dia.	Base to Advance Port	Saddle Dia.	Saddle Protr. from Plgr.	Plunger Internal Thread	Plunger Thread Length	Base Mounting Holes			Collar Thread	Collar Thread Length	Weight
Cylinder Capacity	Stroke		Cylinder Effective Area	Oil Capacity	Collapsed height	Extended Height	Outside Dia.	Cylinder Bore Dia.	Plunger Dia.	Base to Advance Port	Saddle Dia.	Saddle Protr. from Plgr.	Plunger Internal Thread	Plunger Thread Length	Bolt Circle	Thread	Thd. Depth	Collar Thread	Collar Thread Length	Weight
					A	B	C	D	E	F	H	J	K	L	O	P	W	X	Y
ton(KN)	(mm)		(cm2)	(cm3)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)		(mm)	(mm)		(mm)		(mm)	(kg)
5(45)	25	RC-51	7	18	110	135	40	30	25	22	25	6	3/4"-16UN	14	25	1/4"-20UN	6	11/2"-16	28	1
	76	RC-53	7	54	165	241	40	30	25	22	25	6	3/4"-16UN	14	25	1/4"-20UN	6	11/2"-16	28	1.6
	127	RC-55	7	90	215	342	40	30	25	22	25	6	3/4"-16UN	14	25	1/4"-20UN	6	11/2"-16	28	2
	177	RC-57	7	125	273	450	40	30	25	22	25	6	3/4"-16UN	14	25	1/4"-20UN	6	11/2"-16	28	2.6
	232	RC-59	7	164	323	555	40	30	25	22	25	6	3/4"-16UN	14	25	1/4"-20UN	6	11/2"-16	28	3.1
10(101)	54	RC-102	15.9	86	121	175	59	45	35	19	35	6	1"-8UN	19	39	5/16"-18UN	12	21/4"-14	28	2.3
	105	RC-104	15.9	167	171	276	59	45	35	19	35	6	1"-8UN	19	39	5/16"-18UN	12	21/4"-14	28	3
	156	RC-106	15.9	248	247	403	59	45	35	20	35	6	1"-8UN	19	39	5/16"-18UN	12	21/4"-14	28	4.1
	203	RC-108	15.9	323	298	501	59	45	35	22	35	6	1"-8UN	19	39	5/16"-18UN	12	21/4"-14	28	5.8
	257	RC-1010	15.9	409	349	606	59	45	35	22	35	6	1"-8UN	19	39	5/16"-18UN	12	21/4"-14	28	6.6
	304	RC-1012	15.9	483	400	707	59	45	35	22	35	6	1"-8UN	19	39	5/16"-18UN	12	21/4"-14	28	7.5
	356	RC-1014	15.9	566	450	806	59	45	35	22	35	6	1"-8UN	19	39	5/16"-18UN	12	21/4"-14	28	8.3
15(142)	25	RC-151	21.2	53	124	149	70	52	42	20	38	9	1"-8UN	25	47	3/8"-16UN	12	23/4"-16	30	3.5
	51	RC-152	21.2	108	149	200	70	52	42	20	38	9	1"-8UN	25	47	3/8"-16UN	12	23/4"-16	30	4
	101	RC-154	21.2	214	200	301	70	52	42	20	38	9	1"-8UN	25	47	3/8"-16UN	12	23/4"-16	30	5
	152	RC-156	21.2	323	271	423	70	52	42	25	38	9	1"-8UN	25	47	3/8"-16UN	12	23/4"-16	30	7
	203	RC-158	21.2	431	322	525	70	52	42	25	38	9	1"-8UN	25	47	3/8"-16UN	12	23/4"-16	30	8
	254	RC-1510	21.2	539	373	627	70	52	42	25	38	9	1"-8UN	25	47	3/8"-16UN	12	23/4"-16	30	9
	305	RC-1512	21.2	647	423	728	70	52	42	25	38	9	1"-8UN	25	47	3/8"-16UN	12	23/4"-16	30	10
	356	RC-1514	21.2	756	474	830	70	52	42	25	38	9	1"-8UN	25	47	3/8"-16UN	12	23/4"-16	30	11
25(232)	26	RC-251	33.2	86	139	165	85	65	56	25	50	10	11/2"-16UN	25	58	1/2"-13UN	19	35/16"-12	49	6
	50	RC-252	33.2	166	165	215	85	65	56	25	50	10	11/2"-16UN	25	58	1/2"-13UN	19	35/16"-12	49	7
	102	RC-254	33.2	338	215	317	85	65	56	25	50	10	11/2"-16UN	25	58	1/2"-13UN	19	35/16"-12	49	8
	158	RC-256	33.2	524	273	431	85	65	56	25	50	10	11/2"-16UN	25	58	1/2"-13UN	19	35/16"-12	49	10
	210	RC-258	33.2	696	323	533	85	65	56	25	50	10	11/2"-16UN	25	58	1/2"-13UN	19	35/16"-12	49	12
	261	RC-2510	33.2	866	374	635	85	65	56	25	50	10	11/2"-16UN	25	58	1/2"-13UN	19	35/16"-12	49	14
	311	RC-2512	33.2	1031	425	736	85	65	56	25	50	10	11/2"-16UN	25	58	1/2"-13UN	19	35/16"-12	49	15
	362	RC-2514	33.2	1201	476	838	85	65	56	25	50	10	11/2"-16UN	25	58	1/2"-13UN	19	35/16"-12	49	17
30(295)	50	RC-302	41.8	209	228	278	101	73	60	36	50	10	11/2"-16UN	25	70	1/2"-13UN	19	37/8"-12	49	13
	100	RC-304	41.8	418	278	378	101	73	60	36	50	10	11/2"-16UN	25	70	1/2"-13UN	19	37/8"-12	49	16
	209	RC-308	41.8	874	387	596	101	73	60	36	50	10	11/2"-16UN	25	70	1/2"-13UN	19	37/8"-12	49	19
	300	RC-3012	41.8	1255	478	778	101	73	60	36	50	10	11/2"-16UN	25	70	1/2"-13UN	19	37/8"-12	49	27
50(498)	51	RC-502	70.8	361	176	227	127	95	80	33	\	\	\	\	95	1/2"-13UN	18	5"-12	55	15
	101	RC-504	70.8	716	227	328	127	95	80	33	\	\	\	\	95	1/2"-13UN	18	5"-12	55	19
	159	RC-506	70.8	1126	282	441	127	95	80	33	\	\	\	\	95	1/2"-13UN	18	5"-12	55	23
	337	RC-5013	70.8	2388	460	797	127	95	80	33	\	\	\	\	95	1/2"-13UN	18	5"-12	55	37
75(718)	156	RC-756	103.8	1620	285	441	150	115	100	41	\	\	\	\	110	1/2"-13UN	15	53/4"-12	44	33
75(718)	333	RC-7513	103.8	3457	492	825	150	115	100	41	\	\	\	\	110	1/2"-13UN	15	53/4"-12	44	54
100(933)	168	RC-1006	132.7	2229	357	525	177	130	112	41	\	\	\	\	139	3/4"-10UN	25	67/8"-12	44	59
100(933)	260	RC-10010	132.7	3449	449	709	177	130	112	41	\	\	\	\	139	3/4"-10UN	25	67/8"-12	44	72

Application

Hydraulic cylinder jacks are used to position bridge sections and beams during construction, allowing for accurate alignment and secure installation.

Automotive mechanics use hydraulic cylinder jacks to raise cars and trucks for various repair and maintenance tasks.

Hydraulic cylinder jacksaid in lifting and positioning heavy materials and equipment within manufacturing facilities.

Hydraulic cylinder jackshelp lift vessels out of the water or provide support for hull maintenance and repairs.

Agricultural equipment can be adjusted to the correct height for various farming tasks using hydraulic cylinder jacks.

Hydraulic cylinder jacksare used to support and level drilling rigs during setup and maintenance in the oil and gas industry.

In the renewable energy sector, hydraulic cylinder jacks are used to position and adjust solar panel arrays for optimal sun exposure and energy generation.
