RC151, 15 ton 142 KN, 25 mm 0.98 in Stroke, General Purpose Hydraulic Cylinder
-
Model:RC151
Capacity:15 ton | 142 KN
Stroke:25 mm | 0.98 inches
Weight:3.5 kg | 7.7 lbs
Cylinder Effective Area:21.2 m²
Oil Capacity:53 cm³
Return Type:Single-Acting Spring Return
Plunger Type:Solid
Brand Name:Replacement Enerpac's RC151
- RC10010, 100 ton 933 KN, 260 mm 10.24 in Stroke, General Purpose Hydraulic CylinderRC1006, 100 ton 933 KN, 168 mm 6.61 in Stroke, General Purpose Hydraulic CylinderRC7513, 75 ton 718 KN, 333 mm 13.11 in Stroke, General Purpose Hydraulic CylinderRC756, 75 ton 718 KN, 156 mm 6.14 in Stroke, General Purpose Hydraulic CylinderRC5013, 50 ton 498 KN, 337 mm 13.27 in Stroke, General Purpose Hydraulic CylinderRC506, 50 ton 498 KN, 159 mm 6.26 in Stroke, General Purpose Hydraulic CylinderRC504, 50 ton 498 KN, 101 mm 3.98 in Stroke, General Purpose Hydraulic CylinderRC502, 50 ton 498 KN, 51 mm 2.01 in Stroke, General Purpose Hydraulic CylinderRC3012, 30 ton 295 KN, 300 mm 11.81 in Stroke, General Purpose Hydraulic CylinderRC308, 30 ton 295 KN, 209 mm 8.23 in Stroke, General Purpose Hydraulic CylinderRC304, 30 ton 295 KN, 100 mm 3.94 in Stroke, General Purpose Hydraulic CylinderRC302, 30 ton 295 KN, 50 mm 1.97 in Stroke, General Purpose Hydraulic CylinderRC2514, 25 ton 232 KN, 362 mm 14.25 in Stroke, General Purpose Hydraulic CylinderRC2512, 25 ton 232 KN, 311 mm 12.24 in Stroke, General Purpose Hydraulic CylinderRC2510, 25 ton 232 KN, 261 mm 10.28 in Stroke, General Purpose Hydraulic CylinderRC258, 25 ton 232 KN, 210 mm 8.27 in Stroke, General Purpose Hydraulic CylinderRC256, 25 ton 232 KN, 158 mm 6.22 in Stroke, General Purpose Hydraulic CylinderRC254, 25 ton 232 KN, 102 mm 4.02 in Stroke, General Purpose Hydraulic CylinderRC252, 25 ton 232 KN, 50 mm 1.97 in Stroke, General Purpose Hydraulic CylinderRC251, 25 ton 232 KN, 26 mm 1.02 in Stroke, General Purpose Hydraulic CylinderRC1514, 15 ton 142 KN, 356 mm 14.02 in Stroke, General Purpose Hydraulic CylinderRC1512, 15 ton 142 KN, 305 mm 12.01 in Stroke, General Purpose Hydraulic CylinderRC1510, 15 ton 142 KN, 254 mm 10.00 in Stroke, General Purpose Hydraulic CylinderRC158, 15 ton 142 KN, 203 mm 7.99 in Stroke, General Purpose Hydraulic CylinderRC156, 15 ton 142 KN, 152 mm 5.98 in Stroke, General Purpose Hydraulic CylinderRC154, 15 ton 142 KN, 101 mm 3.98 in Stroke, General Purpose Hydraulic CylinderRC152, 15 ton 142 KN, 51 mm 2.01 in Stroke, General Purpose Hydraulic CylinderRC151, 15 ton 142 KN, 25 mm 0.98 in Stroke, General Purpose Hydraulic CylinderRC1014, 10 ton 101 KN, 356 mm 14.02 in Stroke, General Purpose Hydraulic CylinderRC1012, 10 ton 101 KN, 304 mm 11.97 in Stroke, General Purpose Hydraulic CylinderRC1010, 10 ton 101 KN, 257 mm 10.12 in Stroke, General Purpose Hydraulic CylinderRC108, 10 ton 101 KN, 203 mm 7.99 in Stroke, General Purpose Hydraulic CylinderRC106, 10 ton 101 KN, 156 mm 6.14 in Stroke, General Purpose Hydraulic CylinderRC104, 10 ton 101 KN, 105 mm 4.13 in Stroke, General Purpose Hydraulic CylinderRC102, 10 ton 101 KN, 54 mm 2.13 in Stroke, General Purpose Hydraulic CylinderRC Seires Single-Acting Hydraulic Cylinders
Description
Model:RC151
Product Line: Industrial Tools
Type: Hydraulic Cylinder Ram, Hydraulic Jacks
Customizable with special requirement
- Single-Acting, high-strength Spring Return for easy use
- Exclusive guide ring absorbs eccentric loading without galling cylinder parts, reducing wear and extending life
- Special painted surface increases corrosion resistance
- Easy fixturing with collar threads, plunger threads, and base mounting holes
- All models include NPT3/8"-18 quick coupling and dust cap
- Removable hardened grooved saddles

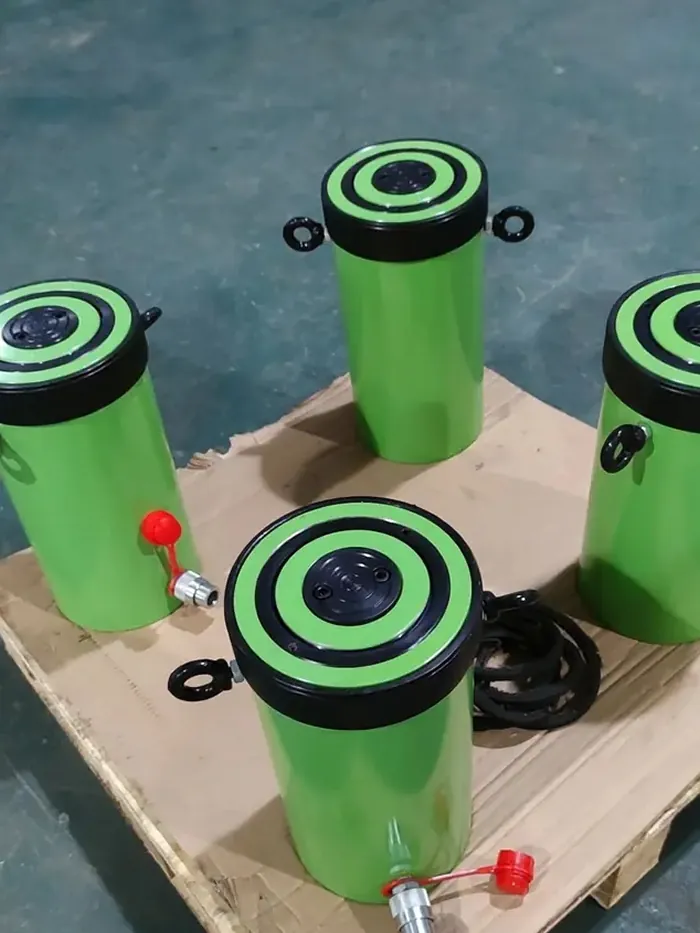

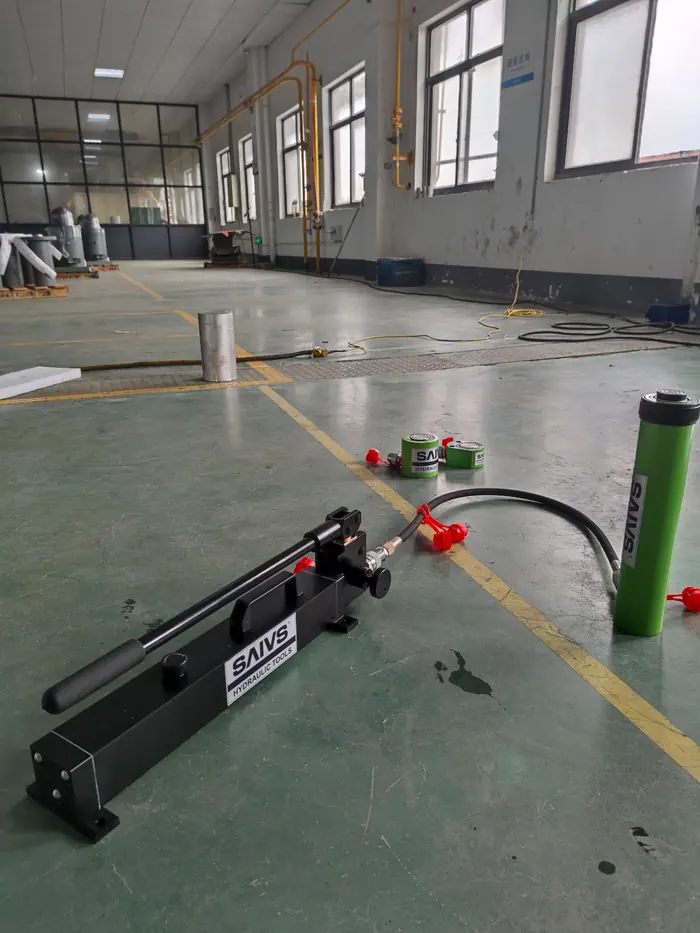

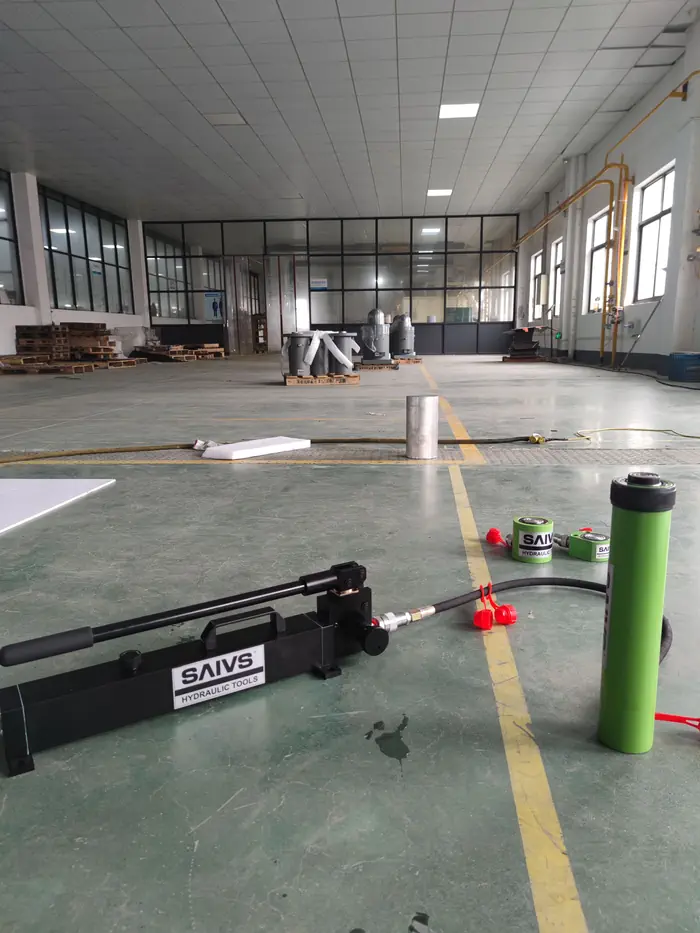

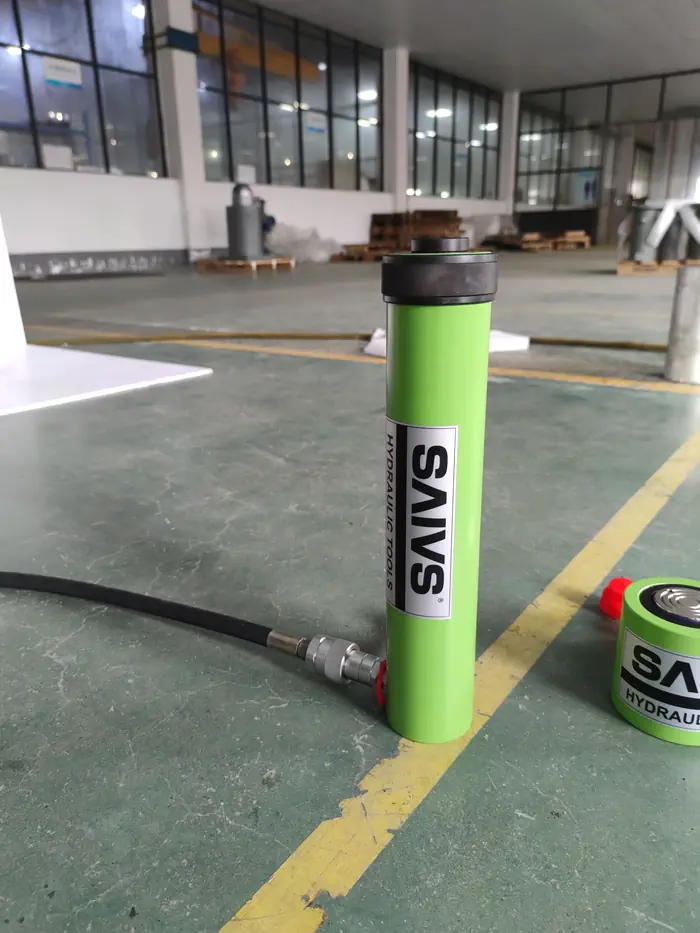

Image Gallery
Dimensions
| Collapsed height | A | (mm) | 124 | |
| Extended Height | B | (mm) | 149 | |
| Outside Dia. | C | (mm) | 70 | |
| Cylinder Bore Dia. | D | (mm) | 52 | |
| Plunger Dia. | E | (mm) | 42 | |
| Base to Advance Port | F | (mm) | 20 | |
| Saddle Dia. | H | (mm) | 38 | |
| Saddle Protr. from Plgr. | J | (mm) | 9 | |
| Plunger Internal Thread | K | 1"-8UN | ||
| Plunger Thread Length | L | (mm) | 25 | |
| Collar Thread | X | 23/4"-16 | ||
| Collar Thread Length | Y | (mm) | 30 | |
Series Comparison
| Cylinder Capacity | Stroke | Model Number | Cylinder Effective Area | Oil Capacity | Collapsed height | Extended Height | Outside Dia. | Cylinder Bore Dia. | Plunger Dia. | Base to Advance Port | Saddle Dia. | Saddle Protr. from Plgr. | Plunger Internal Thread | Plunger Thread Length | Base Mounting Holes | Collar Thread | Collar Thread Length | Weight | ||
| Bolt Circle | Thread | Thd. Depth | ||||||||||||||||||
| A | B | C | D | E | F | H | J | K | L | O | P | W | X | Y | ||||||
| ton(KN) | (mm) | (cm2) | (cm3) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | ||||
| 5(45) | 25 | RC-51 | 7 | 18 | 110 | 135 | 40 | 30 | 25 | 22 | 25 | 6 | 3/4"-16UN | 14 | 25 | 1/4"-20UN | 6 | 11/2"-16 | 28 | 1 |
| 76 | RC-53 | 7 | 54 | 165 | 241 | 40 | 30 | 25 | 22 | 25 | 6 | 3/4"-16UN | 14 | 25 | 1/4"-20UN | 6 | 11/2"-16 | 28 | 1.6 | |
| 127 | RC-55 | 7 | 90 | 215 | 342 | 40 | 30 | 25 | 22 | 25 | 6 | 3/4"-16UN | 14 | 25 | 1/4"-20UN | 6 | 11/2"-16 | 28 | 2 | |
| 177 | RC-57 | 7 | 125 | 273 | 450 | 40 | 30 | 25 | 22 | 25 | 6 | 3/4"-16UN | 14 | 25 | 1/4"-20UN | 6 | 11/2"-16 | 28 | 2.6 | |
| 232 | RC-59 | 7 | 164 | 323 | 555 | 40 | 30 | 25 | 22 | 25 | 6 | 3/4"-16UN | 14 | 25 | 1/4"-20UN | 6 | 11/2"-16 | 28 | 3.1 | |
| 10(101) | 54 | RC-102 | 15.9 | 86 | 121 | 175 | 59 | 45 | 35 | 19 | 35 | 6 | 1"-8UN | 19 | 39 | 5/16"-18UN | 12 | 21/4"-14 | 28 | 2.3 |
| 105 | RC-104 | 15.9 | 167 | 171 | 276 | 59 | 45 | 35 | 19 | 35 | 6 | 1"-8UN | 19 | 39 | 5/16"-18UN | 12 | 21/4"-14 | 28 | 3 | |
| 156 | RC-106 | 15.9 | 248 | 247 | 403 | 59 | 45 | 35 | 20 | 35 | 6 | 1"-8UN | 19 | 39 | 5/16"-18UN | 12 | 21/4"-14 | 28 | 4.1 | |
| 203 | RC-108 | 15.9 | 323 | 298 | 501 | 59 | 45 | 35 | 22 | 35 | 6 | 1"-8UN | 19 | 39 | 5/16"-18UN | 12 | 21/4"-14 | 28 | 5.8 | |
| 257 | RC-1010 | 15.9 | 409 | 349 | 606 | 59 | 45 | 35 | 22 | 35 | 6 | 1"-8UN | 19 | 39 | 5/16"-18UN | 12 | 21/4"-14 | 28 | 6.6 | |
| 304 | RC-1012 | 15.9 | 483 | 400 | 707 | 59 | 45 | 35 | 22 | 35 | 6 | 1"-8UN | 19 | 39 | 5/16"-18UN | 12 | 21/4"-14 | 28 | 7.5 | |
| 356 | RC-1014 | 15.9 | 566 | 450 | 806 | 59 | 45 | 35 | 22 | 35 | 6 | 1"-8UN | 19 | 39 | 5/16"-18UN | 12 | 21/4"-14 | 28 | 8.3 | |
| 15(142) | 25 | RC-151 | 21.2 | 53 | 124 | 149 | 70 | 52 | 42 | 20 | 38 | 9 | 1"-8UN | 25 | 47 | 3/8"-16UN | 12 | 23/4"-16 | 30 | 3.5 |
| 51 | RC-152 | 21.2 | 108 | 149 | 200 | 70 | 52 | 42 | 20 | 38 | 9 | 1"-8UN | 25 | 47 | 3/8"-16UN | 12 | 23/4"-16 | 30 | 4 | |
| 101 | RC-154 | 21.2 | 214 | 200 | 301 | 70 | 52 | 42 | 20 | 38 | 9 | 1"-8UN | 25 | 47 | 3/8"-16UN | 12 | 23/4"-16 | 30 | 5 | |
| 152 | RC-156 | 21.2 | 323 | 271 | 423 | 70 | 52 | 42 | 25 | 38 | 9 | 1"-8UN | 25 | 47 | 3/8"-16UN | 12 | 23/4"-16 | 30 | 7 | |
| 203 | RC-158 | 21.2 | 431 | 322 | 525 | 70 | 52 | 42 | 25 | 38 | 9 | 1"-8UN | 25 | 47 | 3/8"-16UN | 12 | 23/4"-16 | 30 | 8 | |
| 254 | RC-1510 | 21.2 | 539 | 373 | 627 | 70 | 52 | 42 | 25 | 38 | 9 | 1"-8UN | 25 | 47 | 3/8"-16UN | 12 | 23/4"-16 | 30 | 9 | |
| 305 | RC-1512 | 21.2 | 647 | 423 | 728 | 70 | 52 | 42 | 25 | 38 | 9 | 1"-8UN | 25 | 47 | 3/8"-16UN | 12 | 23/4"-16 | 30 | 10 | |
| 356 | RC-1514 | 21.2 | 756 | 474 | 830 | 70 | 52 | 42 | 25 | 38 | 9 | 1"-8UN | 25 | 47 | 3/8"-16UN | 12 | 23/4"-16 | 30 | 11 | |
| 25(232) | 26 | RC-251 | 33.2 | 86 | 139 | 165 | 85 | 65 | 56 | 25 | 50 | 10 | 11/2"-16UN | 25 | 58 | 1/2"-13UN | 19 | 35/16"-12 | 49 | 6 |
| 50 | RC-252 | 33.2 | 166 | 165 | 215 | 85 | 65 | 56 | 25 | 50 | 10 | 11/2"-16UN | 25 | 58 | 1/2"-13UN | 19 | 35/16"-12 | 49 | 7 | |
| 102 | RC-254 | 33.2 | 338 | 215 | 317 | 85 | 65 | 56 | 25 | 50 | 10 | 11/2"-16UN | 25 | 58 | 1/2"-13UN | 19 | 35/16"-12 | 49 | 8 | |
| 158 | RC-256 | 33.2 | 524 | 273 | 431 | 85 | 65 | 56 | 25 | 50 | 10 | 11/2"-16UN | 25 | 58 | 1/2"-13UN | 19 | 35/16"-12 | 49 | 10 | |
| 210 | RC-258 | 33.2 | 696 | 323 | 533 | 85 | 65 | 56 | 25 | 50 | 10 | 11/2"-16UN | 25 | 58 | 1/2"-13UN | 19 | 35/16"-12 | 49 | 12 | |
| 261 | RC-2510 | 33.2 | 866 | 374 | 635 | 85 | 65 | 56 | 25 | 50 | 10 | 11/2"-16UN | 25 | 58 | 1/2"-13UN | 19 | 35/16"-12 | 49 | 14 | |
| 311 | RC-2512 | 33.2 | 1031 | 425 | 736 | 85 | 65 | 56 | 25 | 50 | 10 | 11/2"-16UN | 25 | 58 | 1/2"-13UN | 19 | 35/16"-12 | 49 | 15 | |
| 362 | RC-2514 | 33.2 | 1201 | 476 | 838 | 85 | 65 | 56 | 25 | 50 | 10 | 11/2"-16UN | 25 | 58 | 1/2"-13UN | 19 | 35/16"-12 | 49 | 17 | |
| 30(295) | 50 | RC-302 | 41.8 | 209 | 228 | 278 | 101 | 73 | 60 | 36 | 50 | 10 | 11/2"-16UN | 25 | 70 | 1/2"-13UN | 19 | 37/8"-12 | 49 | 13 |
| 100 | RC-304 | 41.8 | 418 | 278 | 378 | 101 | 73 | 60 | 36 | 50 | 10 | 11/2"-16UN | 25 | 70 | 1/2"-13UN | 19 | 37/8"-12 | 49 | 16 | |
| 209 | RC-308 | 41.8 | 874 | 387 | 596 | 101 | 73 | 60 | 36 | 50 | 10 | 11/2"-16UN | 25 | 70 | 1/2"-13UN | 19 | 37/8"-12 | 49 | 19 | |
| 300 | RC-3012 | 41.8 | 1255 | 478 | 778 | 101 | 73 | 60 | 36 | 50 | 10 | 11/2"-16UN | 25 | 70 | 1/2"-13UN | 19 | 37/8"-12 | 49 | 27 | |
| 50(498) | 51 | RC-502 | 70.8 | 361 | 176 | 227 | 127 | 95 | 80 | 33 | \ | \ | \ | \ | 95 | 1/2"-13UN | 18 | 5"-12 | 55 | 15 |
| 101 | RC-504 | 70.8 | 716 | 227 | 328 | 127 | 95 | 80 | 33 | \ | \ | \ | \ | 95 | 1/2"-13UN | 18 | 5"-12 | 55 | 19 | |
| 159 | RC-506 | 70.8 | 1126 | 282 | 441 | 127 | 95 | 80 | 33 | \ | \ | \ | \ | 95 | 1/2"-13UN | 18 | 5"-12 | 55 | 23 | |
| 337 | RC-5013 | 70.8 | 2388 | 460 | 797 | 127 | 95 | 80 | 33 | \ | \ | \ | \ | 95 | 1/2"-13UN | 18 | 5"-12 | 55 | 37 | |
| 75(718) | 156 | RC-756 | 103.8 | 1620 | 285 | 441 | 150 | 115 | 100 | 41 | \ | \ | \ | \ | 110 | 1/2"-13UN | 15 | 53/4"-12 | 44 | 33 |
| 333 | RC-7513 | 103.8 | 3457 | 492 | 825 | 150 | 115 | 100 | 41 | \ | \ | \ | \ | 110 | 1/2"-13UN | 15 | 53/4"-12 | 44 | 54 | |
| 100(933) | 168 | RC-1006 | 132.7 | 2229 | 357 | 525 | 177 | 130 | 112 | 41 | \ | \ | \ | \ | 139 | 3/4"-10UN | 25 | 67/8"-12 | 44 | 59 |
| 260 | RC-10010 | 132.7 | 3449 | 449 | 709 | 177 | 130 | 112 | 41 | \ | \ | \ | \ | 139 | 3/4"-10UN | 25 | 67/8"-12 | 44 | 72 | |
Application
Hydraulic cylinder jacks assist in the installation and maintenance of pipelines by providing the necessary lifting force for components.
Hydraulic cylinder jackshelp lift vessels out of the water or provide support for hull maintenance and repairs.
Event organizers use hydraulic cylinder jacks to adjust the height of stages and platforms for performances and presentations.
Agricultural equipment can be adjusted to the correct height for various farming tasks using hydraulic cylinder jacks.
Overhead cranes require precise positioning during installation, which hydraulic cylinder jacksfacilitate.
When installing large industrial equipment, hydraulic cylinder jacksare used to safely and precisely position components for assembly.
Elevator systems require periodic maintenance, and hydraulic cylinder jacks are employed to lift and secure elevator cars for inspection and service.
