AOW Series,230-44500 Nm,Hydraulic Torque Wrench
-
Repeatability +/- 3%
700 bar/10000psi maximum operation pressure
5 different models from 230 Nm to 45,000 Nm
Designed for tighten and loosen high torque applications
360° x 180° uni swivel quick release couplings
Maximum torque power with minimum wall thickness

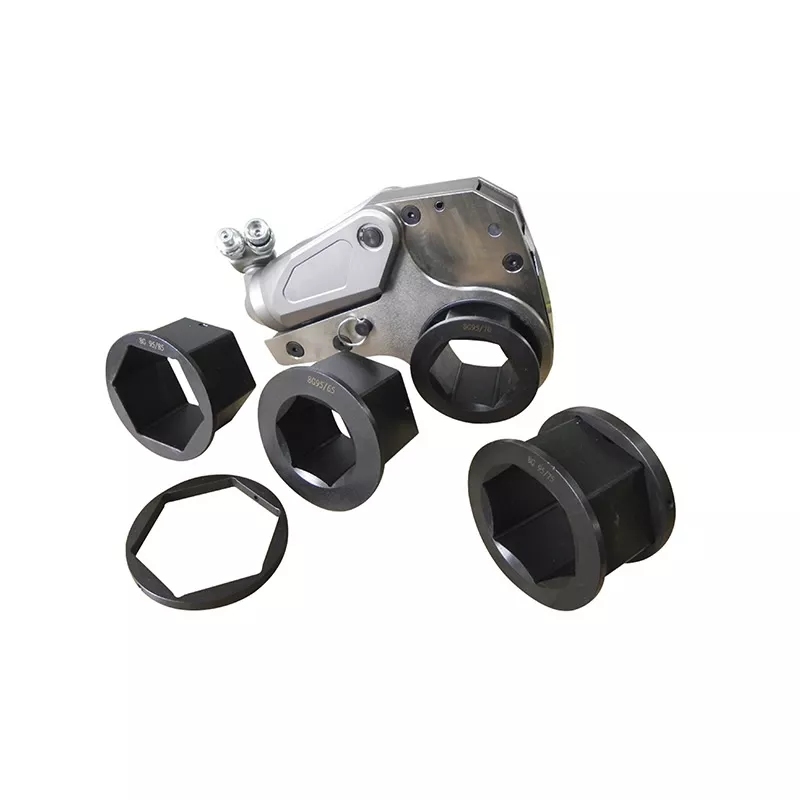

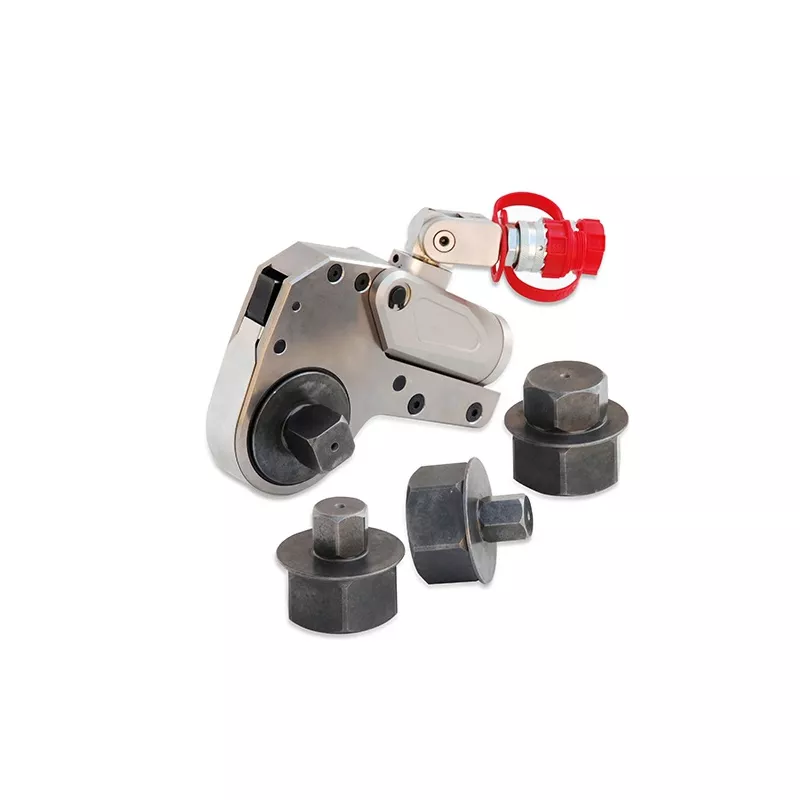

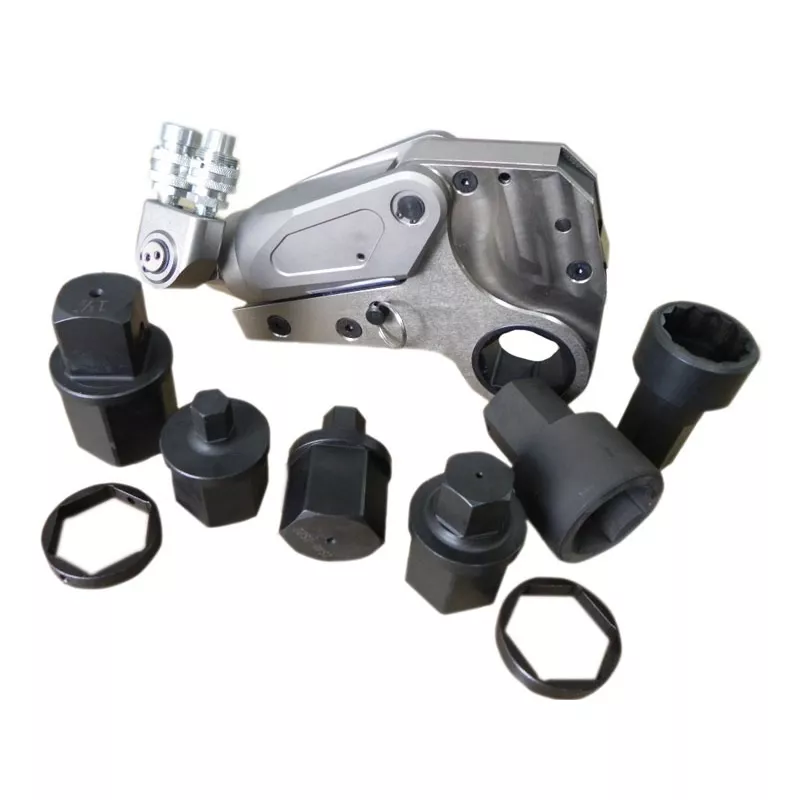

Various cassettes, adaptors and reducers are available
Durable structure, aluminium-titanium alloy and light body
Suitable for continuous operations at maximum pressure
Pressure relief valve prevents over pressure

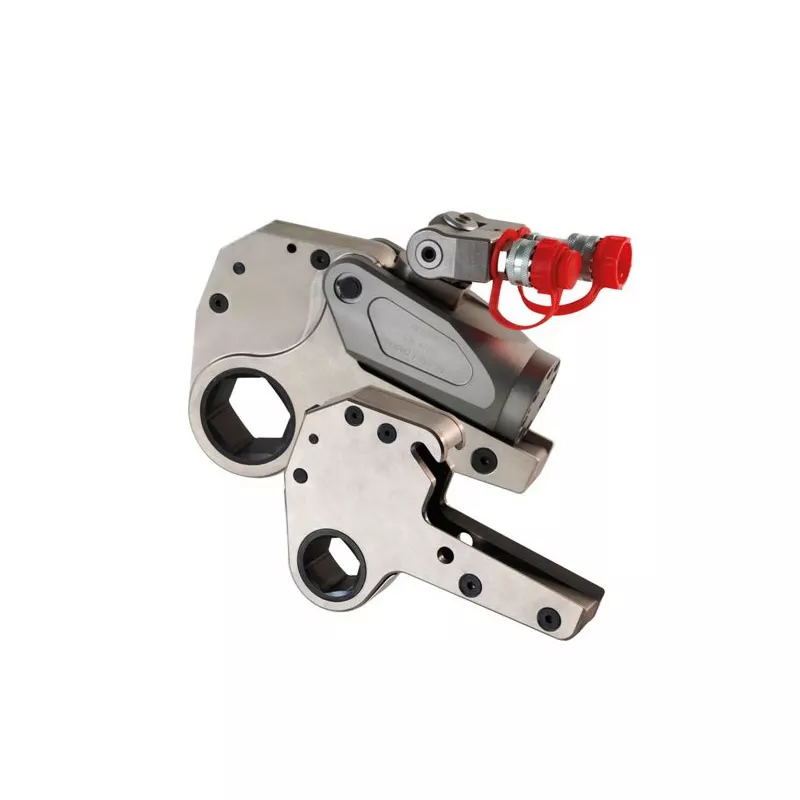

- AOW Series Low Profile Hydraulic Torque Wrenches Silver AOW Series Low Profile Hydraulic Torque Wrenches Black
Description
Product Line: Industrial Tools
Customizable with special requirement
Axion's AOW series Low Profile Hydraulic Torque Wrench are almost the same as Enerpac’s W series,HYTORC’s XLCT series, TORCUP’s TX series, HI FORCE’s TWH-N series,SPX's TWSL SERIESand other wrenches in terms of function, quality, and applicable working conditions.
At the same time, Axion provides a one-year warranty, more favorable prices, and Customized services for special working conditions.
Welcome to Get Latest Price now
TYPE | Torque | Nut Sizes | power Head Weight | Cassette Weight | Sizes | |||||
N.m | mm | Kg | Kg | L1 | L2 | H1 | H2 | W1 | W2 | |
2 AOW | 232 ~ 2328 241 ~ 2414 | 19 ~ 55 60 | 1 1 | 1.6 1.7 | 195.4 195.4 | 186 186 | 125.9 128.5 | 102.3 105 | 32 32 | 51 51 |
4 AOW | 585 ~ 2510 585 ~ 5021 585 ~ 5858 647 ~ 6474 | 34 ~ 36 41 46 ~ 65 70 ~ 80 |
2 2
|
4.4 4.6
|
261.6 261.6
|
245 245
|
177 187
|
135.7 145.7
|
42 42
|
66 66
|
8 AOW | 1094 ~ 10941 1177 ~ 11774 | 41 ~ 95 100 ~ 105 | 3.3 3.3 | 8 8.4 | 304 304 | 300 300 | 207 216 | 169 178 | 53 53 | 83 83 |
14 AOW | 1852 ~ 18521 | 50 ~ 117 | 5.5 | 11.6 | 361 | 361 | 239 | 204 | 64 | 99 |
30 AOW | 4188 ~ 41882 4459 ~ 44593 | 110 ~ 155 160 ~ 175 | 11.4 11.4 | 29 30 | 441 441 | 430 430 | 303 315 | 272 285 | 85 85 | 131 131 |
Dimensions
| 2AOW | 4AOW | 8AOW | 14AOW | 30AOW | |||||||||||||||
| Type | R | A | MaxTorque | Type | R | A | MaxTorque | Type | R | A | MaxTorque | Type | R | A | MaxTorque | Type | R | A | MaxTorque |
| 2AOW-19 | 27 | 16 | 2328 | 4AOW-34 | 36 | 16 | 2510 | 8AOW-41 | 46 | 22 | 10941 | 14AOW-50 | 60 | 31 | 18521 | 30AOW-85 | 78 | 28 | 41882 |
| 2AOW-22 | 27 | 14 | 2328 | 4AOW-36 | 36 | 15 | 2510 | 8AOW-46 | 46 | 19 | 10941 | 14AOW-55 | 60 | 28 | 18521 | 30AOW-90 | 78 | 27 | 41882 |
| 2AOW-27 | 27 | 11 | 2328 | 4AOW-41 | 39 | 15 | 5021 | 8AOW-50 | 46 | 17 | 10941 | 14AOW-60 | 60 | 25 | 18521 | 30AOW-95 | 83 | 28 | 41882 |
| 2AOW-30 | 29 | 12 | 2328 | 4AOW-46 | 42 | 15 | 5858 | 8AOW-55 | 50 | 18 | 10941 | 14AOW-65 | 60 | 22 | 18521 | 30AOW-100 | 83 | 25 | 41882 |
| 2AOW-32 | 29 | 11 | 2328 | 4AOW-50 | 44 | 15 | 5858 | 8AOW-60 | 52 | 17 | 10941 | 14AOW-70 | 60 | 19 | 18521 | 30AOW-105 | 89 | 28 | 41882 |
| 2AOW-34 | 31 | 11 | 2328 | 4AOW-55 | 46 | 14 | 5858 | 8AOW-65 | 55 | 17 | 10941 | 14AOW-75 | 63 | 19 | 18521 | 30AOW-110 | 89 | 25 | 41882 |
| 2AOW-36 | 31 | 10 | 2328 | 4AOW-60 | 50 | 15 | 5858 | 8AOW-70 | 58 | 17 | 10941 | 14AOW-80 | 66 | 19 | 18521 | 30AOW-115 | 95 | 28 | 41882 |
| 2AOW-41 | 34 | 10 | 2328 | 4AOW-65 | 53 | 15 | 5858 | 8AOW-75 | 60 | 17 | 10941 | 14AOW-85 | 69 | 19 | 18521 | 30AOW-117 | 95 | 27 | 41882 |
| 2AOW-46 | 37 | 10 | 2328 | 4AOW-70 | 56 | 15 | 6474 | 8AOW-80 | 63 | 16 | 10941 | 14AOW-90 | 72 | 20 | 18521 | 30AOW-120 | 95 | 25 | 41882 |
| 2AOW-50 | 40 | 11 | 2328 | 4AOW-75 | 59 | 15 | 6474 | 8AOW-85 | 66 | 16 | 10941 | 14AOW-95 | 74 | 19 | 18521 | 30AOW-125 | 101 | 29 | 41882 |
| 2AOW-55 | 43 | 11 | 2328 | 4AOW-80 | 61 | 15 | 6474 | 8AOW-90 | 69 | 17 | 10941 | 14AOW-100 | 77 | 19 | 18521 | 30AOW-130 | 101 | 26 | 41882 |
| 2AOW-60 | 46 | 11 | 2414 | 8AOW-95 | 71 | 16 | 10941 | 14AOW-105 | 80 | 19 | 18521 | 30AOW-135 | 104 | 26 | 41882 | ||||
| 8AOW-100 | 75 | 17 | 11774 | 14AOW-110 | 83 | 19 | 18521 | 30AOW-140 | 110 | 29 | 41882 | ||||||||
| 8AOW-105 | 78 | 17 | 11774 | 14AOW-115 | 87 | 20 | 18521 | 30AOW-145 | 110 | 26 | 41882 | ||||||||
| 14AOW-117 | 87 | 19 | 18521 | 30AOW-150 | 116 | 29 | 41882 | ||||||||||||
| 30AOW-155 | 116 | 26 | 41882 | ||||||||||||||||
| 30AOW-160 | 128 | 36 | 44593 | ||||||||||||||||
| 30AOW-165 | 128 | 33 | 44593 | ||||||||||||||||
| 30AOW-170 | 128 | 30 | 44593 | ||||||||||||||||
| 30AOW-175 | 128 | 27 | 44593 | ||||||||||||||||
