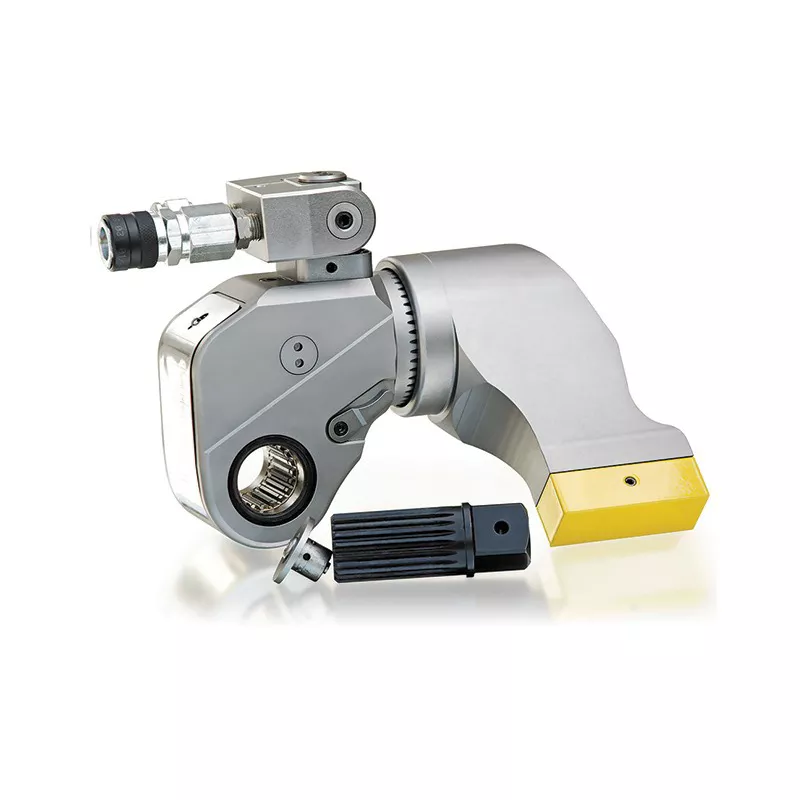

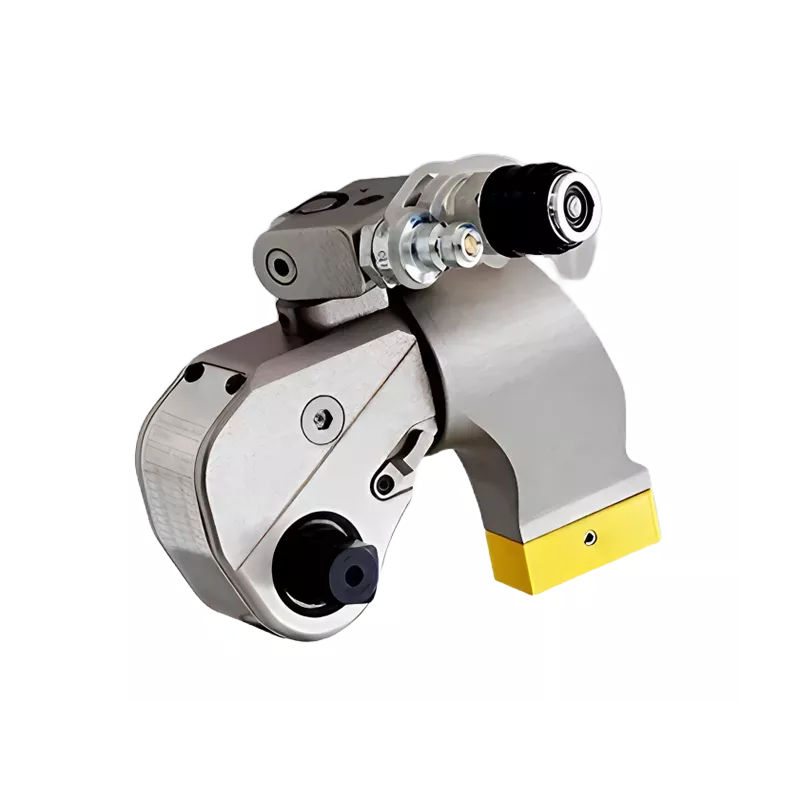

ABT Series Square Drive Hydraulic Torque Wrench
-
70Mpa Max working pressure and the accuracy keep within ±3%
All together 10 models with the range from 112N.m to 72000N.m,
which covers the most comprehensive available in the market.
The 360*180 degree swivel is free to operation with no space limitation.

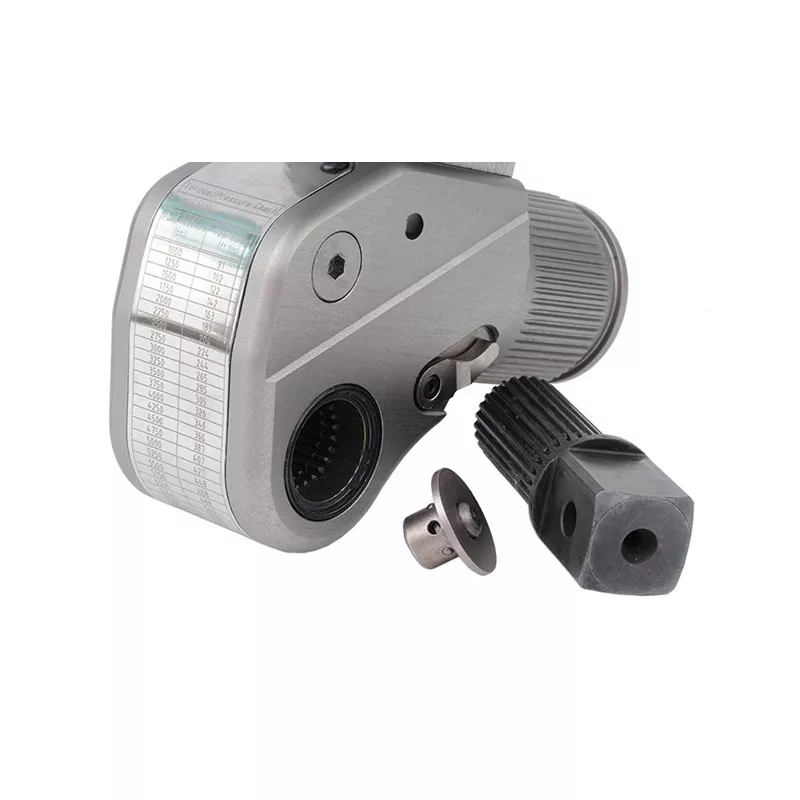

The square drive operate with the high intense socket and suitable with large range of bolts.

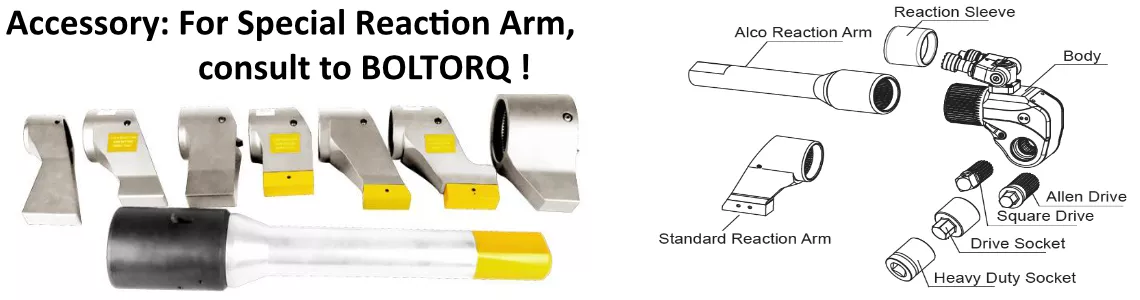

360 degree adjustable reaction arm allows placing in any support point.
Compact design with the raw mterial of advanced aluminum-titanium alloy,high intense.
The new locking coupler ensures the oil keep free access.
- Champagne,ABT Series Square Drive Hydraulic Torque Wrench Red,ABT Series Square Drive Hydraulic Torque Wrench Black,ABT Series Square Drive Hydraulic Torque Wrench
Description
Product Line: Industrial Tools
Customizable with special requirement
Axion's SBT series Square Drive Hydraulic Torque Wrench are almost the same as Enerpac’s DSX &RSL series,
HYTORC’s MXT & EDGE S series, TORCUP’s TU series and SU series, HI FORCE’s TWS-N series, and other wrenches in terms of function, quality, and applicable working conditions.
Axion offers a one-year warranty, better prices, and Customized services for special conditions.
Welcome to Get Latest Price now
Model | 07SBT | 1SBT | 3SBT | 5SBT | 8SBT | 10SBT | 15SBT | 20SBT | 25SBT | 35SBT | 50SBT |
Torque (N.m ) | 112-1120 | 183-1837 | 451-4512 | 752-7528 | 1078-10780 | 1551-15516 | 2063-20627 | 2666-26664 | 3472-34725 | 4866-48666 | 7200-72000 |
Bolt size(M) | 14-30 | 16-36 | 22-48 | 27-56 | 30-64 | 36-72 | 39-80 | 42-90 | 48-100 | 64-120 | 72-125 |
Weight(Kg) | 1.8 | 2 | 4 | 7 | 9.1 | 13.1 | 21 | 25 | 31 | 45 | 87 |
L1 | 110.8 | 133.5 | 169 | 202.5 | 216 | 237.5 | 285 | 299.5 | 313 | 361.5 | 400 |
L2 | 139.3 | 185.5 | 242 | 271 | 309 | 340.5 | 395 | 466.5 | 461 | 496.5 | 516 |
H1 | 42 | 50 | 68 | 80 | 90 | 100 | 110 | 120 | 137 | 153 | 160 |
H2 | 65.8 | 72 | 95 | 123 | 134 | 142 | 178 | 183 | 200 | 216 | 223 |
H3 | 76.2 | 95.5 | 127 | 149 | 167 | 182 | 200 | 220 | 247 | 282 | 291 |
H4 | 108.1 | 131 | 176.5 | 199 | 216.5 | 231.5 | 250 | 269.5 | 296.5 | 331.5 | 341 |
R1 | 20.5 | 26 | 34 | 39 | 47 | 51 | 55 | 59 | 66 | 77 | 81 |
R2 | 68.3 | 99 | 134 | 137 | 171 | 174 | 222 | 250.5 | 250.5 | 271 | 259 |
Square drive | 3/4" | 3/4" | 1" | 1-1/2" | 1-1/2" | 1-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" |

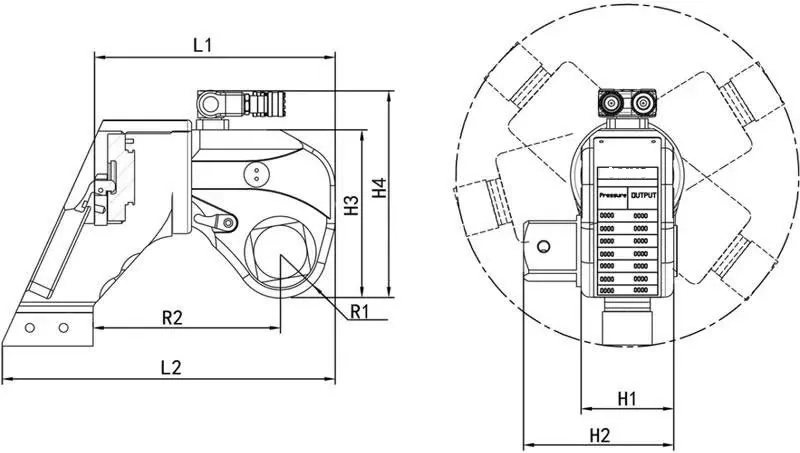

Dimensions
Model | 07SBT | 1SBT | 3SBT | 5SBT | 8SBT | 10SBT | 15SBT | 20SBT | 25SBT | 35SBT | 50SBT | |
Torque（N.m ） | 112-1120 | 183-1837 | 451-4512 | 752-7528 | 1078-10780 | 1551-15516 | 2063-20627 | 2666-26664 | 3472-34725 | 4866-48666 | 7200-72000 | |
Bolt size （M ） | 14-30 | 16-36 | 22-48 | 27-56 | 30-64 | 36-72 | 39-80 | 42-90 | 48-100 | 64-120 | 72-125 | |
Weight （Kg） | 1.8 | 2 | 4 | 7 | 9.1 | 13.1 | 21 | 25 | 31 | 45 | 87 | |
L1 |
| 110.8 | 133.5 | 169 | 202.5 | 216 | 237.5 | 285 | 299.5 | 313 | 361.5 | 400 |
L2 | 139.3 | 185.5 | 242 | 271 | 309 | 340.5 | 395 | 466.5 | 461 | 496.5 | 516 | |
H1 | 42 | 50 | 68 | 80 | 90 | 100 | 110 | 120 | 137 | 153 | 160 | |
H2 | 65.8 | 72 | 95 | 123 | 134 | 142 | 178 | 183 | 200 | 216 | 223 | |
H3 |
| 76.2 | 95.5 | 127 | 149 | 167 | 182 | 200 | 220 | 247 | 282 | 291 |
H4 | 108.1 | 131 | 176.5 | 199 | 216.5 | 231.5 | 250 | 269.5 | 296.5 | 331.5 | 341 | |
R1 |
| 20.5 | 26 | 34 | 39 | 47 | 51 | 55 | 59 | 66 | 77 | 81 |
R2 | 68.3 | 99 | 134 | 137 | 171 | 174 | 222 | 250.5 | 250.5 | 271 | 259 | |
Square drive | 3/4" | 3/4" | 1" | 1-1/2" | 1-1/2" | 1-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | |
