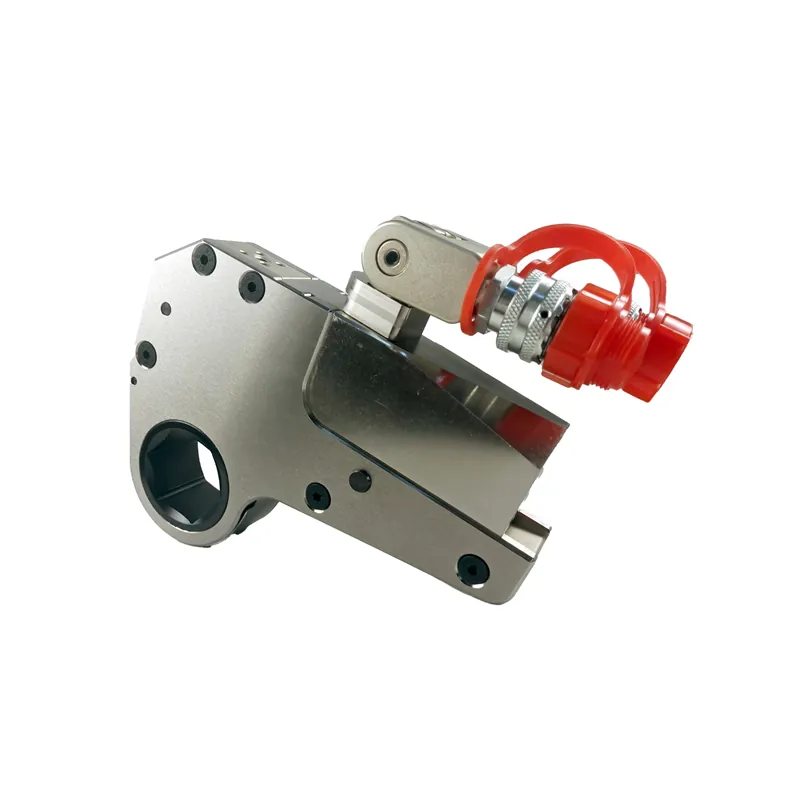

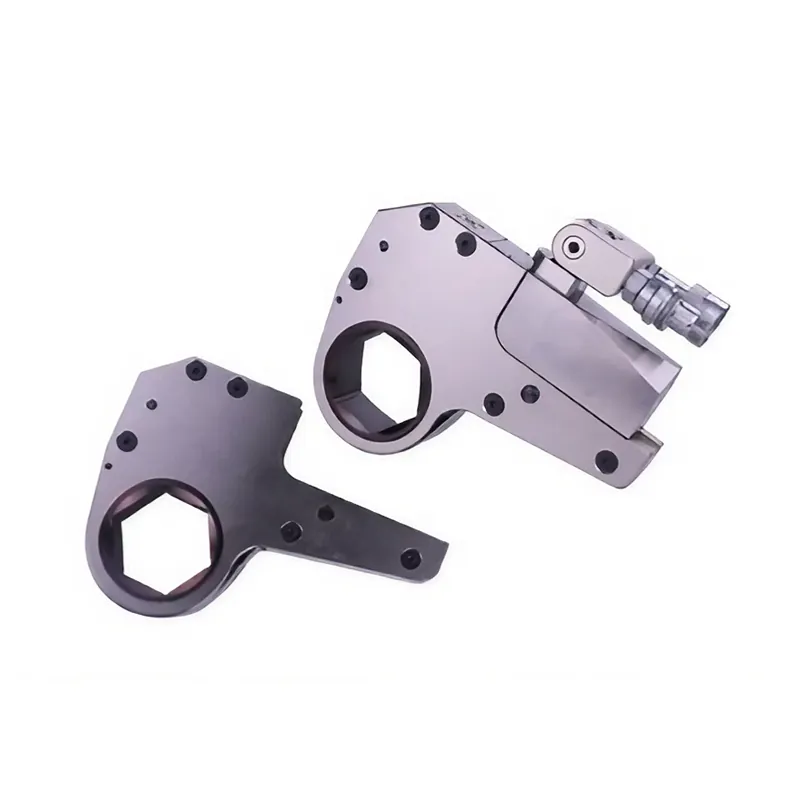

AGH Series Low Profile Hydraulic Torque Wrench
-
Accuracy: ±3%
Flat design: Suitable for narrow spaces
360° to 180° swivel: Operation without space limitations
High-strength alloy steel: High strength and wear resistance
Max working pressure: 70 MPa
5 models: Torque range from 314 to 30408 N·m
High-pressure torque wrench: Meets various work requirements
Compact design: Convenient for carrying and usage
Direct nut operation: More accurate, more convenient
SKU:AXT-120-00590
- AGH Series Low Profile Hydraulic Torque Wrench AOW Series,230-44500 Nm,Hydraulic Torque Wrench
Description
Product Line: Industrial Tools
Customizable with special requirement
Features:
Number of Models: 5 - There are likely 5 different models available, possibly with varying torque ranges.
Torque Range: 314-30408 N⋅m (Newton meters) - This is the range of torque output across the different models, suitable for various fastening applications.
Flat Design with Consistent Thickness: This design allows for usage in tight spaces where a bulkier wrench head might not fit.
360° x 180° Swivel: This feature provides exceptional maneuverability, enabling operation at any angle without limitations.
High-Strength Alloy Steel: The material selection ensures the wrench is robust, durable, and resistant to wear and tear.

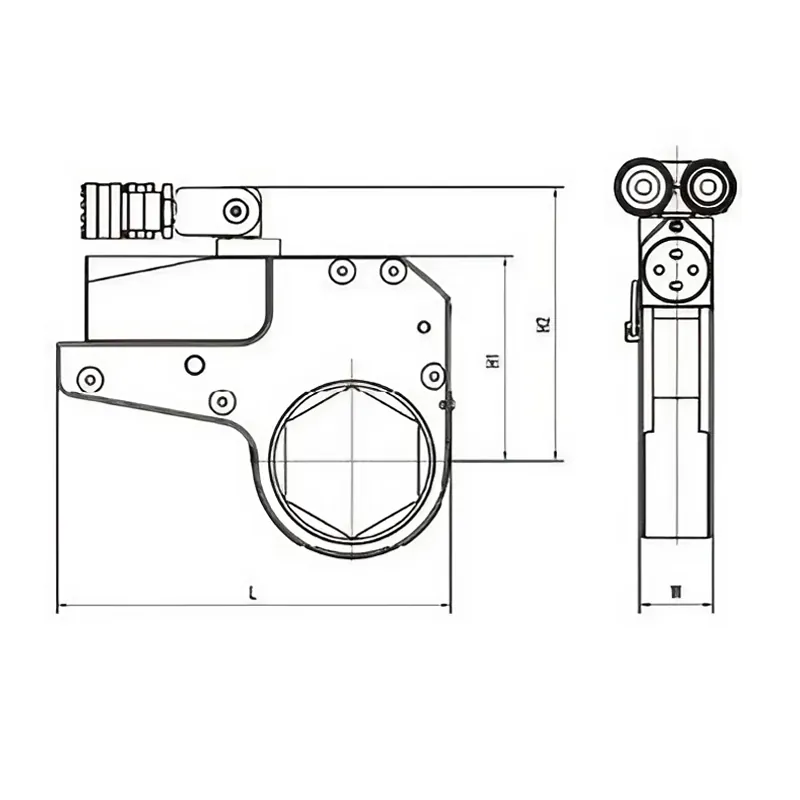

Dimensions
| Type | 3AGH | 4AGH | 8AGH | 14AGH | 22AGH | |||||
| Torque (NM) | 314-2245 | 314-3143 | 585-5018 | 585-5858 | 647-6474 | 1094-6252 | 1094-10941 | 1177-11774 | 1852-18521 | 3041-30408 |
| Torque (Ft.lbs) | 231-1656 | 231-2317 | 431-3705 | 431-4317 | 477-4771 | 806-4605 | 806-8078 | 868-8672 | 1365-13665 | 2243-22422 |
| Bolt size (mm) | 27-46 | 50-70 | 41 | 46-65 | 70-80 | 41-50 | 55-95 | 100-105 | 50-117 | 75-135 |
| Weight of Power Head (Kg) | 1.4 | 1.4 | 1.6 | 1.6 | 1.6 | 3.1 | 3.1 | 3.1 | 4.8 | 7.8 |
| Weight of Ratchet Link (Kg) | 1.7 | 2 | 4.1 | 4.3 | 4.5 | 7.8 | 8.1 | 8.9 | 13.5 | 23.9 |
| L | 207 | 210 | 241 | 245 | 246 | 294 | 294/300 | 300 | 361 | 412 |
| H1 | 110 | 110 | 127 | 127 | 137 | 156 | 156 | 165 | 188 | 220 |
| H2 | 153 | 153 | 177 | 177 | 187 | 206 | 206 | 215 | 238 | 270 |
| W1 | 36 | 36 | 43 | 43 | 43 | 53 | 53 | 53 | 64 | 77 |

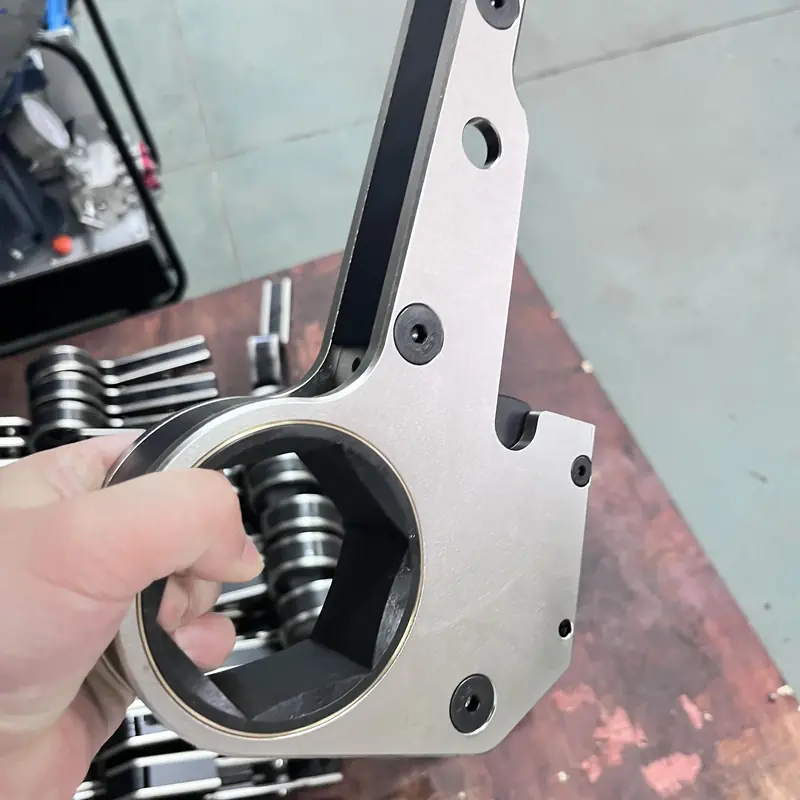

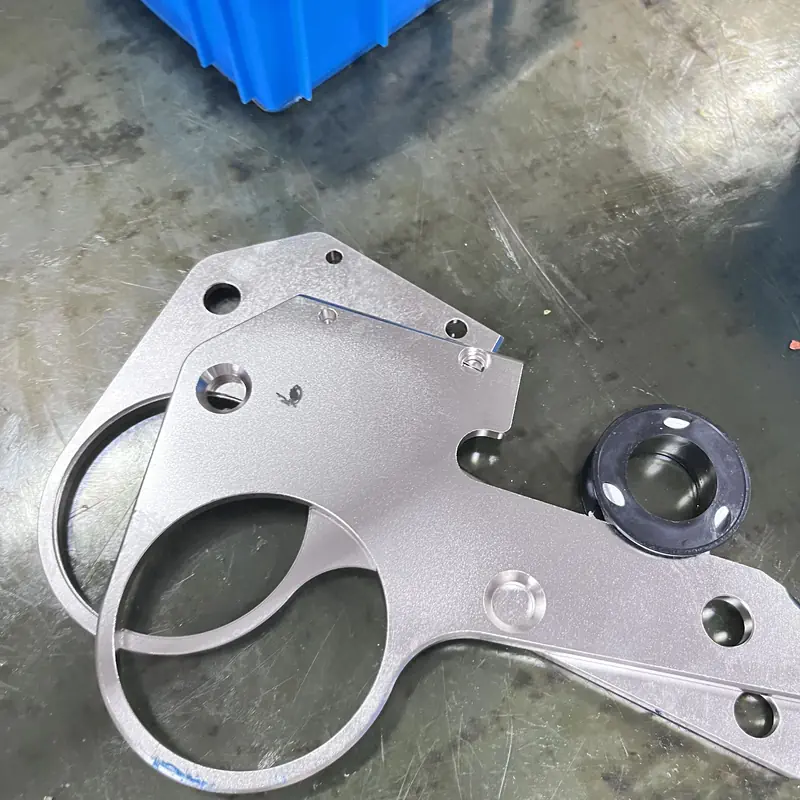

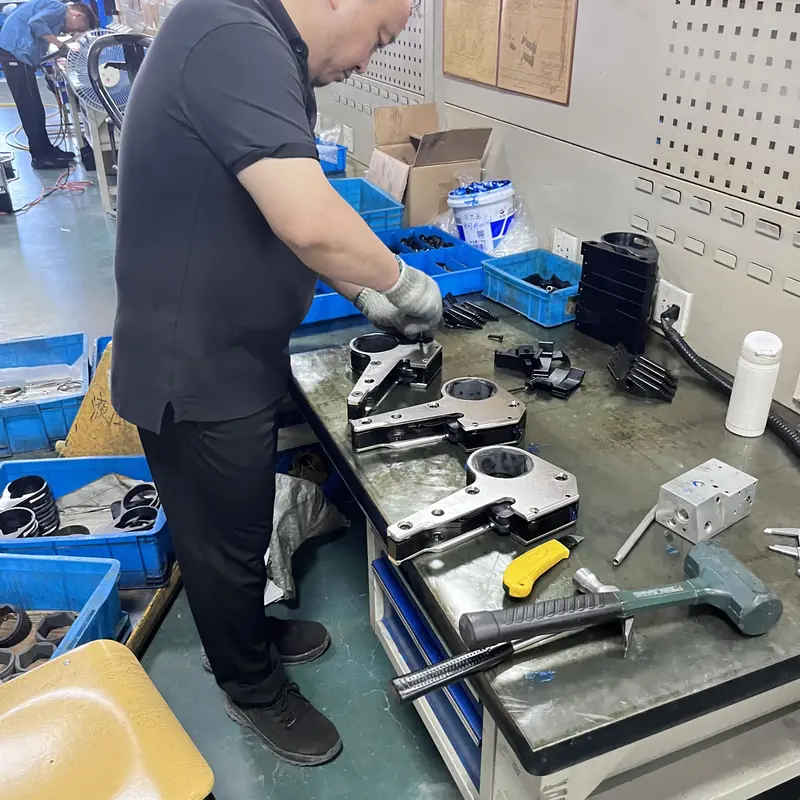

Image Gallery
FAQs
Q: What are the different types of hydraulic torque wrenches?
A: Different types include square drive, low profile, dual-hex, and cassette hydraulic torque wrenches.
Q: What is the advantage of hydraulic torque wrench?
A: The main advantage is precise torque application, uniform distribution of torque, and the ability to handle high torque requirements with ease.
Q: Which type of torque wrench is very effective in low torque applications?
A: Click-type torque wrenches are often effective in low torque applications due to their accuracy and ease of use.
Q: Do hydraulic torque wrenches need to be calibrated?
A: Yes, hydraulic torque wrenches need regular calibration to ensure accurate torque output.
Q: How many PSI is a hydraulic torque wrench?
A: Hydraulic torque wrenches typically operate at pressures ranging from 1,500 to 10,000 PSI (pounds per square inch).
Q: How do you calibrate a hydraulic torque wrench?
A: Hydraulic torque wrenches are calibrated using specialized calibration equipment that applies a known torque load to the wrench and compares the actual output to the expected
output. Adjustments are made as necessary to ensure accuracy.
