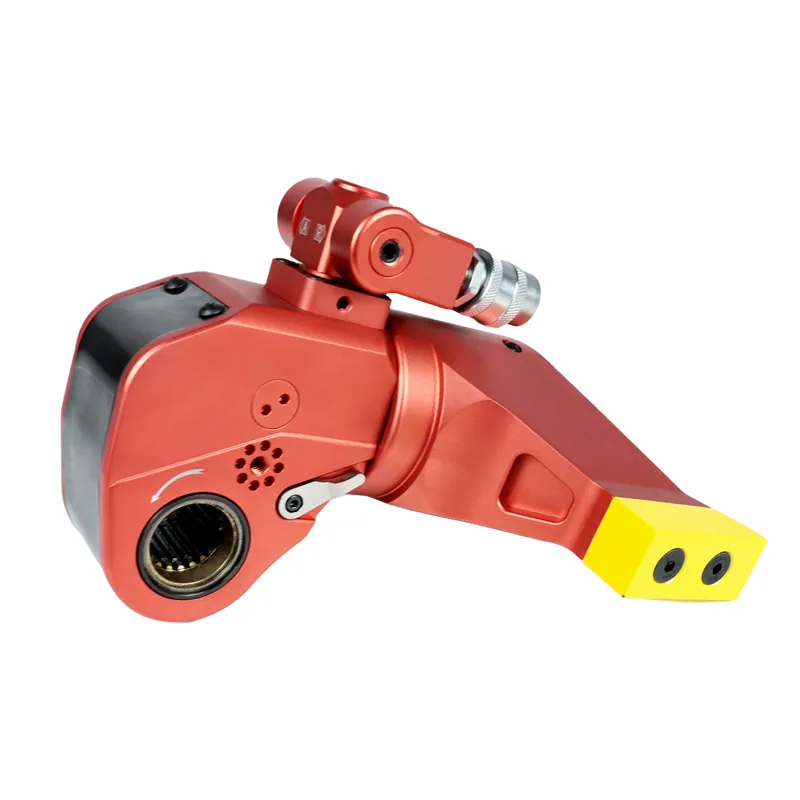

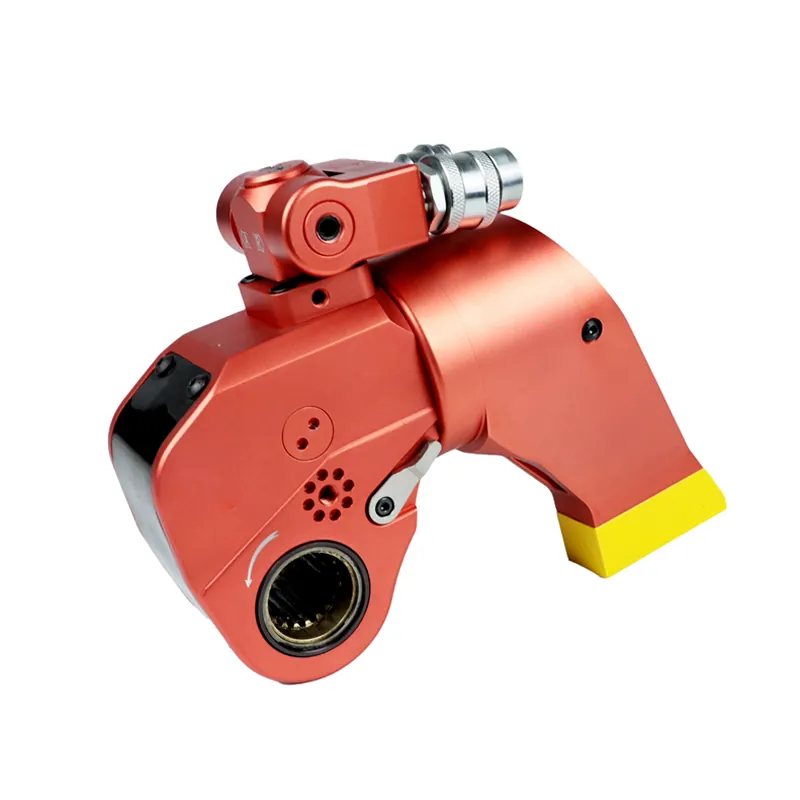

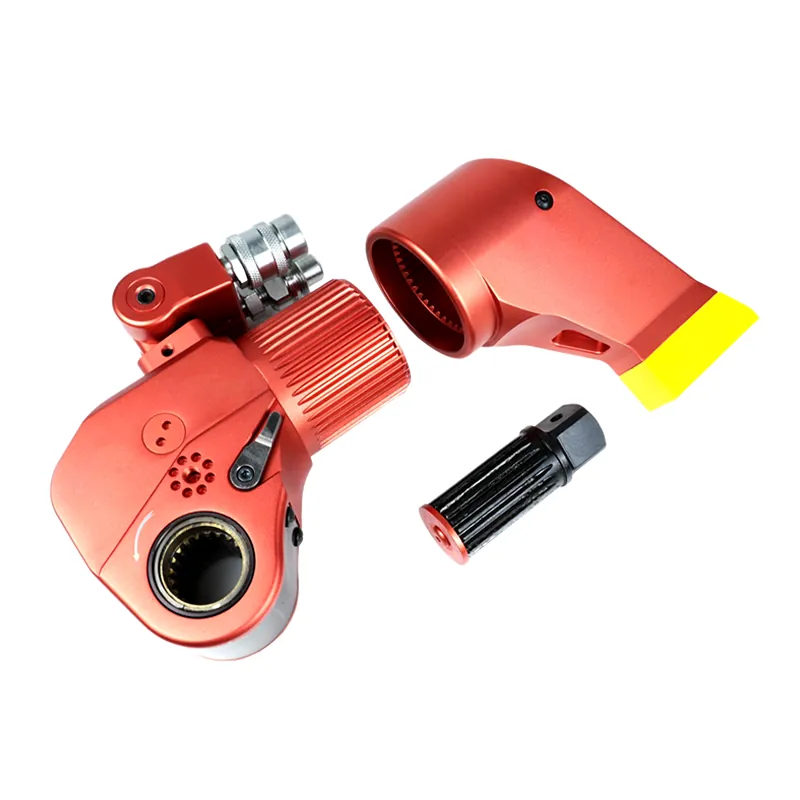

Red,ABT Series Square Drive Hydraulic Torque Wrench
-
70MPa maximum working pressure, easy to cope with tough challenges.
Excellent accuracy of ±3% ensures precise operation.
10 models cover a 112N.m to 72000N.m torque range, the most comprehensive in the market.
360°x180° free swivel joint, no space limitation, flexible operation.

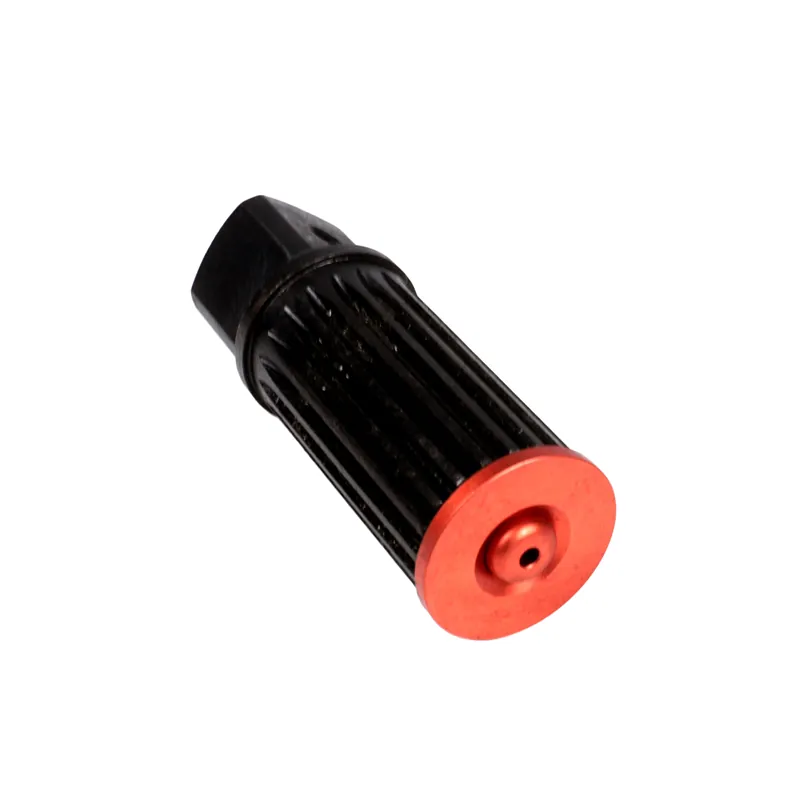

Square drive adapts to high-strength sockets, applicable to a wide range of bolt types.

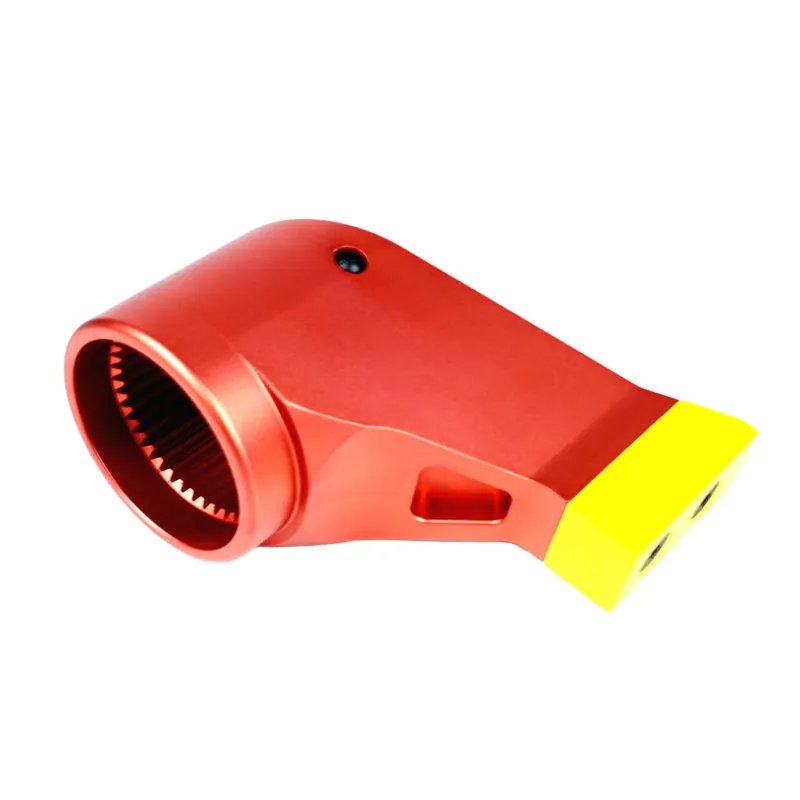

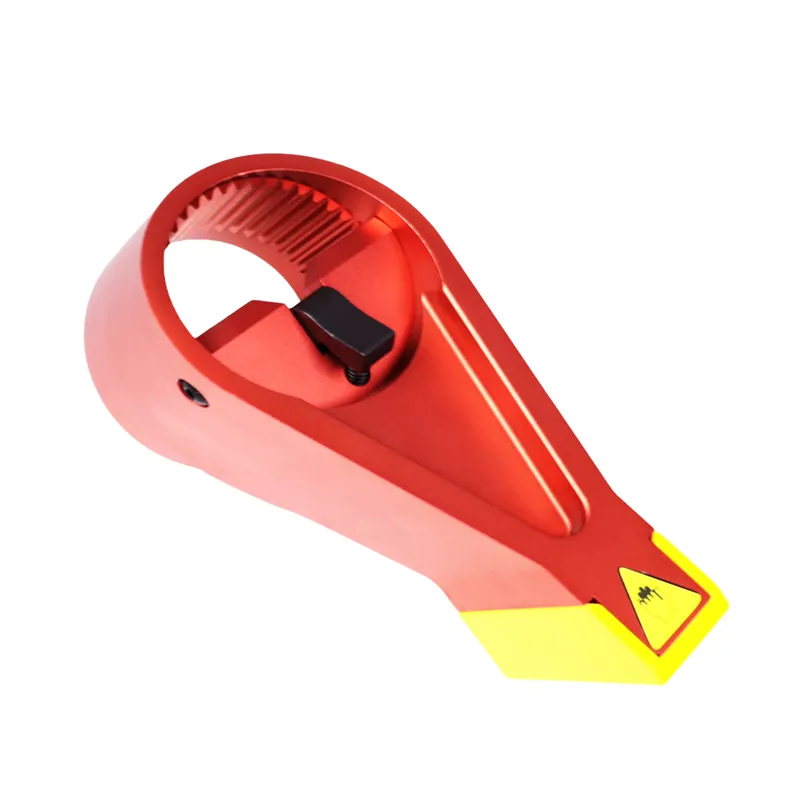

360°adjustable reaction arm, suitable for any support point.
Advanced aluminum titanium alloy material, compact design, high strength, and lightweight.
A new locking connector ensures a smooth flow of oil.
- Champagne,ABT Series Square Drive Hydraulic Torque Wrench Black,ABT Series Square Drive Hydraulic Torque Wrench ABT Series Square Drive Hydraulic Torque Wrench
Description
Product Line: Industrial Tools
Customizable with special requirement
Axion's ABT series Square Drive Hydraulic Torque Wrench are almost the same as Enerpac’s DSX &RSL series,
HYTORC’s MXT & EDGE S series, TORCUP’s TU series and SU series, HI FORCE’s TWS-N series, and other wrenches in terms of function, quality, and applicable working conditions.
Axion offers a one-year warranty, better prices, and Customized services for special conditions.
Welcome to Get Latest Price now
Dimensions
|
Model |
07ABT |
1ABT |
3ABT |
5ABT |
8ABT |
10ABT |
15ABT |
20ABT |
25ABT |
35ABT |
50ABT |
|
|
Torque（N.m ） |
112-1120 |
183-1837 |
451-4512 |
752-7528 |
1078-10780 |
1551-15516 |
2063-20627 |
2666-26664 |
3472-34725 |
4866-48666 |
7200-72000 |
|
|
Bolt size （M ） |
14-30 |
16-36 |
22-48 |
27-56 |
30-64 |
36-72 |
39-80 |
42-90 |
48-100 |
64-120 |
72-125 |
|
|
Weight （Kg） |
1.8 |
2 |
4 |
7 |
9.1 |
13.1 |
21 |
25 |
31 |
45 |
87 |
|
|
L1 |
|
110.8 |
133.5 |
169 |
202.5 |
216 |
237.5 |
285 |
299.5 |
313 |
361.5 |
400 |
|
L2 |
139.3 |
185.5 |
242 |
271 |
309 |
340.5 |
395 |
466.5 |
461 |
496.5 |
516 |
|
|
H1 |
42 |
50 |
68 |
80 |
90 |
100 |
110 |
120 |
137 |
153 |
160 |
|
|
H2 |
65.8 |
72 |
95 |
123 |
134 |
142 |
178 |
183 |
200 |
216 |
223 |
|
|
H3 |
|
76.2 |
95.5 |
127 |
149 |
167 |
182 |
200 |
220 |
247 |
282 |
291 |
|
H4 |
108.1 |
131 |
176.5 |
199 |
216.5 |
231.5 |
250 |
269.5 |
296.5 |
331.5 |
341 |
|
|
R1 |
|
20.5 |
26 |
34 |
39 |
47 |
51 |
55 |
59 |
66 |
77 |
81 |
|
R2 |
68.3 |
99 |
134 |
137 |
171 |
174 |
222 |
250.5 |
250.5 |
271 |
259 |
|
|
Square drive |
3/4" |
3/4" |
1" |
1-1/2" |
1-1/2" |
1-1/2" |
2-1/2" |
2-1/2" |
2-1/2" |
2-1/2" |
2-1/2" |
|
FAQs
Q: What is a square drive on a torque wrench?
A: A square drive is a square-shaped recess at the end of a torque wrench that is used to connect sockets. Sockets come in different sizes to fit different size nuts or bolts.
Q: How accurate is a hydraulic torque wrench?
A: Hydraulic torque wrenches are generally accurate to within ±3%. This means that if the wrench is set to 100 Nm of torque, the actual output torque will likely be between 97 Nm and 103 Nm.
