BRP606, 60 Ton Capacity, 152mm Stroke, Pull Hydraulic Cylinder
-
Model:BRP606
Capacity:50 ton/498.2 KN
Stroke:152 mm/6 in
Maximum Operating Pressure:700 bar/10000 PSI
Weight:53.5 kg/118 lbs
Oil Capacity:1096 cm³/66.9 in³
Return Type:Single-Acting Spring Return
Plunger Type:Solid
Brand Name:Replacement Enerpac's BRP606
- BRP106C, 10 Ton Capacity, 151mm Stroke, Pull Hydraulic CylinderBRP606, 60 Ton Capacity, 152mm Stroke, Pull Hydraulic CylinderBRP306, 30 Ton Capacity, 155mm Stroke, Pull Hydraulic CylinderBRP106L, 10 Ton Capacity, 151mm Stroke, Pull Hydraulic CylinderBRC106, 10 Ton Capacity, 151mm Stroke, Pull Hydraulic CylinderBRC46, 5 Ton Capacity, 140mm Stroke, Pull Hydraulic CylinderBRC25, 2.5 Ton Capacity, 127mm Stroke, Pull Hydraulic CylinderBRP 10/30/50 ton 151/152/155 mm Pull Hydraulic CylinderBRC 2.5/5/10 Ton 127/140/151 mm Pull Hydraulic Cylinder
Description
Model:BRP606
Product Line: Industrial Tools
Type: Hydraulic Cylinder Ram, Hydraulic Jacks
Customizable with special requirement
- High strength alloy steel construction
- Plunger blow-out protection to prevent rod over-extension
- Hard chrome-plated plunger for long life
- Replaceable links on BRP-models
- Baked enamel finish for increased corrosion resistance
- CR-400 coupler and dust cap included on all models
- Plunger wiper reduces contamination,extending cylinder life
- Single-Acting, Spring Return

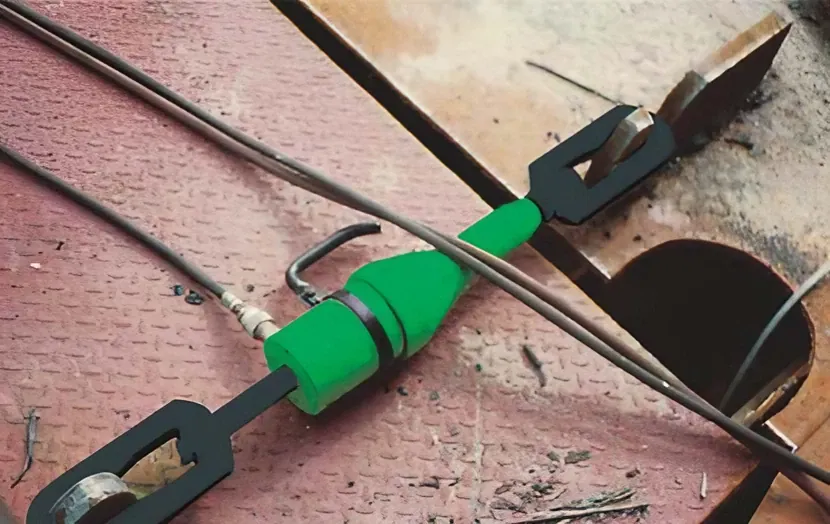

TO lifta load bearing mast into place,BRP-series cylinders were used to tension the supporting cables.
Our BRC Pull Hydraulic Cylinder product in the same series was also employed to tension the supporting cables, ensuring precise lifting of the load-bearing mast into place.

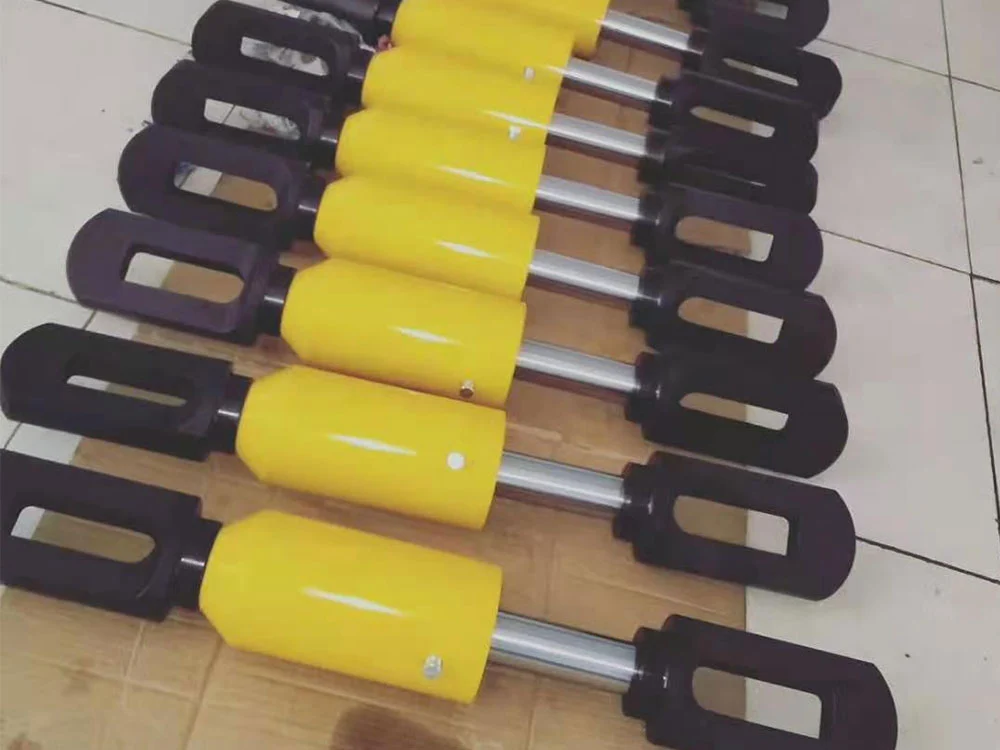

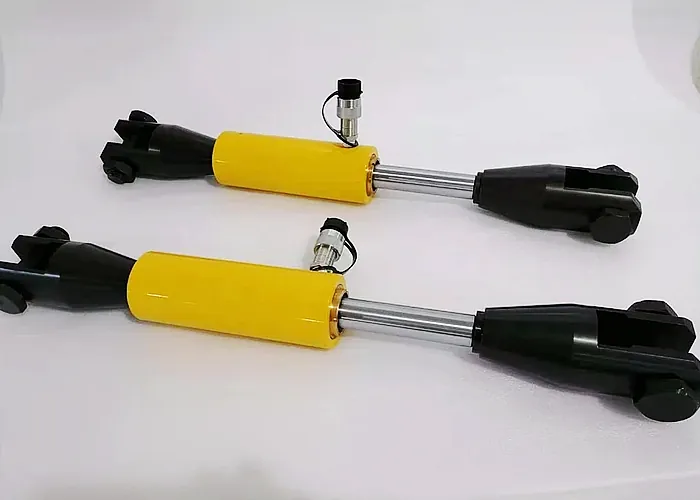

Image Gallery

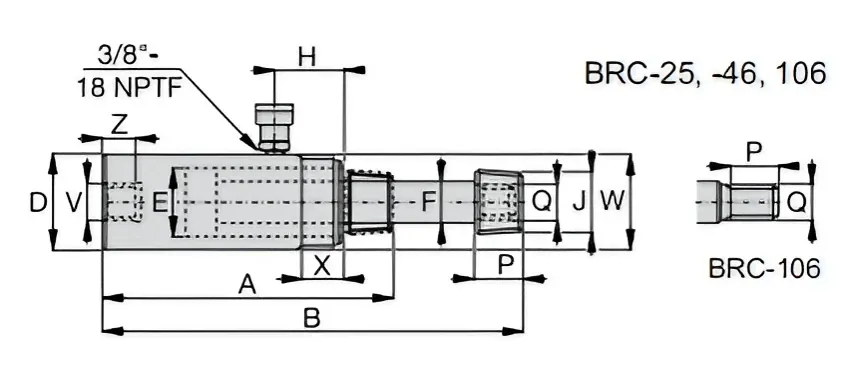

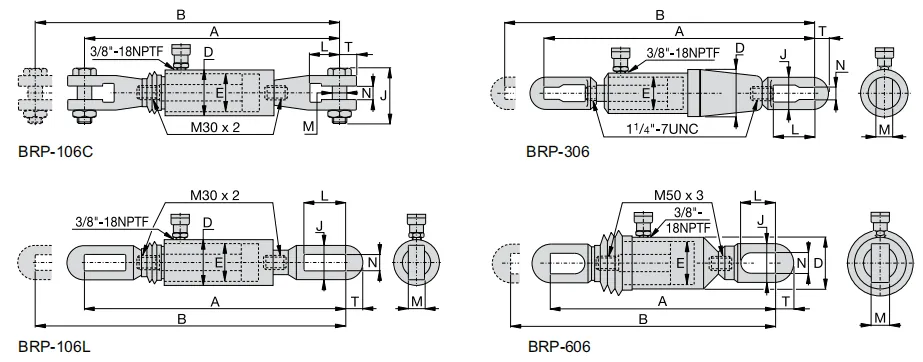

Dimensions
| Collapsed Height/mm(A) | 719 |
| Extended Height/mm(B) | 871 |
| Outside Dia/mm(D) | 140 |
| Cylinder Bore Dia/mm(E) | 110 |
| Plunger Dia/mm(F) | * |
| Top To Inlet Port/mm(H) | * |
| Dimension(J) | 130 |
| Dimension L | 149 |
| Dimension M | 39 |
| Dimension N | 50 |
| Dimension P | * |
| Dimension Q | * |
| Dimension T | 70 |
| Base Mounting Holes Thread(V) | * |
| Collar Thread(V) | * |
| Collar Thread Length/mm(X) | * |
| Base Mounting Holes Thread Length/mm(Z) | * |
Series Comparison
| Model Number | Capacity/Ton | Stroke/mm | Cylinder Effective Area/cm2 | Oil Capacity/cm3 | Collapsed Height/mm(A) | Extended Height/mm(B) | Outside Dia/mm(D) | Cylinder Bore Dia/mm(E) | Plunger Dia/mm(F) | Top To Inlet Port/mm(H) | Dimension(J) | Dimension L | Dimension M | Dimension N | Dimension P | Dimension Q | Dimension T | Base Mounting Holes Thread(V) | Collar Thread(V) | Collar Thread Length/mm(X) | Base Mounting Holes Thread Length/mm(Z) | Weight/Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BRC-25 | 2.5 | 127 | 3.5 | 45 | 264 | 391 | 48 | 28.4 | 19 | 45 | 3/4”-14 | * | * | * | 28 | 1 1/16”-24 | * | 3/4”-14NPT | 1 1/2”-16UN | 24 | 17 | 1.8 |
| BRC-46 | 5 | 140 | 7.3 | 101 | 301 | 441 | 57 | 42.9 | 30.2 | 42 | 1 1/4”-11 1/2” | * | * | * | 32 | 1 3/16”-16 | * | 1 1/4”-11 1/2NPT | 2 1/4”-14UN | 26 | 24 | 4.5 |
| BRC-106 | 10 | 151 | 15 | 228 | 289 | 440 | 85 | 54.1 | 31.8 | 39 | * | * | * | * | 25 | M30X2 | * | M30X2 | M85X2 | 25 | 24 | 9.5 |
| BRP-106C | 10 | 151 | 15 | 227 | 587 | 738 | 85 | 54.1 | * | * | 119 | 62 | 30 | 35 | * | * | 32 | * | * | * | * | 15.9 |
| BRP-106L | 10 | 151 | 15 | 227 | 541 | 692 | 85 | 54.1 | * | * | 67 | 115 | 22 | 30 | * | * | 32 | * | * | * | * | 13.2 |
| BRP-306 | 30 | 155 | 46.6 | 722 | 1085 | 1240 | 136 | 88.9 | * | * | 114 | 145 | 35 | 39 | * | * | 50 | * | * | * | * | 48.1 |
| BRP-606 | 50 | 152 | 72.1 | 1096 | 719 | 871 | 140 | 110 | * | * | 130 | 149 | 39 | 50 | * | * | 70 | * | * | * | * | 53.5 |
Application
Hydraulic cylinder jacks are ideal for safely lifting and holding heavy industrial machinery while maintenance or repairs are conducted.
Automotive mechanics use hydraulic cylinder jacks to raise cars and trucks for various repair and maintenance tasks.
Shipping yards use hydraulic cylinder jacksto load and unload heavy shipping containers from trucks and ships.
Hydraulic press beds can be adjusted using hydraulic cylinder jacksto accommodate various workpiece sizes and shapes.
When installing large industrial equipment, hydraulic cylinder jacksare used to safely and precisely position components for assembly.
Elevator systems require periodic maintenance, and hydraulic cylinder jacks are employed to lift and secure elevator cars for inspection and service.
In the renewable energy sector, hydraulic cylinder jacks are used to position and adjust solar panel arrays for optimal sun exposure and energy generation.
