BRC106, 10 Ton Capacity, 151mm Stroke, Pull Hydraulic Cylinder
-
Model:BRC106
Capacity:10 ton/98 KN
Stroke:151 mm/5.9 in
Maximum Operating Pressure:700 bar/10000 PSI
Weight:9.5 kg/21 lbs
Oil Capacity:228 cm³/13.9 in³
Return Type:Single-Acting Spring Return
Plunger Type:Solid
Brand Name:Replacement Enerpac's BRC106
- BRP106C, 10 Ton Capacity, 151mm Stroke, Pull Hydraulic CylinderBRP606, 60 Ton Capacity, 152mm Stroke, Pull Hydraulic CylinderBRP306, 30 Ton Capacity, 155mm Stroke, Pull Hydraulic CylinderBRP106L, 10 Ton Capacity, 151mm Stroke, Pull Hydraulic CylinderBRC106, 10 Ton Capacity, 151mm Stroke, Pull Hydraulic CylinderBRC46, 5 Ton Capacity, 140mm Stroke, Pull Hydraulic CylinderBRC25, 2.5 Ton Capacity, 127mm Stroke, Pull Hydraulic CylinderBRP 10/30/50 ton 151/152/155 mm Pull Hydraulic CylinderBRC 2.5/5/10 Ton 127/140/151 mm Pull Hydraulic Cylinder
Description
Model:BRC106
Product Line: Industrial Tools
Type: Hydraulic Cylinder Ram, Hydraulic Jacks
Customizable with special requirement
- High strength alloy steel construction
- Plunger blow-out protection to prevent rod over-extension
- Hard chrome-plated plunger for long life
- Replaceable links on BRP-models
- Baked enamel finish for increased corrosion resistance
- CR-400 coupler and dust cap included on all models
- Plunger wiper reduces contamination,extending cylinder life
- Single-Acting, Spring Return
Ship building,welding and Enerpac pull cylinders go hand in hand.

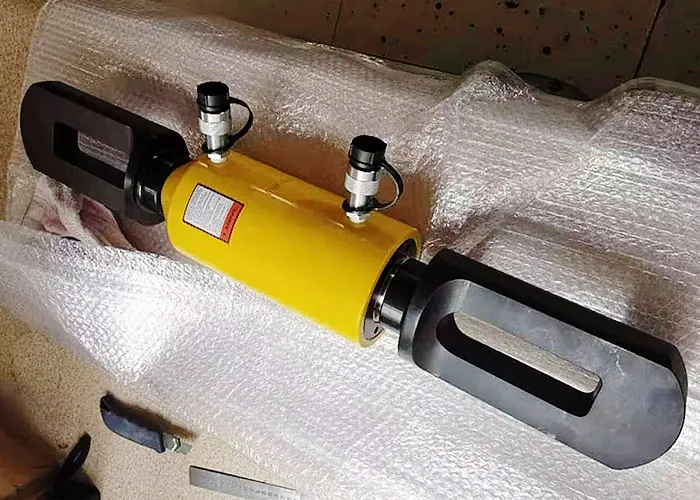

To lift a load-bearing mast into place, BRP Pull Hydraulic Cylinders were used to tension the supporting cables.

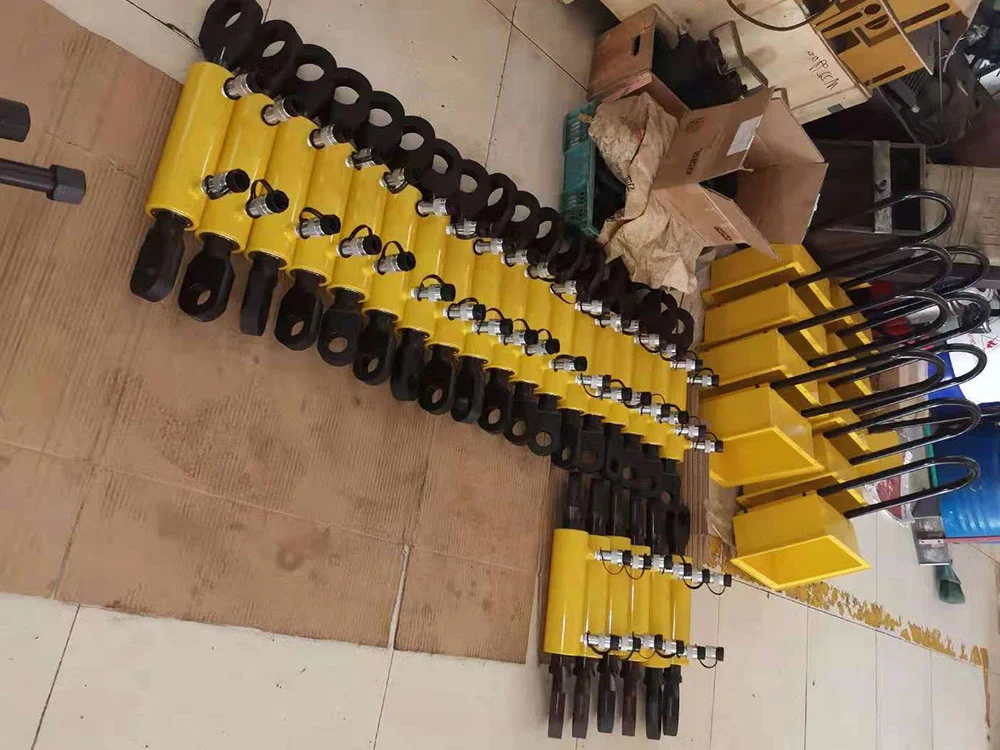

Image Gallery

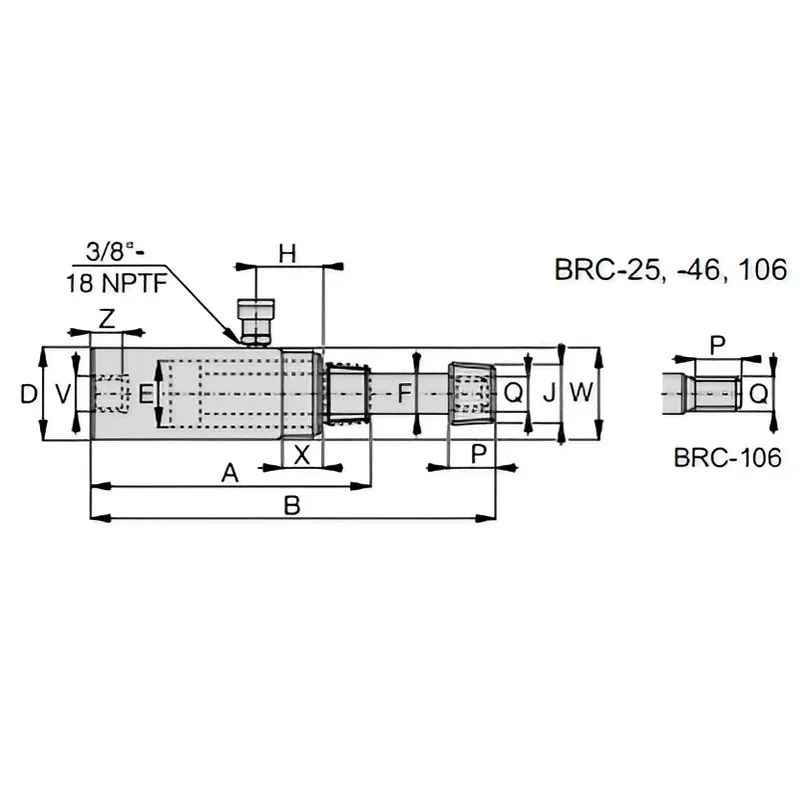

Dimensions
| Collapsed Height/mm(A) | 289 |
| Extended Height/mm(B) | 440 |
| Outside Dia/mm(D) | 85 |
| Cylinder Bore Dia/mm(E) | 54.1 |
| Plunger Dia/mm(F) | 31.8 |
| Top To Inlet Port/mm(H) | 39 |
| Dimension(J) | * |
| Dimension L | * |
| Dimension M | * |
| Dimension N | * |
| Dimension P | 25 |
| Dimension Q | M30X2 |
| Dimension T | * |
| Base Mounting Holes Thread(V) | M30X2 |
| Collar Thread(V) | M85X2 |
| Collar Thread Length/mm(X) | 25 |
| Base Mounting Holes Thread Length/mm(Z) | 24 |
Series Comparison
| Model Number | Capacity/Ton | Stroke/mm | Cylinder Effective Area/cm2 | Oil Capacity/cm3 | Collapsed Height/mm(A) | Extended Height/mm(B) | Outside Dia/mm(D) | Cylinder Bore Dia/mm(E) | Plunger Dia/mm(F) | Top To Inlet Port/mm(H) | Dimension(J) | Dimension L | Dimension M | Dimension N | Dimension P | Dimension Q | Dimension T | Base Mounting Holes Thread(V) | Collar Thread(V) | Collar Thread Length/mm(X) | Base Mounting Holes Thread Length/mm(Z) | Weight/Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BRC-25 | 2.5 | 127 | 3.5 | 45 | 264 | 391 | 48 | 28.4 | 19 | 45 | 3/4”-14 | * | * | * | 28 | 1 1/16”-24 | * | 3/4”-14NPT | 1 1/2”-16UN | 24 | 17 | 1.8 |
| BRC-46 | 5 | 140 | 7.3 | 101 | 301 | 441 | 57 | 42.9 | 30.2 | 42 | 1 1/4”-11 1/2” | * | * | * | 32 | 1 3/16”-16 | * | 1 1/4”-11 1/2NPT | 2 1/4”-14UN | 26 | 24 | 4.5 |
| BRC-106 | 10 | 151 | 15 | 228 | 289 | 440 | 85 | 54.1 | 31.8 | 39 | * | * | * | * | 25 | M30X2 | * | M30X2 | M85X2 | 25 | 24 | 9.5 |
| BRP-106C | 10 | 151 | 15 | 227 | 587 | 738 | 85 | 54.1 | * | * | 119 | 62 | 30 | 35 | * | * | 32 | * | * | * | * | 15.9 |
| BRP-106L | 10 | 151 | 15 | 227 | 541 | 692 | 85 | 54.1 | * | * | 67 | 115 | 22 | 30 | * | * | 32 | * | * | * | * | 13.2 |
| BRP-306 | 30 | 155 | 46.6 | 722 | 1085 | 1240 | 136 | 88.9 | * | * | 114 | 145 | 35 | 39 | * | * | 50 | * | * | * | * | 48.1 |
| BRP-606 | 50 | 152 | 72.1 | 1096 | 719 | 871 | 140 | 110 | * | * | 130 | 149 | 39 | 50 | * | * | 70 | * | * | * | * | 53.5 |
Application
Hydraulic cylinder jacks are ideal for safely lifting and holding heavy industrial machinery while maintenance or repairs are conducted.
These jacks help support and position critical structural elements during construction, ensuring proper alignment and safety.
Mobile homes and trailers can be leveled and raised for foundation repairs or relocation using Hydraulic cylinder jacks.
Hydraulic cylinder jackshelp lift vessels out of the water or provide support for hull maintenance and repairs.
Hydraulic cylinder jacksare used to support and level drilling rigs during setup and maintenance in the oil and gas industry.
Overhead cranes require precise positioning during installation, which hydraulic cylinder jacksfacilitate.
When installing large industrial equipment, hydraulic cylinder jacksare used to safely and precisely position components for assembly.
