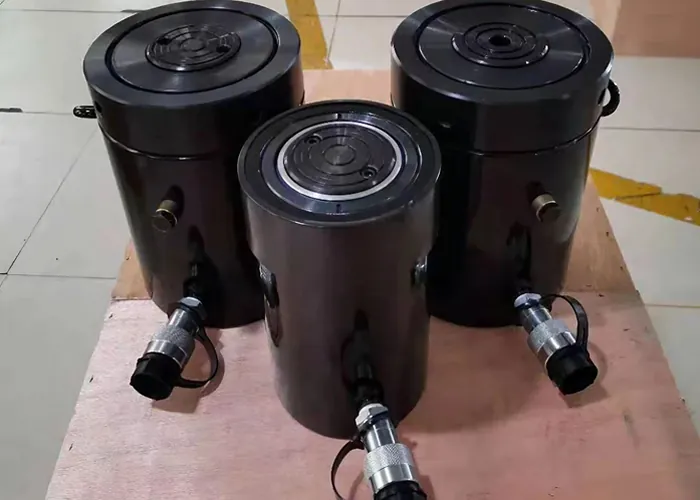

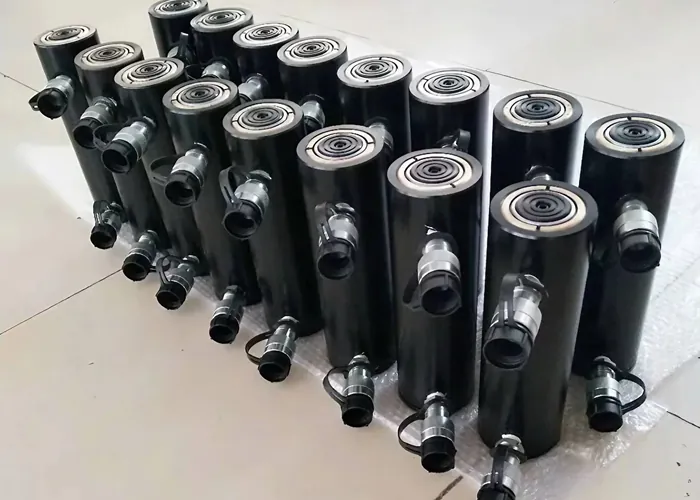

RAC Series Single-Acting,Aluminum Hydraulic Cylinders
-
Model:RAC
RAC Series Single-Acting,Aluminum Hydraulic Cylinders
Capacity:20/30/50/100/150 ton
Stroke:50/100/150/200/250 mm
Maximum Operating Pressure:700 Bar/10000 Psi/70 Mpa
Weight:3.6-41.3 kg/7.94-91.04 lbs
Model Number:RAC202-RAC15010
Oil Capacity:156-5675 cm³
Manufacturer:Axion
Country of Origin:China
Return Type:Single-Acting Spring Return
Plunger Type:Solid
Brand Name:Replacement Enerpac's RAC
- RCH Series Single-Acting Hollow Cylinders50 Ton Hydraulic Cylinder & JackSCL,5-100 TON,Hydraulic Cylinder Hand Pump,System Components Toolbox SetSCR,10-150 TON,Hydraulic Cylinder,Lightweight Hydraulic Hand Pump SetMRH120, 8.1 mm 0.32 in Stroke, Hollow Plunger Hydraulic CylinderMRH20, 8.4 mm 0.33 in Stroke, Hollow Plunger Hydraulic CylinderHCRL30012, 300 Ton, 300 mm 11.81 in Stroke, Double Acting Lock Nut CylindersHCRL30010, 300 Ton, 250 mm 9.84 in Stroke, Double Acting Lock Nut CylindersHCRL3008, 300 Ton, 200 mm 7.87 in Stroke, Double Acting Lock Nut CylindersHCRL3006, 300 Ton, 150 mm 5.91 in Stroke, Double Acting Lock Nut CylindersHCRL25012, 250 Ton, 300 mm 11.81 in Stroke, Double Acting Lock Nut CylindersHCRL25010, 250 Ton, 250 mm 9.84 in Stroke, Double Acting Lock Nut CylindersHCRL2508, 250 Ton, 200 mm 7.87 in Stroke, Double Acting Lock Nut CylindersHCRL2506, 250 Ton, 150 mm 5.91 in Stroke, Double Acting Lock Nut CylindersHCRL20012, 200 Ton, 300 mm 11.81 in Stroke, Double Acting Lock Nut CylindersHCRL20010, 200 Ton, 250 mm 9.84 in Stroke, Double Acting Lock Nut CylindersHCRL2008, 200 Ton, 200 mm 7.87 in Stroke, Double Acting Lock Nut CylindersHCRL2006, 200 Ton, 150 mm 5.91 in Stroke, Double Acting Lock Nut CylindersHCRL15012, 150 Ton, 300 mm 11.81 in Stroke, Double Acting Lock Nut CylindersHCRL15010, 150 Ton, 250 mm 9.84 in Stroke, Double Acting Lock Nut CylindersHCRL1508, 150 Ton, 200 mm 7.87 in Stroke, Double Acting Lock Nut CylindersHCRL1506, 150 Ton, 150 mm 5.91 in Stroke, Double Acting Lock Nut CylindersHCRL10012, 100 Ton, 300 mm 11.81 in Stroke, Double Acting Lock Nut CylindersHCRL10010, 100 Ton, 250 mm 9.84 in Stroke, Double Acting Lock Nut CylindersHCRL1008, 100 Ton, 200 mm 7.87 in Stroke, Double Acting Lock Nut CylindersHCRL1006, 100 Ton, 150 mm 5.91 in Stroke, Double Acting Lock Nut CylindersHCRL5012, 50 Ton, 300 mm 11.81 in Stroke, Double Acting Lock Nut CylindersHCRL5010, 50 Ton, 250 mm 9.84 in Stroke, Double Acting Lock Nut CylindersHCRL508, 50 Ton, 200 mm 7.87 in Stroke, Double Acting Lock Nut CylindersHCRL506, 50 Ton , 150 mm 5.91 in Stroke, Double Acting Lock Nut CylindersRR50048, 520 Ton , 1219 mm 47.99 in Stroke, Double Acting, General Purpose Hydraulic CylinderRR50036, 520 Ton , 915 mm 36 in Stroke, Double Acting, General Purpose Hydraulic CylinderRR50024, 520 Ton , 609 mm 23.98 in Stroke, Double Acting, General Purpose Hydraulic CylinderRR50018, 520 Ton , 457 mm 17.99 in Stroke, Double Acting, General Purpose Hydraulic CylinderRR50012, 520 Ton , 305 mm 12 in Stroke, Double Acting, General Purpose Hydraulic CylinderRR5006, 520 Ton , 153 mm 6 in Stroke, Double Acting, General Purpose Hydraulic CylinderRR40048, 440 Ton , 1219 mm 47.99 in Stroke, Double Acting, General Purpose Hydraulic CylinderRR40036, 440 Ton , 914 mm 24 in Stroke, Double Acting, General Purpose Hydraulic CylinderRR40024, 440 Ton , 610 mm 24 in Stroke, Double Acting, General Purpose Hydraulic CylinderRR40018, 440 Ton , 457 mm 17.99 in Stroke, Double Acting, General Purpose Hydraulic Cylinder
Description
Model:RAC
Product Line: Industrial Tools
Type: Hydraulic Cylinder Ram, Hydraulic Jacks
Customizable with special requirement
Composite Bearings: These bearings prevent metal-to-metal contact, increasing cylinder life and enhancing resistance to side-loads of up to 10%.
Hard-Coat Finish: All surfaces feature a hard-coat finish that resists damage, extending the life of the cylinder.
Handles: Included on all models for easy handling and transportation.
Steel Base Plate and Saddle: Provides protection against load-induced damage, ensuring durability and reliability.
Integral Stop Ring: Prevents plunger over-travel and is capable of withstanding the full cylinder capacity.
High Strength Return Spring: Ensures rapid cylinder retraction for efficient operation.
CR-400 Coupler and Dustcap: Included on all models for convenience and protection.
Saddle: All RAC Series cylinders are equipped with bolt-on, removable hard saddles.
Dimensions
| Steel Base Plate Mounting Holes | |||
| Cylinder Model/Capacity ton | Bolt Circle U (mm) | Thread V (mm) | Thread Depth Z (mm) |
| RAC-20 | 70 | M6 | 12 |
| RAC-30 | 80 | M6 | 12 |
| RAC-50 | 110 | M6 | 12 |
| RAC-100 | 150 | M10 | 12 |
| RAC-150 | 200 | M10 | 12 |
*Including Base Plate Height of 6 mm

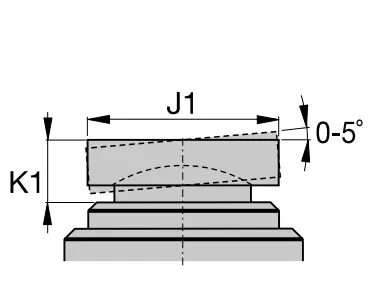

| Optional Bolt-on Tilt Saddle Dimensions(mm) | |||
| ForCylinder Model/Capacity ton | TiltSaddle Model Number | TiltSaddle Diameter J1 | Saddle Protrusion from Plunger K1 |
| RAC-50 | CATG-50 | 50 | 24 |
| RAC-100 | CATG-150 | 91 | 31 |
| RAC-150 | CATG-200 | 118 | 35 |

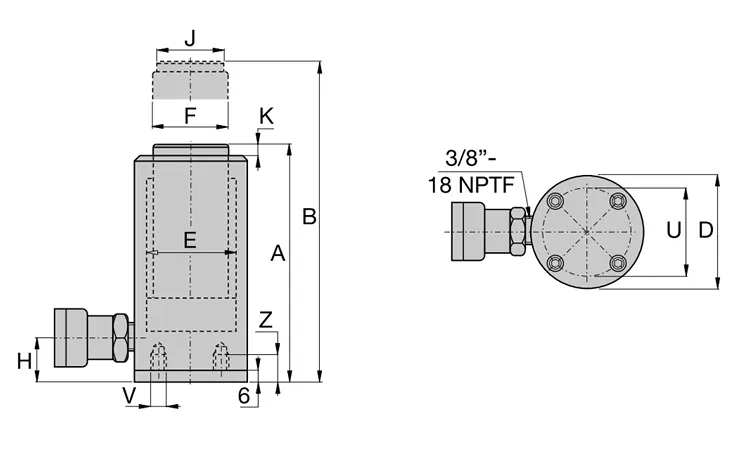

| Model Number | Capacity /Ton | Stroke /mm | Cylinder Effective Area/cm2 | Oil Capacity /cm3 | Collapsed Height /mm(A) | Extended Height /mm(B) | Outside Dia /mm(D) | Cylinder Bore Dia /mm(E) | Plunger Dia /mm(F) | Base To Advance Port /mm(H) | Saddle Dia /mm(J) | Saddle Protri. From Plgr. /mm(K) | Base Mounting Holes Bolt Circle /mm(U) | Base Mounting Holes Thread (V) | Base Mounting Holes Thread Depth /mm(Z) | Weight /Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RAC-202 | 20 | 50 | 31.2 | 156 | 174 | 224 | 85 | 63 | 50 | 27 | 40 | 3 | 70 | M6 | 12 | 3.6 |
| RAC-204 | 20 | 100 | 31.2 | 312 | 224 | 324 | 85 | 63 | 50 | 27 | 40 | 3 | 70 | M6 | 12 | 4.1 |
| RAC-206 | 20 | 150 | 31.2 | 468 | 274 | 424 | 85 | 63 | 50 | 27 | 40 | 3 | 70 | M6 | 12 | 4.6 |
| RAC-208 | 20 | 200 | 31.2 | 624 | 324 | 524 | 85 | 63 | 50 | 27 | 40 | 3 | 70 | M6 | 12 | 5.1 |
| RAC-2010 | 20 | 250 | 31.2 | 780 | 374 | 624 | 85 | 63 | 50 | 27 | 40 | 3 | 70 | M6 | 12 | 5.6 |
| RAC-302 | 30 | 50 | 44.2 | 221 | 181 | 231 | 100 | 75 | 60 | 32 | 40 | 3 | 80 | M6 | 12 | 4.5 |
| RAC-304 | 30 | 100 | 44.2 | 442 | 231 | 331 | 100 | 75 | 60 | 32 | 40 | 3 | 80 | M6 | 12 | 5.2 |
| RAC-306 | 30 | 150 | 44.2 | 663 | 281 | 431 | 100 | 75 | 60 | 32 | 40 | 3 | 80 | M6 | 12 | 5.9 |
| RAC-308 | 30 | 200 | 44.2 | 884 | 331 | 531 | 100 | 75 | 60 | 32 | 40 | 3 | 80 | M6 | 12 | 6.6 |
| RAC-3010 | 30 | 250 | 44.2 | 1105 | 381 | 631 | 100 | 75 | 60 | 32 | 40 | 3 | 80 | M6 | 12 | 7.3 |
| RAC-502 | 50 | 50 | 70.9 | 354 | 186 | 236 | 130 | 95 | 80 | 30 | 50 | 3 | 110 | M6 | 12 | 8.5 |
| RAC-504 | 50 | 100 | 70.9 | 709 | 236 | 336 | 130 | 95 | 80 | 30 | 50 | 3 | 110 | M6 | 12 | 9.8 |
| RAC-506 | 50 | 150 | 70.9 | 1063 | 286 | 436 | 130 | 95 | 80 | 30 | 50 | 3 | 110 | M6 | 12 | 11.1 |
| RAC-508 | 50 | 200 | 70.9 | 1417 | 336 | 536 | 130 | 95 | 80 | 30 | 50 | 3 | 110 | M6 | 12 | 12.4 |
| RAC-5010 | 50 | 250 | 70.9 | 1771 | 386 | 636 | 130 | 95 | 80 | 30 | 50 | 3 | 110 | M6 | 12 | 13.7 |
| RAC-1002 | 100 | 50 | 143.1 | 715 | 221 | 271 | 180 | 135 | 110 | 46 | 94 | 3 | 150 | M10 | 12 | 17.3 |
| RAC-1004 | 100 | 100 | 143.1 | 1431 | 271 | 371 | 180 | 135 | 110 | 46 | 94 | 3 | 150 | M10 | 12 | 19.6 |
| RAC-1006 | 100 | 150 | 143.1 | 2147 | 321 | 471 | 180 | 135 | 110 | 46 | 94 | 3 | 150 | M10 | 12 | 21.9 |
| RAC-1008 | 100 | 200 | 143.1 | 2863 | 371 | 571 | 180 | 135 | 110 | 46 | 94 | 3 | 150 | M10 | 12 | 24.2 |
| RAC-10010 | 100 | 250 | 143.1 | 3578 | 421 | 671 | 180 | 135 | 110 | 46 | 94 | 3 | 150 | M10 | 12 | 26.5 |
| RAC-1502 | 150 | 50 | 227.0 | 1135 | 243 | 293 | 230 | 170 | 140 | 51 | 113 | 3 | 200 | M10 | 12 | 25.3 |
| RAC-1504 | 150 | 100 | 227.0 | 2270 | 293 | 393 | 230 | 170 | 140 | 51 | 113 | 3 | 200 | M10 | 12 | 29.3 |
| RAC-1506 | 150 | 150 | 227.0 | 3405 | 343 | 493 | 230 | 170 | 140 | 51 | 113 | 3 | 200 | M10 | 12 | 33.3 |
| RAC-1508 | 150 | 200 | 227.0 | 4540 | 393 | 593 | 230 | 170 | 140 | 51 | 113 | 3 | 200 | M10 | 12 | 37.3 |
| RAC-15010 | 150 | 250 | 227.0 | 5675 | 443 | 693 | 230 | 170 | 140 | 51 | 113 | 3 | 200 | M10 | 12 | 41.3 |
