RSM500, 50 ton 549 KN, 16mm 0.6 in Stroke, Single Acting Low Profile Hydraulic Cylinders
-
Model:RSM500
Capacity:50 ton | 549 KN
Stroke:16 mm | 0.6 inches
Weight:7.4 kg | 16.3 lbs
Cylinder Effective Area:78.5 m²
Oil Capacity:125 cm³
Return Type:Single-Acting Spring Return
Plunger Type:Solid
Brand Name:Replacement Enerpac's RSM500
- RSM1500, 150 ton 1386 KN, 16mm 0.6 in Stroke, Single Acting Low Profile Hydraulic CylindersRSM1000, 100 ton 887 KN, 16mm 0.6 in Stroke, Single Acting Low Profile Hydraulic CylindersRSM750, 75 ton 718 KN, 16mm 0.6 in Stroke, Single Acting Low Profile Hydraulic CylindersRSM500, 50 ton 549 KN, 16mm 0.6 in Stroke, Single Acting Low Profile Hydraulic CylindersRSM300, 30 ton 295 KN, 13mm 0.5 in Stroke, Single Acting Low Profile Hydraulic CylindersRSM200, 20 ton 201 KN, 12mm 0.5 in Stroke, Single Acting Low Profile Hydraulic CylindersRSM100, 10 ton 101 KN, 11mm 0.4 in Stroke, Single Acting Low Profile Hydraulic CylindersRSM Series Single-Acting Low Flat Hydraulic Ram
Description
Model:RSM500
Product Line: Industrial Tools
Type: Hydraulic Cylinder Ram, Hydraulic Jacks
Customizable with special requirement
- Single-Acting, Spring Return.
- Flat design used in confined spaces.
- No saddle is required with a grooved plunger end.
- Two plunger threads on grooved plunder end for particular needs.
- Special painted surface to increase corrosion resistance.
- Easy carrying with handles on some models (Capacity over 75 Tons).
- All models include quick coupling and dust caps.
- hydraulic cylinders can bear partial loading is 5% of rated pressure.
- High-pressure alloy cylinders are very durable, especially in larger projects, it are easy to operate and control. It can be used for lifting heavy machines, bridge projects, hydraulic engineering, harbor construction, and other equipment.
- Large output, lightweight, remote control. It can match our high-pressure oil pump, and it can reach jack, push, pull, extrusion, and other kinds of work.

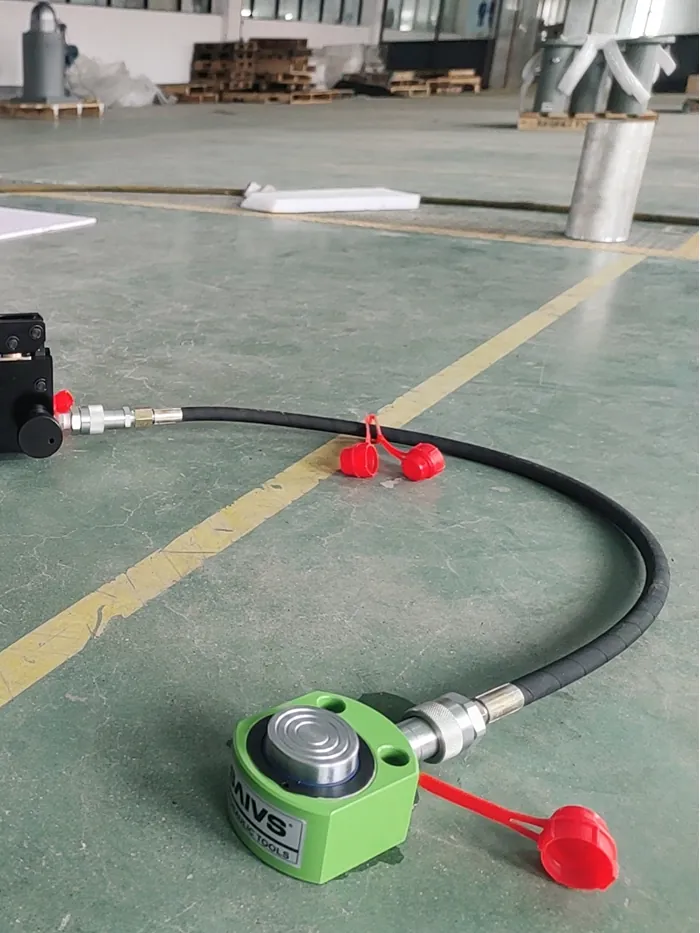

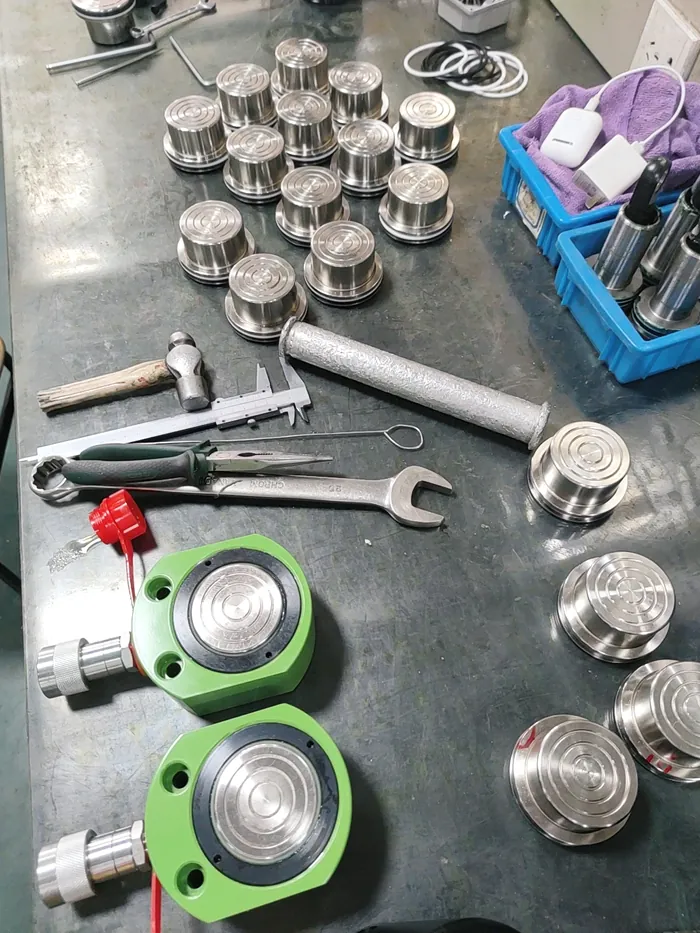

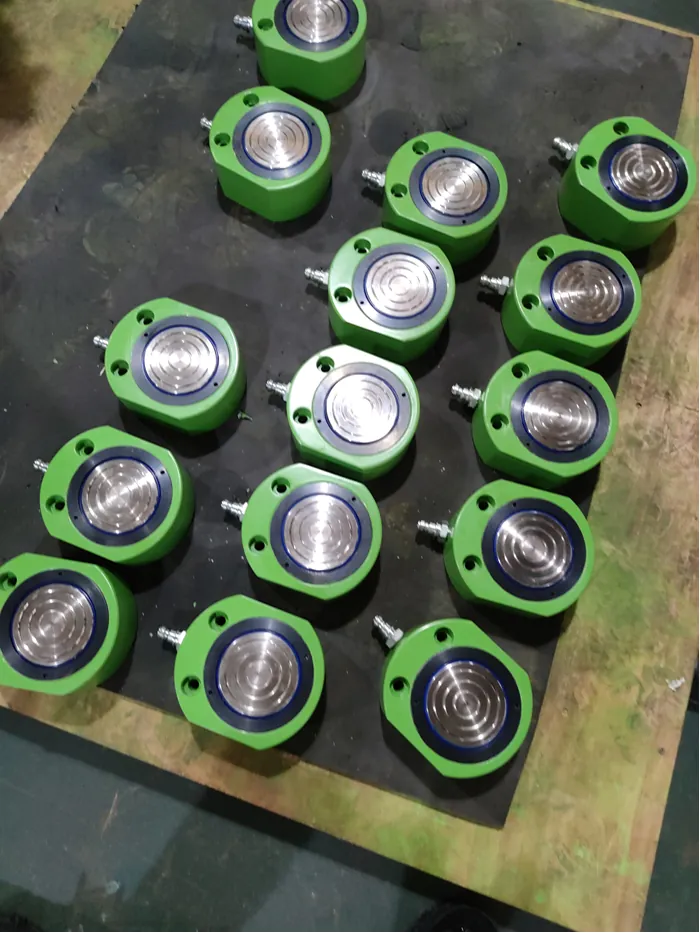

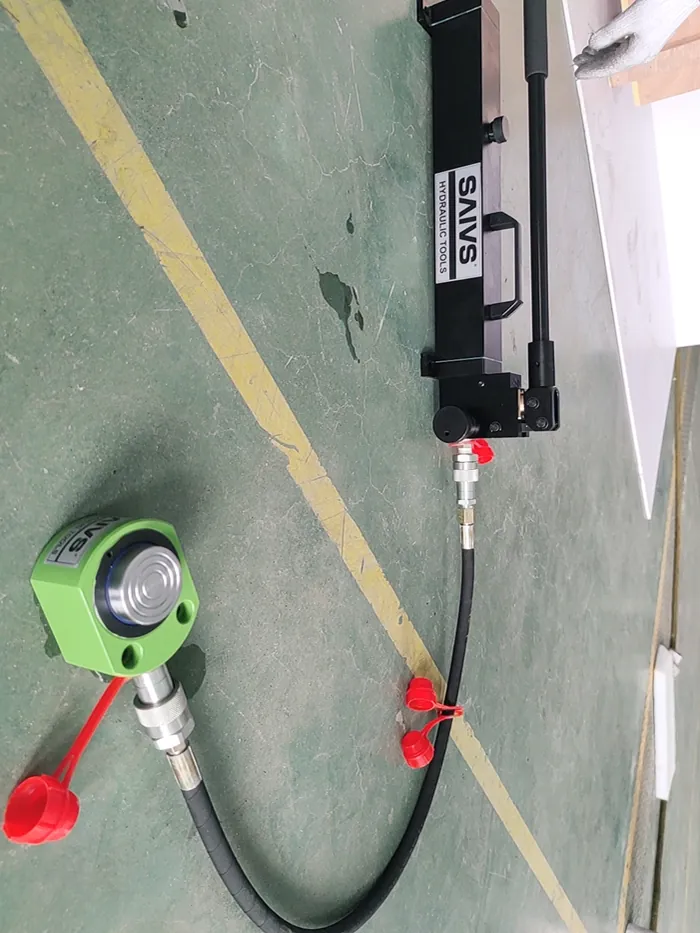

Image Gallery

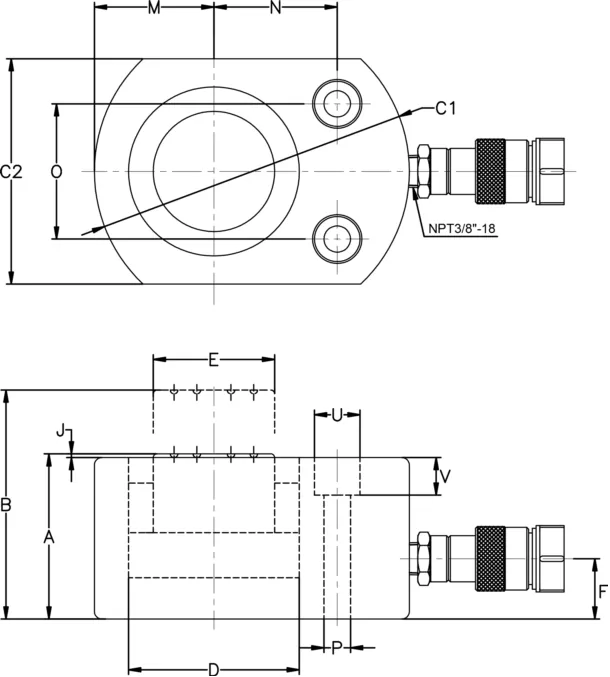

Dimensions
| Collapsed Height | A | (mm) | 67 | |
| Extended Height | B | (mm) | 83 | |
| Outside Dia. | C1XC2 | (mm) | 150X125 | |
| Cylinder Bore Dia. | D | (mm) | 100 | |
| Plunger Dia. | E | (mm) | 80 | |
| Base to Advance Port | F | (mm) | 23 | |
| Saddle Protrusion from Plgr. | J | (mm) | 1 | |
| Plunger to Base | M | (mm) | 63 | |
| Plunger to Mounting Hole | N | (mm) | 60 | |
Series Comparison
| Cylinder Capacity | Stroke | Model Number | Cylinder Effective Area | Oil Capacity | Collapsed Height | Extended Height | Outside Dia. | Cylinder Bore Dia. | Plunger Dia. | Base to Advance Port | Saddle Protrusion from Plgr. | Plunger to Base | Plunger to Mounting Hole | Weight | Mounting Hole Dimensions | ||||
| Model Number | Bolt Circle | Hole Dia. | Counter Bore Dia. | Counter Bore Depth | |||||||||||||||
| A | B | C1XC2 | D | E | F | J | M | N | O | P | U | V | |||||||
| ton(KN) | (mm) | (cm2) | (cm3) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | (mm) | (mm) | (mm) | (mm) | ||
| 10(101) | 11 | RSM-100 | 15.9 | 18 | 44 | 55 | 83X60 | 45 | 35 | 23 | 1 | 31.5 | 34 | 1.4 | RSM-100 | 36.6 | 7.1 | 10.7 | 7.9 |
| 20(201) | 12 | RSM-200 | 31.1 | 37 | 52 | 64 | 102X80 | 63 | 50 | 23 | 1 | 41 | 39 | 2.2 | RSM-200 | 49.3 | 10 | 15.1 | 9.9 |
| 30(295) | 13 | RSM-300 | 45.3 | 59 | 58 | 71 | 117X97 | 76 | 60 | 23 | 1 | 48.5 | 47 | 4.2 | RSM-300 | 52.3 | 10 | 15.9 | 11.2 |
| 50(549) | 16 | RSM-500 | 78.5 | 125 | 67 | 83 | 150X125 | 100 | 80 | 23 | 1 | 63 | 60 | 7.4 | RSM-500 | 66.5 | 11 | 19 | 12.7 |
| 75(718) | 16 | RSM-750 | 116.8 | 187 | 79 | 96 | 177X152 | 122 | 100 | 21 | 1 | 76.5 | 73 | 12.7 | RSM-750 | 76.2 | 13.5 | 20.6 | 14.2 |
| 100(887) | 16 | RSM-1000 | 153.9 | 246 | 87 | 103 | 203X179 | 140 | 112 | 23 | 1 | 89.5 | 84 | 15.5 | RSM-1000 | 76.2 | 13.5 | 20.6 | 14.2 |
| 150(1386) | 16 | RSM-1500 | 232.2 | 371 | 98 | 114 | 236X212 | 170 | 145 | 25 | 2 | 106 | 92 | 28.7 | RSM-1500 | 117.3 | 13.5 | 20.6 | 14.2 |
Application
Hydraulic cylinder jacks are ideal for safely lifting and holding heavy industrial machinery while maintenance or repairs are conducted.
Industries often rely on Hydraulic cylinder jacksto align and adjust heavy machinery, ensuring precision and efficiency.
Wind turbines require periodic maintenance, and hydraulic cylinder jacksenable technicians to reach and service these towering structures.
Aircraft maintenance crews rely on hydraulic cylinder jacksto raise aircraft for inspection and repairs.
Hydraulic press beds can be adjusted using hydraulic cylinder jacksto accommodate various workpiece sizes and shapes.
Hydraulic cylinder jacks are essential in maintaining the balance of heavy machinery, ensuring stable and efficient operations.
When installing large industrial equipment, hydraulic cylinder jacksare used to safely and precisely position components for assembly.
