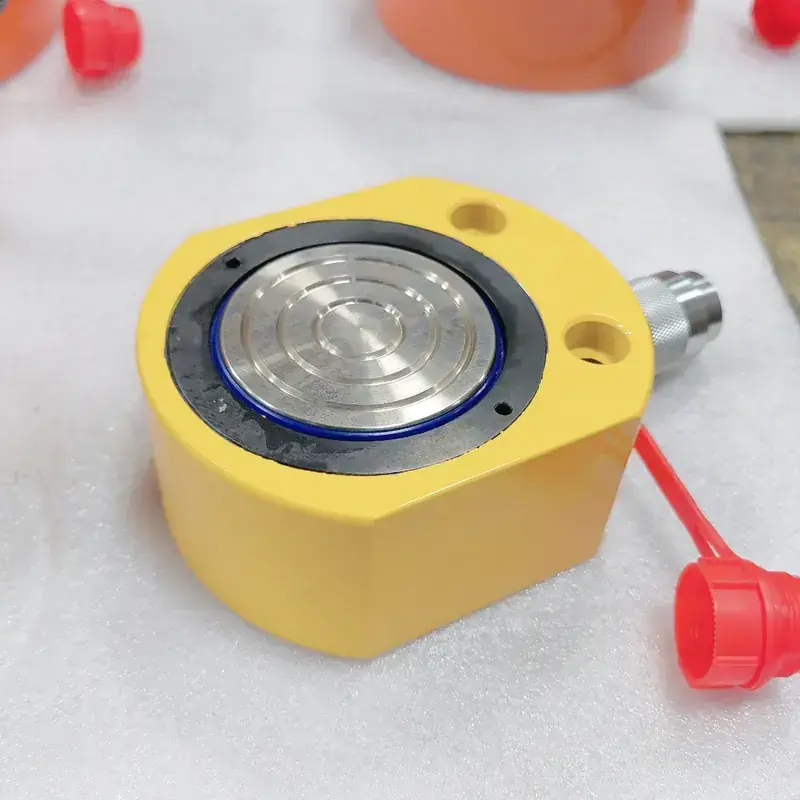

RSM Series Single-Acting Low Flat Hydraulic Ram
-
Model:RSM Series
Light Height Ultra-Thin Single Acting Hydraulic Cylinder Low Flat Hydraulic Ram
Capacity: 10-150ton
Stroke: 11-16mm
Weight:1.4-28.7KG
Oil capacity:18 - 371(cm3)
Manufacturer:Axion
Country of Origin:China
Return Type:Single-Acting Spring Return
Plunger Type:Solid
Brand Name:Replacement Enerpac's RSM Series
- RSM1500, 150 ton 1386 KN, 16mm 0.6 in Stroke, Single Acting Low Profile Hydraulic CylindersRSM1000, 100 ton 887 KN, 16mm 0.6 in Stroke, Single Acting Low Profile Hydraulic CylindersRSM750, 75 ton 718 KN, 16mm 0.6 in Stroke, Single Acting Low Profile Hydraulic CylindersRSM500, 50 ton 549 KN, 16mm 0.6 in Stroke, Single Acting Low Profile Hydraulic CylindersRSM300, 30 ton 295 KN, 13mm 0.5 in Stroke, Single Acting Low Profile Hydraulic CylindersRSM200, 20 ton 201 KN, 12mm 0.5 in Stroke, Single Acting Low Profile Hydraulic CylindersRSM100, 10 ton 101 KN, 11mm 0.4 in Stroke, Single Acting Low Profile Hydraulic CylindersRSM Series Single-Acting Low Flat Hydraulic Ram
Description
Model:RSM Series
Product Line: Industrial Tools
Type: Hydraulic Cylinder Ram, Hydraulic Jacks
Customizable with special requirement
Flat design used in confined spaces.
No saddle required with grooved plunger end.
Two plunger threads on grooved plunder end for particular needs.
Special painted surface to increase corrosion resistance.
Easy carrying with handles on some models (Capacity over 75tons).
All models include quick coupling and dust cap.
Customizable with special requirement.
High pressure electric hydraulic cylinder is powered by high pressure electric oil pump, the function for oil pressure rebound, overflow, it is designed a safe protect pressurizer, it can protect emergent over pressure, especial construction can protect jack. Hydraulic cylinder can bear partial loading is 5% of rated pressure.
High pressure alloy cylinder is very durable, especially in the larger project, it is easily to be operated and control. It can be used for lifting heavy machine, bridge project, hydraulic engineering, harbour construction and other equipment.
It has large output, light weight, remote control and other advantages, it can match with our high pressure oil pump, it can reach jack, push, pull and extrusion and kinds of working.

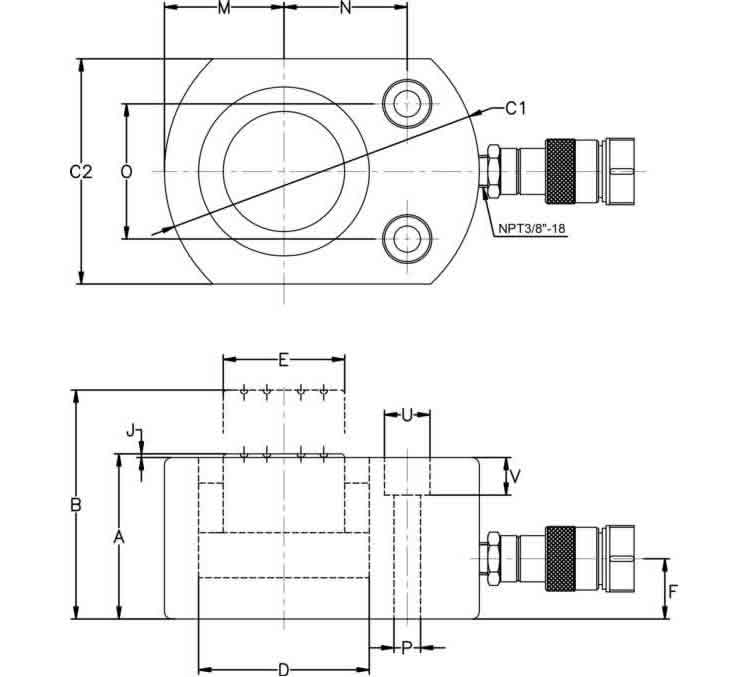

Dimensions
| Cylinder Capacity | Stroke | Model Number | Cylinder Effective Area | Oil Capacity | Collapsed Height | Extended Height | Outside Dia. | Cylinder Bore Dia. | Plunger Dia. | Base to Advance Port | Saddle Protrusion from Plgr. | Plunger to Base | Plunger to Mounting Hole | Weight | Mounting Hole Dimensions | ||||
| Model Number | Bolt Circle | Hole Dia. | Counter Bore Dia. | Counter Bore Depth | |||||||||||||||
| A | B | C1XC2 | D | E | F | J | M | N | O | P | U | V | |||||||
| ton(KN) | (mm) | (cm2) | (cm3) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | (mm) | (mm) | (mm) | (mm) | ||
| 10(101) | 11 | RSM-100 | 15.9 | 18 | 44 | 55 | 83X60 | 45 | 35 | 23 | 1 | 31.5 | 34 | 1.4 | RSM-100 | 36.6 | 7.1 | 10.7 | 7.9 |
| 20(201) | 12 | RSM-200 | 31.1 | 37 | 52 | 64 | 102X80 | 63 | 50 | 23 | 1 | 41 | 39 | 2.2 | RSM-200 | 49.3 | 10 | 15.1 | 9.9 |
| 30(295) | 13 | RSM-300 | 45.3 | 59 | 58 | 71 | 117X97 | 76 | 60 | 23 | 1 | 48.5 | 47 | 4.2 | RSM-300 | 52.3 | 10 | 15.9 | 11.2 |
| 50(549) | 16 | RSM-500 | 78.5 | 125 | 67 | 83 | 150X125 | 100 | 80 | 23 | 1 | 63 | 60 | 7.4 | RSM-500 | 66.5 | 11 | 19 | 12.7 |
| 75(718) | 16 | RSM-750 | 116.8 | 187 | 79 | 96 | 177X152 | 122 | 100 | 21 | 1 | 76.5 | 73 | 12.7 | RSM-750 | 76.2 | 13.5 | 20.6 | 14.2 |
| 100(887) | 16 | RSM-1000 | 153.9 | 246 | 87 | 103 | 203X179 | 140 | 112 | 23 | 1 | 89.5 | 84 | 15.5 | RSM-1000 | 76.2 | 13.5 | 20.6 | 14.2 |
| 150(1386) | 16 | RSM-1500 | 232.2 | 371 | 98 | 114 | 236X212 | 170 | 145 | 25 | 2 | 106 | 92 | 28.7 | RSM-1500 | 117.3 | 13.5 | 20.6 | 14.2 |
Application
Hydraulic cylinder jacks are ideal for safely lifting and holding heavy industrial machinery while maintenance or repairs are conducted.
These jacks help support and position critical structural elements during construction, ensuring proper alignment and safety.
Automotive mechanics use hydraulic cylinder jacks to raise cars and trucks for various repair and maintenance tasks.
Railways use hydraulic cylinder jacks to lift locomotives, allowing access for inspections and maintenance.
Hydraulic cylinder jacks provide the lifting power needed to assemble large structures such as steel frameworks and industrial buildings.
Agricultural equipment can be adjusted to the correct height for various farming tasks using hydraulic cylinder jacks.
Elevator systems require periodic maintenance, and hydraulic cylinder jacks are employed to lift and secure elevator cars for inspection and service.
