HCR8004, 800 ton 8790 KN, 100 mm 3.94 in Stroke, Double Acting High Tonnage Cylinders

5out of5 based on19 reviews | Write a review

Model:HCR8004

Capacity:800 ton | 8790 KN
Stroke:100 mm | 3.94 inches
Weight:796 kg | 1754.7 lbs
Cylinder Effective Area(Advance/Retract):1256 m²/452.2 m²
Oil Capacity(Advance/Retract):12566 cm³/4522 cm³

Return Type:Double-Acting Hydraulic Return

Plunger Type:Solid

Brand Name:Replacement Enerpac's HCR8004
HCR80012, 800 ton 8790 KN, 300 mm 11.81 in Stroke, Double Acting High Tonnage Cylinders HCR8008, 800 ton 8790 KN, 200 mm 7.87 in Stroke, Double Acting High Tonnage Cylinders HCR8004, 800 ton 8790 KN, 100 mm 3.94 in Stroke, Double Acting High Tonnage Cylinders HCR60012, 600 ton 6300 KN, 300 mm 11.81 in Stroke, Double Acting High Tonnage Cylinders HCR6008, 600 ton 6300 KN, 200 mm 7.87 in Stroke, Double Acting High Tonnage Cylinders HCR6004, 600 ton 6300 KN, 100 mm 3.94 in Stroke, Double Acting High Tonnage Cylinders HCR50012, 500 ton 5114 KN, 300 mm 11.81 in Stroke, Double Acting High Tonnage Cylinders HCR5008, 500 ton 5114 KN, 200 mm 7.87 in Stroke, Double Acting High Tonnage Cylinders HCR5004, 500 ton 5114 KN, 100 mm 3.94 in Stroke, Double Acting High Tonnage Cylinders HCR40012, 400 ton 4308 KN, 300 mm 11.81 in Stroke, Double Acting High Tonnage Cylinders HCR4008, 400 ton 4308 KN, 200 mm 7.87 in Stroke, Double Acting High Tonnage Cylinders HCR4004, 400 ton 4308 KN, 100 mm 3.94 in Stroke, Double Acting High Tonnage Cylinders HCR30012, 300 ton 3434 KN, 300 mm 11.81 in Stroke, Double Acting High Tonnage Cylinders HCR3008, 300 ton 3434 KN, 200 mm 7.87 in Stroke, Double Acting High Tonnage Cylinders HCR3004, 300 ton 3434 KN, 100 mm 3.94 in Stroke, Double Acting High Tonnage Cylinders HCR20012, 200 ton 2198 KN, 300 mm 11.81 in Stroke, Double Acting High Tonnage Cylinders HCR2008, 200 ton 2198 KN, 200 mm 7.87 in Stroke, Double Acting High Tonnage Cylinders HCR2006, 200 ton 2198 KN, 150 mm 5.91 in Stroke, Double Acting High Tonnage Cylinders HCR2004, 200 ton 2198 KN, 100 mm 3.94 in Stroke, Double Acting High Tonnage Cylinders HCR15012, 150 ton 1588 KN, 300 mm 11.81 in Stroke, Double Acting High Tonnage Cylinders HCR1508, 150 ton 1588 KN, 200 mm 7.87 in Stroke, Double Acting High Tonnage Cylinders HCR1506, 150 ton 1588 KN, 150 mm 5.91 in Stroke, Double Acting High Tonnage Cylinders HCR1504, 150 ton 1588 KN, 100 mm 3.94 in Stroke, Double Acting High Tonnage Cylinders HCR1502, 150 ton 1588 KN, 50 mm 1.97 in Stroke, Double Acting High Tonnage Cylinders HCR10012, 100 ton 1077 KN, 300 mm 11.81 in Stroke, Double Acting High Tonnage Cylinders HCR1008, 100 ton 1077 KN, 200 mm 7.87 in Stroke, Double Acting High Tonnage Cylinders HCR1006, 100 ton 1077 KN, 150 mm 5.91 in Stroke, Double Acting High Tonnage Cylinders HCR1004, 100 ton 1077 KN, 100 mm 3.94 in Stroke, Double Acting High Tonnage Cylinders HCR1002, 100 ton 1077 KN, 50 mm 1.97 in Stroke, Double Acting High Tonnage Cylinders HCR5012, 50 ton 550 KN, 300 mm 11.81 in Stroke, Double Acting High Tonnage Cylinders HCR508, 50 ton 550 KN, 200 mm 7.87 in Stroke, Double Acting High Tonnage Cylinders HCR506, 50 ton 550 KN, 150 mm 5.91 in Stroke, Double Acting High Tonnage Cylinders HCR504, 50 ton 550 KN, 100 mm 3.94 in Stroke, Double Acting High Tonnage Cylinders HCR502, 50 ton 550 KN, 50 mm 1.97 in Stroke, Double Acting High Tonnage Cylinders HCR Series Double-Acting High Tonnage Cylinders Lift Jack

PDF DOWNLOAD

Description

Model:HCR8004

Product Line: Industrial Tools

Type: Hydraulic Cylinder Ram, Hydraulic Jacks

Customizable with special requirement

- Double Acting, for positive retraction.

- Hard chrome plated high-quality steel plungers.

- Plunger wiper reduces contamination, extending cylinder life.

- The exclusive guide Ring is designed to absorb eccentric loading without galling cylinder parts, reducing wear and extending life.

- Built-in safety valve prevents accidental over-pressurization.

- Special painted surface to increase corrosion resistance.

- Easy fixturing with base mounting holes.

- All models include quick couplings (NPT3/8"-18) and dust-proof caps.

- Removable hardened saddles protect the plunger during lifting and pressing.

- Flow control one-way check valve (optional)

- To prevent the hydraulic cylinder from retracting in an instant and realize jacking at any position, a flow control one-way check valve can be selected to realize self-locking.

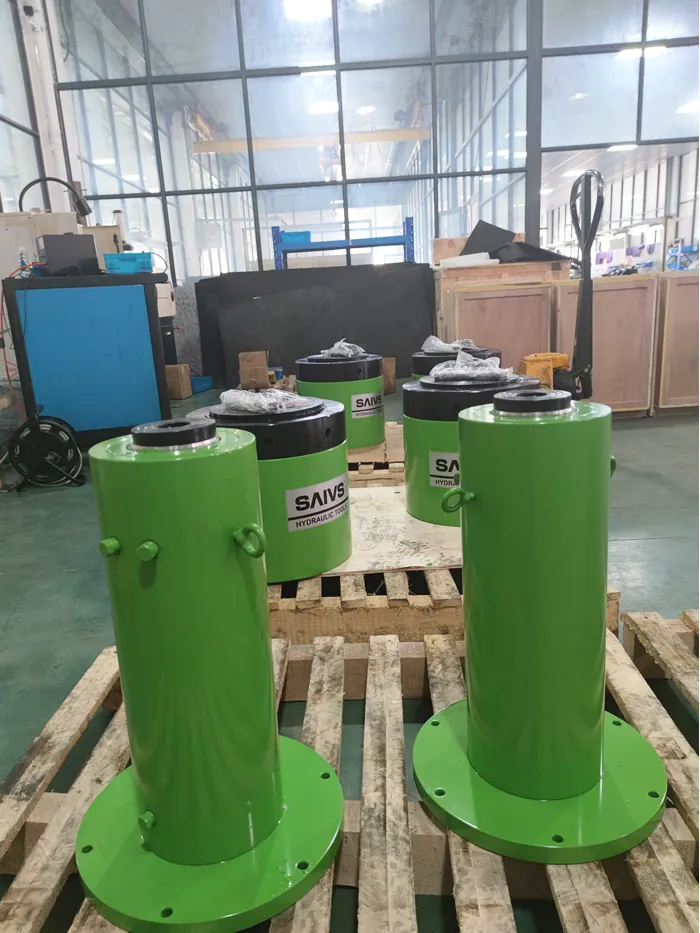

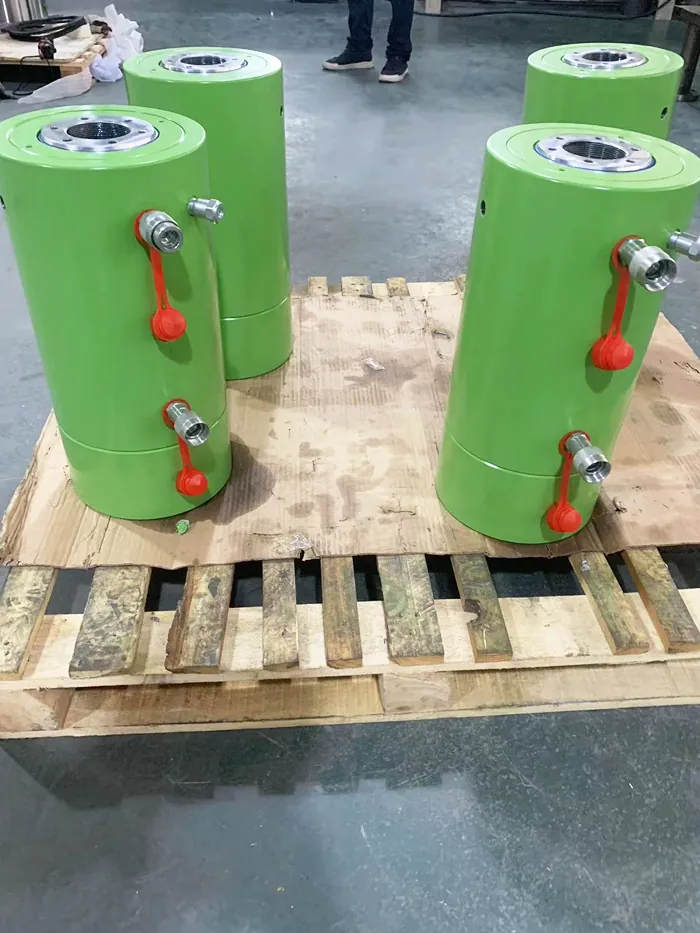

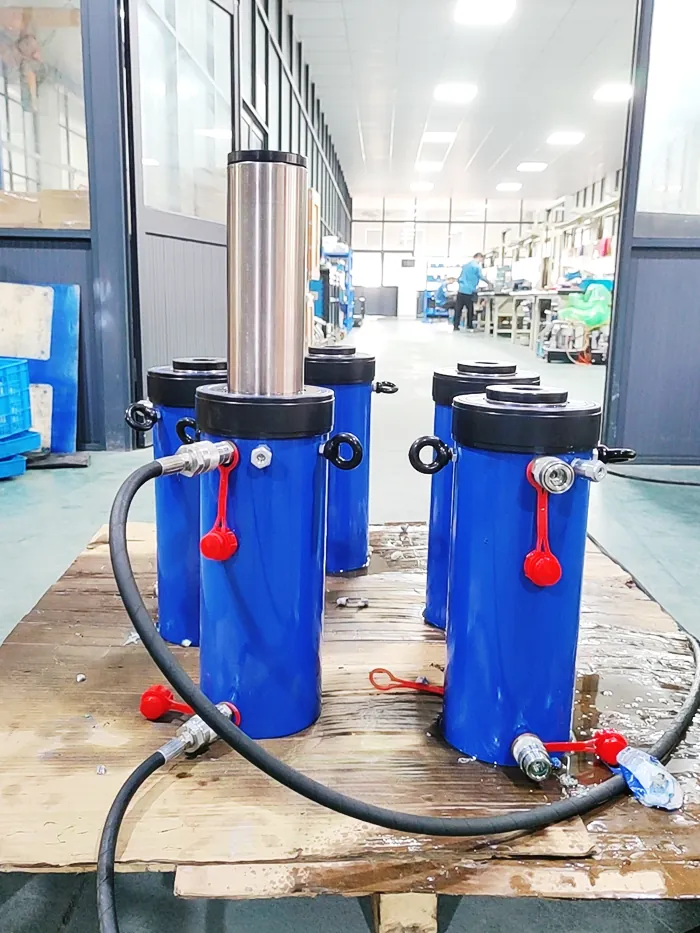

Image Gallery

HCR8004, 800 ton 8790 KN, 100 mm 3.94 in Stroke, Double Acting High Tonnage Cylinders 1 Image-Axion

HCR8004, 800 ton 8790 KN, 100 mm 3.94 in Stroke, Double Acting High Tonnage Cylinders 2 Image-Axion

HCR8004, 800 ton 8790 KN, 100 mm 3.94 in Stroke, Double Acting High Tonnage Cylinders 3 Image-Axion

HCR8004, 800 ton 8790 KN, 100 mm 3.94 in Stroke, Double Acting High Tonnage Cylinders 4 Image-Axion

Dimensions

Collapsed Height	A	(mm)	477
Extended Height	B	(mm)	577
Outside Dia.	C	(mm)	550
Cylinder Bore Dia	D	(mm)	400
Plunger Dia.	E	(mm)	320
Base to Advance Port	F	(mm)	113
Top to Return Port	G	(mm)	113
Saddle Dia.	H	(mm)	320
Saddle Protrusion from Plgr.	J	(mm)	57

Series Comparison

Cylinder Capacity	Stroke	Model Number	Max.Cylinder Capacity		Cylinder Effective Area		Oil Capacity		Collapsed Height	Extended Height	Outside Dia.	Cylinder Bore Dia	Plunger Dia.	Base to Advance Port	Top to Return Port	Saddle Dia.	Saddle Protrusion from Plgr.	Mounting Hole Dimensions			Weight
Cylinder Capacity	Stroke		Max.Cylinder Capacity		Cylinder Effective Area		Oil Capacity		Collapsed Height	Extended Height	Outside Dia.	Cylinder Bore Dia	Plunger Dia.	Base to Advance Port	Top to Return Port	Saddle Dia.	Saddle Protrusion from Plgr.	Bolt Circle	Thread	Thread Depth	Weight
			Advance	Retract	Advance	Retract	Advance	Retract	A	B	C	D	E	F	G	H	J	O	P	W
ton	(mm)		(KN)		(cm2)		(cm3)		(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)		(mm)	(kg)
50	50	HCR-502	550	255	78.5	40	392	200	188	238	140	100	70	41	41	70	24	70	4-M16	13	21.5
	100	HCR-504	550	255	78.5	40	784	400	238	338	140	100	70	41	41	70	24	70	4-M16	13	26
	150	HCR-506	550	255	78.5	40	1176	600	288	438	140	100	70	41	41	70	24	70	4-M16	13	31
	200	HCR-508	550	255	78.5	40	1568	800	338	538	140	100	70	41	41	70	24	70	4-M16	13	35
	300	HCR-5012	550	255	78.5	40	2352	1200	438	738	140	100	70	41	41	70	24	70	4-M16	13	44
100	50	HCR-1002	1077	490	153.9	75.4	770	377	216	266	188	140	100	54	54	100	24	100	4-M20	16	42
	100	HCR-1004	1077	490	153.9	75.4	1540	754	266	366	188	140	100	54	54	100	24	100	4-M20	16	49
	150	HCR-1006	1077	490	153.9	75.4	2310	1131	316	466	188	140	100	54	54	100	24	100	4-M20	16	56
	200	HCR-1008	1077	490	153.9	75.4	3080	1508	366	566	188	140	100	54	54	100	24	100	4-M20	16	63
	300	HCR-10012	1077	490	153.9	75.4	4620	2262	466	766	188	140	100	54	54	100	24	100	4-M20	16	70
150	50	HCR-1502	1588	797	226.9	113.8	1134	565	226	276	228	170	120	58	58	120	24	130	4-M20	16	66
	100	HCR-1504	1588	797	226.9	113.8	2269	1130	276	376	228	170	120	58	58	120	24	130	4-M20	16	78
	150	HCR-1506	1588	797	226.9	113.8	3403	1696	326	476	228	170	120	58	58	120	24	130	4-M20	16	90
	200	HCR-1508	1588	797	226.9	113.8	4538	2260	376	576	228	170	120	58	58	120	24	130	4-M20	16	102
	300	HCR-15012	1588	797	226.9	113.8	6806	3390	476	776	228	170	120	58	58	120	24	130	4-M20	16	126
200	100	HCR-2004	2198	875	314	137.4	3141	1374	296	396	268	200	150	64	68	150	29	160	4-M24	24	109
	150	HCR-2006	2198	875	314	137.4	4712	2061	346	496	268	200	150	64	68	150	29	160	4-M24	24	121
	200	HCR-2008	2198	875	314	137.4	6282	2748	396	596	268	200	150	64	68	150	29	160	4-M24	24	132
	300	HCR-20012	2198	875	314	137.4	9423	4122	496	796	268	200	150	64	68	150	29	160	4-M24	24	155
300	100	HCR-3004	3434	1654	490.6	236.3	4906	2363	327	427	320	250	180	74	76	180	35	220	4-M24	24	180
	200	HCR-3008	3434	1654	490.6	236.3	9812	4726	427	627	320	250	180	74	76	180	35	220	4-M24	24	220
	300	HCR-30012	3434	1654	490.6	236.3	14718	7089	527	827	320	250	180	74	76	180	35	220	4-M24	24	260
400	100	HCR-4004	4308	1649	615.4	235.5	6154	2355	355	455	370	280	210	83	83	210	35	240	4-M24	24	255
	200	HCR-4008	4308	1649	615.4	235.5	12308	4710	455	655	370	280	210	83	83	210	35	240	4-M24	24	310
	300	HCR-40012	4308	1649	615.4	235.5	18462	7065	555	855	370	280	210	83	83	210	35	240	4-M24	24	375
500	100	HCR-5004	5114	1948	803.8	313.2	8038	3133	375	475	420	320	250	93	93	246	35	280	4-M24	24	326
	200	HCR-5008	5114	1948	803.8	313.2	16076	6266	475	675	420	320	250	93	93	246	35	280	4-M24	24	394
	300	HCR-50012	5114	1948	803.8	313.2	24114	9399	575	875	420	320	250	93	93	246	35	280	4-M24	24	462
600	100	HCR-6004	6300	2488	1017.4	401.9	10174	4019	436	536	500	360	280	113	115	280	40	300	4-M24	24	542
	200	HCR-6008	6300	2488	1017.4	401.9	20348	8038	536	736	500	360	280	113	115	280	40	300	4-M24	24	634
	300	HCR-60012	6300	2488	1017.4	401.9	30522	12057	636	936	500	360	280	113	115	280	40	300	4-M24	24	726
800	100	HCR-8004	8790	2880	1256	452.2	12566	4522	477	577	550	400	320	113	113	320	57	380	4-M24	24	796
	200	HCR-8008	8790	2880	1256	452.2	25132	9044	577	777	550	400	320	113	113	320	57	380	4-M24	24	944
	300	HCR-80012	8790	2880	1256	452.2	37698	13566	677	977	550	400	320	113	113	320	57	380	4-M24	24	1092

Application

Automotive mechanics use hydraulic cylinder jacks to raise cars and trucks for various repair and maintenance tasks.

Hydraulic cylinder jacksaid in lifting and positioning heavy materials and equipment within manufacturing facilities.

Industries often rely on Hydraulic cylinder jacksto align and adjust heavy machinery, ensuring precision and efficiency.

Hydraulic cylinder jackshelp lift vessels out of the water or provide support for hull maintenance and repairs.

Wind turbines require periodic maintenance, and hydraulic cylinder jacksenable technicians to reach and service these towering structures.

Hydraulic cylinder jacksare used to support and level drilling rigs during setup and maintenance in the oil and gas industry.

Hydraulic cylinder jacksaid in positioning molds and dies in manufacturing processes, ensuring accurate product production.
