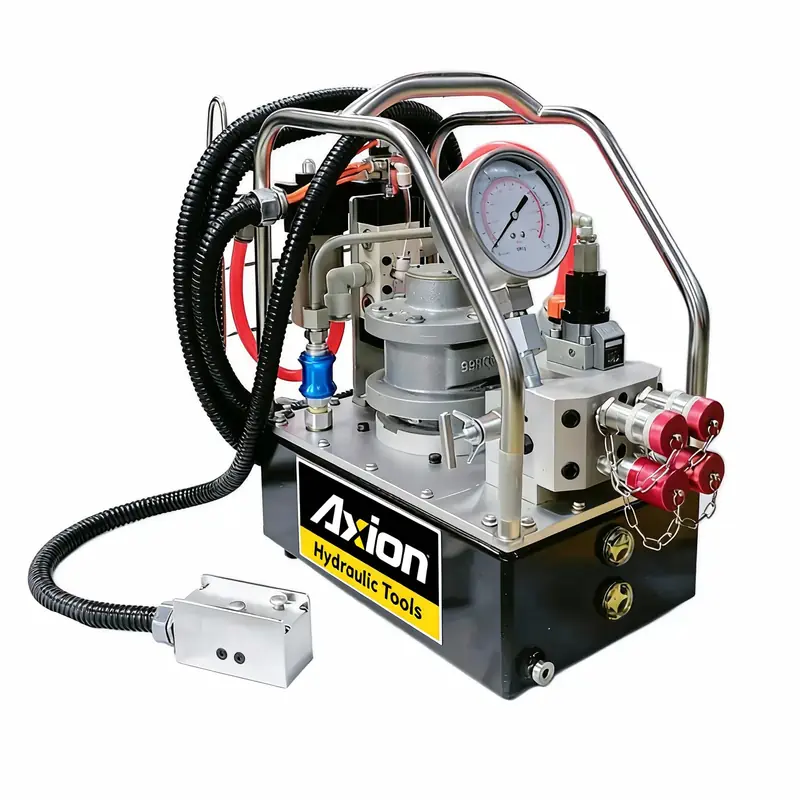

AWA3000 Series Air Driven Hydraulic Torque Wrench Pump
-
Reservoir Capacity: 5 L
Flow at Rated Pressure: 1.1 L / min
Motor Power: 3 KW
Max. Operating Pressure:
40-700 bar / 580psi -10000psi
Input Air pressure range 4-8 bar
Weight: 22 KG
Available input voltage: 115V, 230V, 380V, 415V, 440V.
Available frequence: 50Hz / 60Hz
Country of Origin:China
Minimum Order:1Piece
SKU:AXT-102-00297
Description
Product Line: Industrial Tools
Customizable with special requirement
Three speed operation reduces cycle time for higher productivity and efficiency.
Default options with the manifold for simultaneous operation of 2 Torque wrenches.
Super power-to-weight ratio, 22kg, great ease in carrying.
Output pressure range within 40-700 bar.
Excellent Built-in cooling system increase the reliability of the longtime running of the pump in harsh industrial environment.
Durable aluminum oil tank for excellent heat dissipation, rustproof, easy handling.
No electric control system for explosion-proof.
Dimensions
| Model No. | Oil Flow (L/min) | Pressure (bar) | Power | Oil Capacity | Air Pressure Range | Weight | Dimensions | ||||
| High Pressure | Middle Pressure | Low Pressure | High Pressure | Middle Pressure | Low Pressure | kw | L | bar | kg | L x W x H(mm) | |
| AWA3000 | 1.1 | 2.2 | 9.0 | 700 | 300 | 70 | 3 | 5 | 4-8 | 22 | 490*229*500 |
