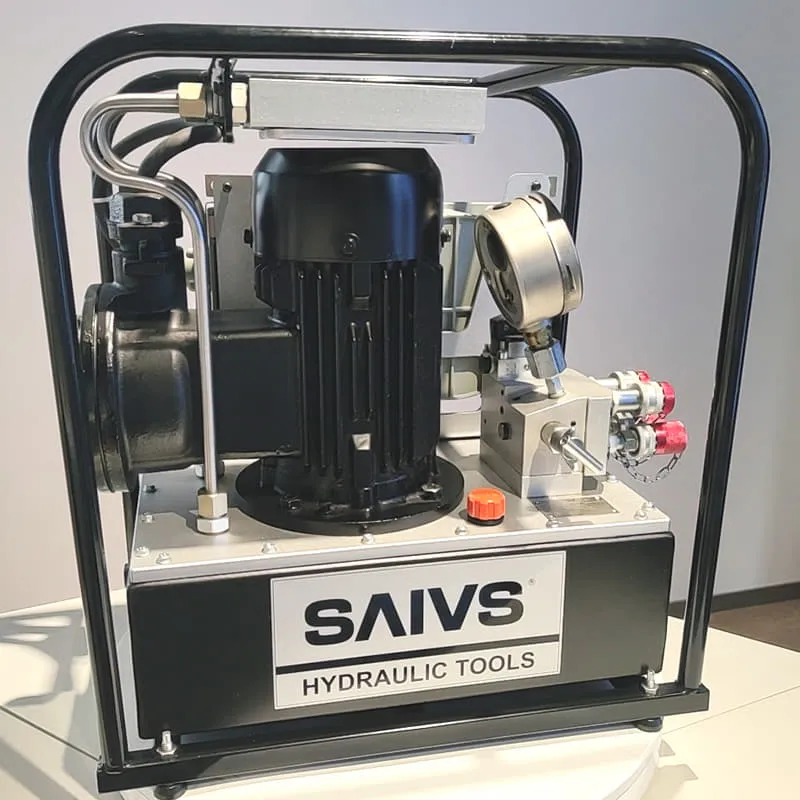

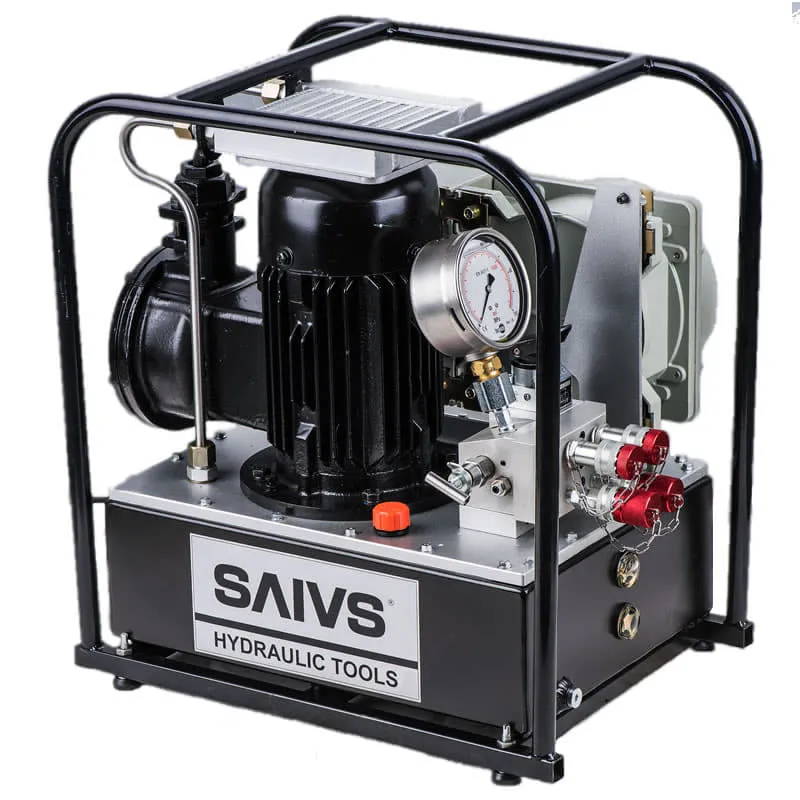

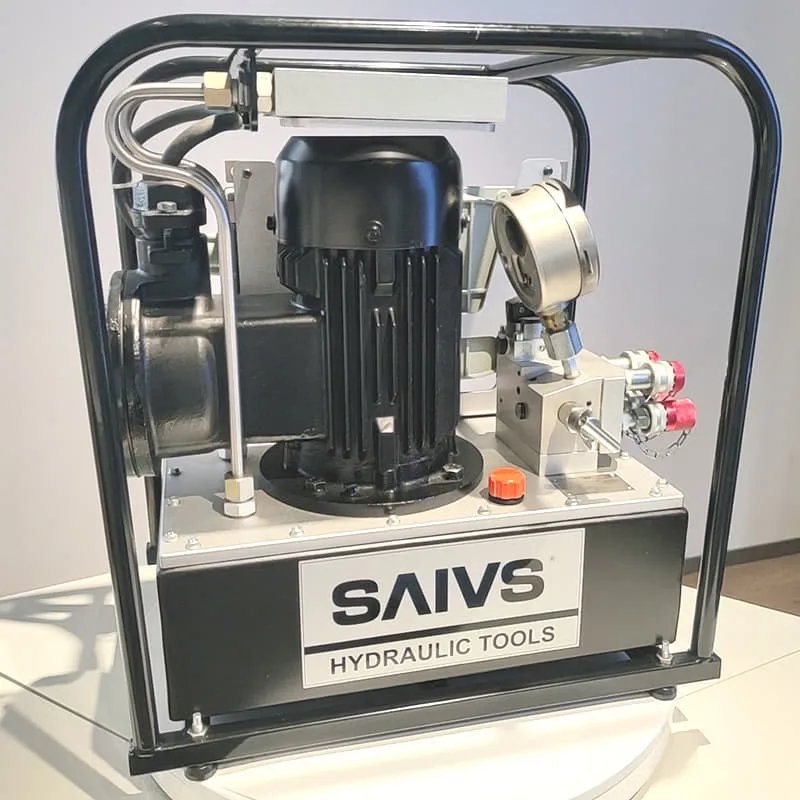

Anti - Explosion Electric Hydraulic Torque Wrench Pumps
-
Reservoir Capacity: 14L
Flow at Rated Pressure: 0.85 L / min
Motor Size: 1.1 KW
Max. Operating Pressure: 700 bar/10000psi
Weight: 50 KG
Available input voltage: 115V, 230V, 380V, 415V, 440V.
Available frequence: 50Hz / 60Hz
Country of Origin:China
Minimum Order:1Piece
Description
Product Line: Industrial Tools
Customizable with special requirement
Featuring high-efficiency pump design with 50% higher speed and efficiency than comparable pumps
Hand-directional valve provides additional safety for the operator
Three-phase motor of EXDIICT4 provides operation safety , large output torque , low noise, production efficiency.
Built-in Electronic control system with EXDIICT4 anti-explosion magnetic trigger.
Large aluminium oil tank featuring with excellent cooling system, providing for longer continuous working hours.
Advanced pressure control valve fits through long time continuous operation and provides stable pressure.
Special design with the capability of starting at any time with pressure .
Optimized cooling system keeps pump cool under extreme use.Ordering Example:
Model: SFBP43805
Represents SFBP400 series explosion-proof electric hydraulic wrench pump with input power 380V/50HZ.
Select Axion high quality twin hoses. For details, please refer to the product category "Hydraulic Components".
Dimensions
| Model No. | Product Name | Oil Flow (L/min) | Pressure (MPa) | Power (KW) | Oil Capacity (L) | Input Power | Weight (kg) | Dimensions (mm) | ||||
| High Pressure | Middle Pressure | Low Pressure | High Pressure | Middle Pressure | Low Pressure | |||||||
| SFBP400 | Anti-Explosion Electric Hydraulic torque wrench pump | 0.85 | 1.7 | 8.0 | 70 | 30 | 7 | 1.1 | 14 | 3Ph 200V-575V / 50HZ/60HZ | 50 | 490*350*495 |
FAQs
Question 1: What is an Anti-Explosion Electric Hydraulic Torque Wrench Pump?
Answer: An Anti-Explosion Electric Hydraulic Torque Wrench Pump is a specialized tool used in heavy-duty industrial applications for tightening or loosening bolts and nuts with high torque requirements. It is designed with safety features to prevent explosions in potentially hazardous work environments.
Question 2: How does an Anti-Explosion Electric Hydraulic Torque Wrench Pump work?
Answer: An Anti-Explosion Electric Hydraulic Torque Wrench Pump operates by converting electrical energy into hydraulic pressure, which is then used to drive a hydraulic torque wrench. The pump is designed to be explosion-proof, ensuring safe operation in potentially hazardous environments.
Question 3: Where can I find a reliable factory that manufactures Anti-Explosion Electric Hydraulic Torque Wrench Pumps?
