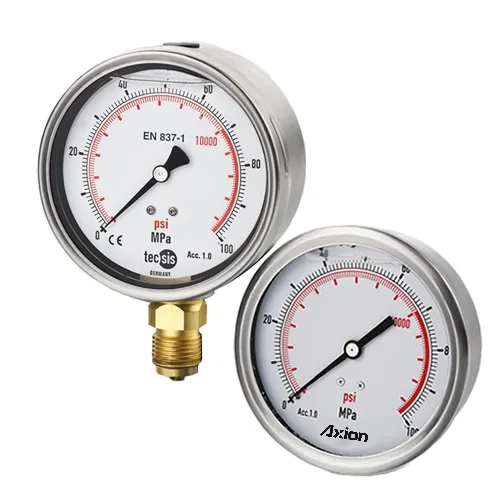

GF Series Hydraulic Pressure Gauge
-
Pressure Range: 0-1600bar/23000psi
Face Diameter: 63-100mm
Accuracy of full scale: ±1.0-2.0%
Calibrated for dual scale reading in PSI and MPa.
All pressure sensing parts are sealed and dampended by glycerine for long life.
Fast,easy installation.
Stainless steel gauge cases for corrosion resistance
SKU:AXT-74-00393
Description
Product Line: Industrial Tools
Customizable with special requirement
Pressure Range: 0-1600bar/23000psi
Face Diameter: 63-100mm
Accuracy of full scale: ±1.0-2.0%
Calibrated for dual scale reading in PSI and MPa.
All pressure sensing parts are sealed and dampended by glycerine for long life.
Fast,easy installation.
Stainless steel gauge cases for corrosion resistance
Applications: Adverse service conditions where pulsation or vibration exists
Pressure connection: One piece sealing design
Wetted parts: Copper alloy
Case material: Stainless Steel, crimped ring
Window: Polycarbonate or toughened glass
IP class: IP 65
Options/notes: Lower, back entry

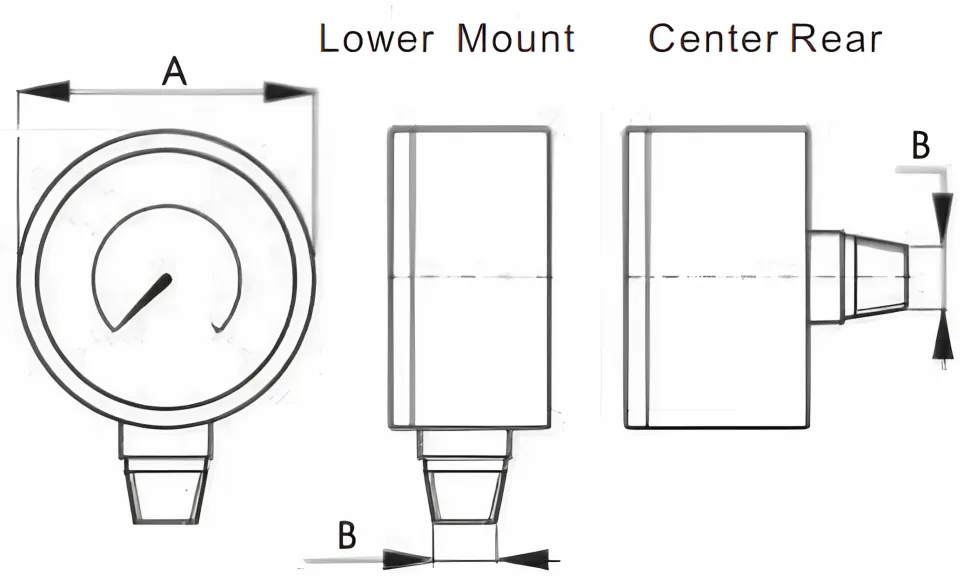

| Model Number | Pressure Range | Dimensions (mm) | |||
|---|---|---|---|---|---|
| MPa | psi | Face Diameter (A) | Thread (B) | Connection | |
| GF-63-70MPa | 0-70 | 0-10000 | 63 | NPT1/4" | Lower Mount |
| GF-100-100MPa | 0-100 | 0-15000 | 100 | G1/2", M20X1.5 | Lower Mount |
| GF-100Z-100MPa | 0-100 | 0-15000 | 100 | G1/2" | Center Rear |
| GF-100-160MPa | 0-160 | 0-23000 | 100 | G1/2" | Lower Mount |
