AP4 Series Portable Air Hydraulic Pumps
-
Reservoir Capacity: 4L
Flow at Rate Pressure: 0.4 L/min
Motor Size: 1.5KW
Maximun Operating Pressure: 700bar 10000psi
Air Pressure Range:3-8 bar
Weight: 17 KG
Minimum Order:1Piece
Manufacturer:Axion
Country of Origin:China
Applications:Suitable for nut splitters, flange spreaders,
single and double acting small
hydraulic cylinders and other hydraulic tools.
SKU:AXT-123-00286
- APA Series Foot Air Hydraulic Pumps
Description
Product Line: Industrial Tools
Customizable with special requirement
Two speed operation reduces cycle time for higher productivity and efficiency.
Double overloading protection, built-in safety valve to prevent overloading, externally adjustable relief valve allows control of operating pressure.
Different control valves fit special working requirement.
Durable aluminum oil tank for excellent heat dissipation, rustproof, easy handling and also with a liquid leveling meter for rapid and convenient monitoring.
Equipped with manual switch to be more safe and reliable.
Light weight and portable design provides a high power-to-weight ratio.
Valve Select:
HM43: 4/3 valve, for double acting cylinder
HM32: 3/2 vale, for single acting cylinder
HM33: 3/3 vale, for single acting cylinder
Applications: Suitable for nut splitters, flange spreaders, single and double acting small hydraulic cylinders and other hydraulic tools.

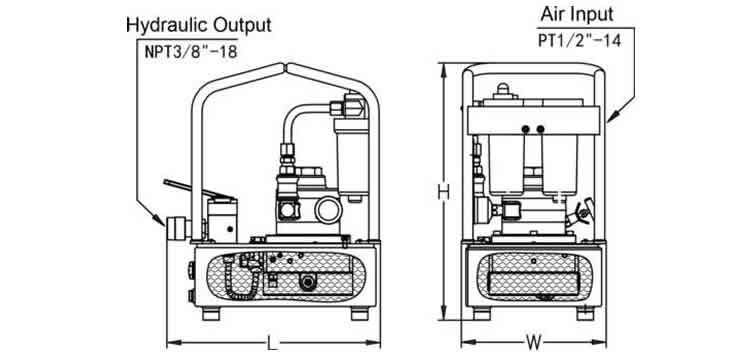

Dimensions
| Model Number | Oil Flow (L/min) | Pressure (bar) | Power | Usable Oil Capacity | Air Pressure Range | Weight | Dimensions | ||
| High Pressure | Low Pressure | High Pressure | Low Pressure | kw | L | bar | kg | L x W x H(mm) | |
| AP4 | 0.4 | 4 | 700 | 40 | 1.5 | 4 | 3-8 | 17 | 342*210*395 |
